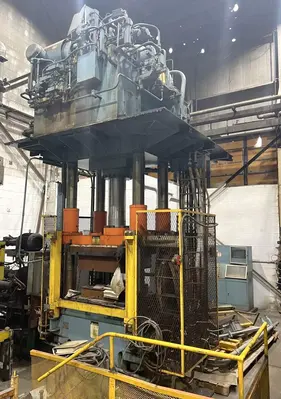

USED 1996 SCHULER SCHULER 4C 200T PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
SCHULER
Model:
SCHULER 4C 200T PRESS
Year:
1996
Stock #:
5156
Description

48" Stroke, 55" Daylight, 38" x 36" Bed Area, Steam Heated Platens (Sold As-Is), Updated AB 5/03 PLC Controls

Specifications
Dimensions102" X 72" (RL X FB) X 204" HIGH102" X 72" (RL X FB) X 204" HIGH
Weightapprox. 50,000 lbs.approx. 50,000 lbs.

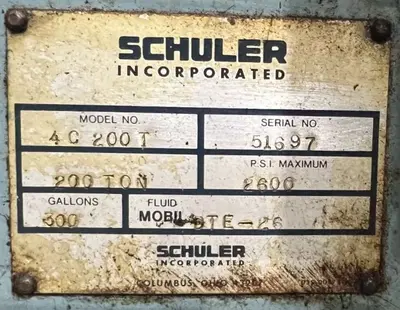

capacity: 200 ton @ 2600 psi
max. stroke: approx. 48" - down acting
max. daylight to bed: approx. 55"
overall Bed & Ram: 54" x 36" (RL X FB)
distance between posts: 38" x 20" (RL X FB)

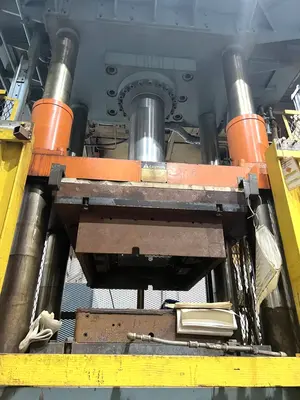

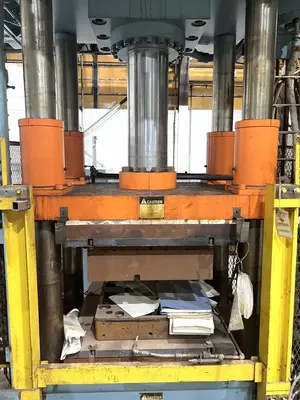

usable bed & ram area: 38" x 36" (RL X FB)
HEATED PLATENS: 36" X 36" STEAM HEATED PLATENS SOLD AS-IS
approx. speeds (IPM - INCHES / MINUTE): approx. 375 ADVANCE / 30 PRESSING / 390 RETURN
main cylinder size: 14" dia. bore
RAM ROD: 10" DIA.
post size: 6" dia.

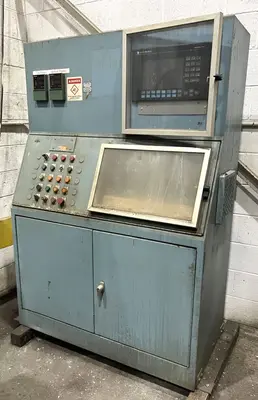

PRESS CONTROLS: allen-bradley 5/03 Plc CONTROLLER | AB PANELVIEW 900 TOUCHSCREEN

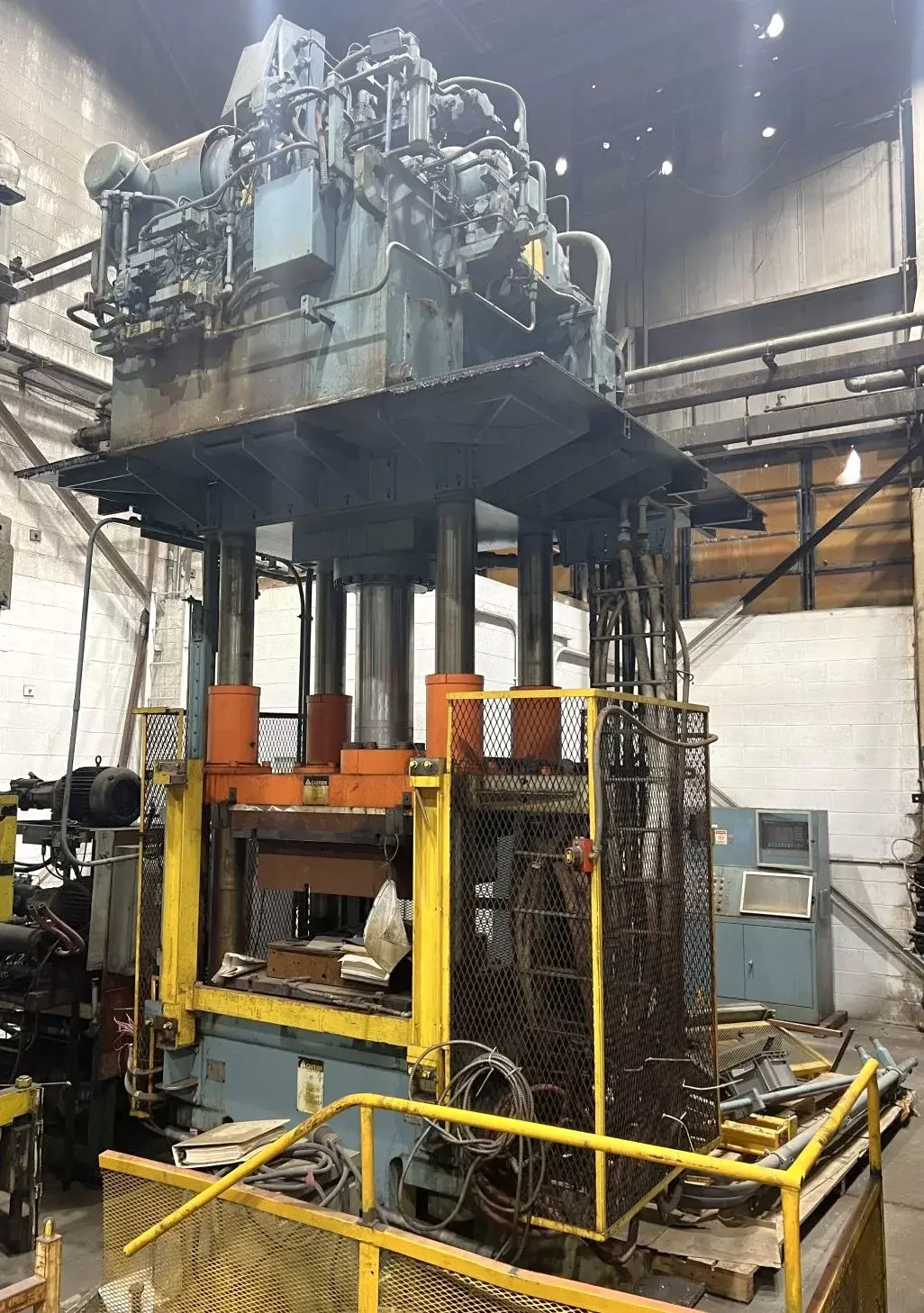

hydraulics: Vickers #50v109a vane pump, oilgear #pvw60-qlfv piston pump

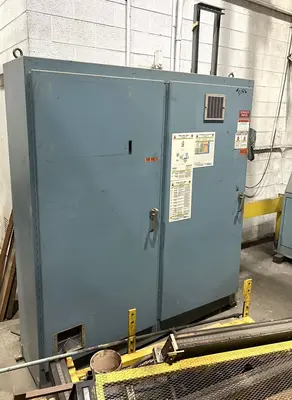

electrics: 20 hp & 30 Hp motors
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building

Equipped With

transfer cylinder in the bed, 12" STROKE, 5" Dia.
