Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:

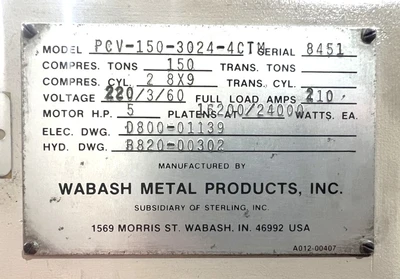

WABASH PCV-150-3024-4CTM PRESS
Stock #:
8356
Description

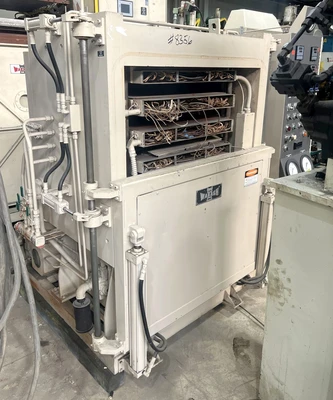

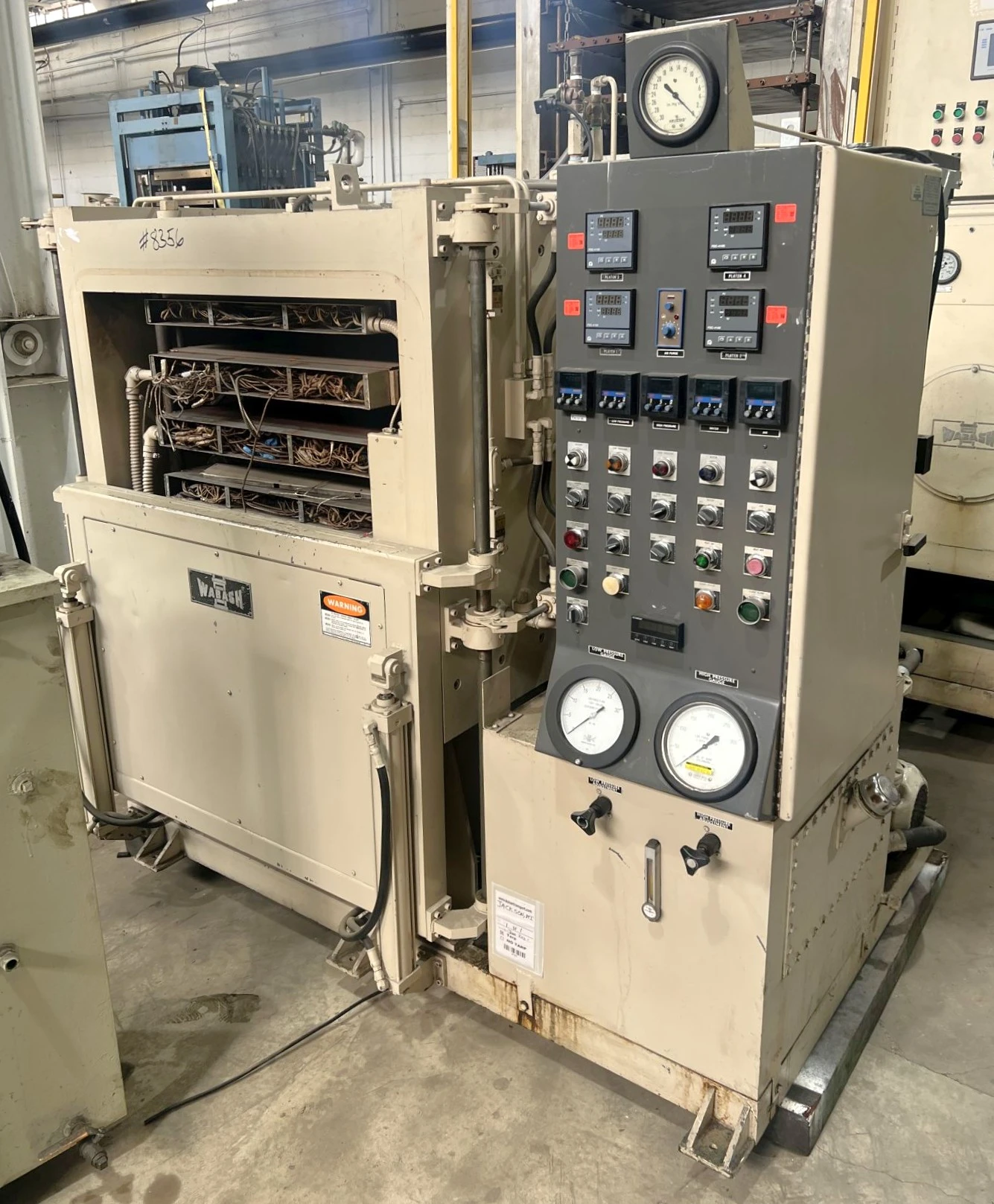

9" Stroke, 22" Daylight (9" Between Platens), 220V, 3 Openings, 30" x 24" Heated / Chilled Platens, Fan Cooled System, Vacuum Chamber

Specifications
Dimensions97" X 78" (RL X FB) X 90" HIGH97" X 78" (RL X FB) X 90" HIGH

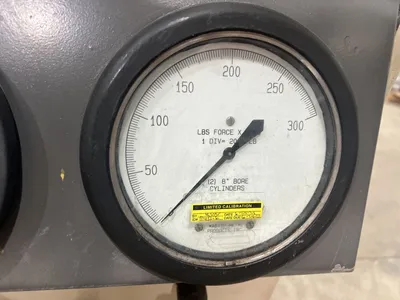

MAX. CAPACITY: 150 TONS AT 3,000 PSI
MAX. STROKE: 9"
MAX. DAYLIGHT: 22" total - 9" between each platen (CAN BE REMOVED IF DESIRED)
OVERALL BED & RAM AREA: 36" x 24" (rl x fB)
DISTANCE BETWEEN POSTS: 32" right to left
USABLE BED AREA: 32" x 24" (rl x fb)

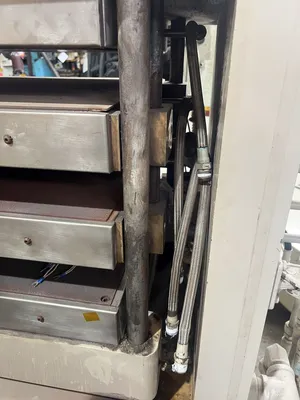

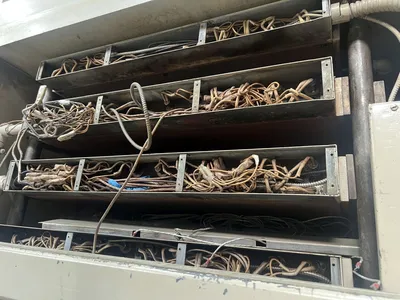

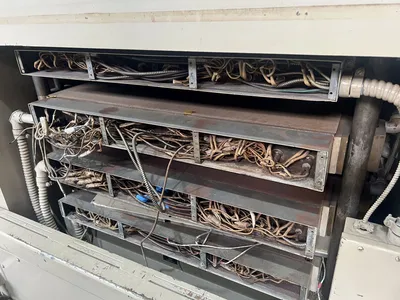

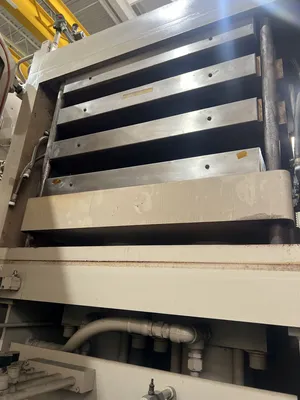

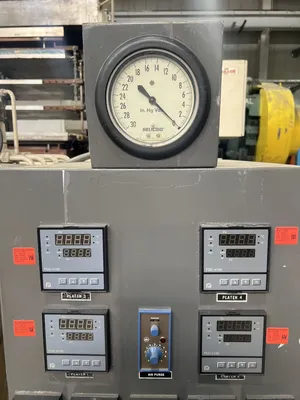

ELECTRICAL HEATED PLATENS: 30" x 24" (rl x fb) x 3.25" thick - 16,200 / 24,000 watts each
CYLINDER SIZE: (2) 8" dia. bore
RAM ROD SIZE: (2) 3" dia.
POSTS / 4 COLUMN SIZE: 1.5" dia.
FLOOR TO BED HEIGHT: 40"

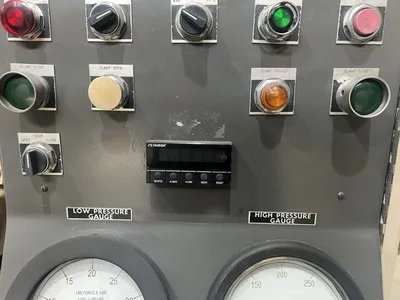

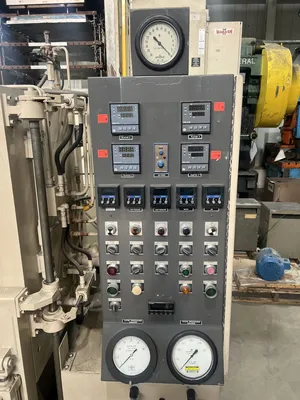

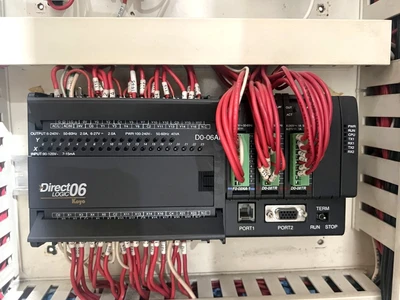

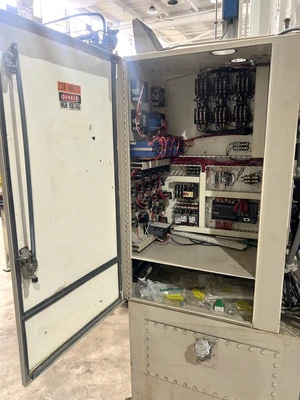

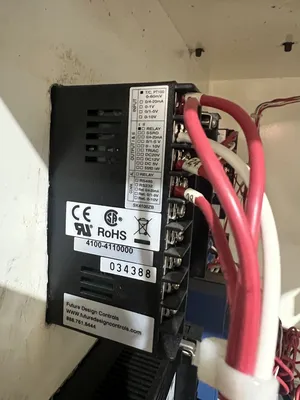

PRESS CONTROLS: koyo direct logic 06 plc controller

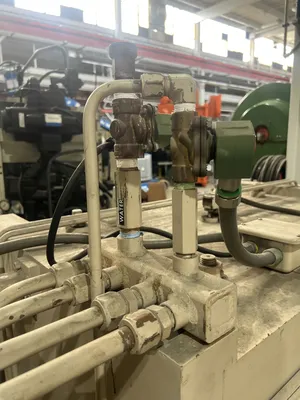

HYDRAULIC SYSTEM / UNIT: __

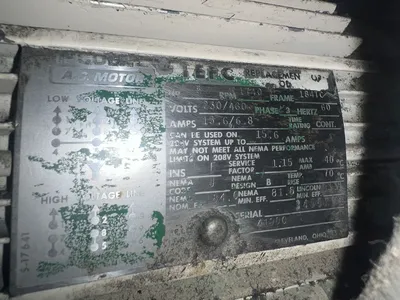

ELECTRIC MOTOR: (2) 5 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 13.6 / 6.8 AMPS - PLUS VACUUM MOTOR
ELECTRICAL NOTES: FULL LOAD AMPS 210 - SET FOR 220V
Note: PRESS WAS UPDATED IN 2015 BY AN HYDRAULIC REPAIR COMPANY
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

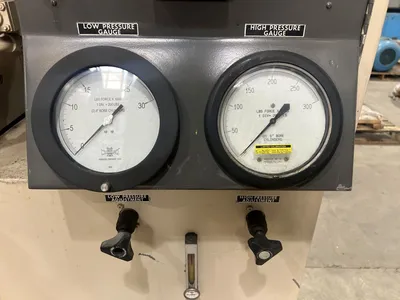

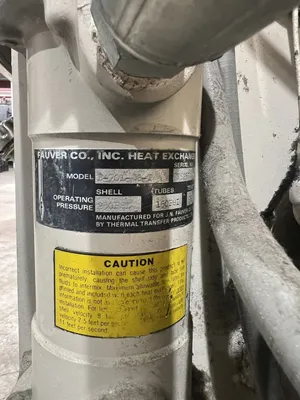

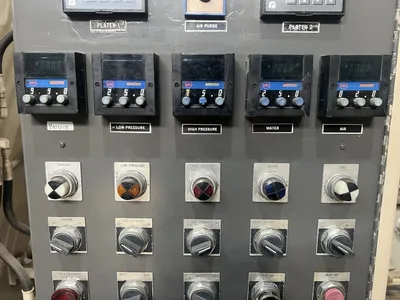

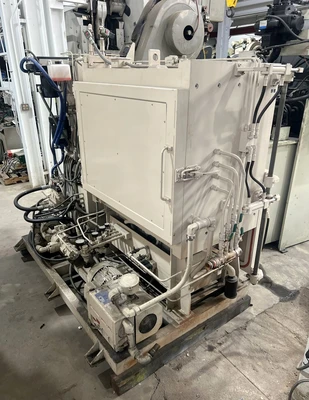

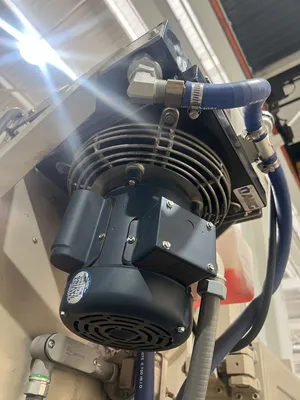

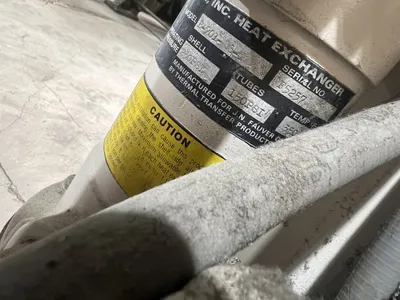

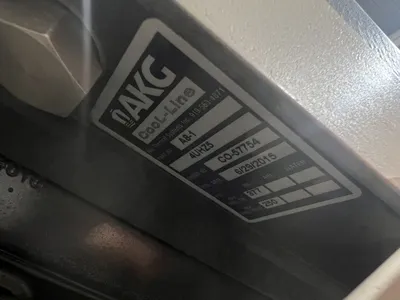

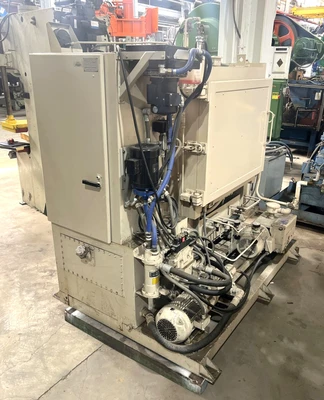

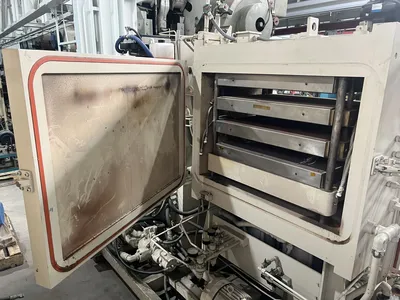

HIGH PRESSURE / LOW PRESSURE FINE TUNE ADJUSTMENTS, CHILLED PLATENS, HYDRAULIC UNIT COOLING WITH B-701-08-2 THERMAL TRANSFER PRODUCTS HEAT EXCHANGER AND AKG COOL-LINE A8-1 FAN COOLED SYSTEM, VACUUM CHAMBER WITH PUMP
