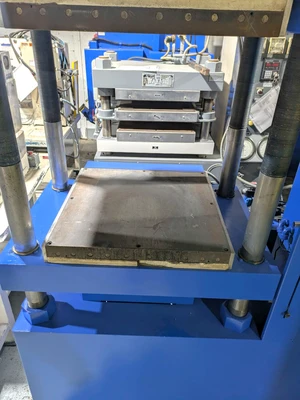

USED 1994 WABASH WABASH V150H-24-X PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

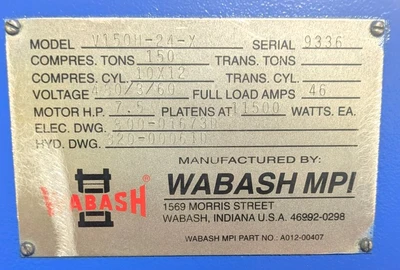

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH V150H-24-X PRESS
Year:
1994
Stock #:
8066
Description

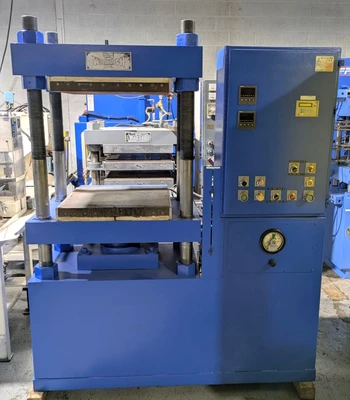

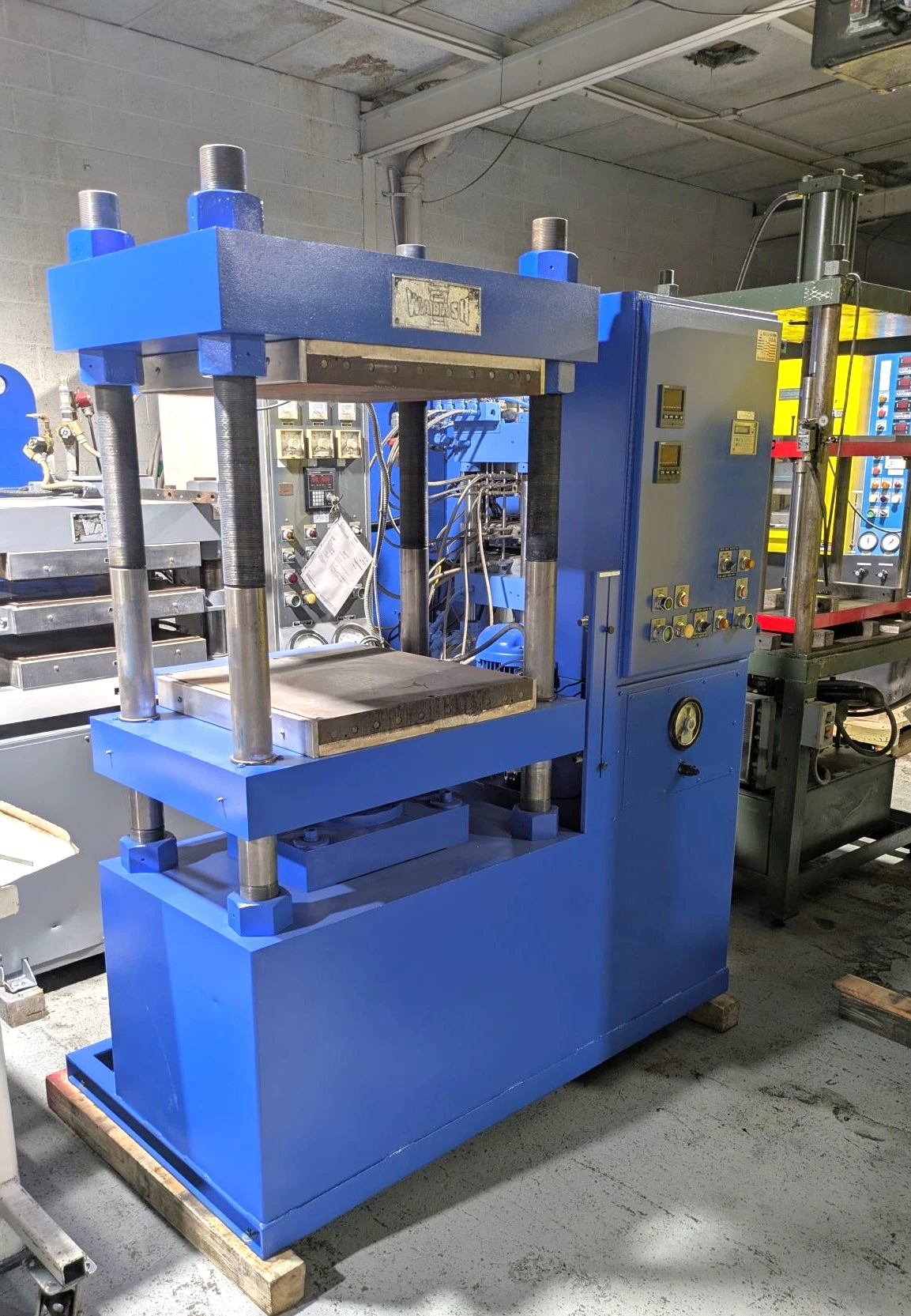

12" Stroke, 33" Daylight, 24" x 24" Heated Platens, Square D Micro1 PLC Controls

Specifications
Dimensions70" x 42" (RL x FB) X 82" High70" x 42" (RL x FB) X 82" High
Weight7,900 lbs7,900 lbs

CAPACITY: 150 tons @ 3820 PSI
MAX. STROKE: 12" Up Acting stroke
MAX. DAYLIGHT: 33" (Adjustable to 16.5")
OVERALL BED & RAM AREA: 38" x 25" (RL x FB)
DISTANCE BETWEEN POSTS: 29" x 15" (RL x FB)
USABLE BED AREA: 29" x 25" (RL x FB)

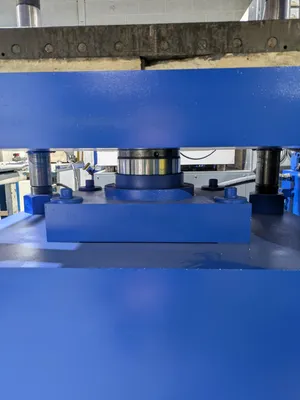

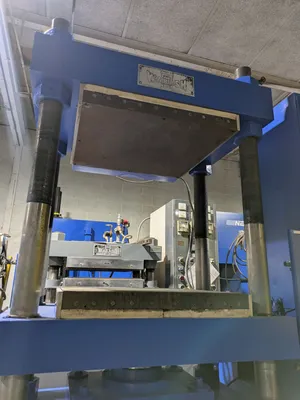

HEATED PLATEN SIZE: 24" x 24" Square 2.75" Thick 11,500 Watts Each / (10) CARTRIDGE HEATERS (APPROX. 550 DEG F)

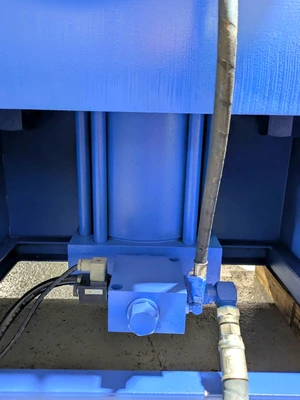

CYLINDER SIZE: 10" Dia. Bore
Ram Rod Dia: 7" Dia
4 Post Size: 3.5" dia
Floor to Bed: 40" Minimum

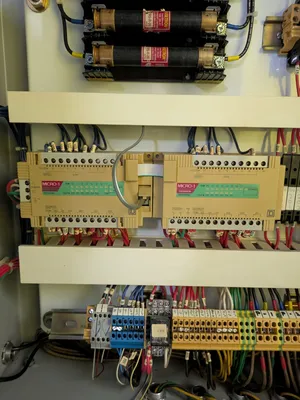

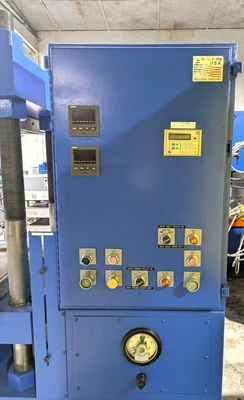

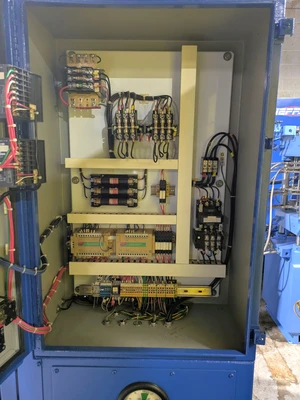

PRESS CONTROLS: Square D Micro1 PLC with Expansion Card

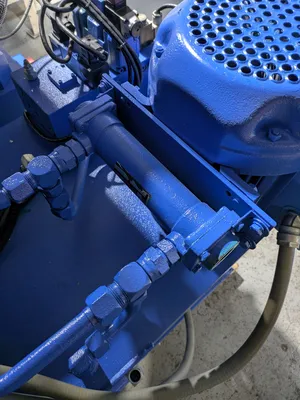

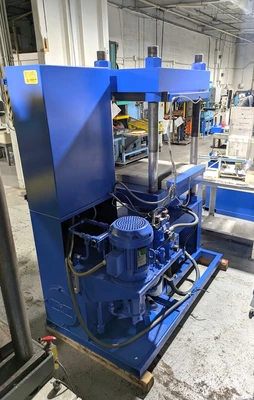

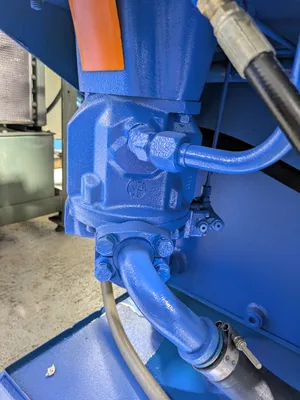

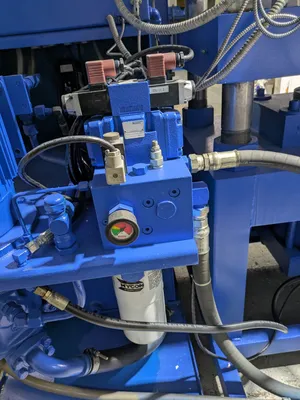

HYDRAULICS: REXROTH AA10VS045 HYDRAULIC PUMP, 20 GALLONS PER MINUTE

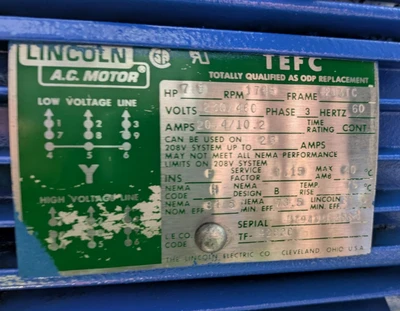

ELECTRIC Motor: Lincoln 7.5 HP 1745 RPM 230/460V 20.4/10.2A 60HZ
Full Electric Load: 46 Amps (motor + Platens) - Platens can only run on 460V
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

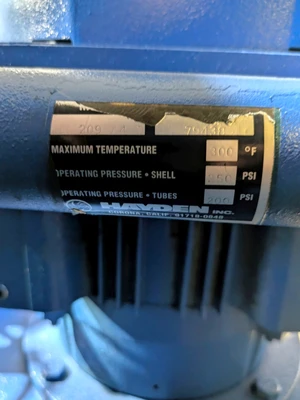

5 GPM WATER COOLED OIL COOLER HEAT EXCHANGER, 18MM PROXIMITY SWITCH POSITION CONTROL, WEST M2800 TEMPERATURE CONTROLLER
