Overview
Type:
Hydraulic Presses
Manufacturer:
USED DAKE PRESSES
Model:

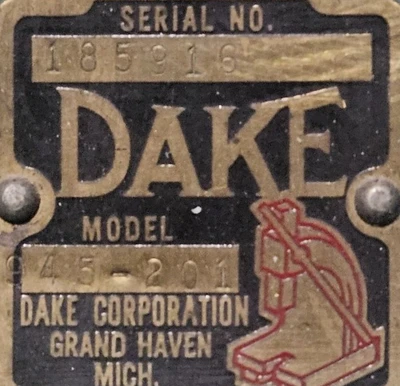

DAKE 45-201 PRESS
Year:
1988
Stock #:
8152
Description

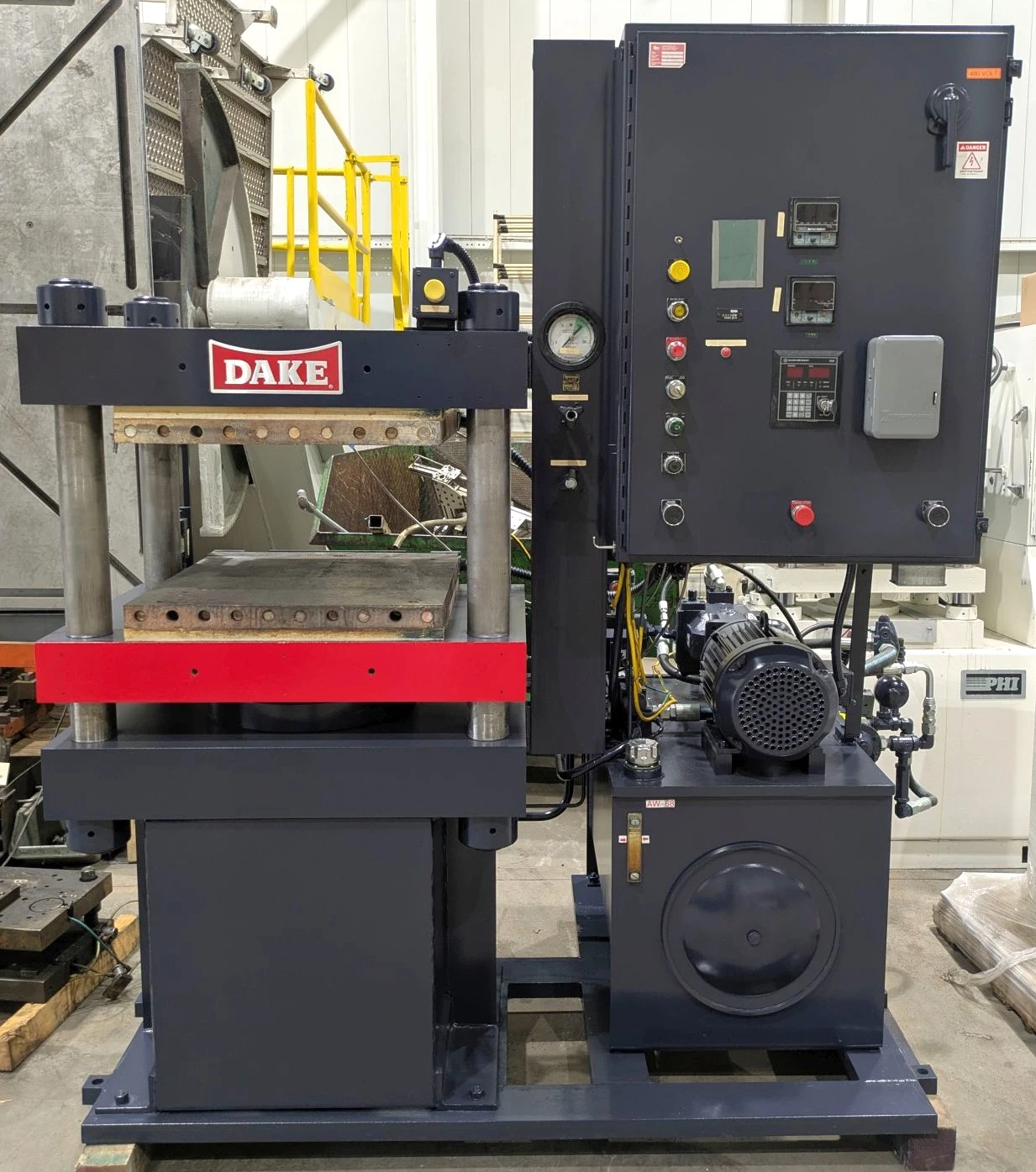

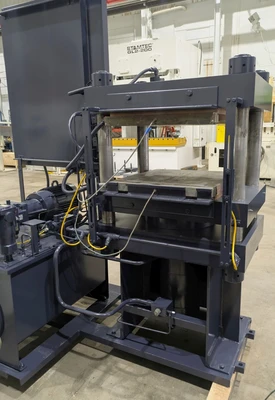

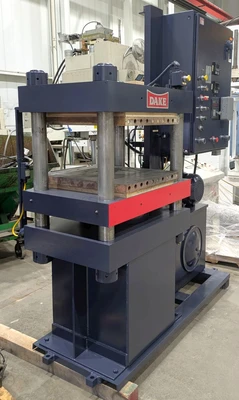

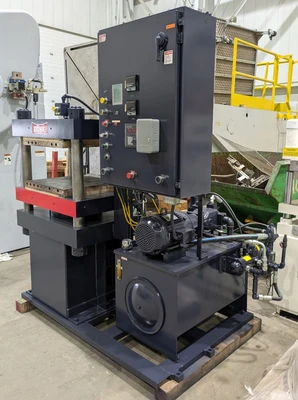

12" Stroke, 0-12" Daylight, 25" x 25" Electric Heated Platens

Specifications
Dimensions78" X 48" (RL X FB) X 92" HIGH78" X 48" (RL X FB) X 92" HIGH
Weight8,800 LBS.8,800 LBS.

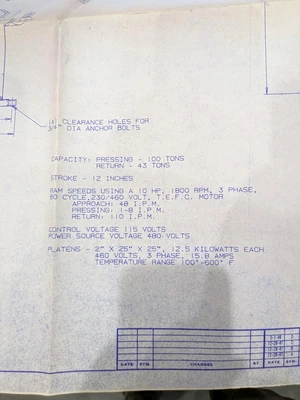

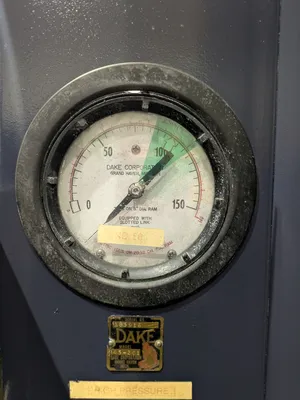

MAX. CAPACITY: 100 TONS AT 4,000 PSI (43 TONS ON THE DOWN STROKE)
MAX. STROKE: 12"
Max. Daylight: 12"
overall bed & ram area: 38.5" x 26" (RL x FB)
distance between posts: 28" X 16" (RL X FB)
useable bed area: 28" x 26" (RL x FB)

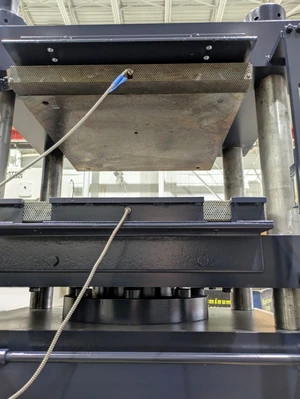

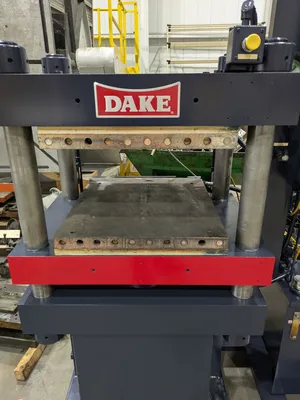

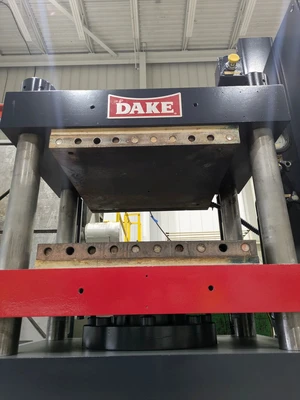

electric heated platenS: 25" X 25" (RL X FB) - 100-600 DEG. F - 10 HEATERS PER PLATEN, 15.7 AMPS
floor to bed height: APPROX. 42"
speeds (INCHES PER MINUTE): 48 ADVANCE / 1-8 PRESSING / 110 RETURN

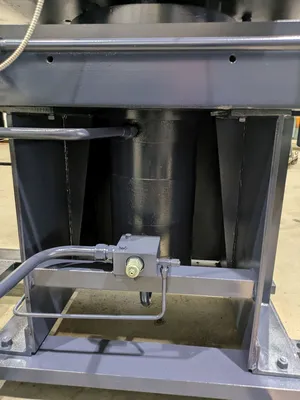

cylinder size: 8" DIA.
ram rod size: 6" DIA.
posts / 4 column size: 3.5" DIA.

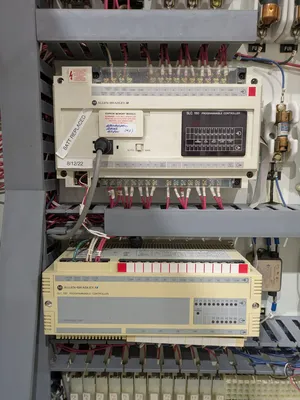

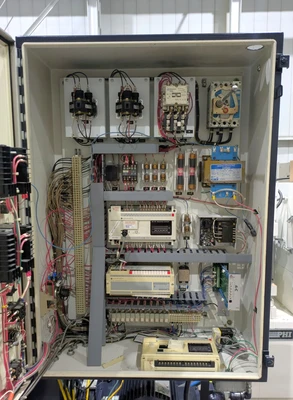

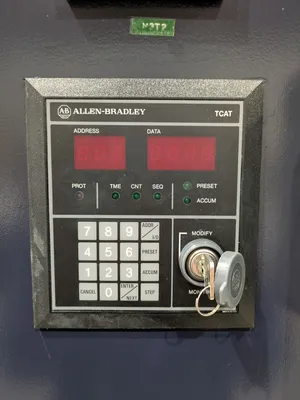

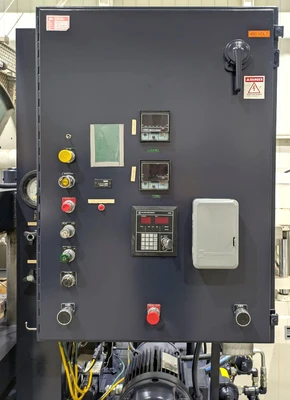

PRESS controls: Allen Bradley SLC 500 PLC

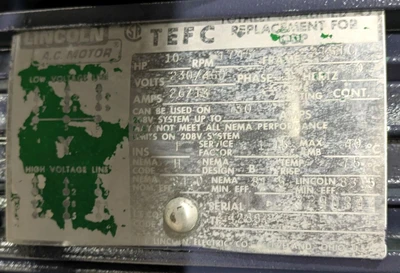

electric motor: 10 HP 230/460-3-60 MOTOR

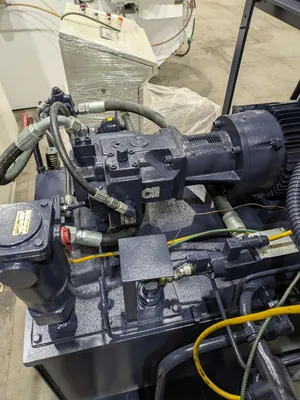

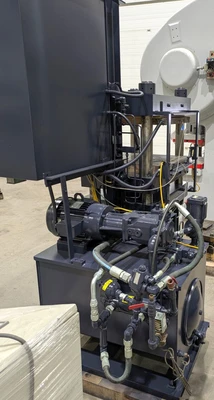

hydraulic UNIT / HYDRAULIC PUMP: 60 GALLON RESERVOIR - REXROTH AA4VS040DR/10R-PKD63N PISTON PUMP
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

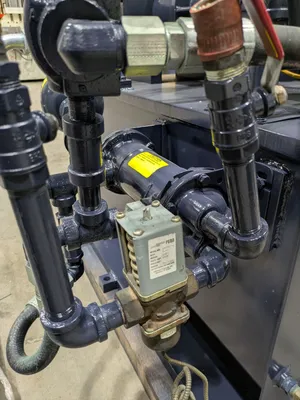

DRIP TRAY FOR MACHINE TO SIT IN, HEAT EXCHANGER, LIMIT SWITCH CAMS
