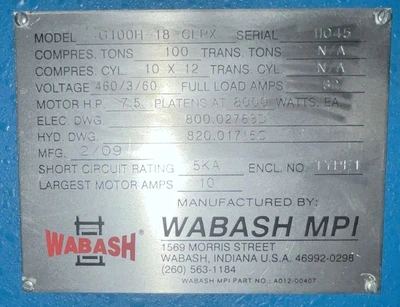

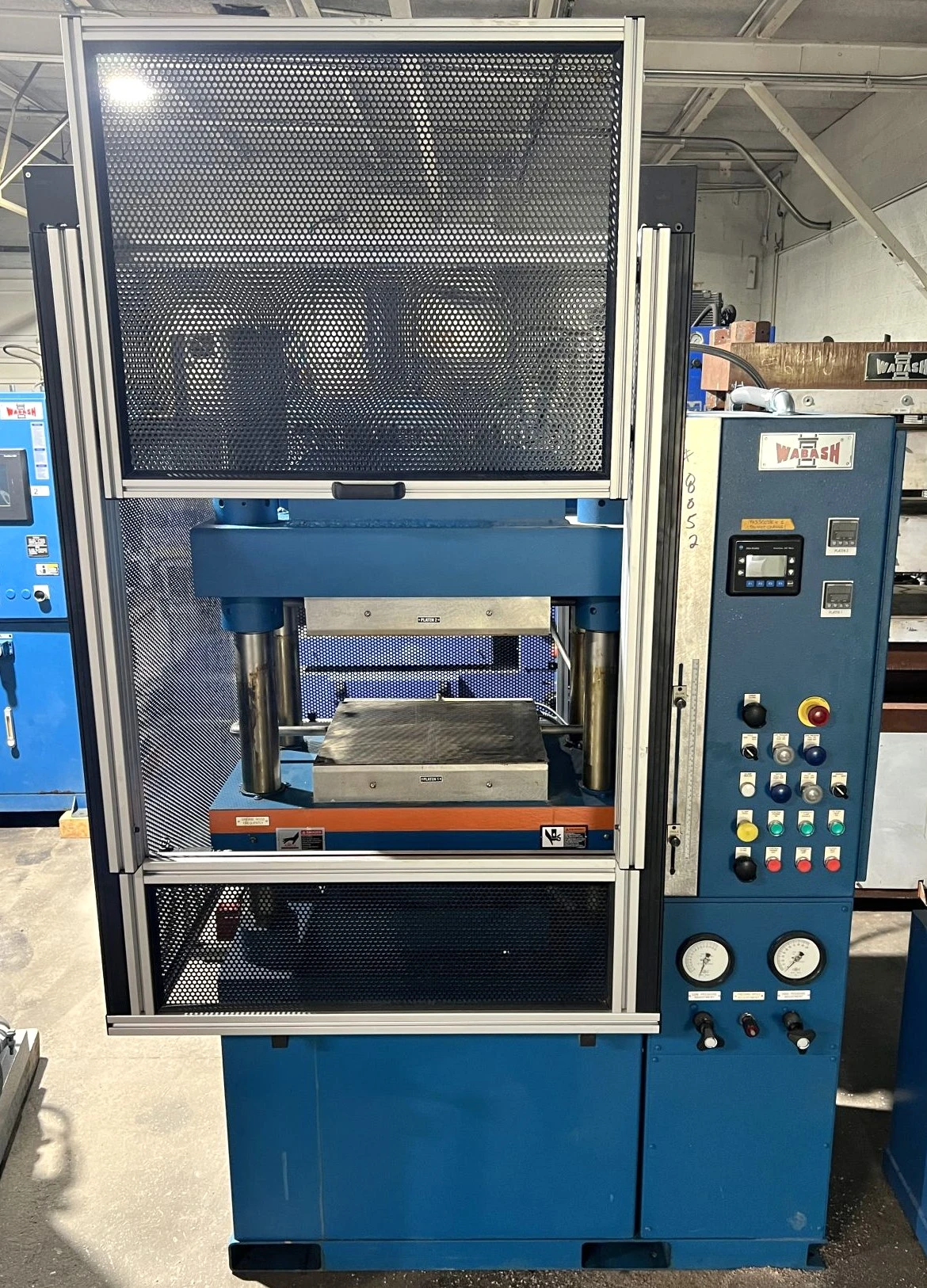

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH G100H-18-CLPX PRESS
Year:
2009
Stock #:
8052
Description

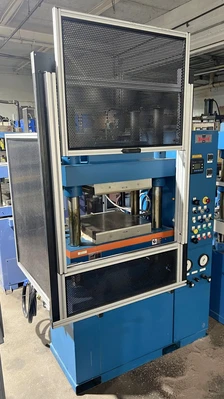

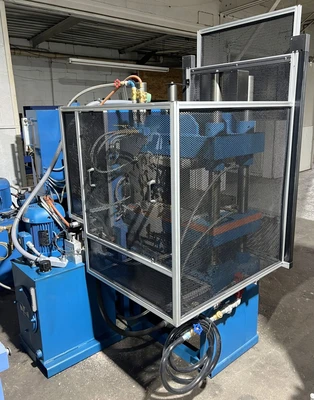

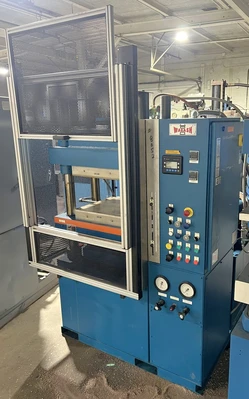

12" Stroke, 18" to 28" Daylight, 18" x 18" Heated Platens, Both Air and Water Cooled Platens and Hydraulics (2009)

Specifications
Dimensions64" X 69" (RL X FB) X 77" HIGH (85" HIGH WITH GUARDING)64" X 69" (RL X FB) X 77" HIGH (85" HIGH WITH GUARDING)
WeightAPPROX. 8,000 LBS.APPROX. 8,000 LBS.

MAX. CAPACITY: 100 TONS AT 2,550 PSI
MAX. STROKE: 12"
MAX. DAYLIGHT: 18" TO 28" (ADJUSTABLE)
OVERALL BED & RAM AREA: 33.5" X 20" (RL X FB)
DISTANCE BETWEEN POSTS: 24" X 9" (RL X Fb)
USABLE BED AREA: 24" X 20" (RL X FB)

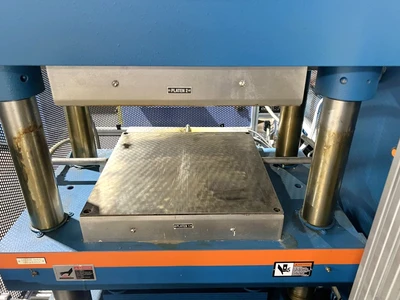

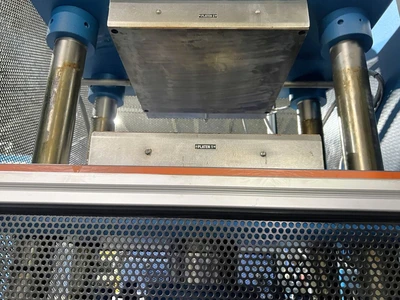

ELECTRIC HEATED PLATENS: 18" X 18" (RL X FB) X 3.125" THICK - 8,000 WATTS EACH
FLOOR TO BED HEIGHT: 41"
SPEEDS: __
RAM ROD SIZE: APPROX. 6.5" DIA.
CYLINDER SIZE: 10" DIA. BORE
POSTS / 4 COLUMN SIZE: 3" DIA.

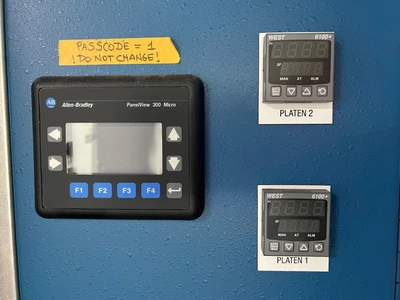

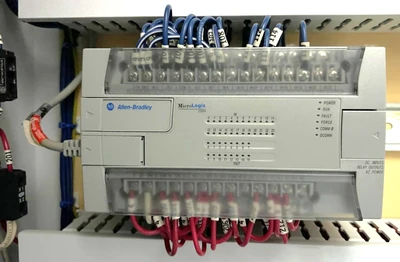

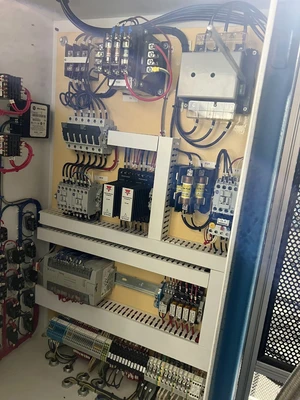

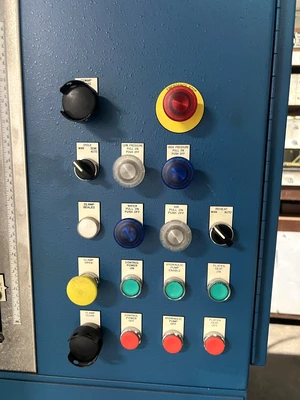

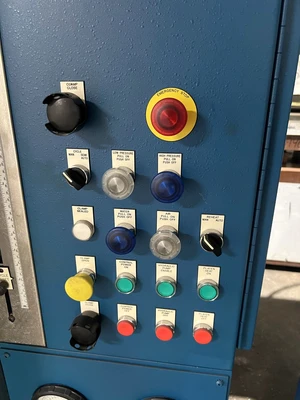

PRESS CONTROLS: ALLEN-BRADLEY MICROLOGIX 1200 CONTROLLER

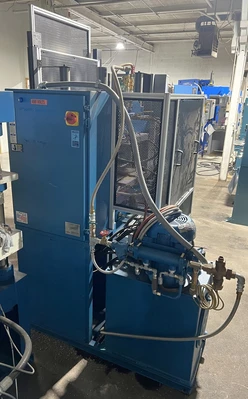

HYDRAULIC SYSTEM: __

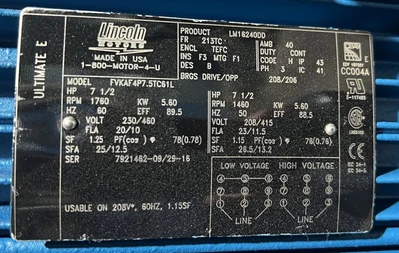

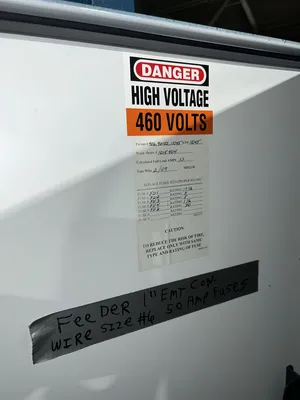

ELECTRIC MOTOR: 7.5 HP 230/460V-3-60 LINCOLN MOTORS MOTOR | 20/10 AMPS - 32 FULL LOAD AMPS (WIRED FOR 460V)
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

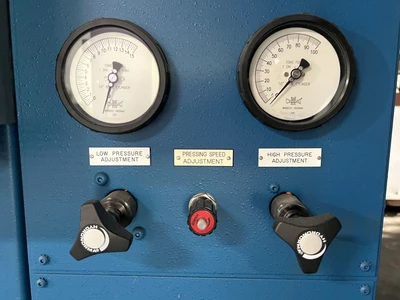

HIGH PRESSURE / LOW PRESSURE SETTINGS, AIR & WATER COOLING INTEGRATED SYSTEMS
