Overview
Type:
Hydraulic Presses
Manufacturer:
K.R. WILSON
Model:
K.R. WILSON COMPRESSION MOLDING PRESS
Year:
1984
Stock #:
6585
Description

24" Stroke, 42" Daylight, 26" x 24" Usable Bed Area, Updated Controls

Specifications
Dimensions60" X 36" (RL X FB) X 140" HIGH - 18,000 LBS.60" X 36" (RL X FB) X 140" HIGH - 18,000 LBS.
Weight20,000 LBS.20,000 LBS.

CAPACITY: 100 TONS AT 2,600 PSI
MAX. STROKE: 24"
DAYLIGHT TO BED: 42"
OVERALL BED & rAM AREA: 38" X 24" (RL X FB)
DISTANCE BETWEEN POSTS: 26" X 12" (RL X FB)
USABLE BED AREA: 26" X 24" (RL X FB)
DISTANCE FLOOR TO BED: 36"
POST SIZE: 4" DIA.

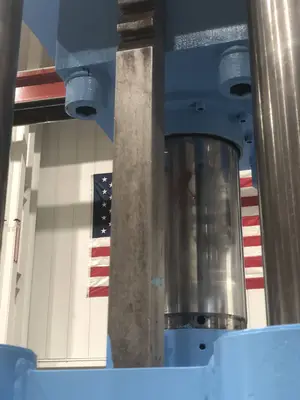

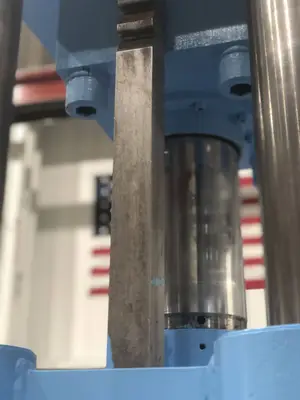

CYLINDER SIZE: 10" DIA. BORE-DOWN ACTING

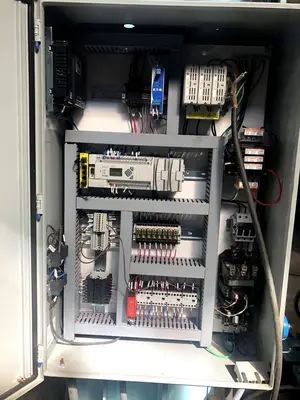

PRESS CONTROLS: UPDATED ALLEN-BRADLEY MICROLOGIX 1400 CONTROLLER WITH TOUCHSCREEN

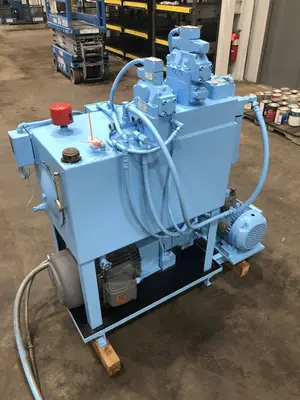

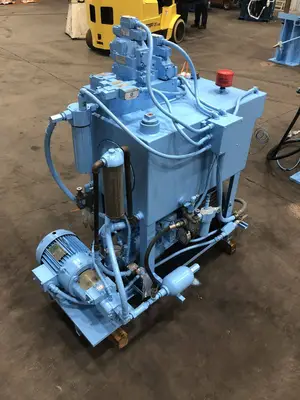

hydraulics: VICKERS 2520V21A12-1CC22R PUMP. FLOOR MOUNTED
MOTORS: 30 HP 230/460V-3-60 TECO WESTINGHOUSE MOTOR | 68.6 / 34.3 AMPS

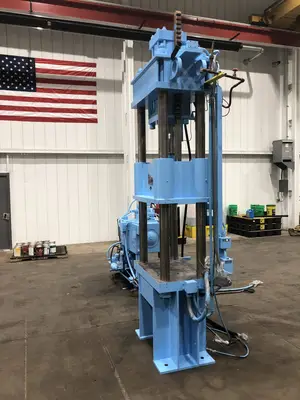

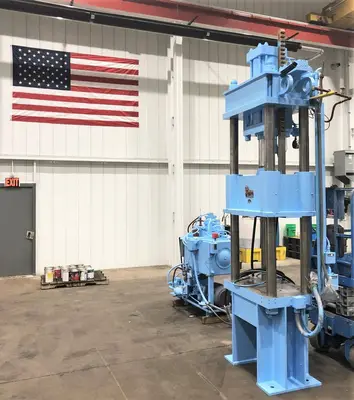

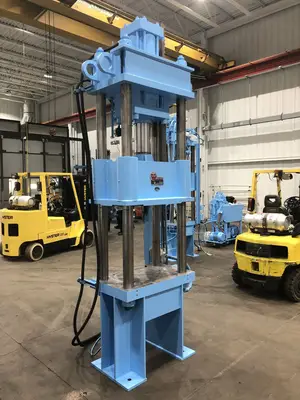

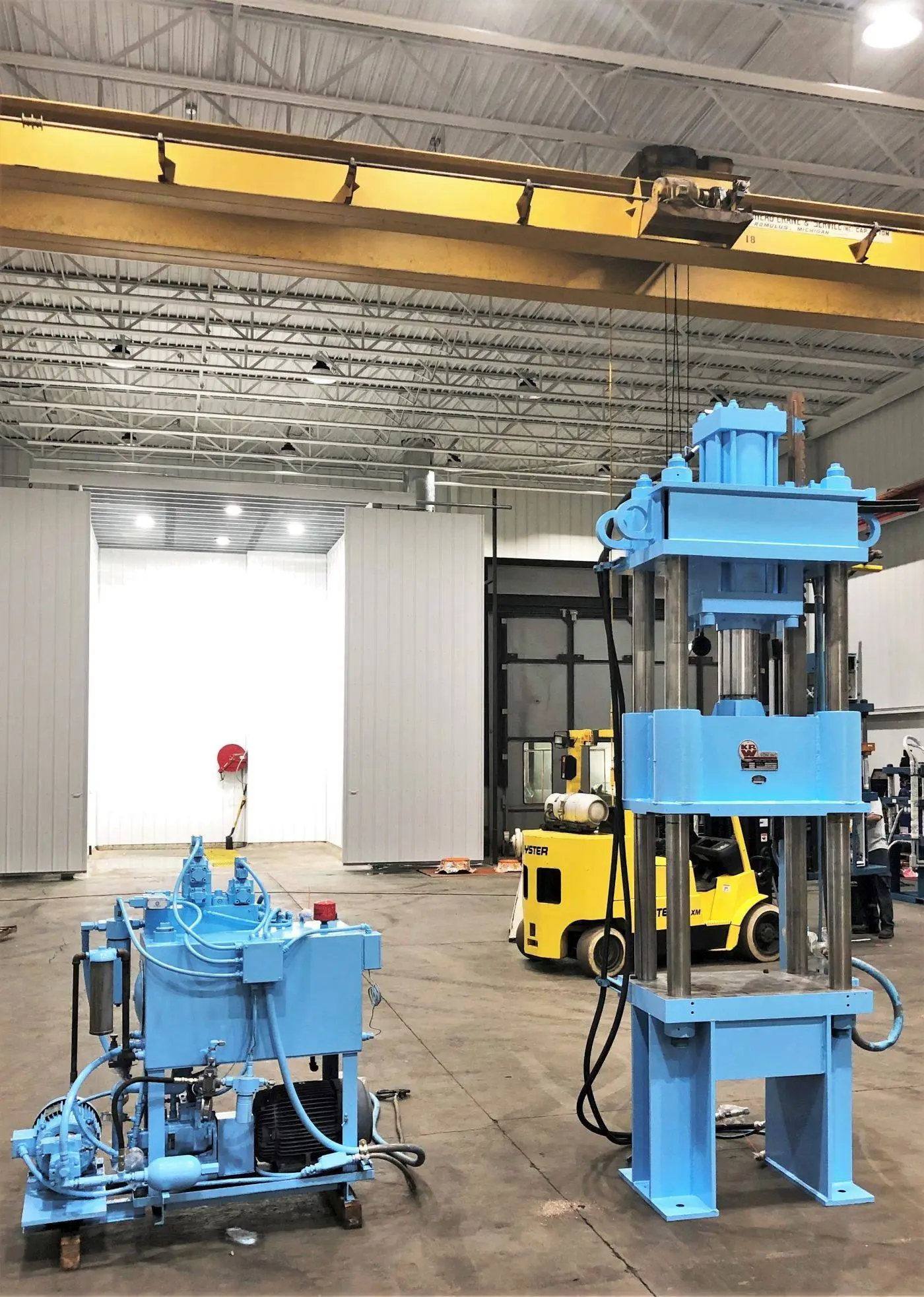

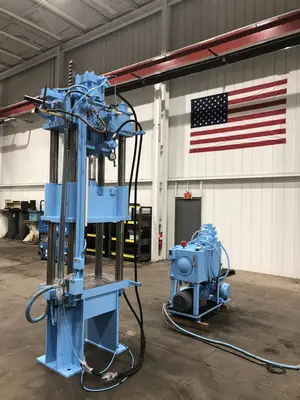

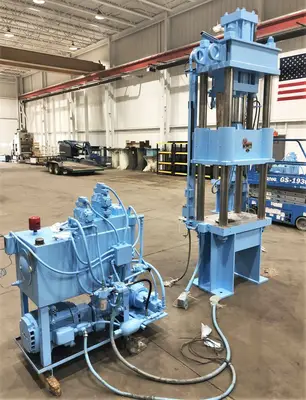

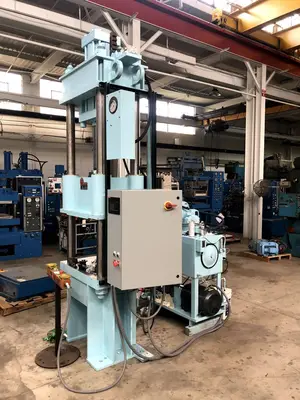

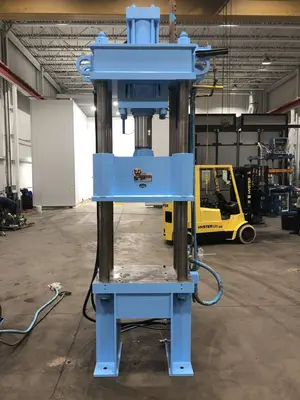

Note: PHOTOS ARE OF OUR SISTER PRESS THAT WE RECONDITIONED IN 2019
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

TRANSDUCER POSITION CONTROL,
