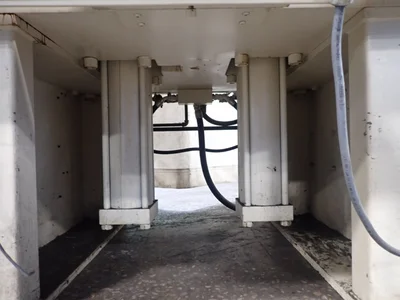

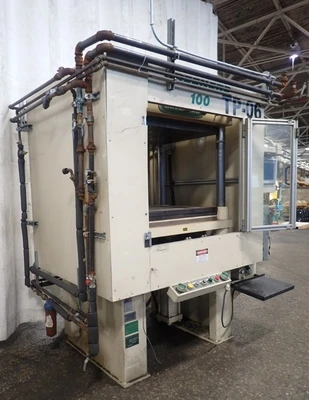

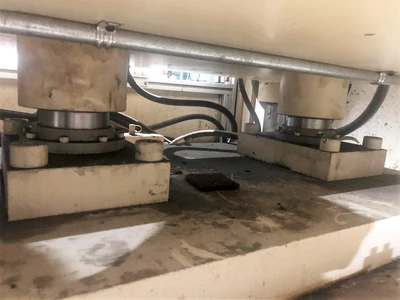

USED 2006 GREENERD PRESSES GREENERD 4U-100-42X40-12R3 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

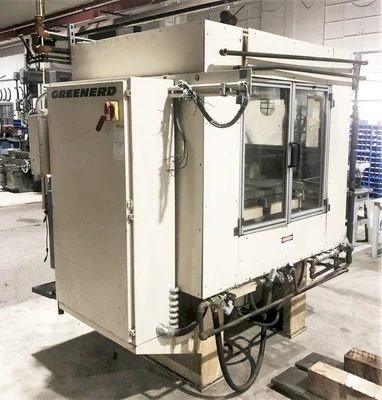

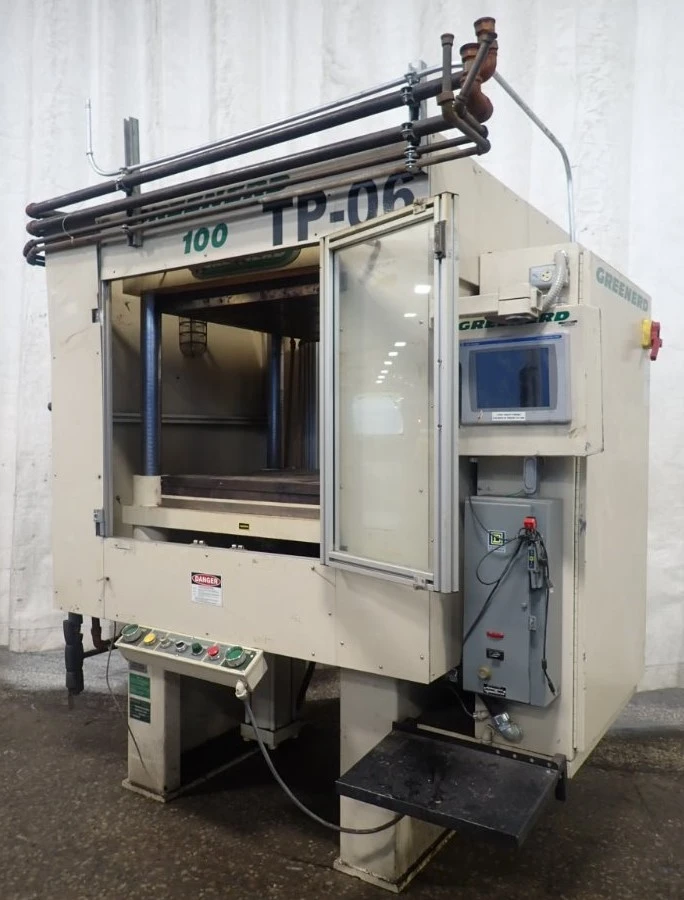

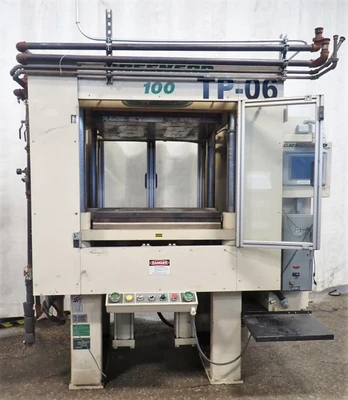

USED 2006 GREENERD PRESSES GREENERD 4U-100-42X40-12R3 PRESS

USED 2006 GREENERD PRESSES GREENERD 4U-100-42X40-12R3 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
GREENERD
Model:

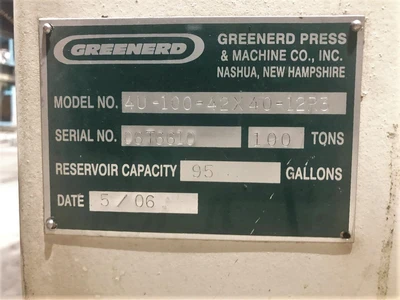

GREENERD 4U-100-42X40-12R3 PRESS
Year:
2006
Stock #:
5889
Description

24" Stroke, 24" Daylight, 38" x 36" Heated Platens, AB MicroLogix 5555 PLC Controls

Specifications
Dimensions92" x 63" x 104" high92" x 63" x 104" high
Weight13,200 LBS.13,200 LBS.

CAPACITY: 0-100 TONS @ 3536 PSI
MAX. STROKE: APPROX. 24"
DAYLIGHT: APPROX. 24"

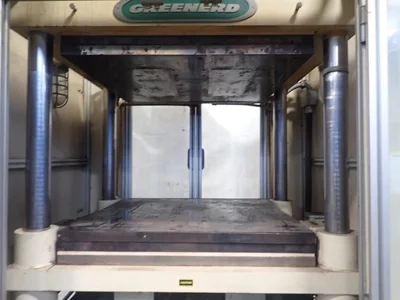

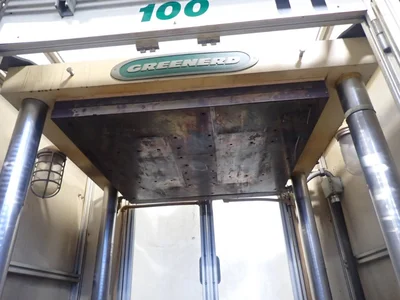

OVERALL BED & RAM AREA: 52" x 40" (RL X FB)
DISTANCE BETWEEN POSTS: 40" x 30" (rl x fb)
USABLE BED & RAM AREA: 40" x 40" (MIGHT BE 42" BETWEEN)

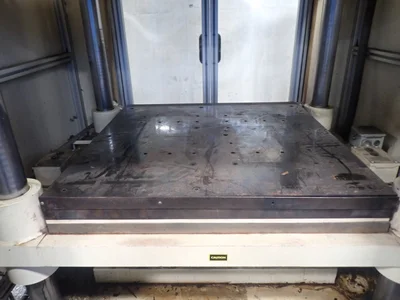

ELECTRICAL HEATED PLATENS: 38" X 36" (RL X FB)
SPEEDS (INCHES PER MINUTE): 61 IPM CLOSING / 12 IPM PRESSING / 130 IPM OPENING
CYLINDER SIZE: (2) 6" DIA. BORE
RAM ROD SIZE: 4" DIA.

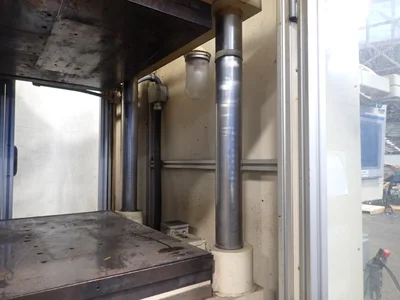

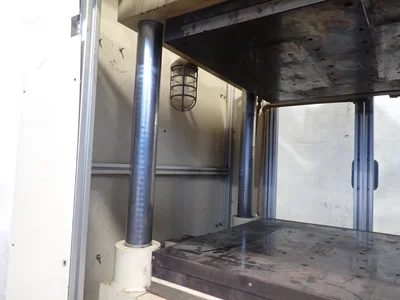

POSTS SIZE: 3.5" DIA.
FLOOR TO PLATEN: 46.75" TO BED / 51.75" TO TOP OF PLATEN

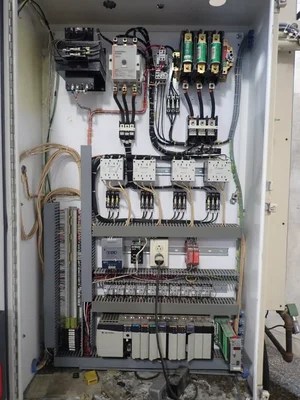

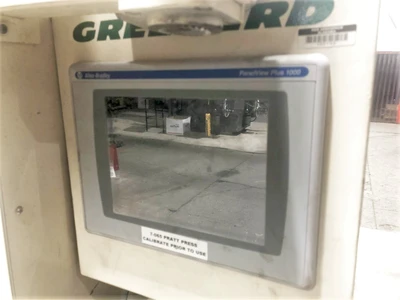

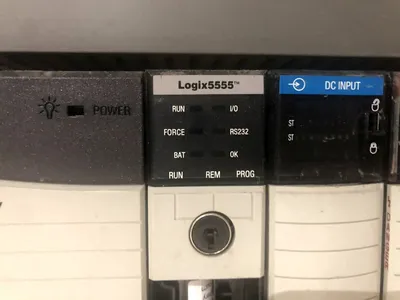

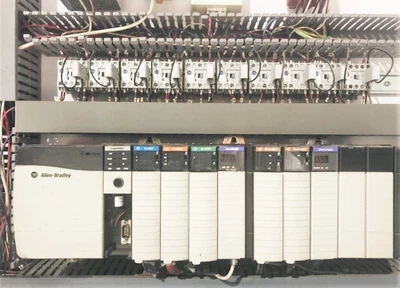

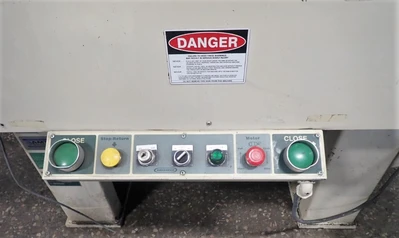

PRESS CONTROLS: allen-bradley logix555 plc controller, ab panelview plus 1000 touchscreen
HYDRAULICS: UPDATED HYDRAULIC UNIT INCLUDED WITH RECONDITIONING / 95 GAL. RESERVOIR
ELECTRICAL: 10 HP NEMA 256TC 460v MOTOR
Note: 30750
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

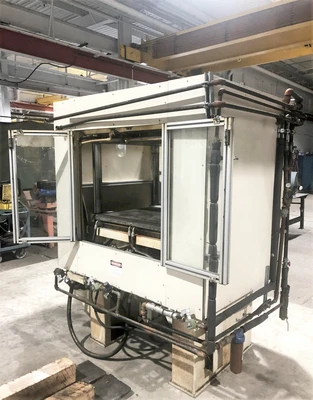

HEATED & WATER COOLED PLATENS
