Overview
Type:
Hydraulic Presses
Manufacturer:
GREENERD
Model:
GREENERD 4U-100-36X36-12L3 PRESS
Year:
2008
Stock #:
5890
Description

14" Stroke, 20" Adjustable Daylight, 36" x 36" Heated Platens, AB MicroLogix 5555 PLC Controls

Specifications
Dimensions116" X 104" (RL X FB) X 97" HIGH *WHEN HYDRAULIC UNIT INSTALLED116" X 104" (RL X FB) X 97" HIGH *WHEN HYDRAULIC UNIT INSTALLED
Weight16,500 LBS.16,500 LBS.

CAPACITY: 0-100 TONS @ 2547 PSI
MAX. STROKE: 14" (ADJUSTABLE)
MAX. DAYLIGHT: 20" WITH 3" ADJUSTMENT ON COLUMN END
OVERALL BED & RAM AREA: 49" X 36" (RL X FB)
DISTANCE BETWEEN POSTS: 39" X 26" (RL X FB)

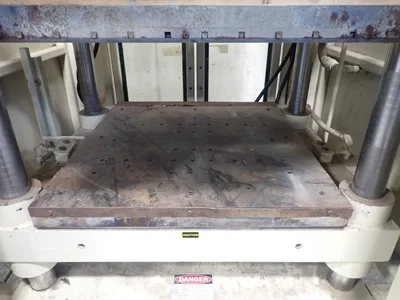

USABLE BED & RAM AREA: 39" X 36" (RL X FB)

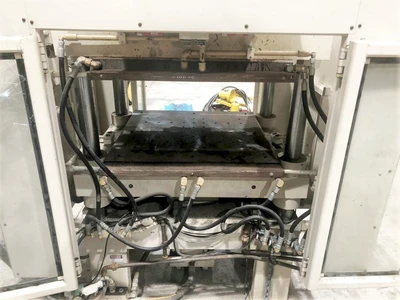

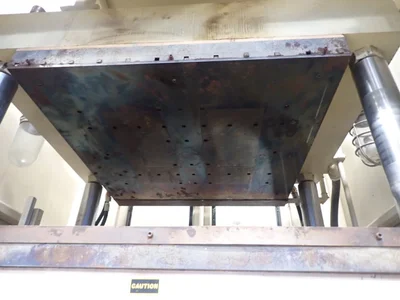

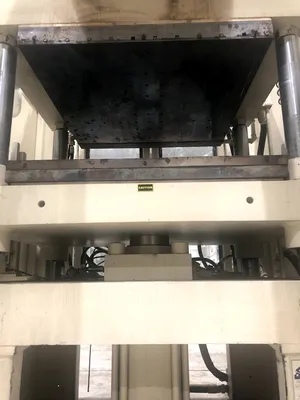

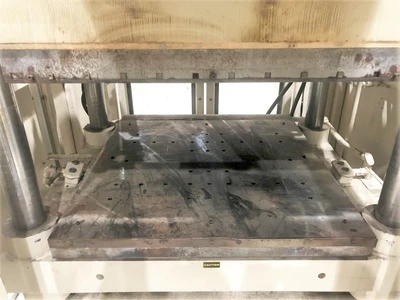

HEATED / COOLING PLATENS: 36" X 36" (RL X FB) - (12) 2500 W HEATERS PER PLATEN
SPEEDS (INCHES PER MINUTE): 44 CLOSE / 9 PRESS / 87 OPEN
CYLINDER SIZE: 10" DIA. BORE
RAM ROD SIZE: 7" DIA.
POSTS SIZE: 3.5" DIA.
FLOOR TO BED / PLATEN: 37.5" (40.5" TO PLATEN)

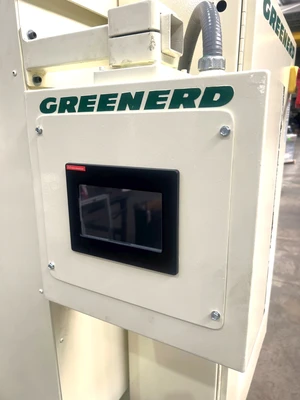

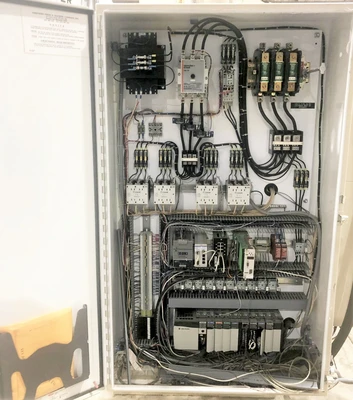

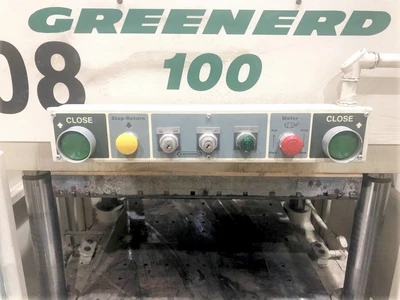

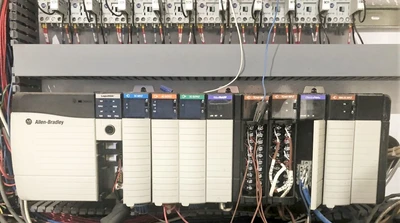

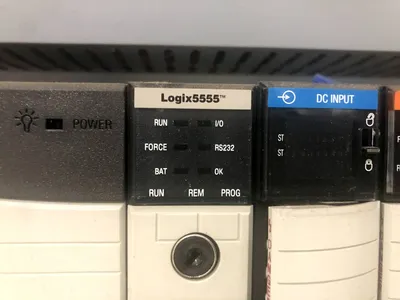

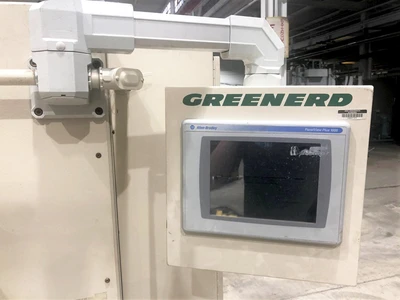

PRESS CONTROLS: ALLEN-BRADLEY LOGIX5555 CONTROLLER | 10.5" AB PANELVIEW PLUS 1000 TOUCHSCREEN

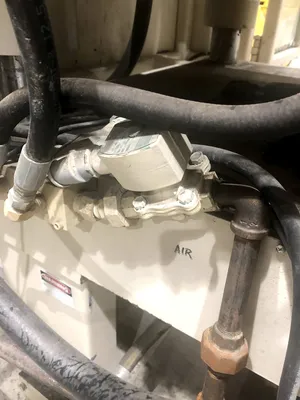

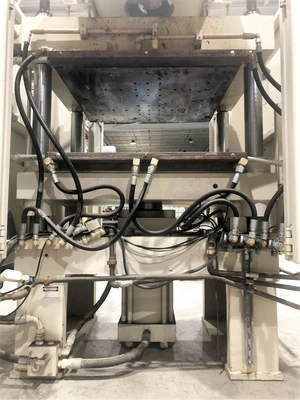

HYDRAULICS: HYDRAULIC SYSTEM UPDATED WITH RECONDITIONING 12 AND 3 GALLON PUMP / 45 GALLON RESERVOIR
ELECTRICAL: 15 HP MOTOR - 14.2 FULL LOAD AMPS

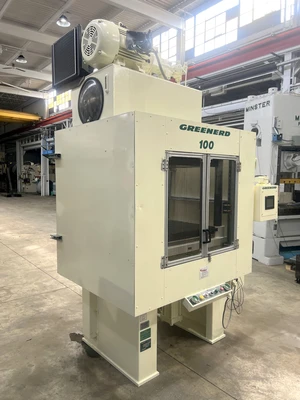

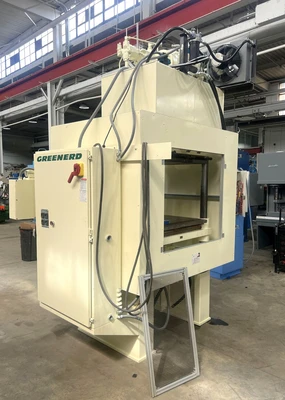

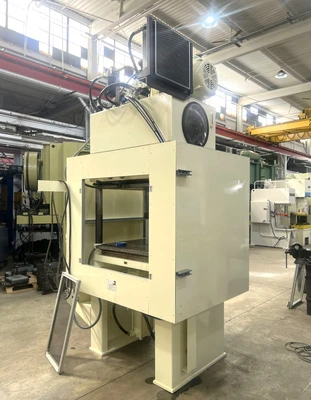

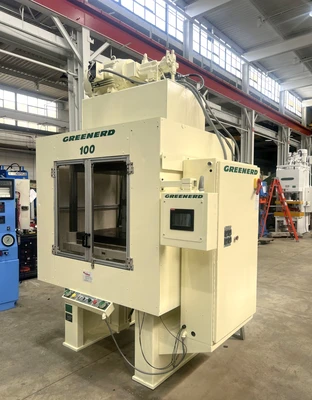

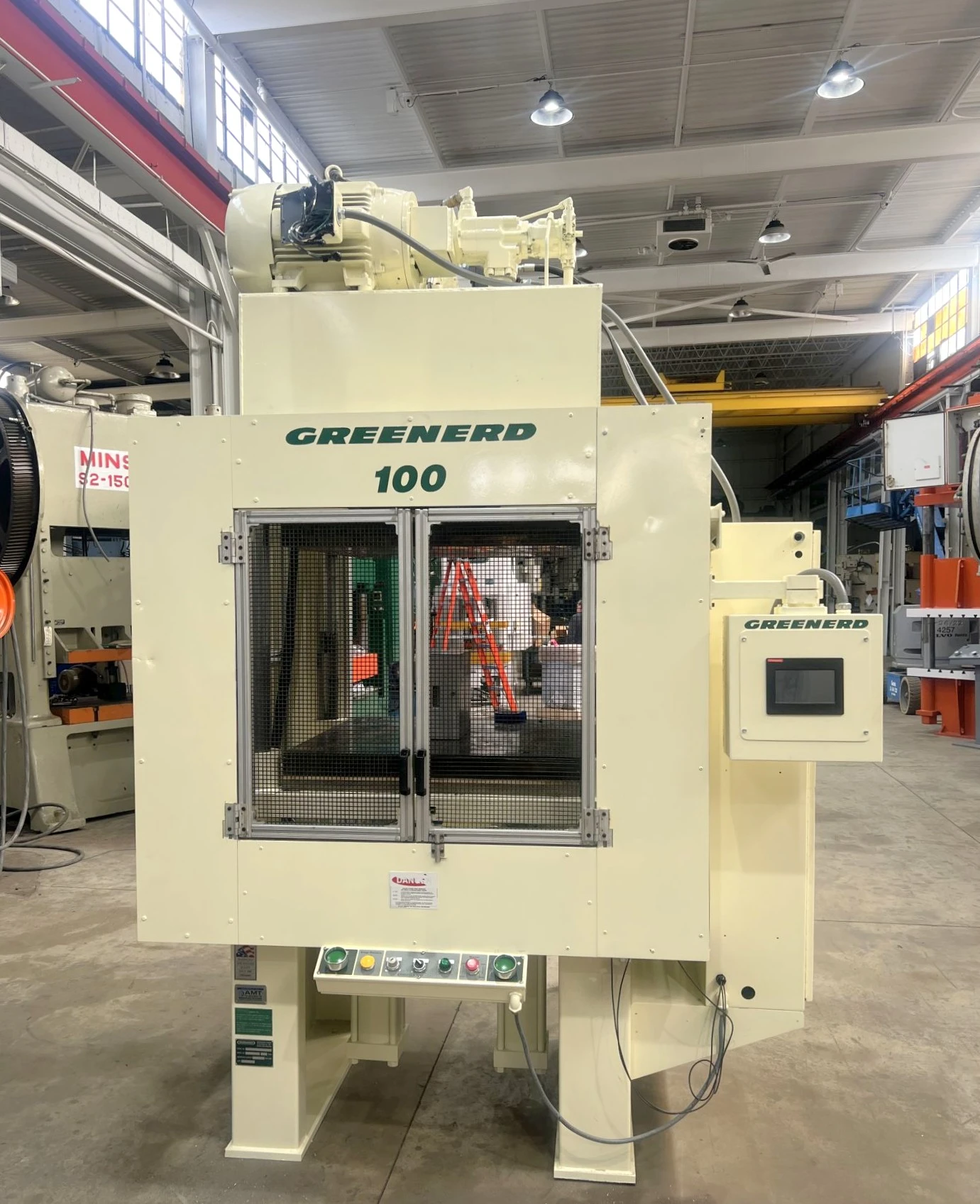

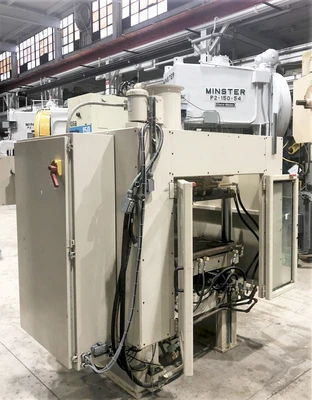

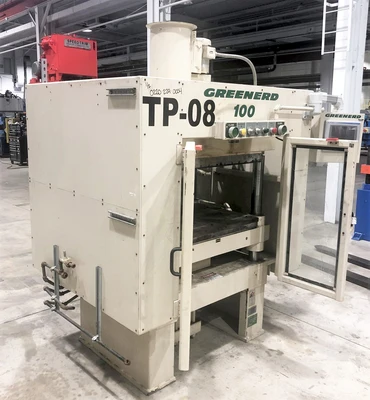

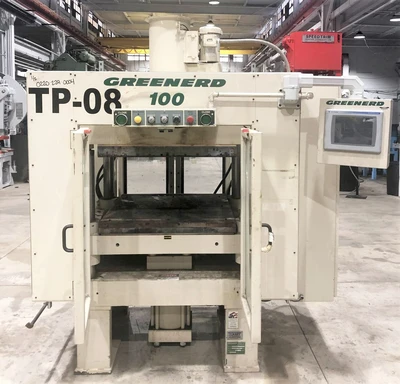

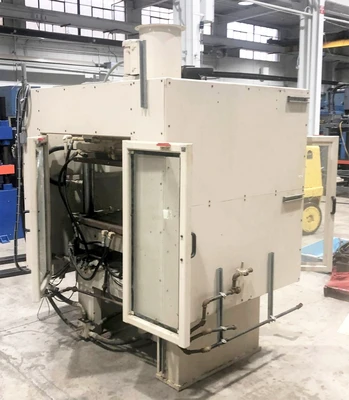

Note: 32039 PART NO. 5890 / 32040 / 32041 - PHOTOS ARE OF SISTER PRESS MACHINE #5889
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

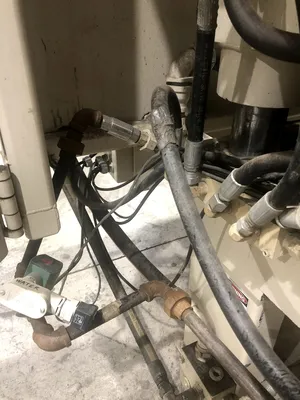

CHILLED WATER COOLING CHANNEL SYSTEM
