Overview
Type:
Hydraulic Presses
Manufacturer:
Adamson United
Model:
ADAMSON UNITED 4-COLUMN PRESS
Stock #:
4784
Description

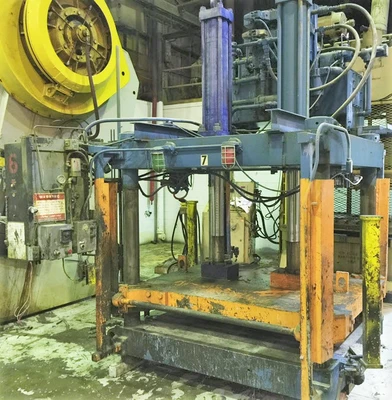

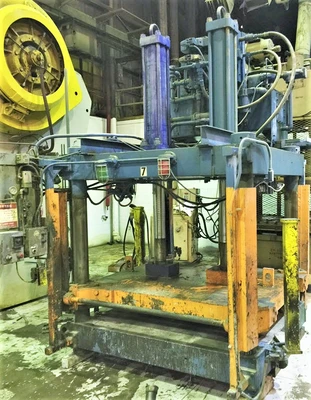

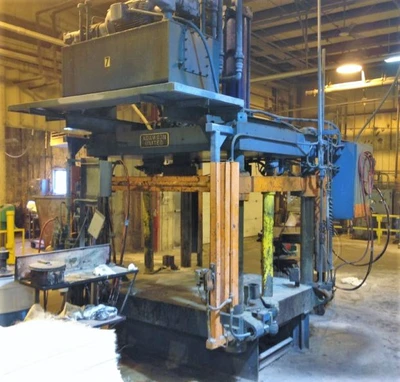

30" Str, 43" DL, 77" x 62" Bed, 57" x 62" Usable Bed, 253/18/276 IPM, UNDER POWER

Specifications
Dimensions98" X 108" (RL X FB) X APPROX 11' TALL98" X 108" (RL X FB) X APPROX 11' TALL
Weight48,000 LBS.48,000 LBS.

capacity: 100 Ton - down / 30 ton - return
max. stroke: 30"
max. daylight to bed: approx. 43"

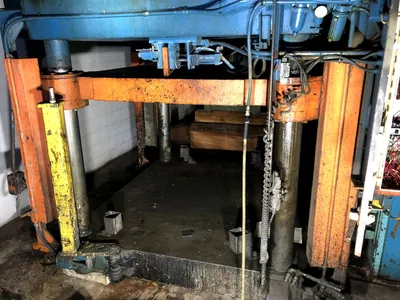

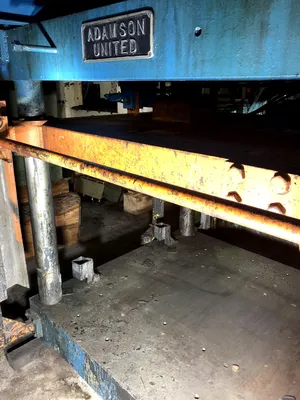

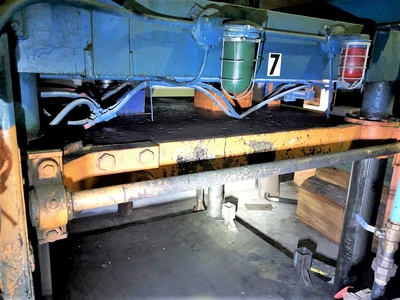

overall bed size: 77" x 62" (RL X FB)
distance between posts: 57" x 51" (RL X FB)
usable bed area: 57" x 62" (RL X fb) OR 51" X 77" (RL X FB)
speeds: 253 ipm down, 18 ipm pressing, 276 ipm return
CYLINDER SIZES: (2) CYLINDERS APPROX. 7" DIA. BORE
ROD SIZES: (2) CYLINDER 4.75" DIA.
4 POST SIZE: 6" DIA.
FLOOR TO BED: 13.5" - RISERS CAN BE ADDED

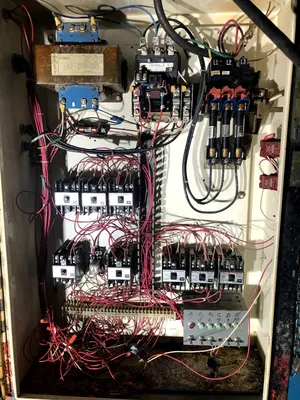

PRESS CONTROLS: CUTLER-HAMMER RELAY LOGIC CONTROLLER

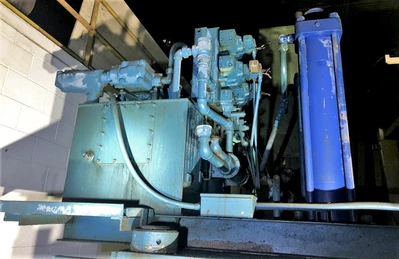

HYDRAULICS: VICKERS PISTON PUMP PVB10LSY31C11
ELECTRICAL: 20 HP 460V-3-60 MOTOR - 25.3 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
