Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:

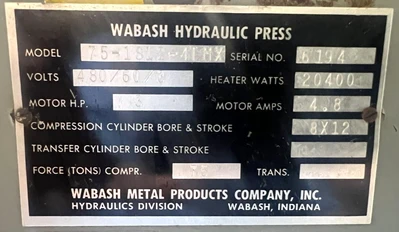

WABASH 75-1812-4TMX PRESS
Stock #:
8317
Description

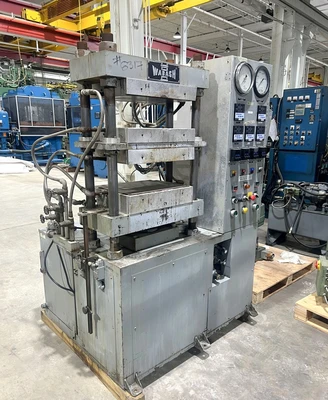

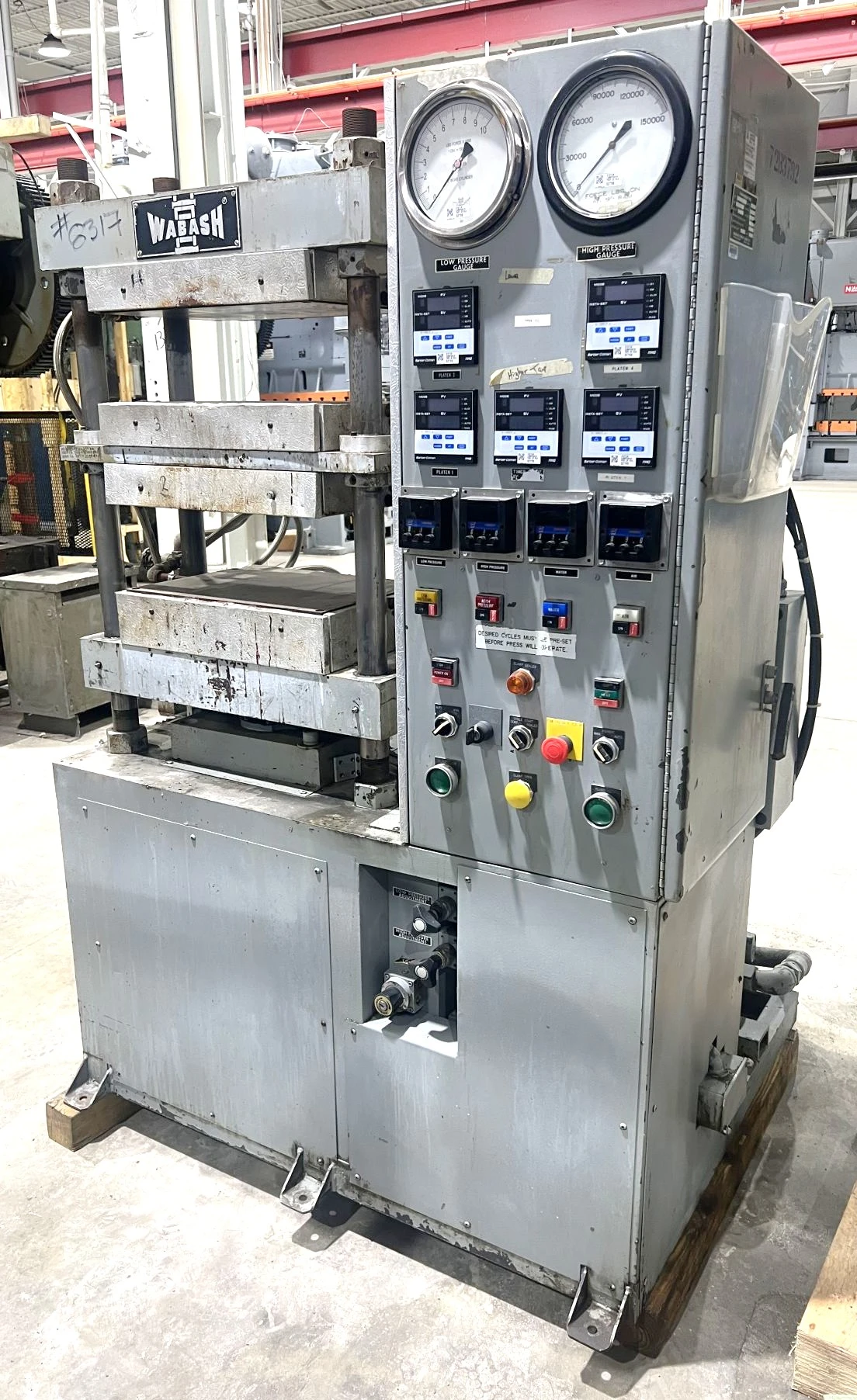

12" Stroke, 27" Max. Daylight, 18" x 12" Heated Platens (Air / Water Cooled), High / Low Pressure, Variable Speed Control

Specifications
Dimensions63" X 50" (RL X FB) X 73" HIGH63" X 50" (RL X FB) X 73" HIGH
Weight4,800 LBS.4,800 LBS.

MAX. CAPACITY: 75 TONS
MAX. STROKE: 12"
MAX. DAYLIGHT: 27"
OVERALL BED & RAM AREA: 28" X 13" (RL X FB)
DISTANCE BETWEEN POSTS: 21.75" X 6.75" (RL X FB)
USABLE BED & RAM AREA: 21.75" X 13" (RL X FB)

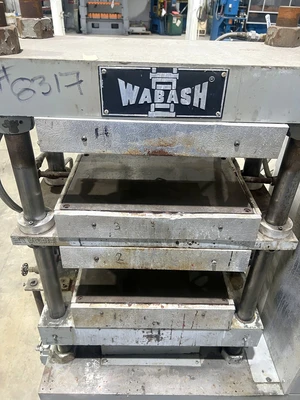

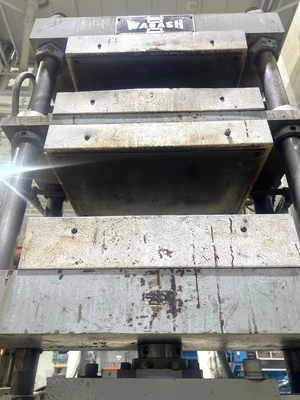

ELECTRICAL HEATED PLATENS: 18" X 12" (RL X FB) - 4.1" THICK BOTTON / 2.8" THICK OTHER PLATENS (1.125" PLATE) - 20,400 WATTS

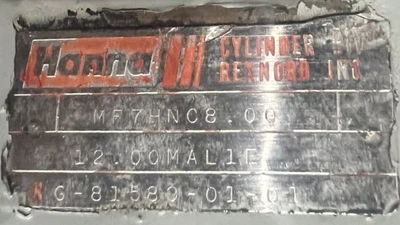

CYLINDER SIZE: 8" DIA. BORE PISTON
ROD SIZE: 3" DIA.
4 COLUMN / POSTS SIZE: 2" DIA.
FLOOR TO BED HEIGHT: 38"

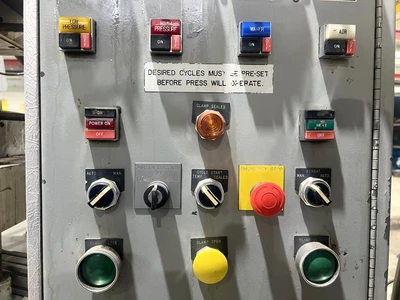

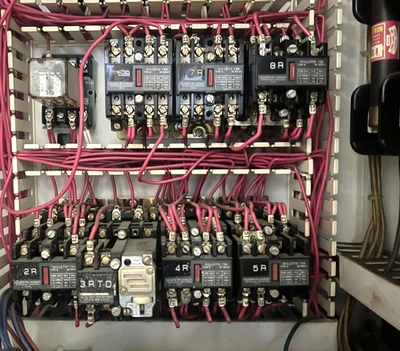

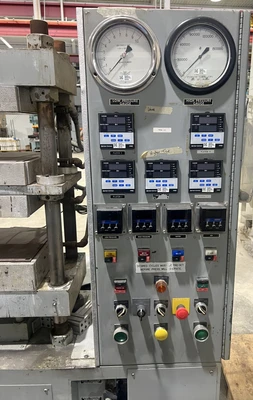

PRESS CONTROLS: ALLEN-BRADLEY RELAY LOGIC BULLETIN 700 CONTROLLER

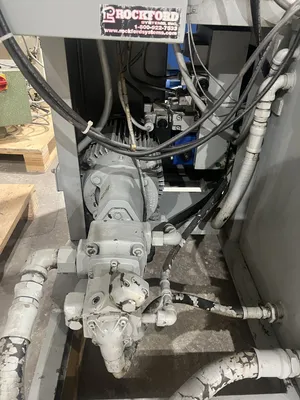

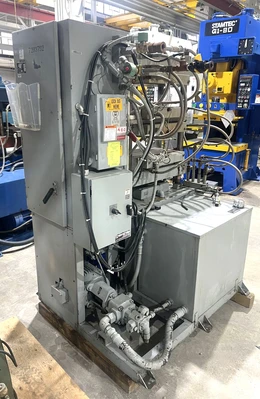

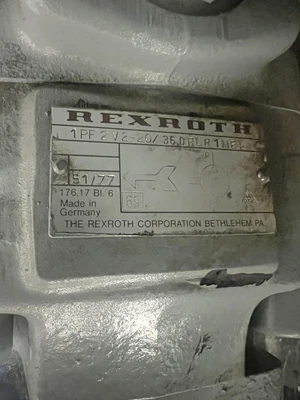

HYDRAULIC SYSTEM / UNIT: REXROTH 1PH2V2-20/360RLR1ME4 EXTERNAM GEAR HYDRAULIC PUMP

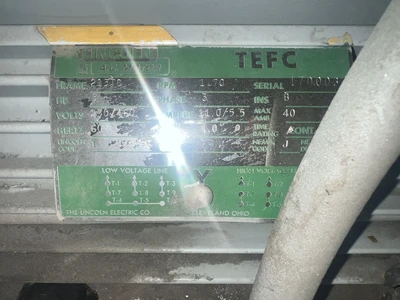

ELECTRIC MOTOR: 3 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 11 / 5.5 AMPS
ELECTRICAL NOTE: PLATENS ARE WIRED FOR 480V - 3 PHASE - 60 HZ
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

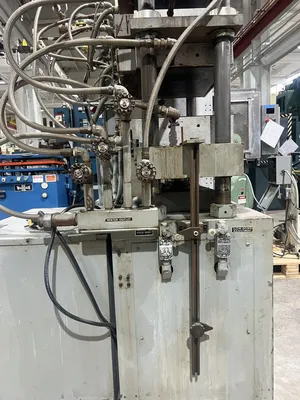

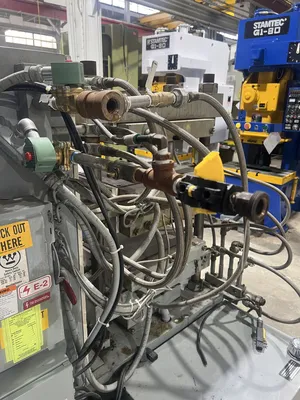

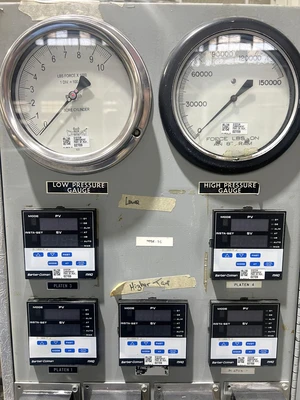

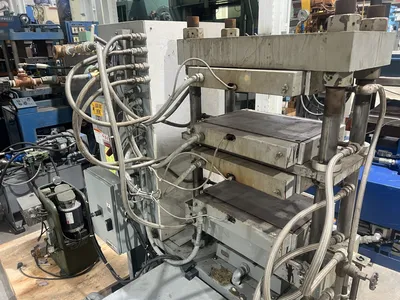

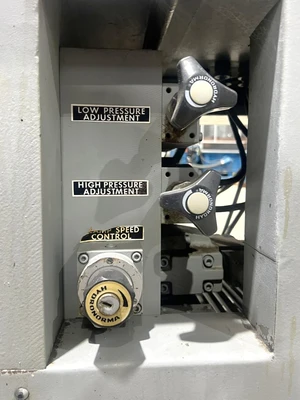

LOW / HIGH PRESSURE ADJUSTMENT (MANUAL), SPEED CONTROL HYDRONORMA VALVE (MANUAL), WATER AND AIR COOLED PLATENS SYSTEM
