Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:

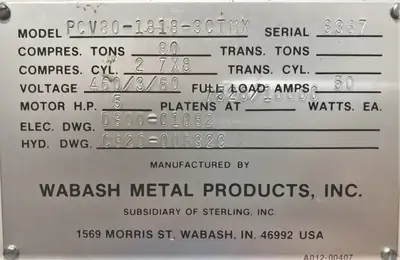

WABASH PCV80-1818-3CTMX PRESS
Year:
1989
Stock #:
4727
Description

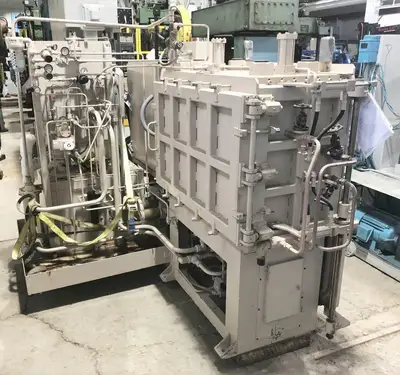

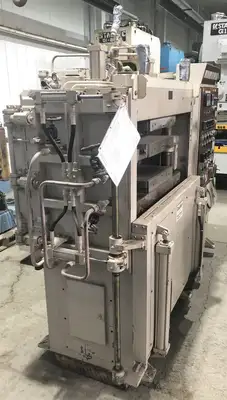

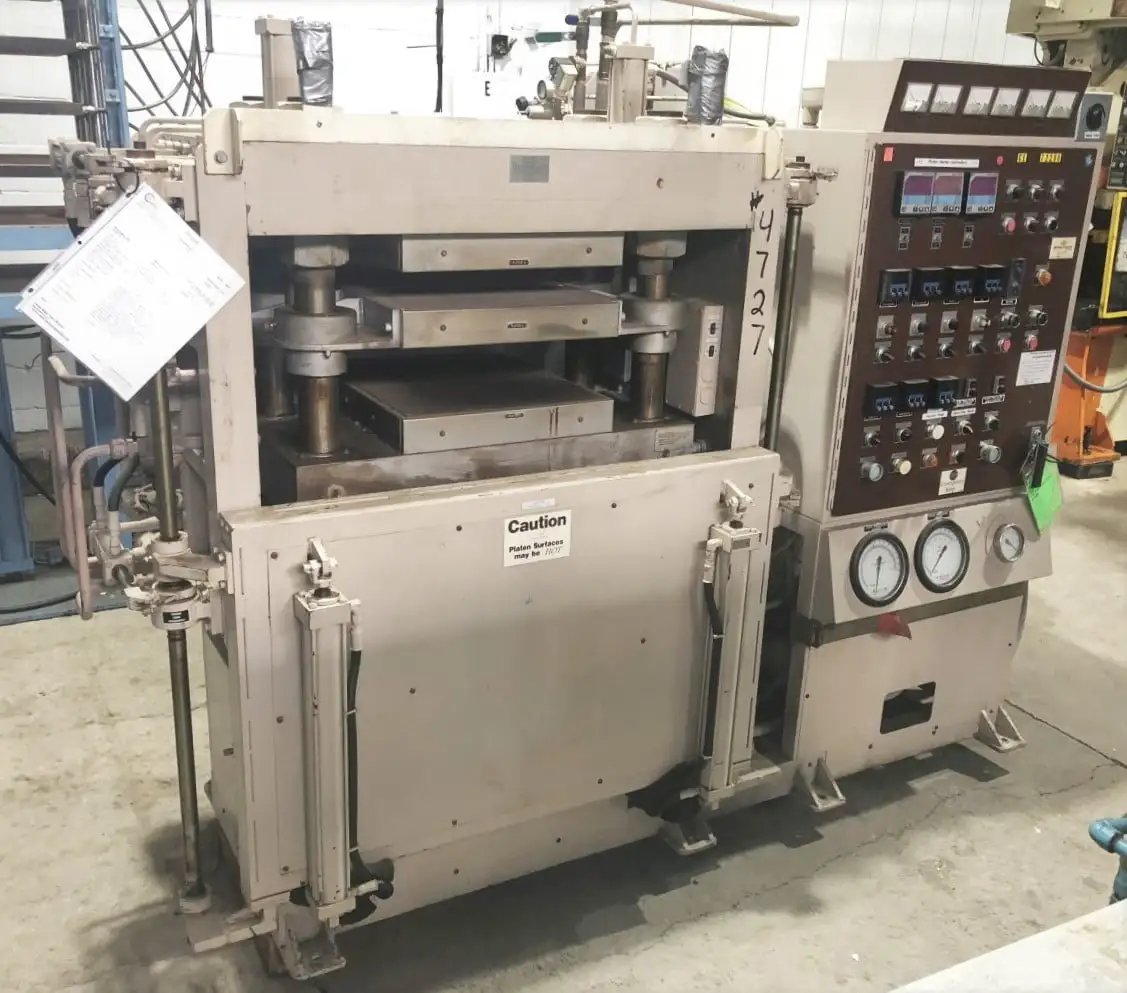

8" STR, 18" X 18" Heated & Cooled Platens, 36" X 19" O.A. Bed & Ram, with Vacuum Chamber

Specifications
Dimensions102" X 78" (RL X FB) X 72" HIGH102" X 78" (RL X FB) X 72" HIGH
Weight11,500 LBS.11,500 LBS.

capacity: 80 ton @ 2100 PSI
max. stroke: 8" - Up acting ram
daylight between platens - 2 OPENINGS: 4" opening between each platen
overall bed & ram area: 36" x 19" (RL X FB)
distance between posts (3" dia. posts): 27" x 9.5" (RL X FB)
usable bed & ram area: 27" x 19" (RL X FB)
heated & water cooled platen size: (3) 18" x 18" Platens | 7,520 WATTS / 10,000 WATTS
top & bottom platens: 8 HEATERS AT 230 VOLTS, 940 WATTS EACH 7520 WATTS – TOTAL
middle platen: 16 heaters at 230 volts, 625 each 10,000 watts total

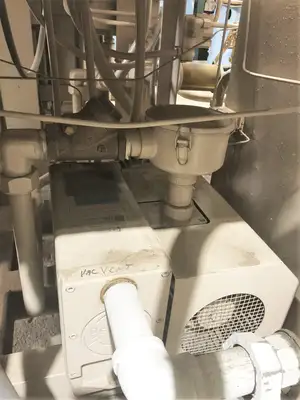

VACUUM CHAMBER: 3 HP BECKER VACUUM PUMP (RATED AT 29.9" HG) USED FOR OPTIONAL VACUUM LAMINATING
RAM ROD SIZE: 3" DIA.
CYLINDER SIZE: (2) 7" DIA. PISTON BORE
FLOOR TO BED HEIGHT: 42"

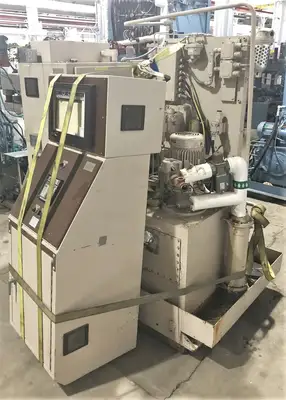

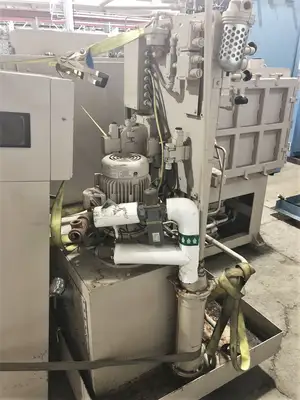

HYDRAULIC UNIT: RACINE COMBO VANE & PISTON PUMP PSV-PCO-25ERM 20 GPM VARIABLE VANE + 7-PISTON RADIAL

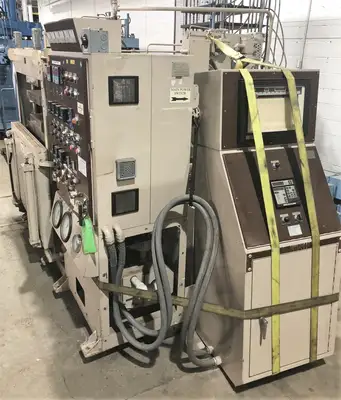

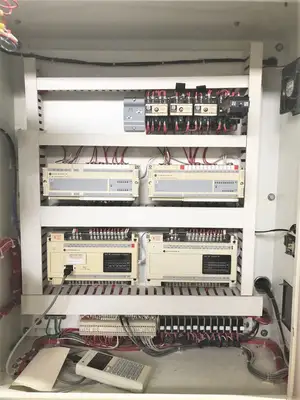

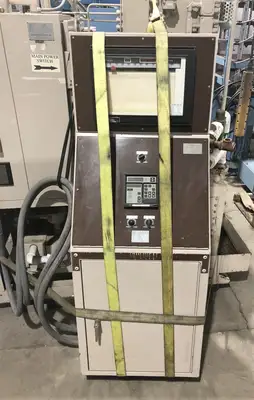

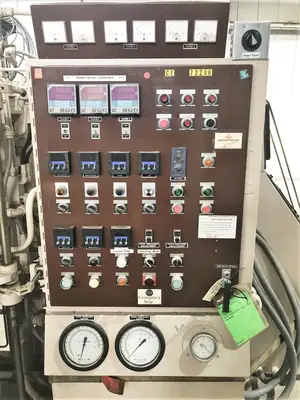

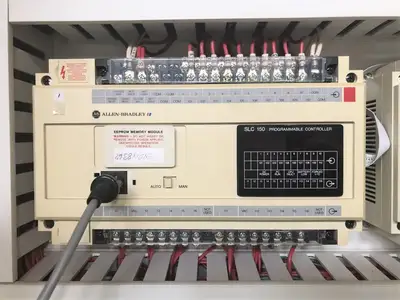

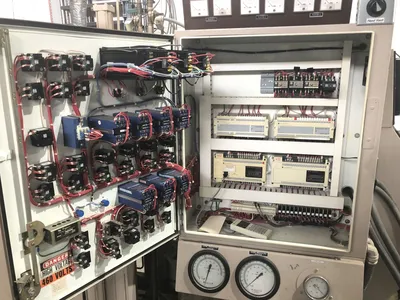

PRESS CONTROLS: ALLEN-BRADLEY SCL-100 PLC CONTROLLER

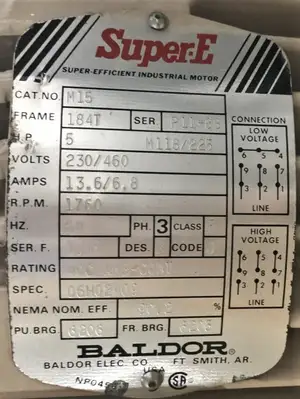

ELECTRIC MOTOR: 5 HP, 230/460-3-60 MOTOR
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

VACUUM CHAMBER: SO CAN ALSO BE USED AS A VACUUM LAMINATION PRESS, B-1002-C6-T FAUVER CO. HEAT EXCHANGER, WATER COOLED PLATENS
