Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI 75R2418S-3HCS-P-YS8-R PRESS
Year:
1983
Stock #:
8213
Description

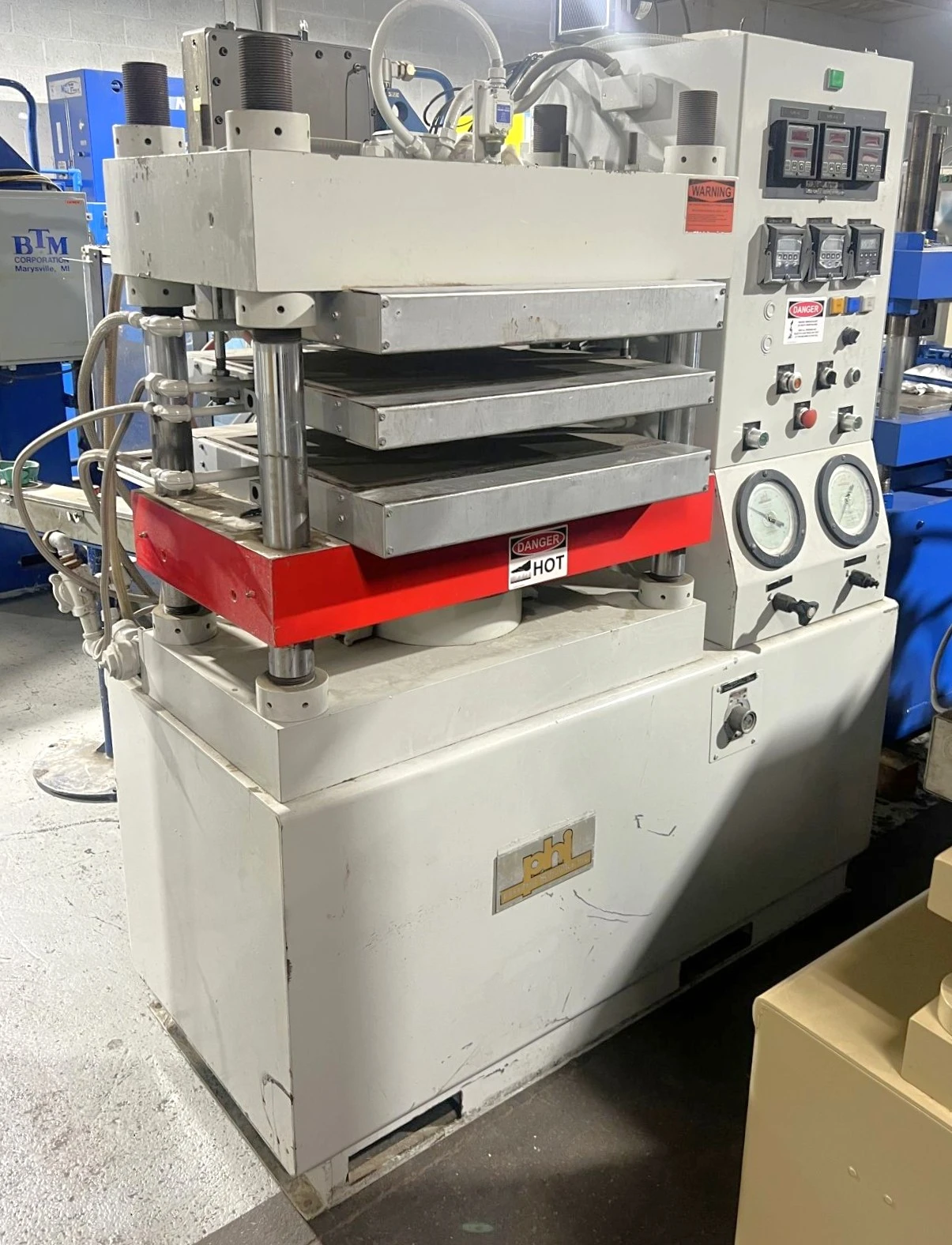

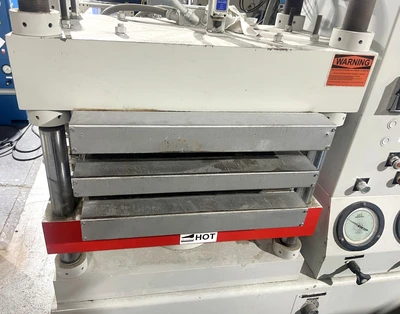

Approx. 8" Stroke, 16" Daylight, 24.5" x 18.5" Heated Platens (2 Openings) that are Water / Air Cooled, High/Low Pressure Controls

Specifications
Dimensions66" X 49" (RL X FB) X 75" HIGH66" X 49" (RL X FB) X 75" HIGH

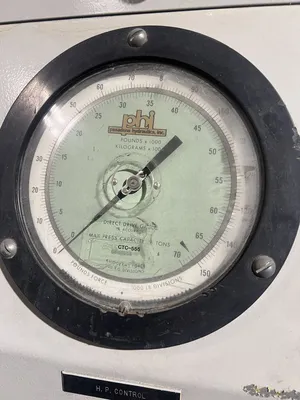

MAX. CAPACITY: 75 TONS
MAX. STROKE: APPROX. 8"
MAX. DAYLIGHT: 16"
OVERALL BED & RAM AREA: 35.25" X 18.75" (RL X FB)
DISTANCE BETWEEN POSTS: 28.5" X 12" (RL X FB)
USABLE BED AREA: 28.5" X 18.75" (RL X FB)

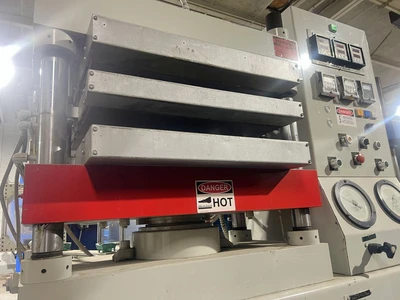

ELECTRIC HEATED PLATENS: 24.5" X 18.5" (RL X FB) X 3" - 2.5" - 3" THICK (2 OPENINGS) 37 AMPS - 480V
RAM ROD SIZES: 5.5" DIA.
CYLINDER SIZES: __
POSTS / 4 COLUMNS SIZE: 2.5" DIA.
FLOOR TO BED HEIGHT: 43.25"
PRESS CONTROLS: __

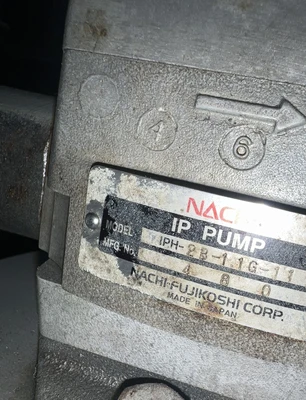

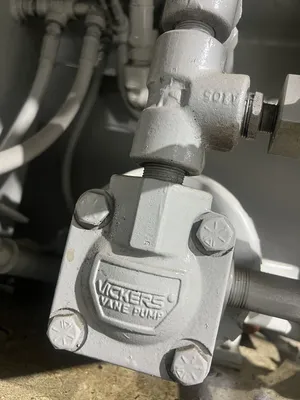

HYDRAULIC SYSTEM: VICKERS VANE PUMP / NACHI-FUJIKOSHI PUMP MODEL IPH-2B-1.1G-11

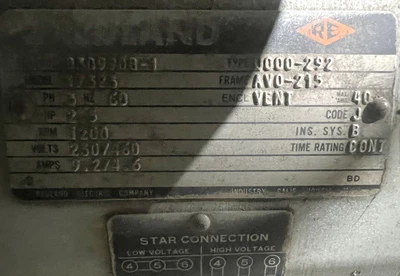

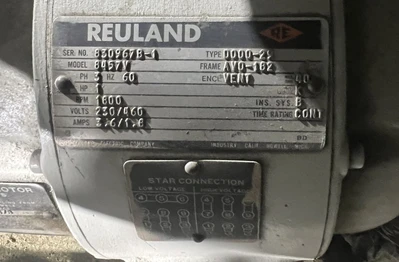

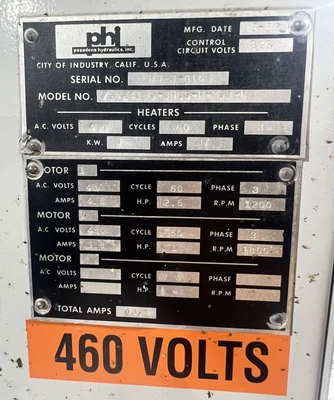

ELECTRIC MOTOR: 2.5 HP 230/460V-3-60 REULAND MOTOR | 9.2 / 4.6 AMPS
ELECTRIC MOTOR 2: 1 HP 230/460V-3-60 REULAND MOTOR | 3.6 / 1.8 AMPS
Note: TOTAL AMPS 43.4
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

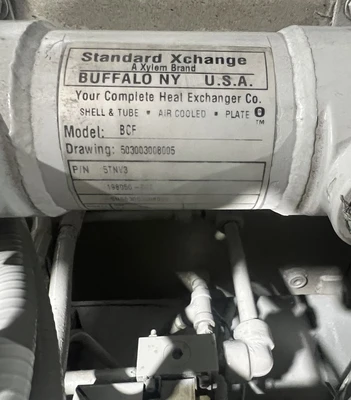

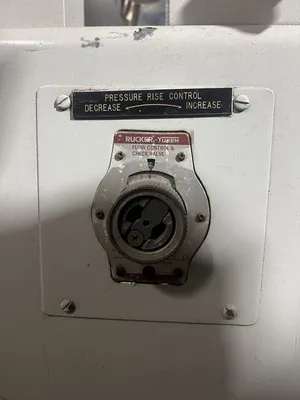

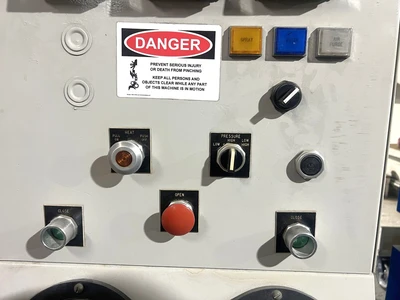

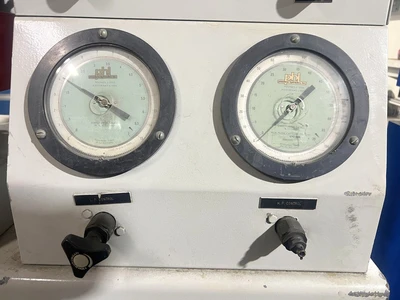

HIGH PRESSES / LOW PRESSURE CONTROL, STANDARD XCHANGE MODEL BCF HEAT EXCHANGER, SPRAY / WATER / AIR COOLED PLATENS
