Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI COMPRESSION MOLDING PRESS
Stock #:
6163
Description

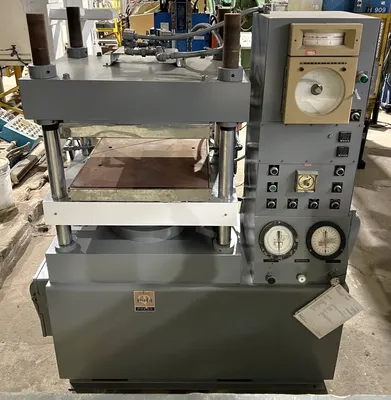

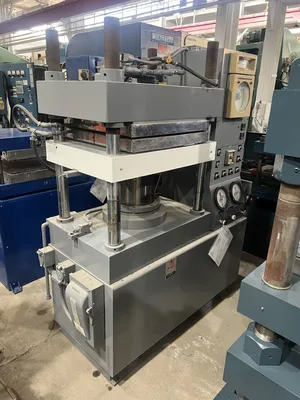

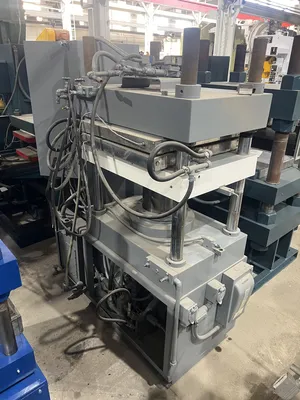

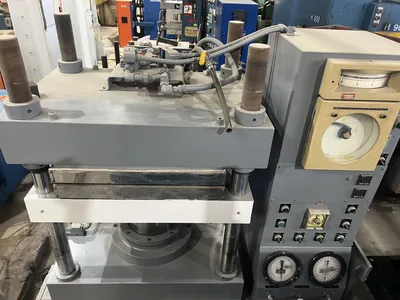

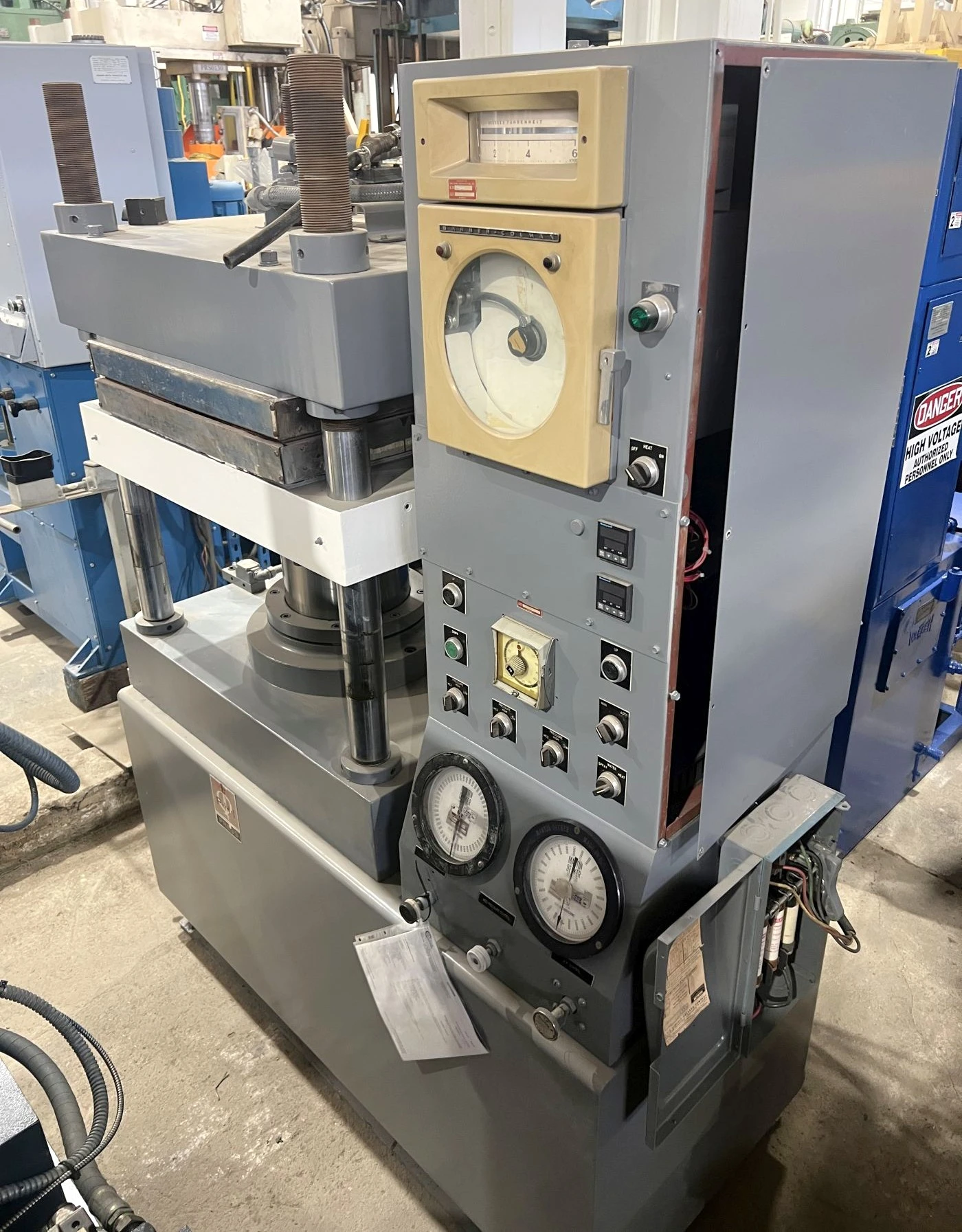

Approx. 8"/10" Stroke, Approx. 24" Daylight, Allen-Bradley Relay Logic Controls, 24.5" x 24.5" Heated Platens

Specifications
Weight4,100 LBS.4,100 LBS.

CAPACITY: 75 TONS (POSSIBLE THE PRESS IS 100 TONS CAPACITY)
STROKE: APPROX. 8" OR 10" CANNOT VERIFY TONNAGE OR MODEL NUMBER YET - upacting ram
DAYLIGHT: 24"
OVERALL BED & RAM AREA: 35.5" X 25" (RL X FB)
DISTANCE BETWEEN POSTS: 28" X 17" (RL X FB)

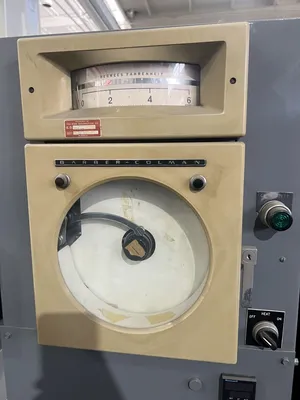

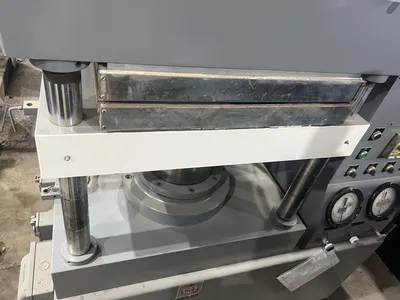

HEATED PLATENS: 24.5" X 24.5" (RL X FB) - APPROX. 600 DEG F
USABLE BED AREA: 28" X 25" (RL X FB)
FLOOR TO BED: __

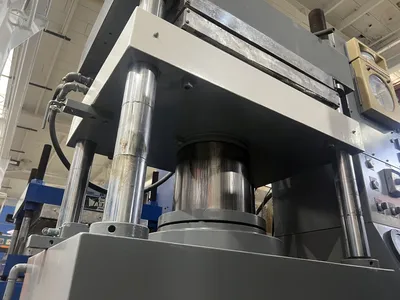

RAM ROD SIZE: 4" DIA.
CYLINDER SIZE: APPROX. 9" DIA. BORE
4 COLUMN / POSTS SIZE: 2.75" DIA.
SPEEDS: __

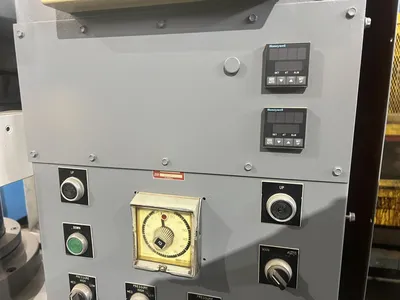

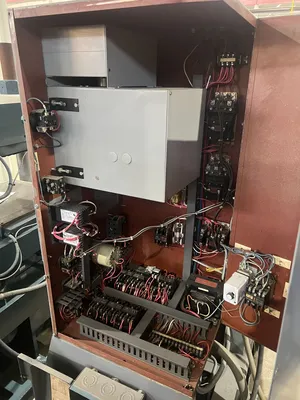

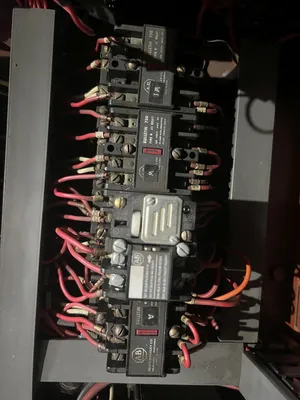

PRESS CONTROLS: ALLEN-BRADLEY RELAY LOGIC CONTROLLER
HYDRAULICS: __

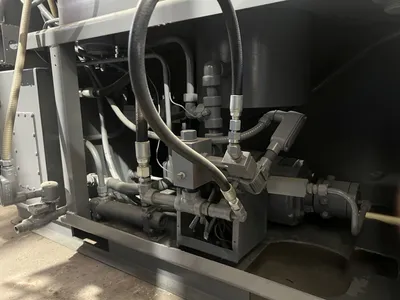

ELECTRICAL: 1.5 HP 230/460V-3-60 PASADENA HYDRAULICS MOTOR | 5.2 / 2.6 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

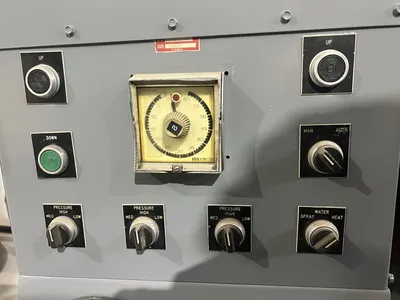

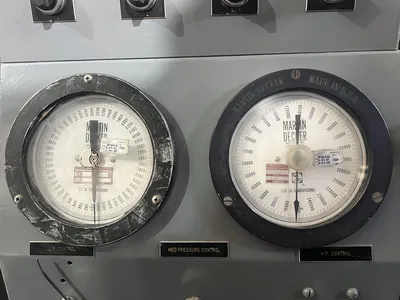

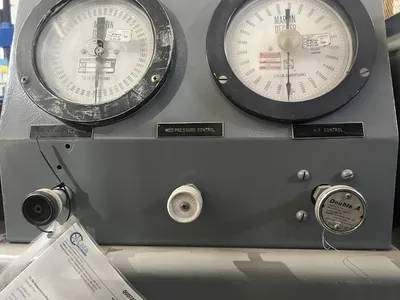

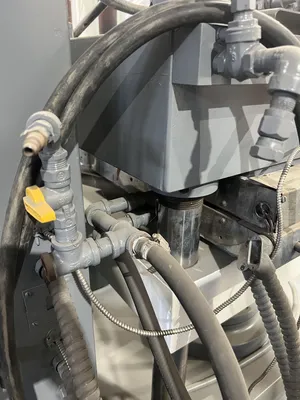

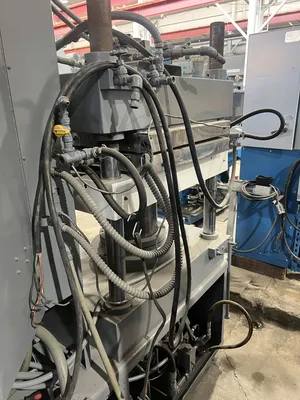

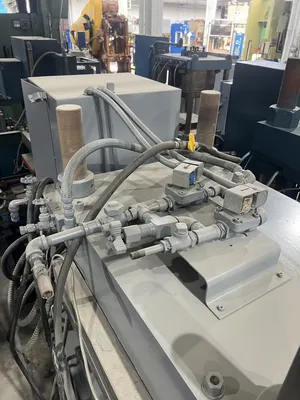

HIGH PRESSURE / LOW PRESSURE SETTINGS, WATER SYSTEM PIPING for cooled platens
