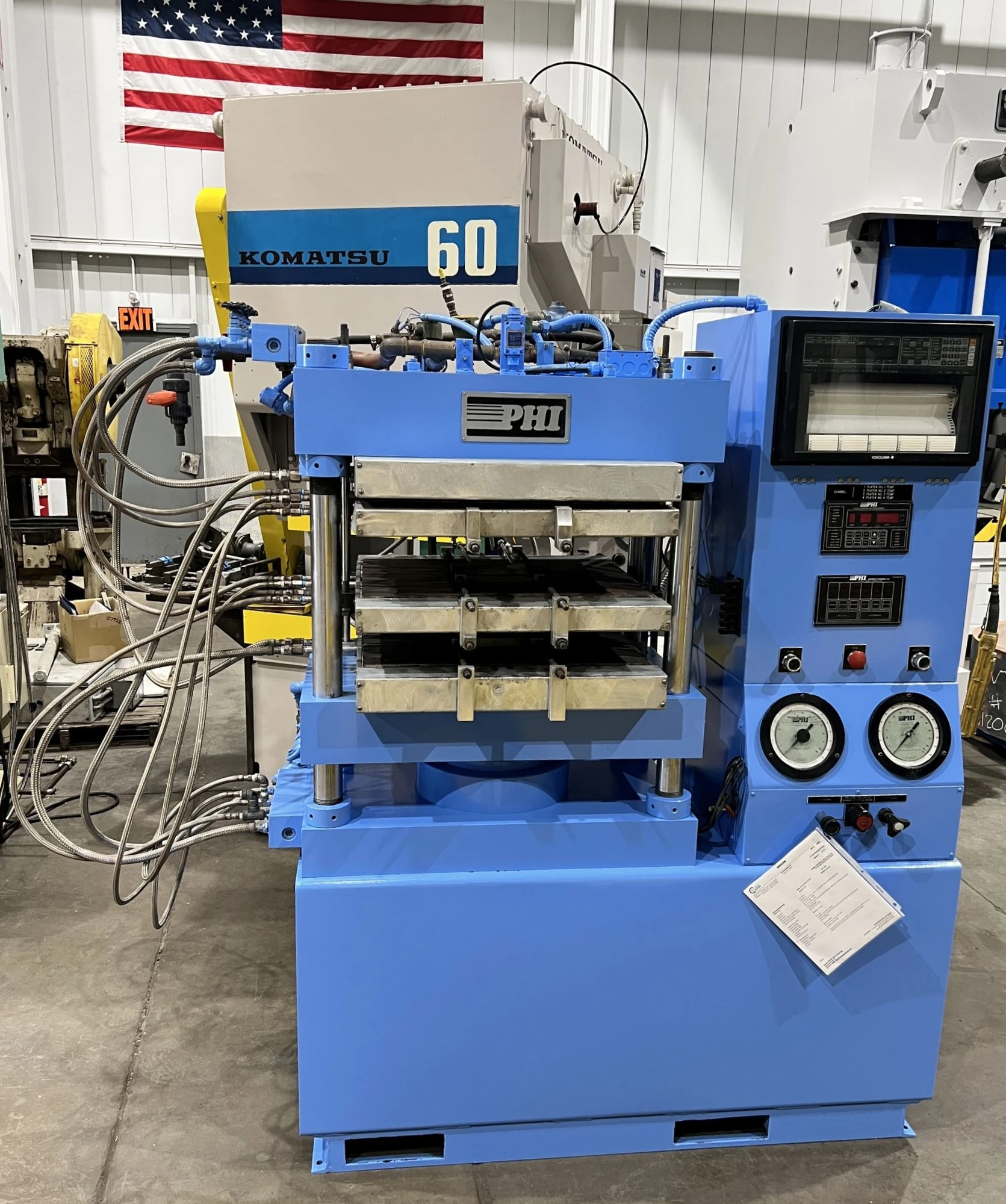

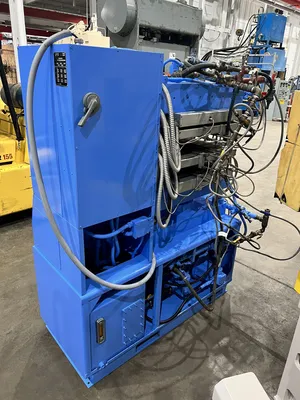

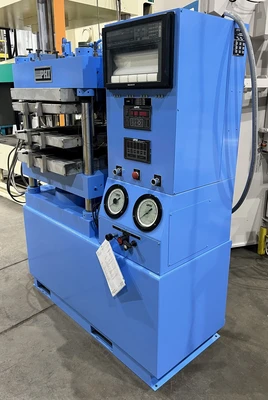

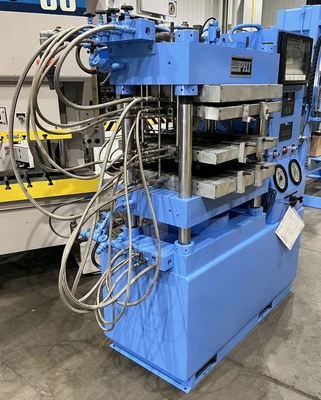

USED 1989 PHI PHI 75R2418S-4HCS-P-YS8R PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI 75R2418S-4HCS-P-YS8R PRESS
Year:
1989
Stock #:
6089
Description

Upacting 8" Stroke, 12" Daylight, 24" x 18.5" Heated Platens 600 Deg. F

Specifications
Dimensions92" X 44" (RL X FB) X 80" HIGH92" X 44" (RL X FB) X 80" HIGH
Weight3,700 LBS.3,700 LBS.

CAPACITY: 75 TONS AT 3,000 PSI
STROKE: 8"
DAYLIGHT: 12" (WITH 3", 2.25" 2.25", 3" PLATENS THAT CAN BE REMOVED)
OVERALL BED & RAM AREA: 35" X 19" (RL X FB)
DISTANCE BETWEEN POSTS: 28" X 12" (RL X FB)

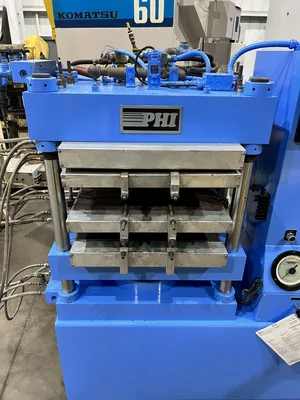

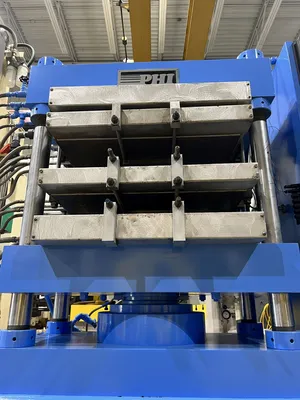

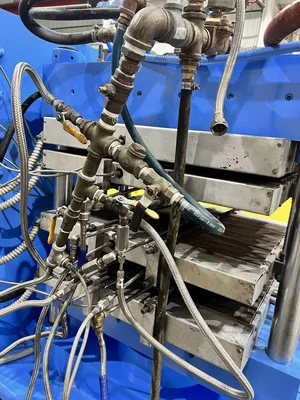

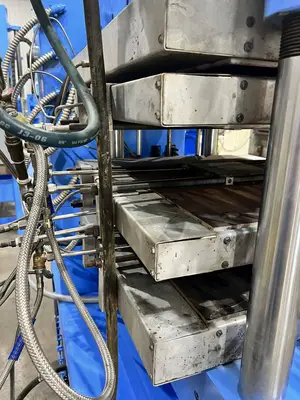

HEATED PLATENS: 24.5" X 18.5" (RL X FB) PLATENS APPROX. 600 DEG F (WATER COOLED) - 2 OPENINGS
USABLE BED AREA: 28" X 19" (RL X FB)
FLOOR TO BED: 47.625"
RAM ROD SIZE: APPROX. 6" DIA.
CYLINDER SIZE: 8" DIA. BORE
4 COLUMN / POSTS SIZE: 2.5" DIA.
SPEEDS: APPROX. 56 IPM CLOSING

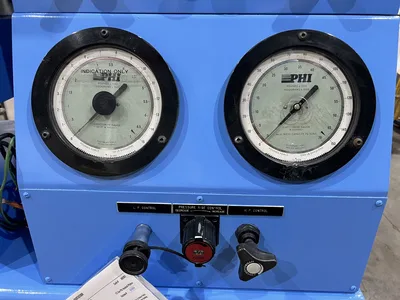

PRESS CONTROLS: PHI DT 5500 PRESS CONTROLLER WITH PHI DT5000 CONTROLLER FOR PLATENS
HYDRAULICS: __

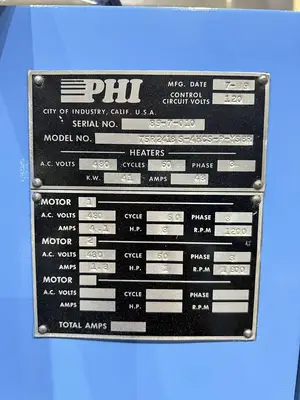

ELECTRICAL: 480V 48 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

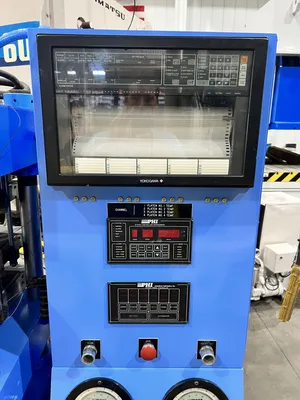

Yokogawa Chart Recorder, 3 Openings In Platens, Digital Temperature Controllers, Digital Cycle Timer
