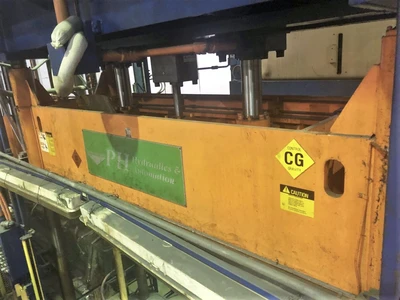

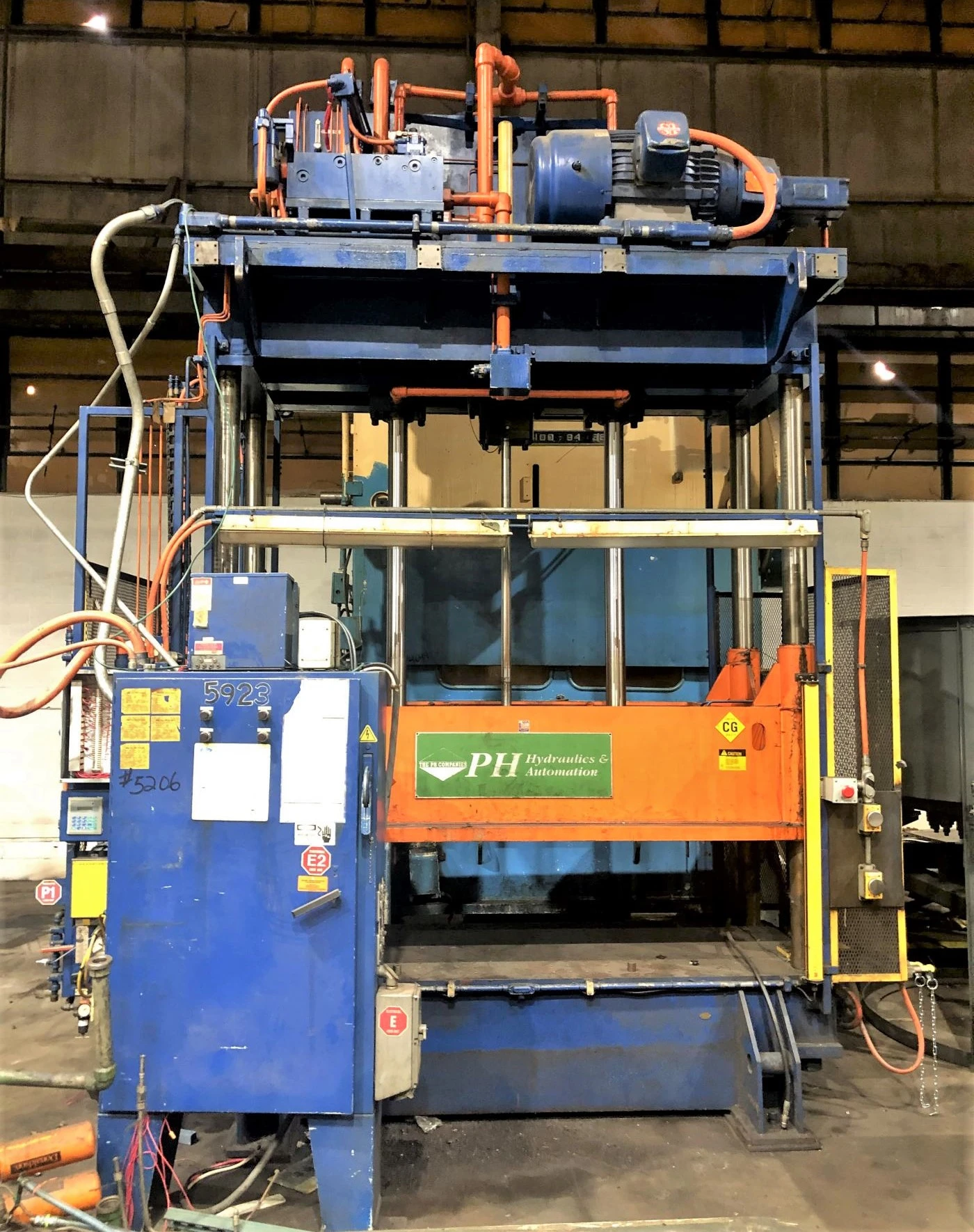

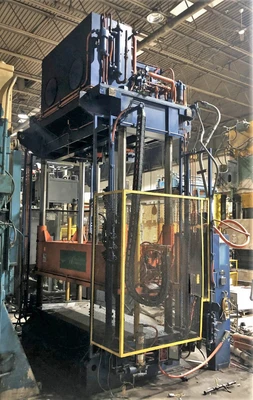

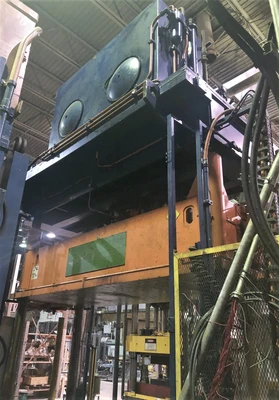

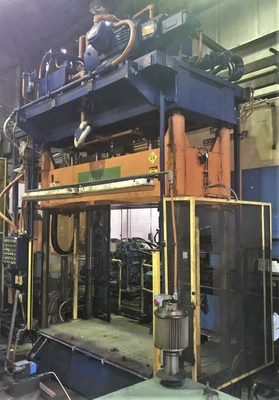

Approx. 48" Stroke, Approx. 72" Daylight, 101" x 42" Usable Bed, 1996, Allen-Bradley SLC Controls (2004)
| Dimensions | Approx 156" X 72" (RL X FB) X 204" HIGH / 97" x 64" footprint | Approx 156" X 72" (RL X FB) X 204" HIGH / 97" x 64" footprint |
| Weight | approx. 30,000 lbs. | approx. 30,000 lbs. |

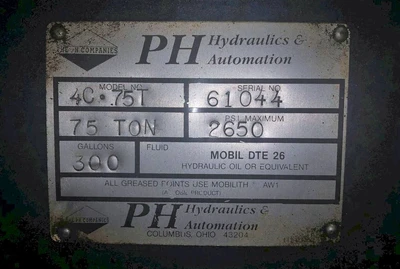

CAPACITY: 75 Ton @ 2650 psi
MAX. STROKE: Approx 48"
MAX. DAYLIGHT TO BED: Approx 72"
MAX. SHUT HEIGHT: Approx 34"
OVERALL BED & RAM AREA: 115" x 42" (RL X FB)
distance between post: 101" x 26" (RL X FB)

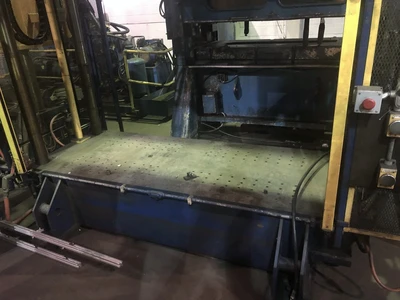

usable bed: 101" x 42" (RL X FB)
post size: 4.5" dia.
CYLINDER SIZE: (2) 6" dia. bore cylinders
FLOOR TO BED HEIGHT: 25"

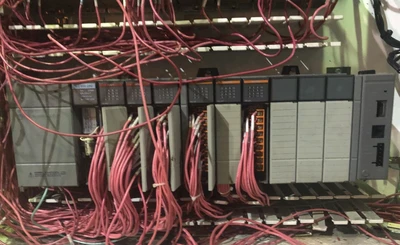

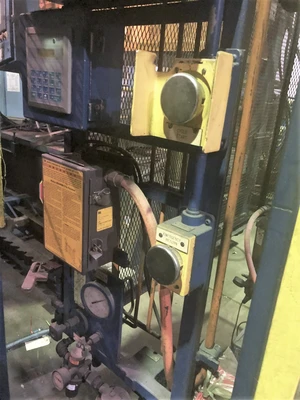

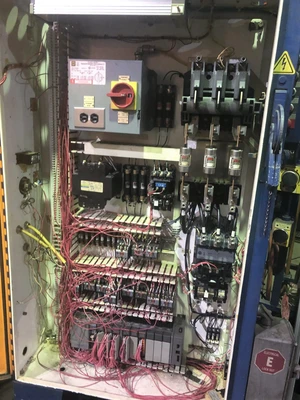

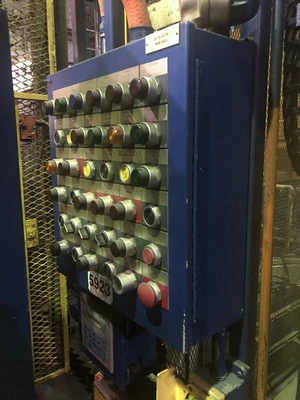

PRESS CONTROLS: ALLEN-BRADLEY SLC CONTROLS (2004)

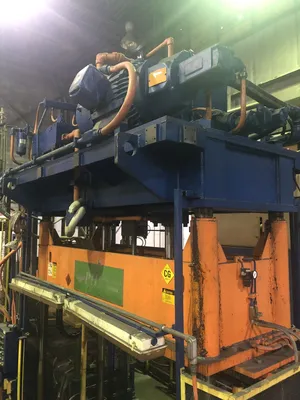

hydraulics: vickers PUMPS MODEL: 4535v6a30 / 300 GALLON TANK
Electrics: 100 HP 230/460V-3-60 motor
Note: MOBILE DTE 26 HYDRAULIC OIL OR EQUIVALENT RECOMMENDED, ALL GREASED POINTS USE MOBILITH AW1
Location: This Used Press is Located in Our Jackson, MI Falahee Building

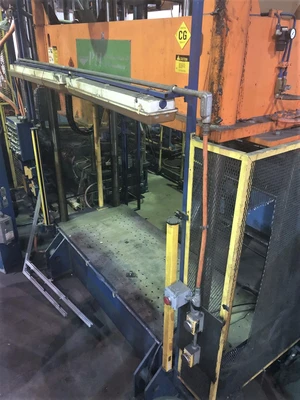

*with 2 - 65" high swing in safety blocks on bed floor standing base
