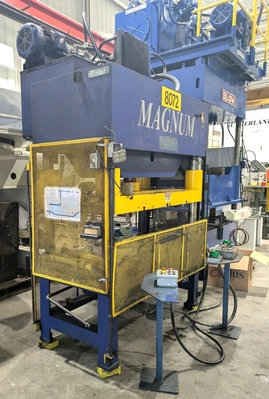

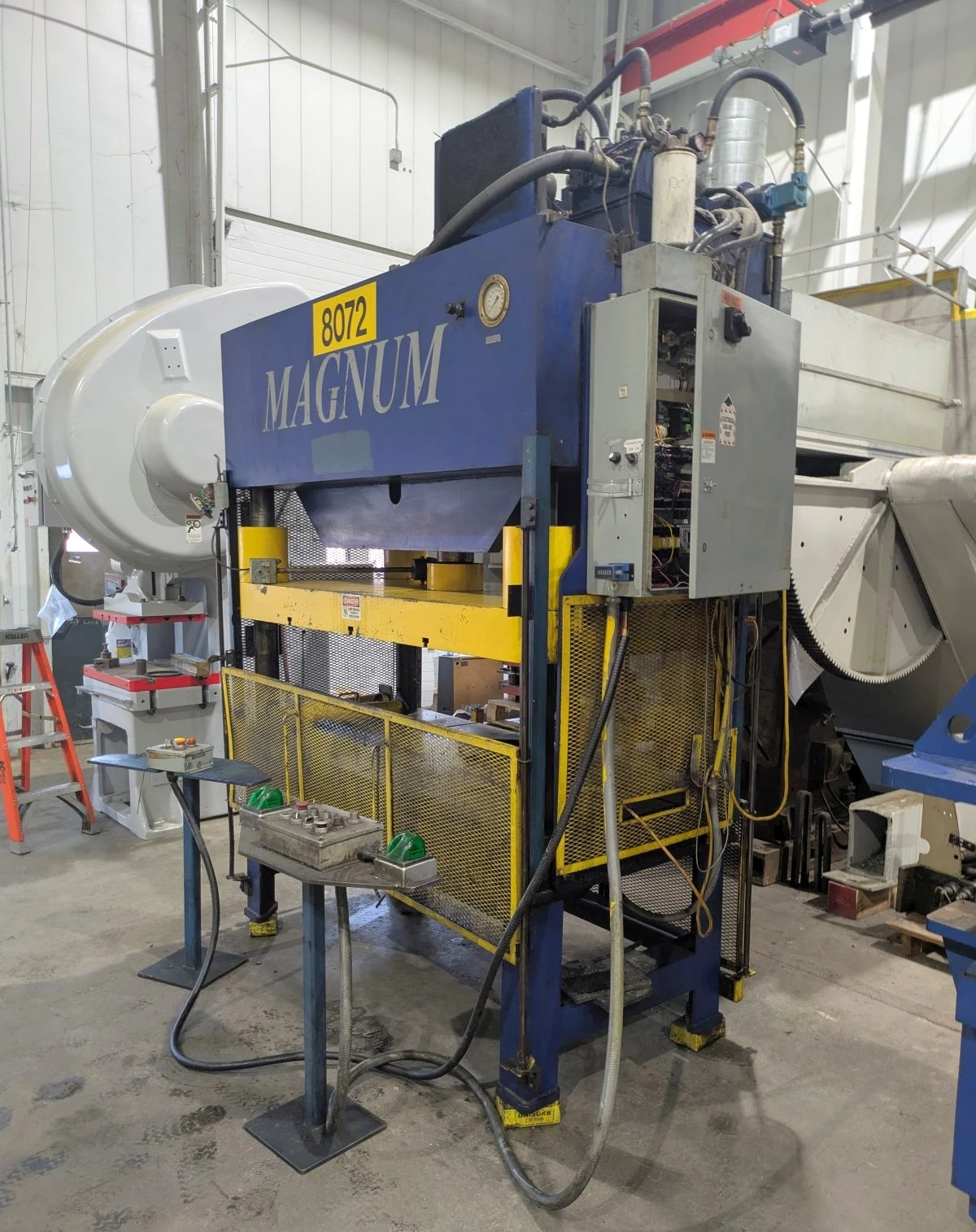

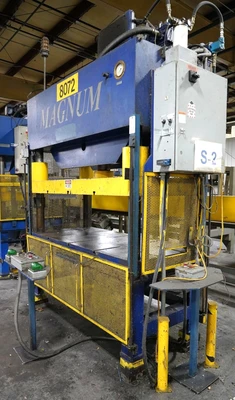

USED 2001 MAGNUM MAGNUM HFP-60 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS
  • USED 2001 MAGNUM MAGNUM HFP-60 PRESS

USED 2001 MAGNUM MAGNUM HFP-60 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

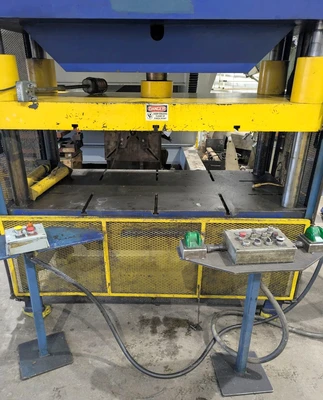

Overview
Type:
Hydraulic Presses
Manufacturer:
MAGNUM
Model:

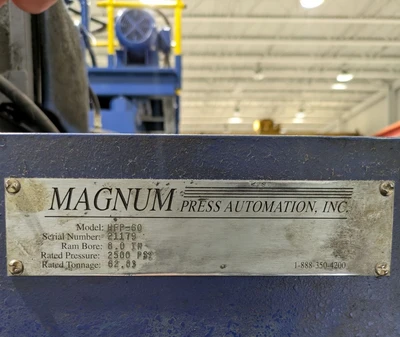

MAGNUM HFP-60 PRESS
Year:
2001
Stock #:
8330
Description

12" Stroke, 24" Daylight, 65" x 36" Usable Bed, New in 2001, AB MicroLogix 1100 Controls

Specifications
Dimensions7'6" x 5' (RL X FB) x 12' HIGH7'6" x 5' (RL X FB) x 12' HIGH
Weight32,000 Lbs32,000 Lbs

MAX. CAPACITY: 60 TONS at 2,500 PSI
MAX. STROKE: 12"
MAX. DAYLIGHT: 24"
OVERALL BED & RAM AREA: 77.5" X 36" (RL X FB)
DISTANCE BETWEEN POSTS: 65" X 24.5" (RL X FB)

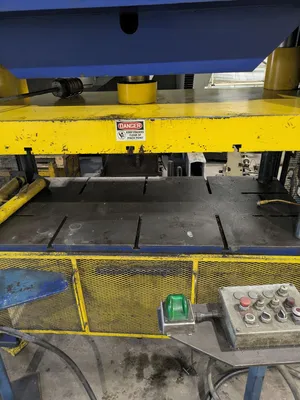

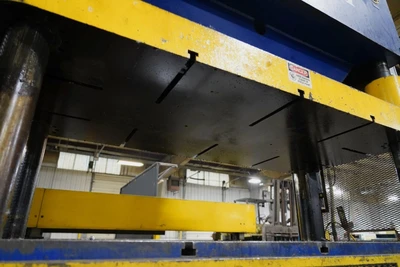

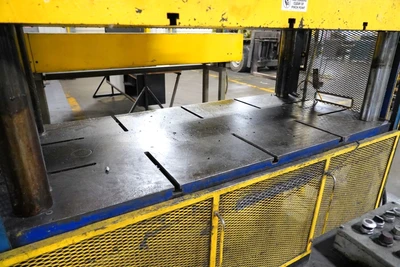

USABLE BED AREA: 65" X 36" (RL X FB)
FLOOR TO BED HEIGHT: 33"
RAM ROD SIZE: 7" DIA.
CYLINDER SIZE: 8" dia. bore
4 COLUMN / POSTS SIZE: 4" DIA.

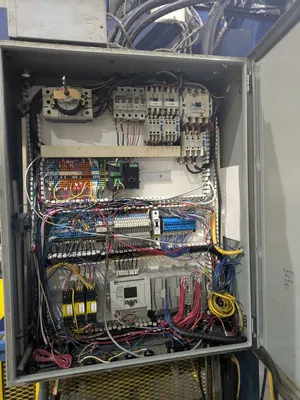

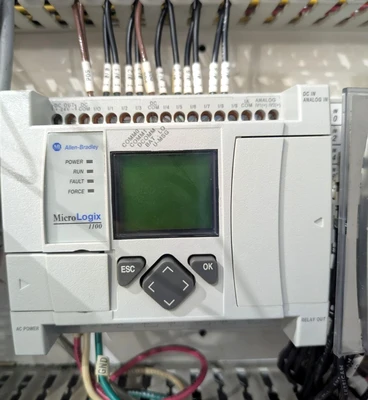

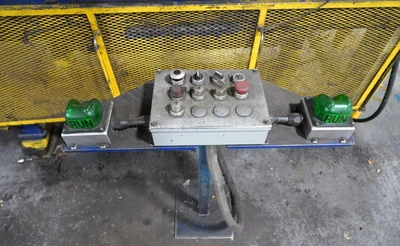

PRESS CONTROLS: ALLEN-BRADLEY MICROLOGIX 1100 PLC CONTROLLER

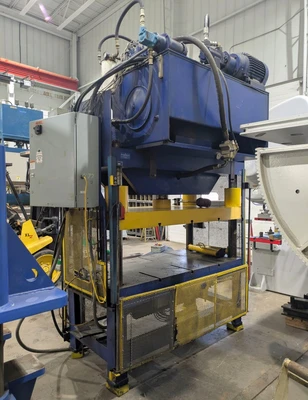

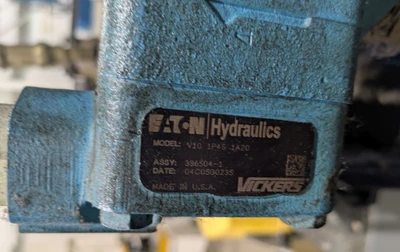

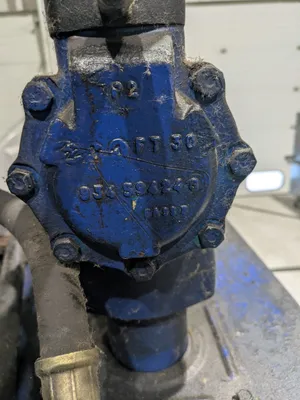

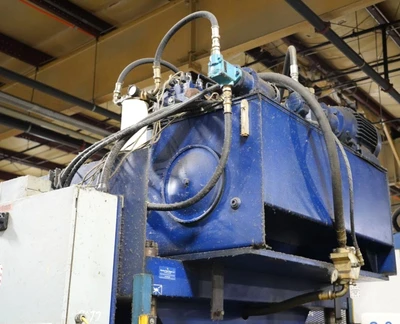

HYDRAULIC UNIT: PARKER PUMP / VICKERS V10 1P4S 1A20 PUMP

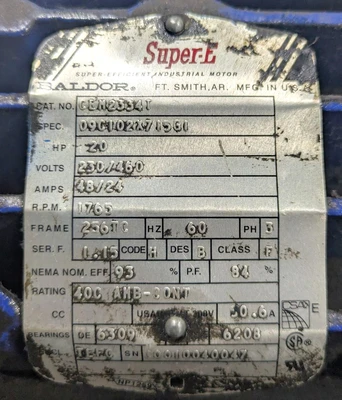

ELECTRIC MOTOR: 20 HP 230/460V-3-60 SUPER-E MOTOR | 48 / 24 AMPS

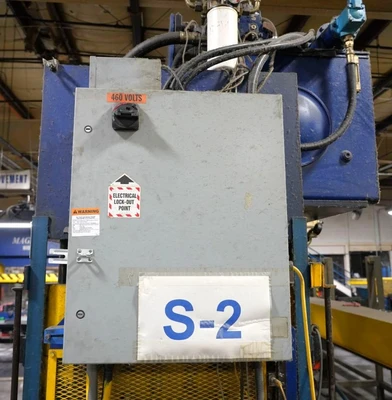

Note: 2026: CURRENTLY WIRED FOR 460V
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

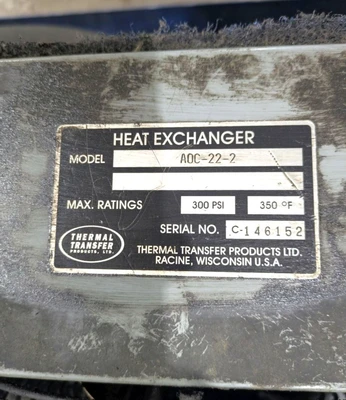

FAN COOLED THERMAL TRANSFER HEAT EXCHANGER MODEL AOC-22-2 - 300 PSI, 350 DEG F.
