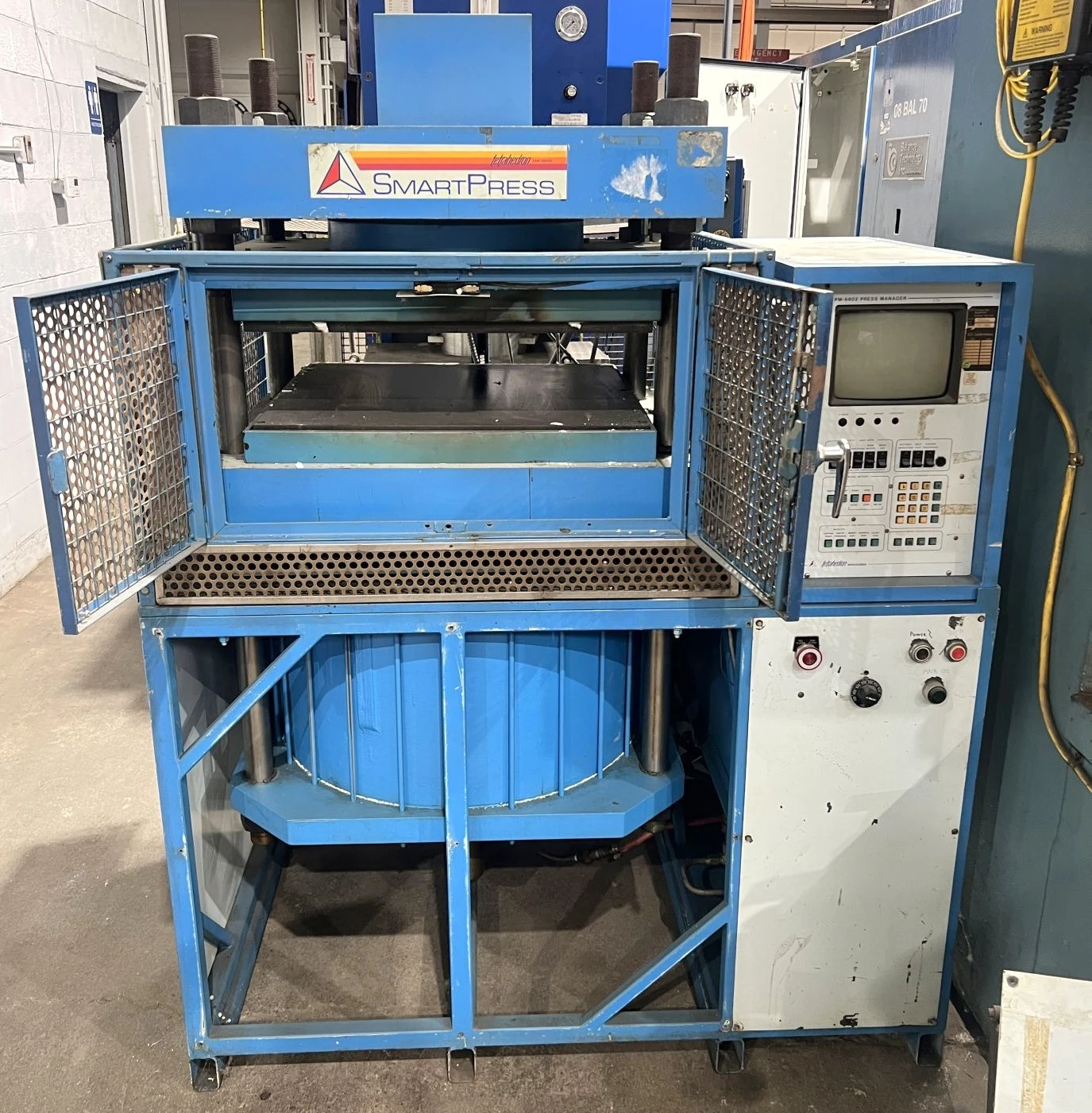

Overview
Type:
Hydraulic Presses
Manufacturer:
TETRAHEDRON
Model:
TETRAHEDRON PRESS
Stock #:
8266
Description

6" Stroke (Possibly 11" or 12" - TBD), 15" Daylight, 25.5" x 24" Electric Heated Platens (Rated for up to 370° C. / 698° F) that can be Water or Air Cooled

Specifications
Dimensions56" X 47" (RL X FB) X 75" HIGH56" X 47" (RL X FB) X 75" HIGH
WeightAPPROX. 5,500 LBS.APPROX. 5,500 LBS.

MAX. CAPACITY: 50 TONS
MAX. STROKE: APPROX. 6" (COULD BE 11" OR 12" - WILL KNOW ONCE PROPERLY TESTED)
MAX. DAYLIGHT: 10" TO 15"
OVERALL BED & RAM AREA: 32.5" X 27.25" (RL X FB)
DISTANCE BETWEEN POSTS: 27" X 16" (RL X FB)
USABLE BED AREA: 27" X 27.25" (RL X FB)

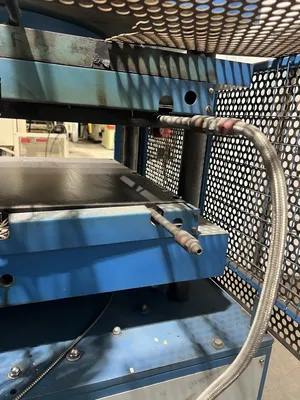

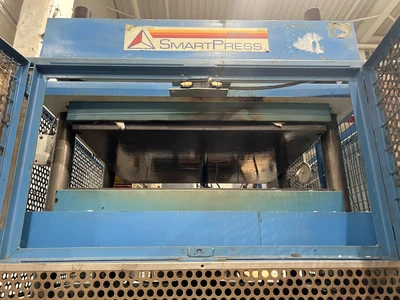

ELECTRIC HEATED PLATENS: 25.5" x 24" (RL X FB) X 2.25" / 2.8" THICK (RATED UP TO 370° C./ 698° F.)
FLOOR TO BED HEIGHT: 45"
SPEEDS: __
RAM ROD SIZE: APPROX. 3.5" DIA.
CYLINDER SIZE: 28" DIA. BORE
POSTS / 4 COLUMN SIZE: 2" DIA.

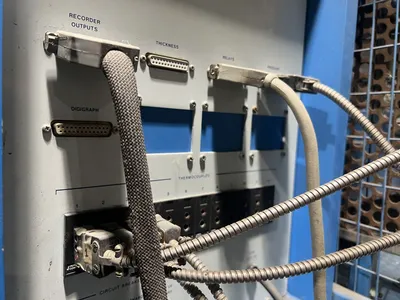

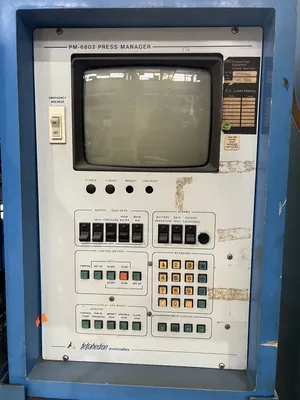

PRESS CONTROLS: PM-6802 PRESS MANAGER CONTROLS - TO BE UPDATED WITH RECONDITIONING PROCESS

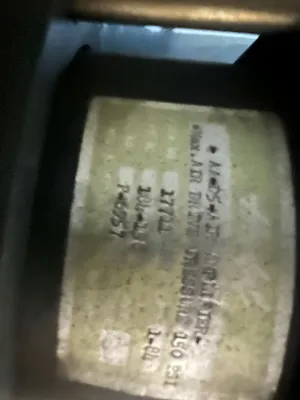

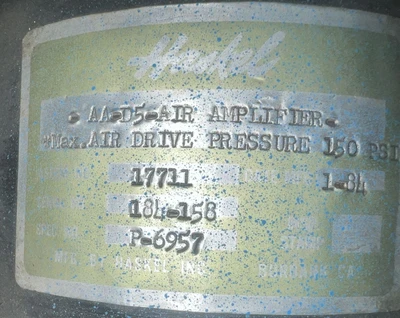

PNEUMATIC SYSTEM: HASKEL AA-D5 AIR AMPLIFIER (150 MAX. PSI) - ASSEMBLY 17711 / SPEC NO: P-6957
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

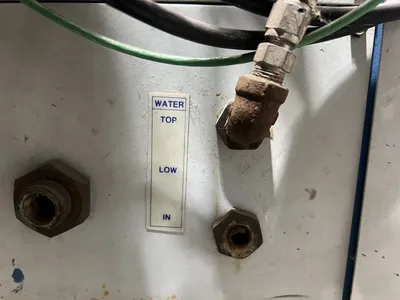

WATER AND AIR COOLED PLATENS
