Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI 50R1818-5ECS-N-YS8-L PRESS
Stock #:
8244
Description

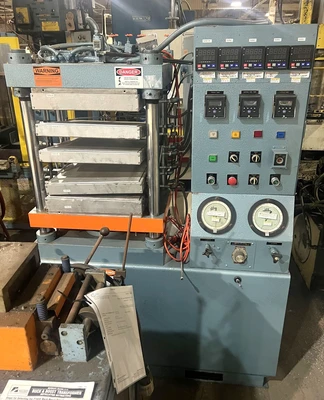

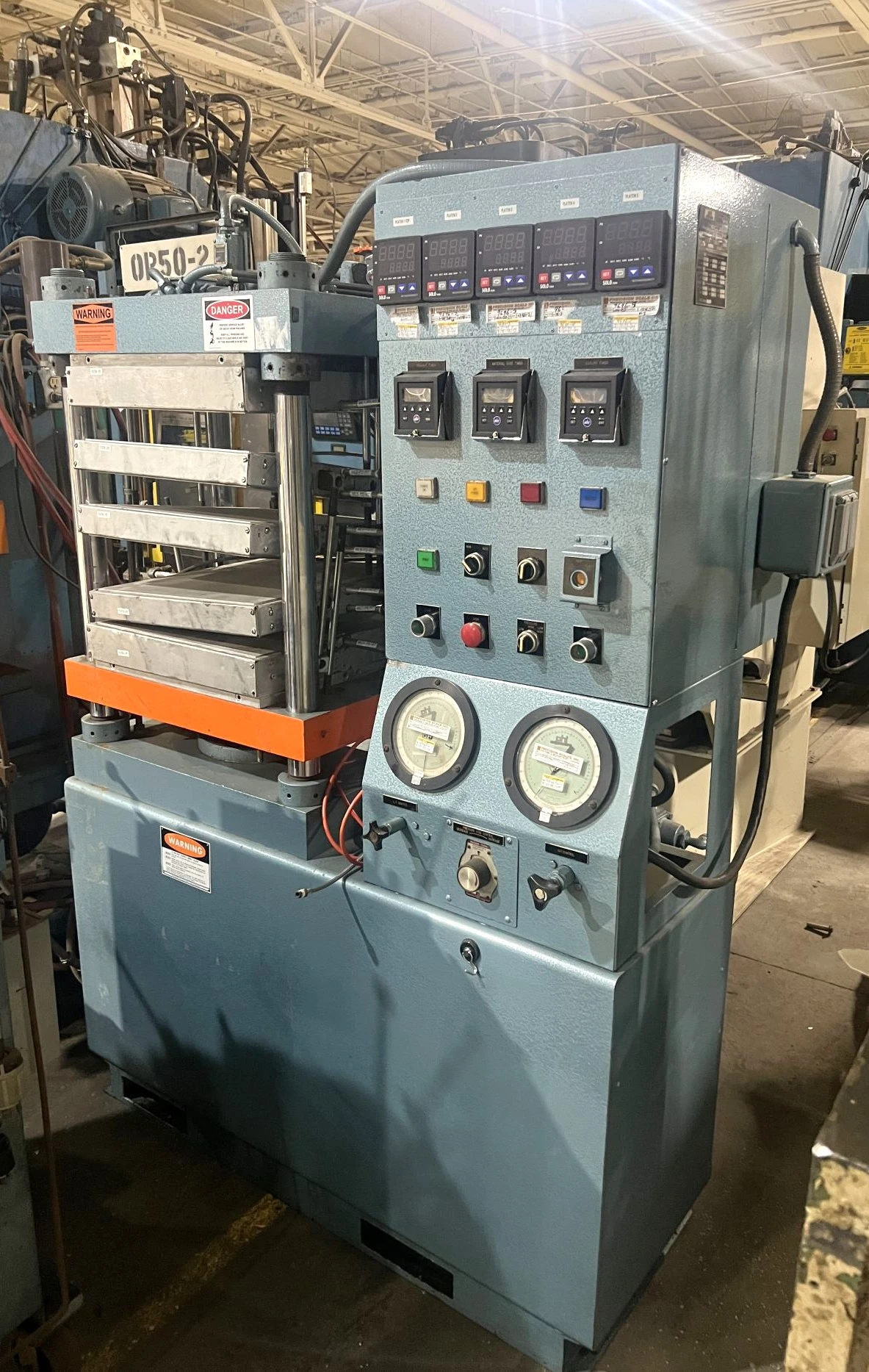

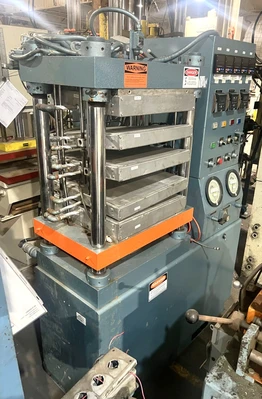

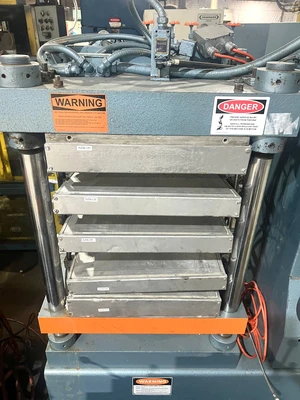

Approx. 8" Stroke, 25.5" Daylight (closes to 0), Multiple Openings (4), Electric Heated 18.5" x 18.5" Platesn (Water Cooled)

Specifications

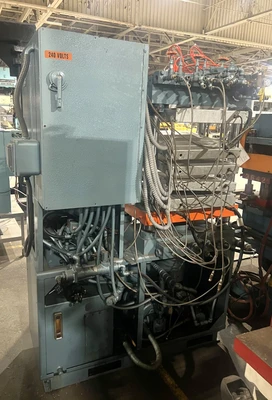

Dimensions62" X 43" (RL X FB) X 81" HIGH62" X 43" (RL X FB) X 81" HIGH

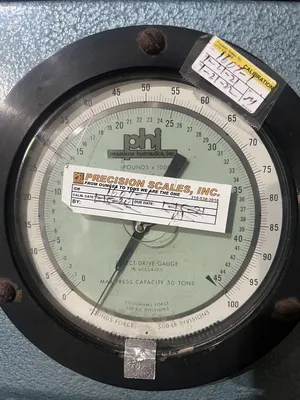

MAX. CAPACITY: 50 TONS
MAX. STROKE: APPROX. 8-10"
MAX. DAYLIGHT: 25.5"
OVERALL BED & RAM AREA: 28.25" X 19" (RL X FB)
DISTANCE BETWEEN POSTS: 21.25"
USABLE BED & RAM AREA: 21.25" X 19" (RL X FB)

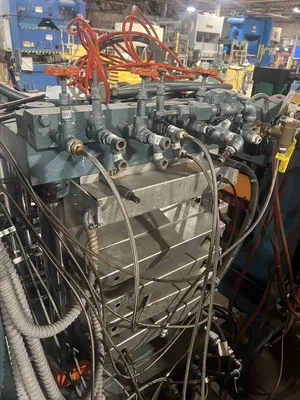

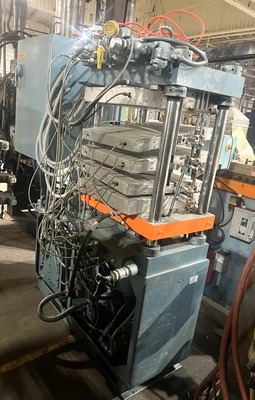

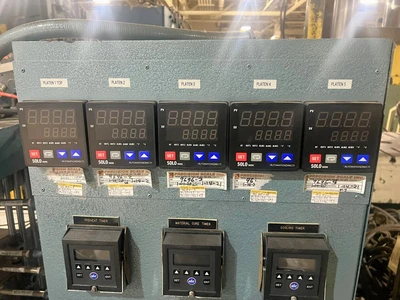

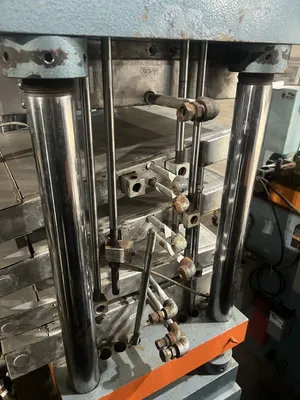

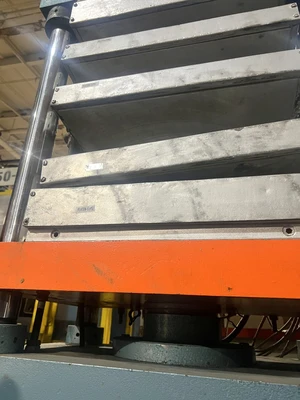

ELECTRIC HEATED PLATENS: (4) OPENINGS - 18.5" X 18.5" (RL X FB) SOLO 9696 CONTROLLERS - WATER COOLED
SPEEDS: __
CYLINDER SIZE: APPROX. 6.5" DIA. BORE
RAM ROD SIZE: 5" DIA.
POSTS / 4 COLUMNS SIZE: 2.5" DIA.
FLOOR TO BED HEIGHT: 43.5"

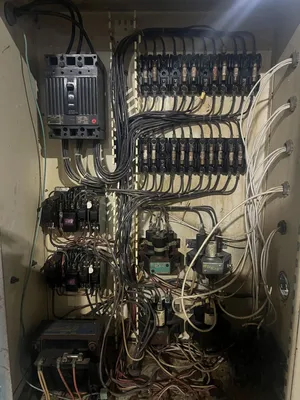

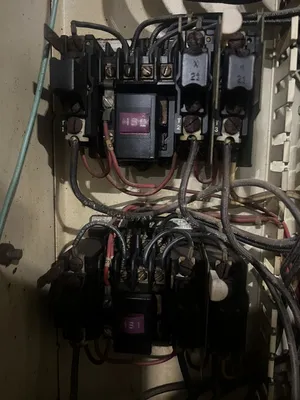

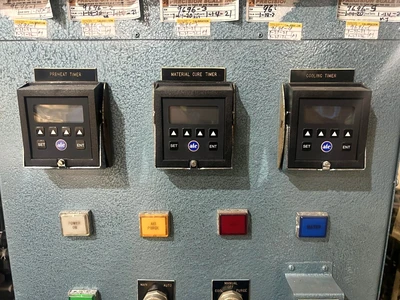

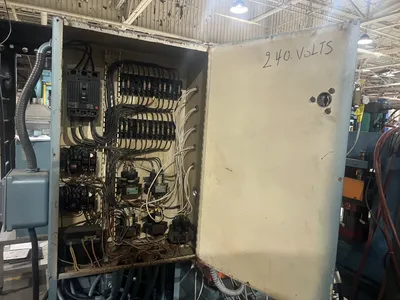

PRESS CONTROLS: RELAY LOGIC CONTROLLER WITH PREHEAT, CURE AND COOLING TIMERS

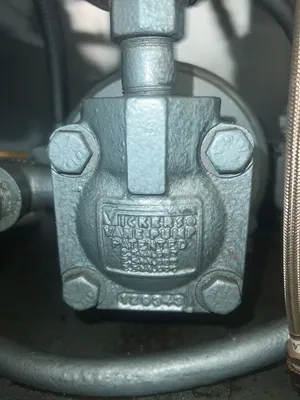

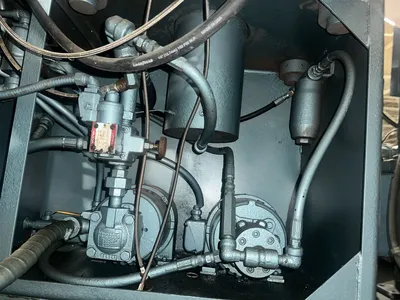

HYDRAULICS: VICKERS VANE PUMP

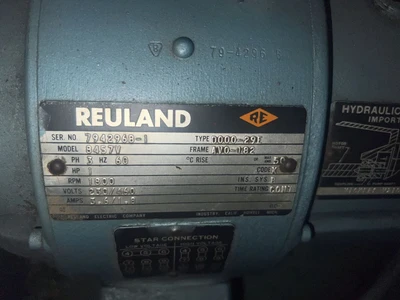

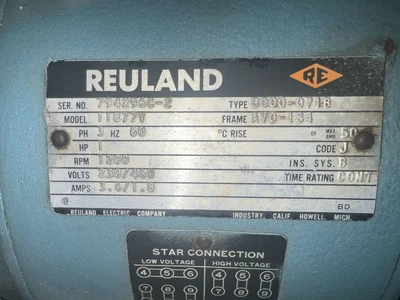

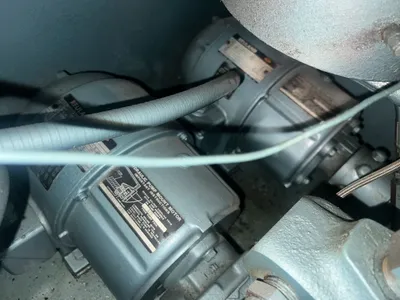

ELECTRIC MOTOR: (2) MOTORS - 1 HP 230/460V-3-60 REULAND | 3.6 / 1.8 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

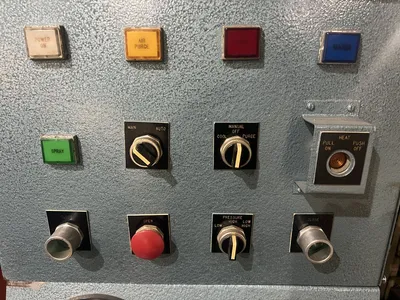

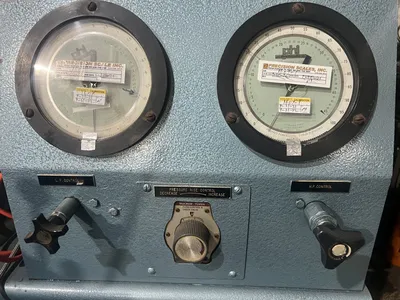

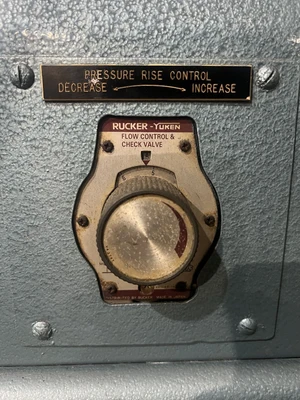

WATER COOLED PLATENS, AIR PURGE CONTROL SETTING, SPRAY CONTROL SETTING, HIGH/LOW PRESSURE CONTROL, FLOW CONTROL & CHECK VALVE FOR PRESSURE ADJUSTMENT, (3) TIMERS - PREHEAT, CURE AND COOLING
