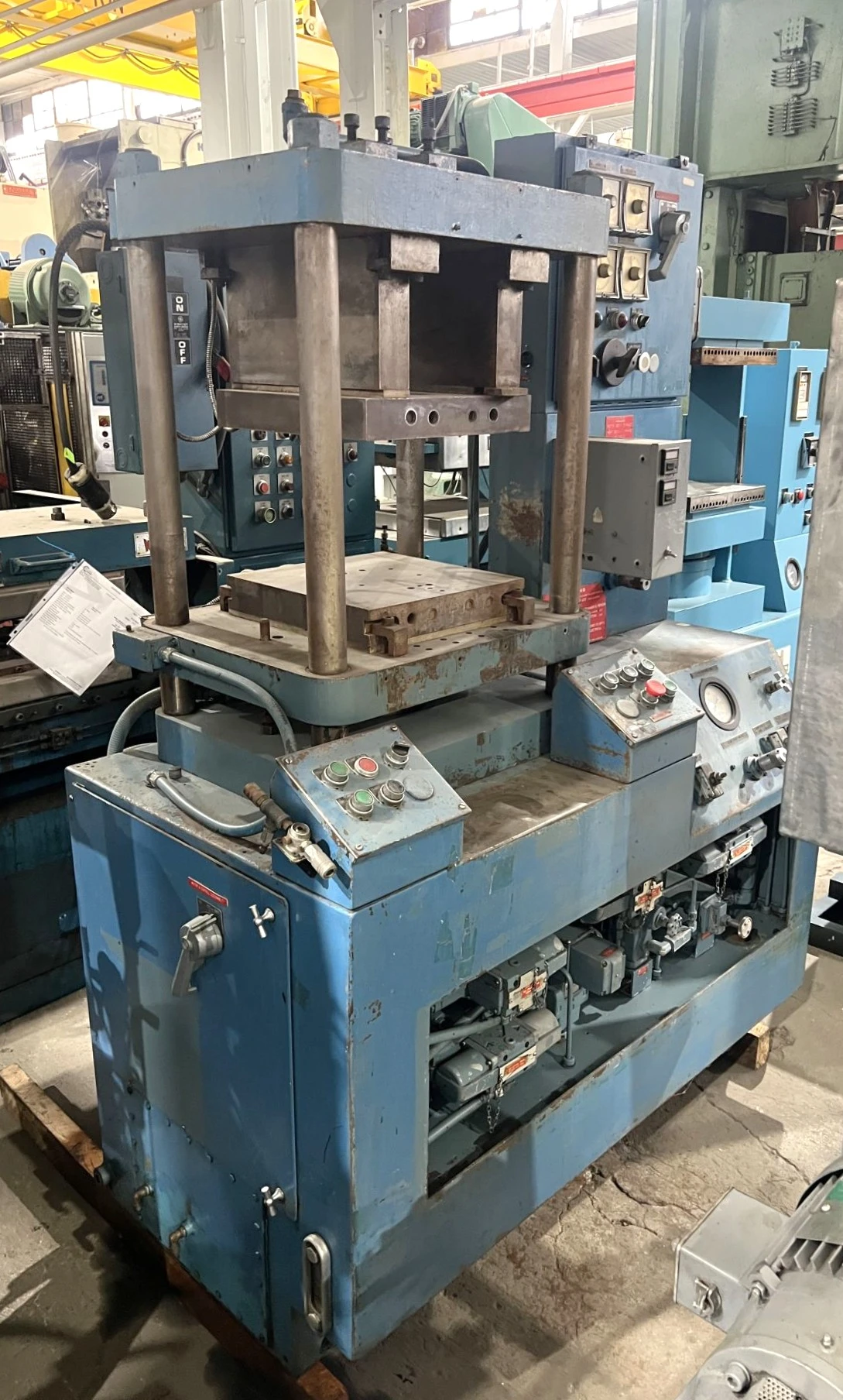

Overview
Type:
Hydraulic Presses
Manufacturer:
HULL
Model:
HULL PRESS
Stock #:
8257
Description

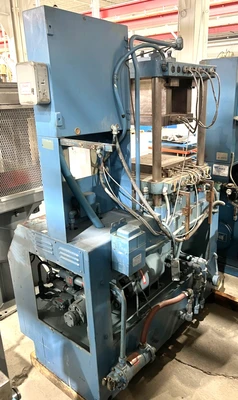

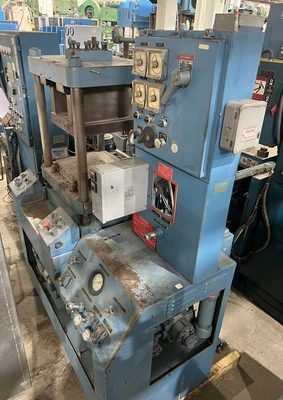

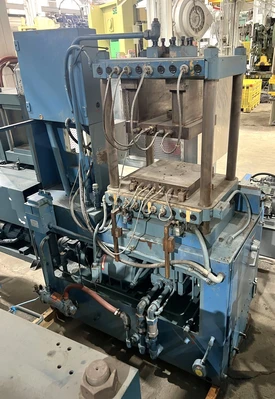

8" Stroke, 24" Daylight (10" Between platens with Riser installed), 15" x 15" Electric Heated Platens

Specifications
Dimensions64" X 42" (RL X FB) X 82" HIGH64" X 42" (RL X FB) X 82" HIGH
WeightAPPROX. 4,500 LBS.APPROX. 4,500 LBS.

MAX. CAPACITY: 50 TONS
MAX. STROKE: 8"
MAX. DAYLIGHT: 24" - (10" BETWEEN PLATENS)
OVERALL BED & RAM AREA: 26.5" X 20.75" (RL X FB)
DISTANCE BETWEEN POSTS: 20.5" X 14" (RL X FB)
USABLE BED AREA: 20.5" X 20.75" (RL X FB)

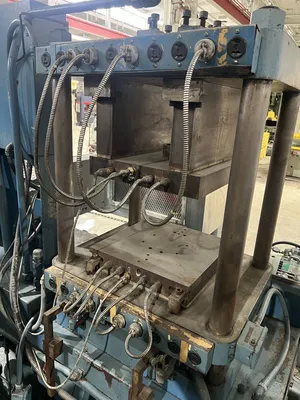

ELECTRIC HEATED PLATENS: 15" X 15" (RL X FB) X 2.5" THICK + .5" INSULATION (3" TOTAL)
RISER PLATE: 8" HIGH MOUNTED ON CROWN OF PRESS
FLOOR TO BED HEIGHT: 46"
SPEEDS: 400 IPM CLOSING / 20 IPM PRESSING / 150 IPM RETURN
RAM ROD SIZE: 5" DIA.
CYLINDER SIZE: APPROX. 6.5" OR 7" DIA. BORE
POSTS / 4 COLUMN SIZE: 2.25"

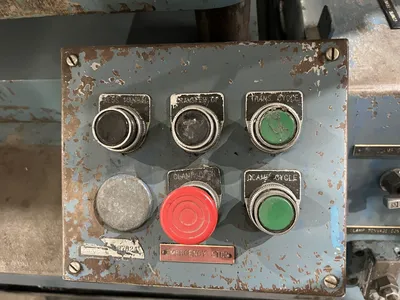

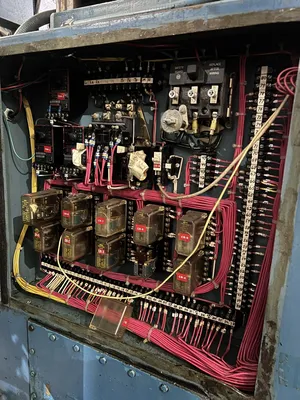

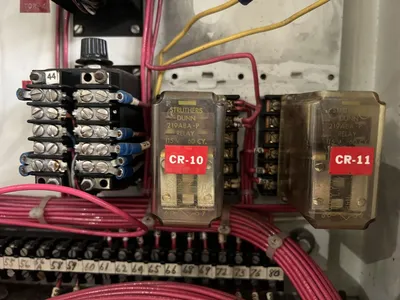

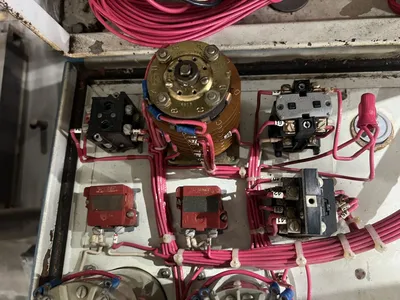

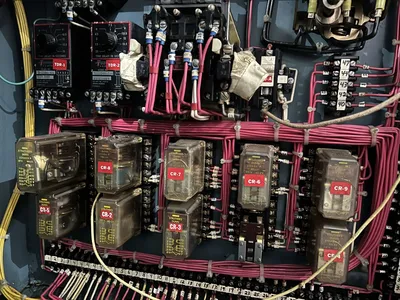

PRESS CONTROLS: STRUTHERS DUNN RELAY LOGIC CONTROLLER WITH SPEED CONTROL

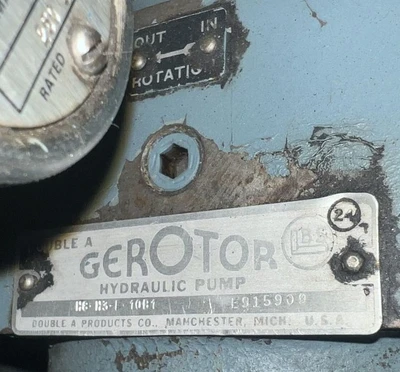

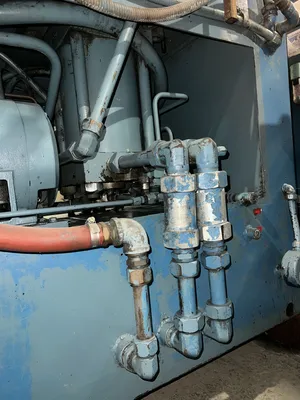

HYDRAULIC SYSTEM: DOUBLE A GEROTOR HYDRAULIC PUMP MODEL: H3-H8-F-10B1

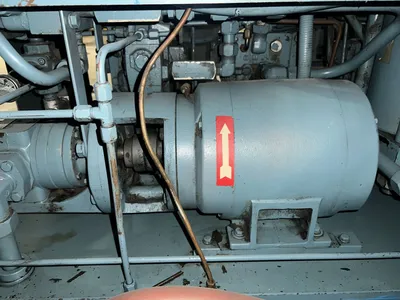

ELECTRIC MOTOR: 7.5 HP 230/460V-3-60 MOTOR
TRANSFER CYLINDER: 4" DIA. BORE - 12.566 SQ IN
TRANSFER ROD: 2.5" DIA. - 4.908 SQ IN
TRANSFER ROD SIDE AREA: 7.657 SQ IN
Note: CURRENTLY WITHOUT TRANSFER CYLINDER (CAN BE ADDED WITH RECONDITIONING)
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

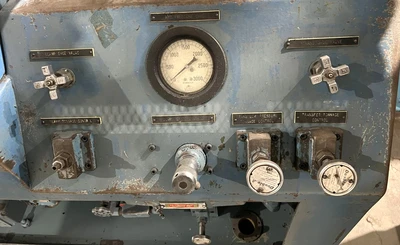

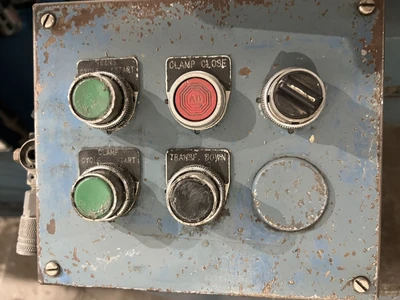

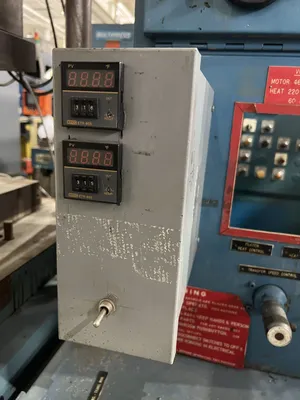

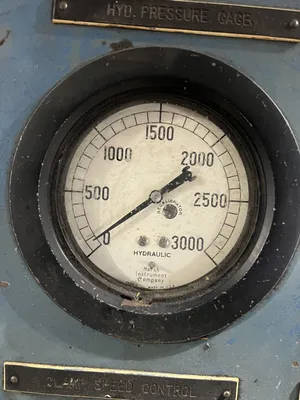

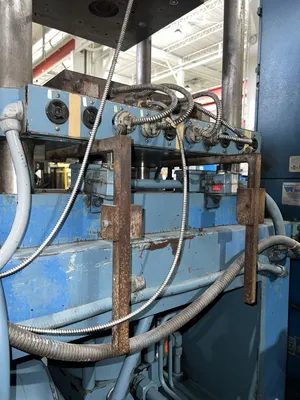

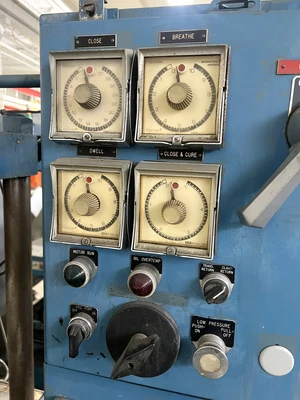

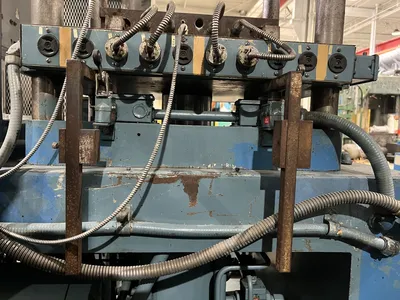

PRESSURE AND SPEED CONTROLS SETTINGS ON FRONT OF PRESS, CYCLE TIMERS FOR CLOSE / BREATH / DWELL / CURE, MOLD HEATER RECEPTACLES
