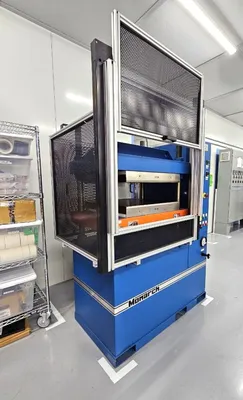

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH CMG50H-24 PRESS
Year:
2022
Stock #:
8194

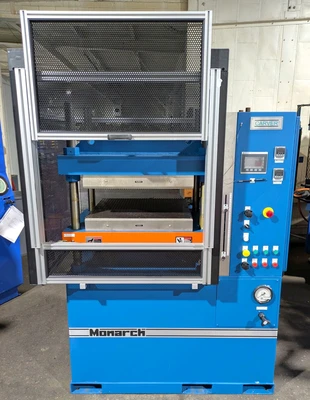

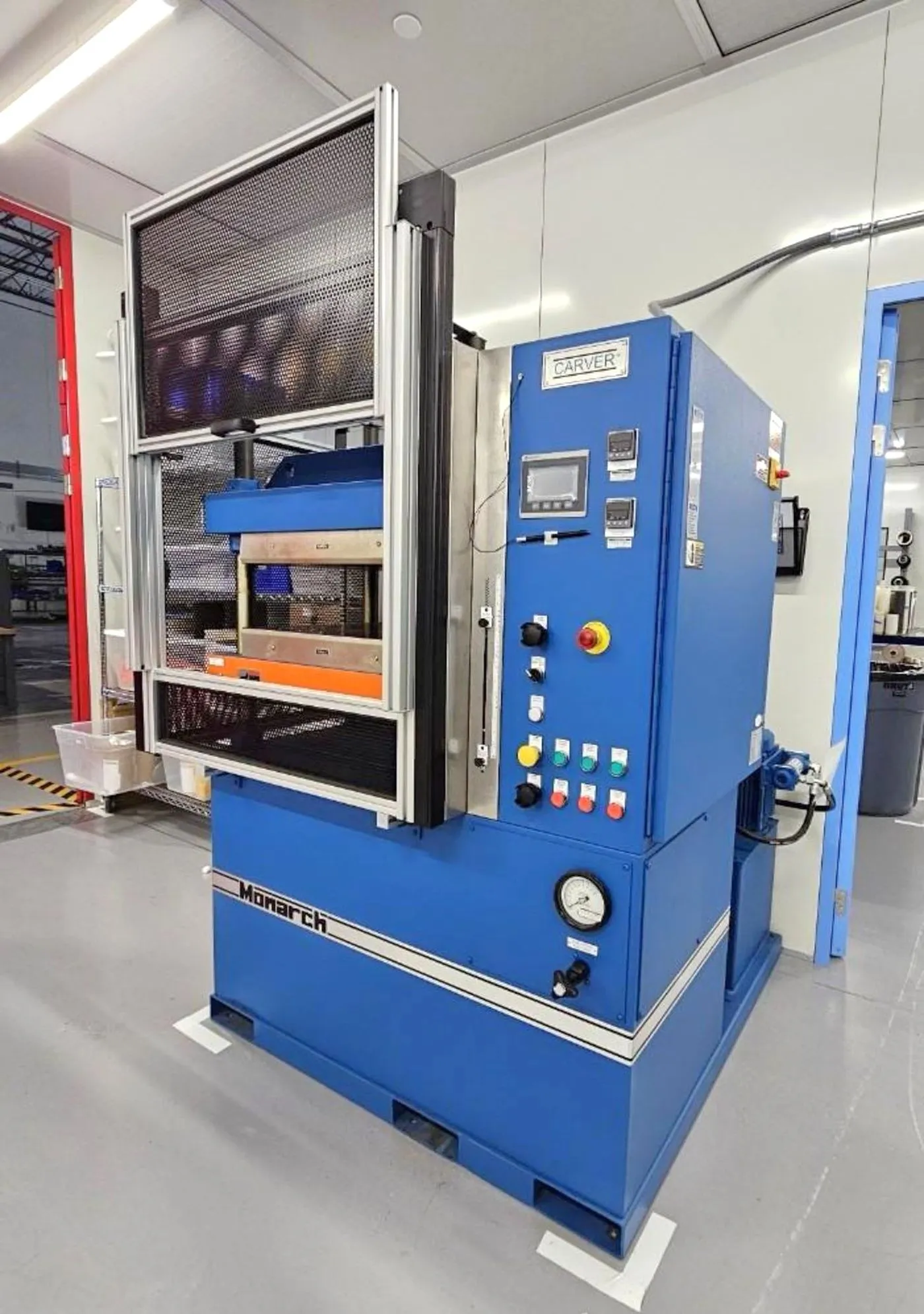

Description

Approx. 8" Stroke, 24" Max. Daylight, 24" x 24" Heated Platens 650 Deg. F, Allen-Bradley MicroLogix 1400 Controls

Specifications

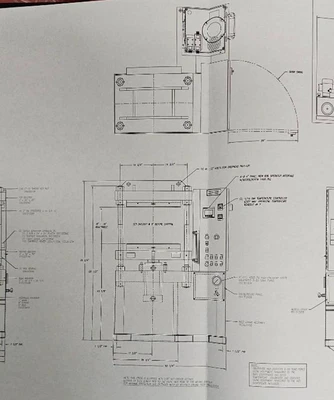

Dimensions60" x 60" (RL x FB) x 78" HIGH60" x 60" (RL x FB) x 78" HIGH

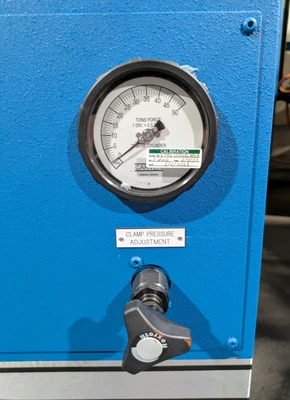

MAX. CAPACITY: 50 TONS
MAX. STROKE: APPROX. 8"
MAX. DAYLIGHT: 24" Adj. to 14"
OVERALL BED & RAM AREA: 34" x 25" (RL x FB)
DISTANCE BETWEEN POSTS: 27.5" x 17.5" (RL x FB)
USABLE BED AREA: 27.5" x 25" (RL x FB)

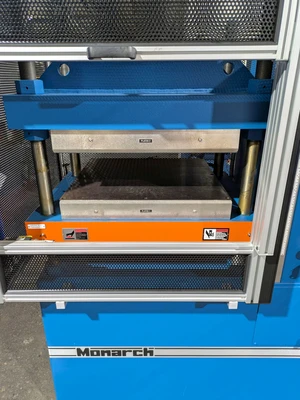

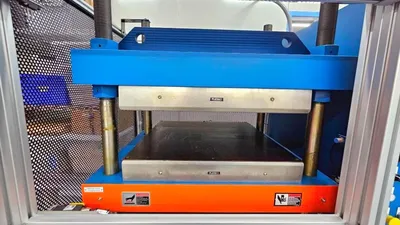

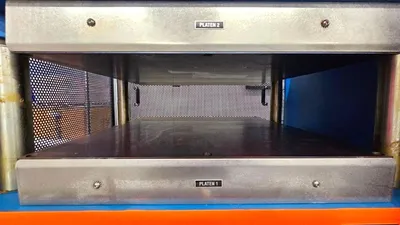

ELECTRIC HEATED PLATENS: 24" X 24" (RL X FB) 650 DEG F - 11,500 WATTS EACH
FLOOR TO BED HEIGHT: 41" UP Acting
SPEEDS: 80 / 5 / 75 IPM - PROXIMITY SWITCHES TO CONTROL POSITIONING
RAM ROD SIZE: 5" Dia.
CYLINDER SIZE: 7" Dia. Bore
POSTS / 4 COLUMN SIZE: 2" Dia.

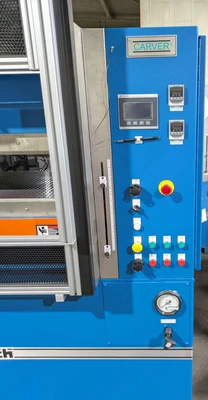

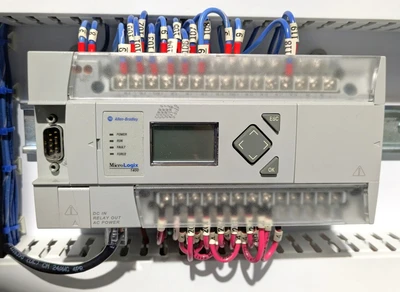

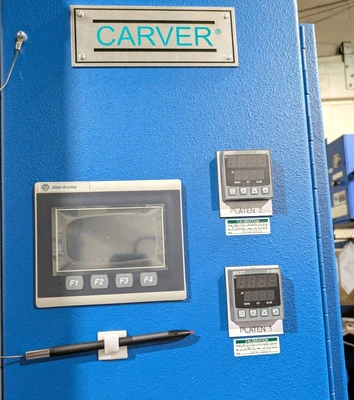

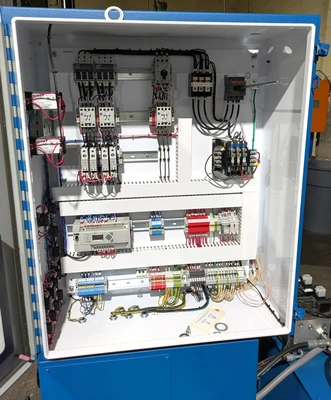

PRESS CONTROLS: ALLEN-BRADLEY MICROLOGIX 1400 PROGRAMMABLE CONTROLLER WITH 4" PANELVIEW-800 TOUCH SCREEN

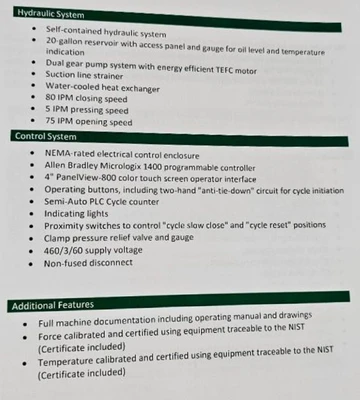

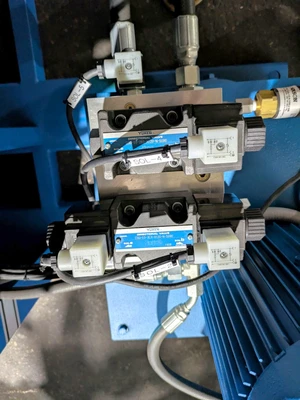

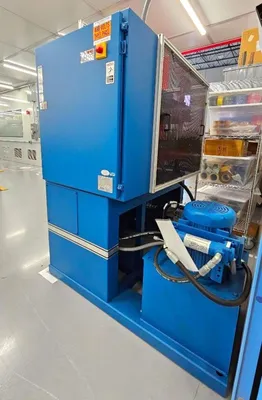

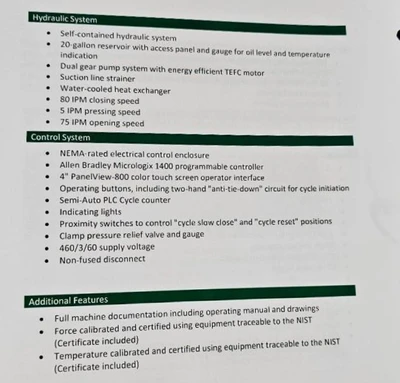

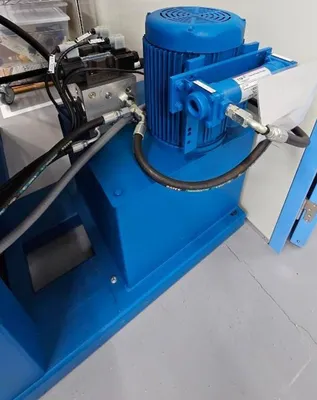

HYDRAULIC SYSTEM: 20 GALLON RESERVOIR, SELF-CONTAINED SYSTEM, DUAL GEAR PUMP SYSTEM

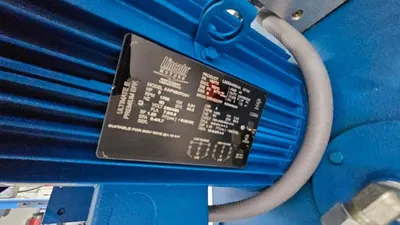

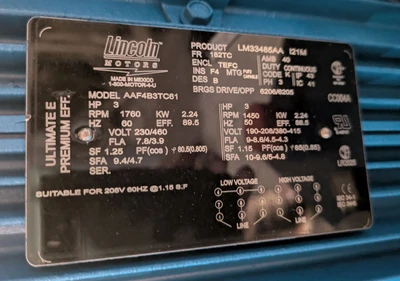

ELECTRIC MOTOR: 3 HP 230/460V-3-60 LINCOLN MOTOR | 7.8/3.9 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

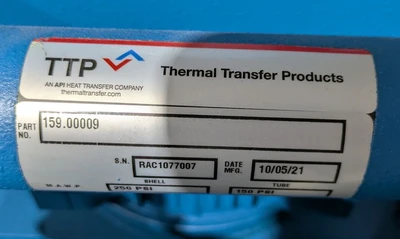

THERMAL TRANSFER PRODUCTS 159.00009 WATER COOLED HEAT EXCHANGER
