Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI 50R1818S-2LCS-J/1/S7-R PRESS
Year:
1985
Stock #:
8147
Description

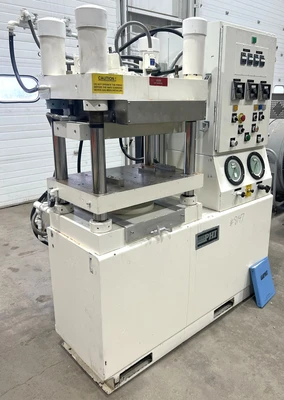

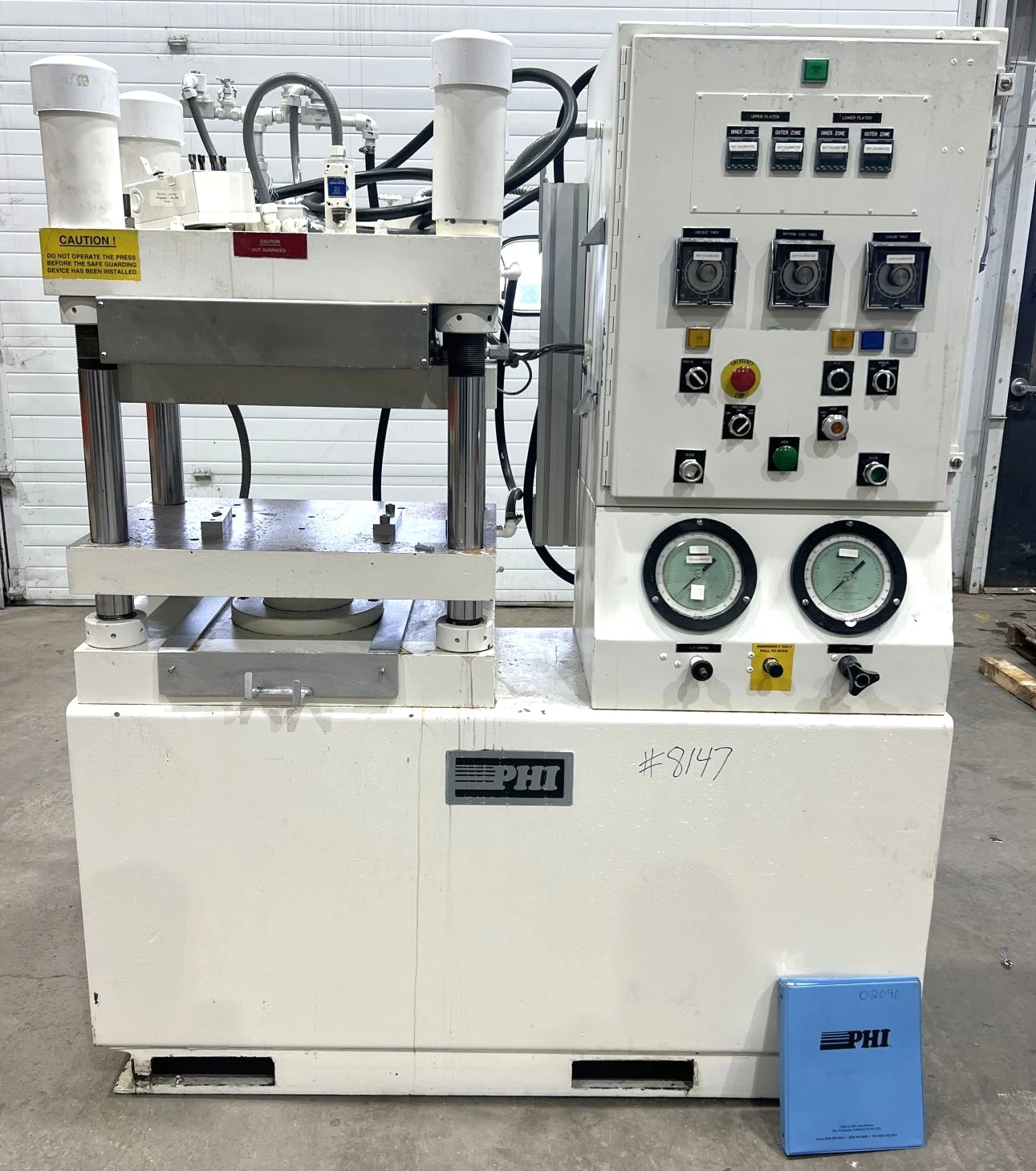

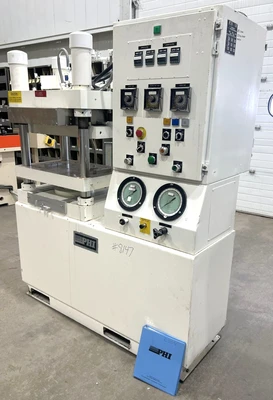

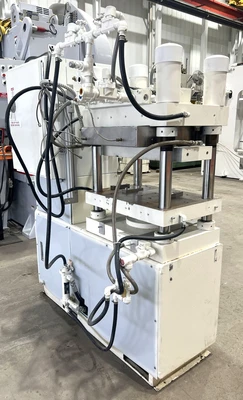

Approx. 6" Stroke, 22" Daylight, 18" x 18" Heated Platen (1), Allen-Bradley Controls

Specifications
Dimensions60" x 36" (rl x FB) x 74" Tall60" x 36" (rl x FB) x 74" Tall

MAX. CAPACITY: 50 TONS
MAX. STROKE: Approx. 6"

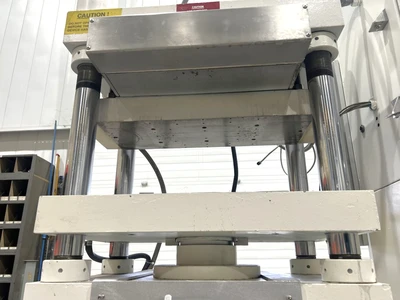

Max. Daylight: 22" (ADj. to 14")

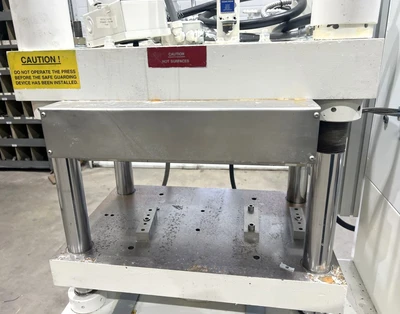

overall bed & ram area: 28.25" x 19" (RL x FB)
distance between posts: 21.5" x 11.5" (RL x FB)
useable bed area: 21.5" x 19" (RL x FB)

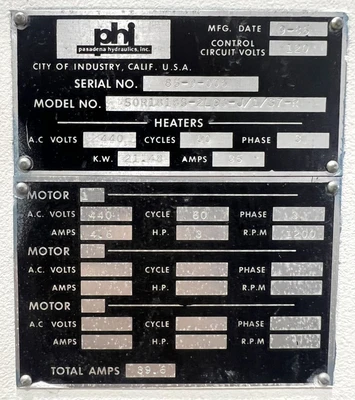

electric heated platen: 18" X 18" (RL X FB) - 440V-3-60 - 35 AMPS -> TOTAL AMPS 39.6 AMPS
floor to bed height: 42"
speeds: __
cylinder size: APPROX. 8" DIA. BORE
ram rod size: 5.5" DIA
posts / 4 column size: 2.5" DIA

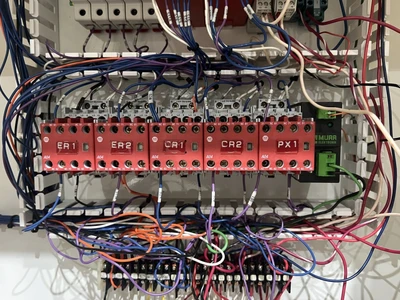

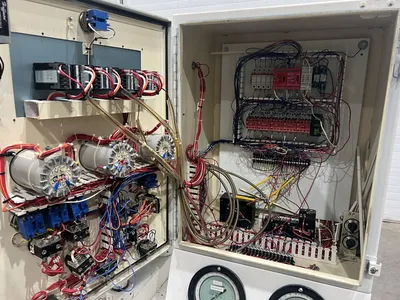

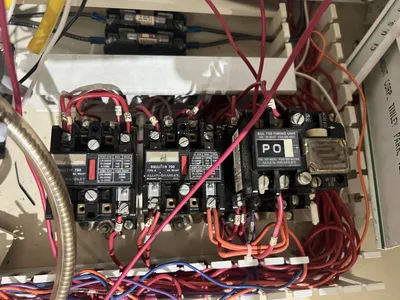

PRESS controls: ALLEN-BRADLEY RELAY LOGIC CONTROLLER

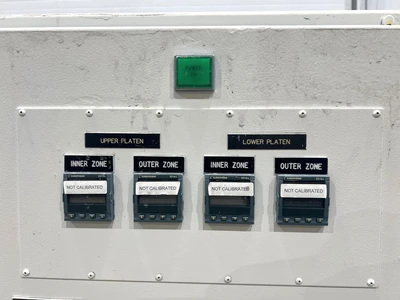

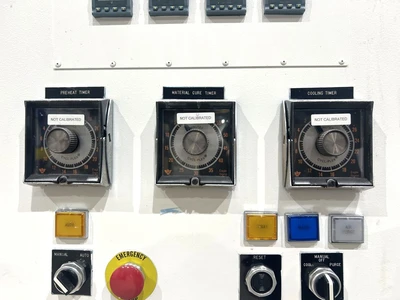

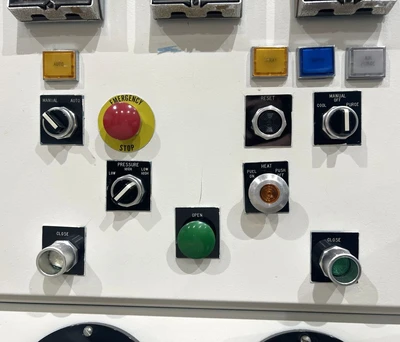

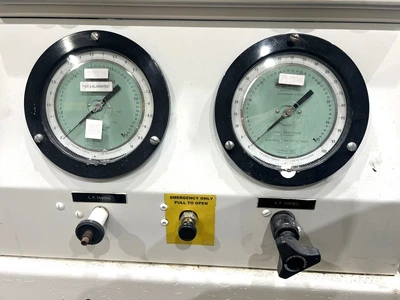

CONTROL FEATURES: CURE / COOLING TIMERS, COOL / AIR PURGE (MANUAL), LOW/HIGH PRESSURE
electric motor: 3HP 230/460V-3-60 REULAND MOTOR | 9.8/4.9 AMPS
hydraulic UNIT / HYDRAULIC PUMP: Dual Stage Vickers V210
Note: Only 1 top platen Full Prints w/ press in Control panel
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

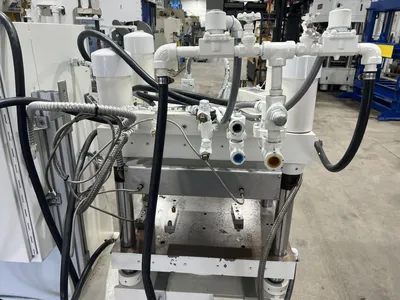

PASADENA HYDRAULIC HEAT EXCHANGER MODEL PHI 4140 (250 PSI / 350 DEG F), CURE TIMER, COOLING TIMER, LP/HP Manual Adjust
