Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI 50R1818S-2HCS-P-Y2S8-L PRESS
Year:
1985
Stock #:
6847
Description

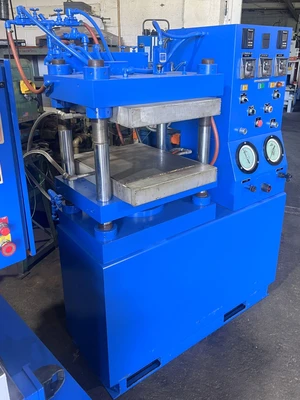

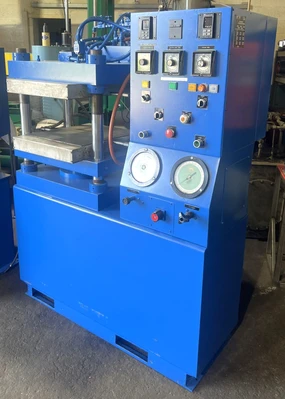

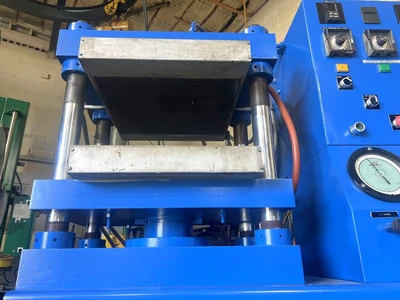

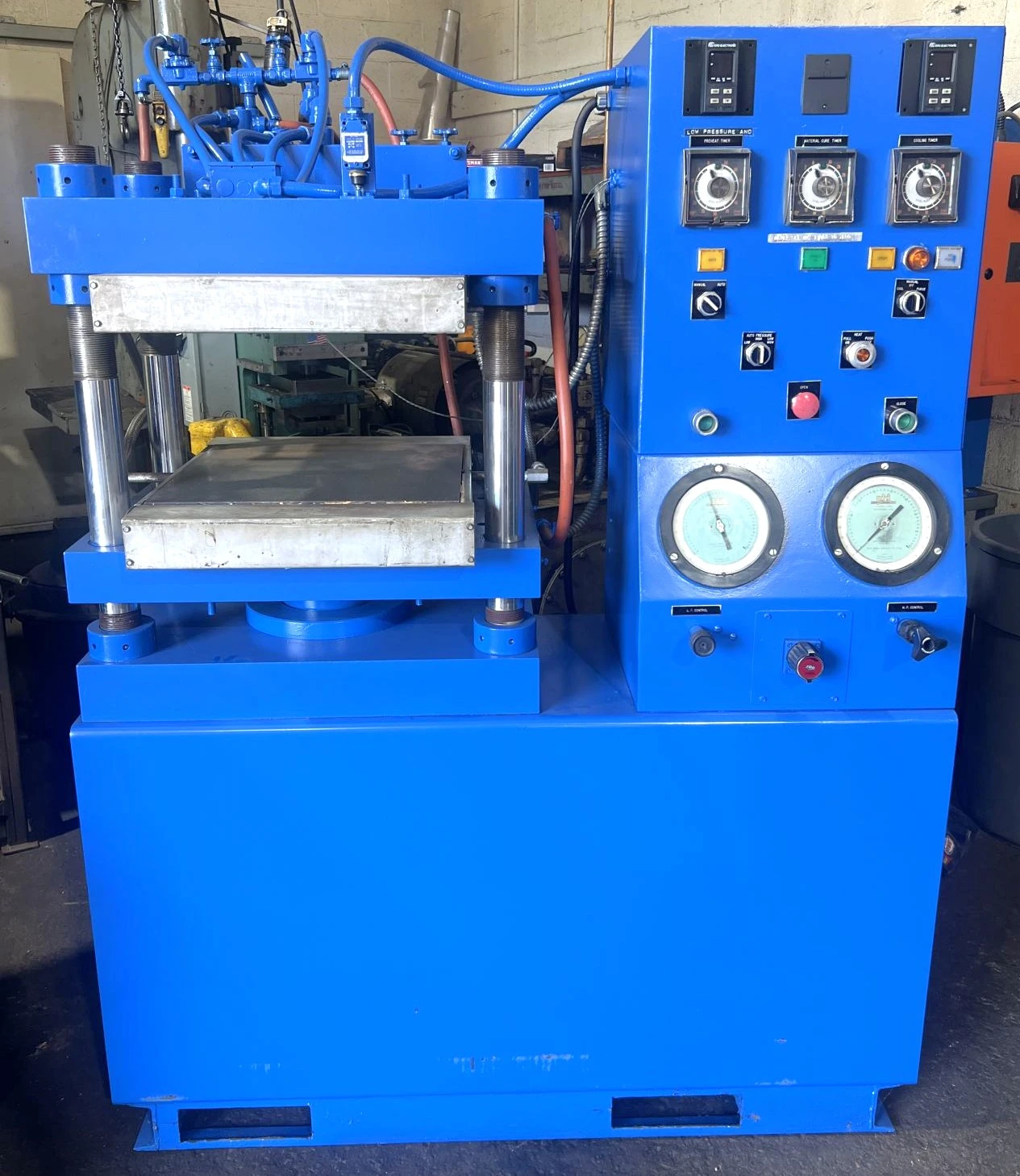

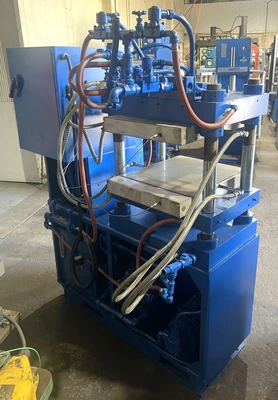

10" Stroke, 18" Daylight, 18.5" x 18.5" Heated Platens, Allen-Bradley Controls, Water Cooled Platens

Specifications
Dimensions56" x 36" (LR x FB) x 76" HIGH56" x 36" (LR x FB) x 76" HIGH
Weight2,000 Lbs2,000 Lbs

MAX. CAPACITY: 50 TONS
MAX. STROKE: 10"
Max Daylight: 18"
overall bed & ram area: 28" x 19" (LR x FB)
distance between posts: 21.5" x 11.5" (LR x FB)
useable bed area: 21" x 19" (LR x FB)

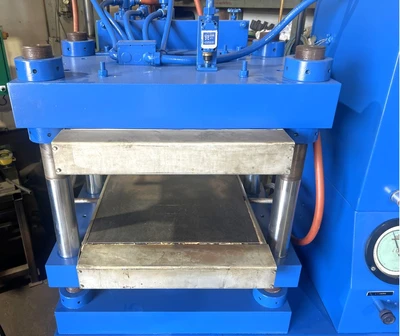

electric heated platens: 18.5" x 18.5" (LR x FB) x 3" thick, 14000 watts
floor to bed height: 48" up acting
speeds: __
cylinder size: 8" DIA Bore
ram rod size: 5" dia
posts/4 column size: 2.5" dia

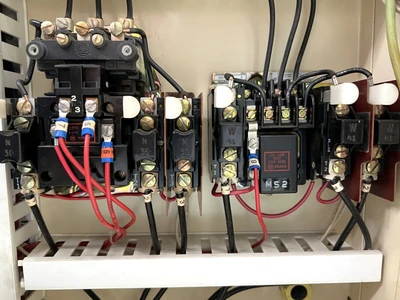

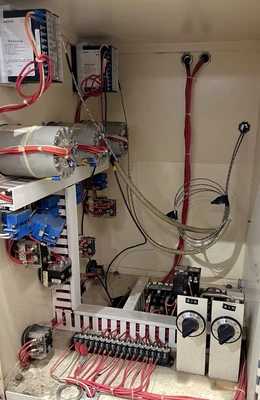

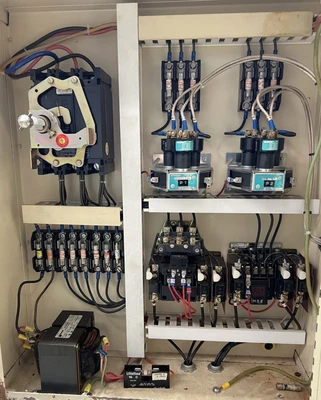

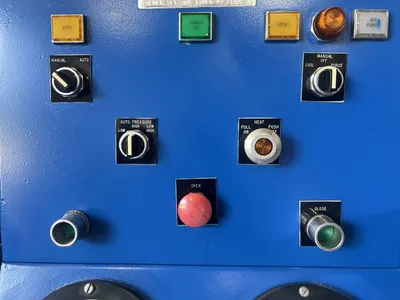

PRESS controls: ALLEN-BRADLEY RELAY LOGIC CONTROLLER

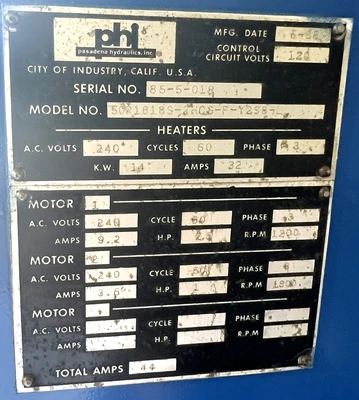

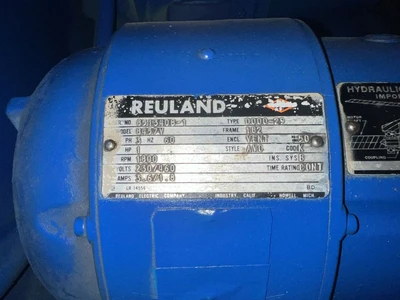

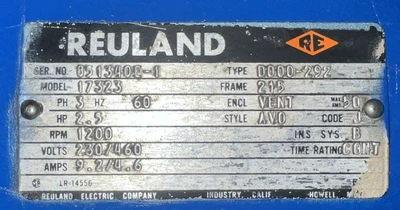

electric motor: 2.5 HP 230/460V-3-60 REULAND MOTOR (2 MOTORS) | 9.2/4.6 AMPS

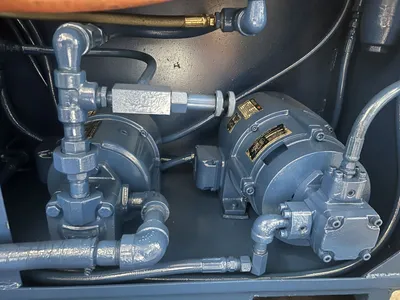

hydraulic UNIT / HYDRAULIC PUMP: NACHI ECKERLE IP PUMP IPH-2B-1.1G 1C
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

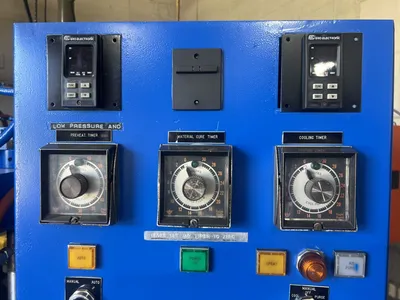

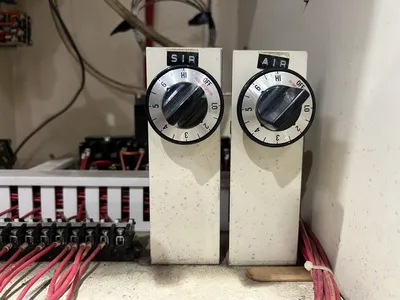

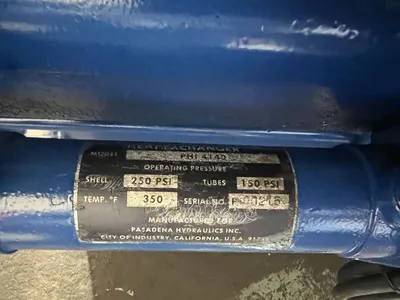

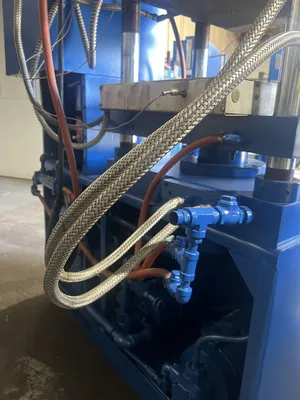

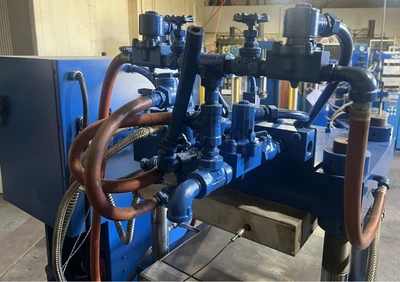

WATER COOLED PLATENS, PREHEAT TIMER, CURE TIMER AND COOLING TIMER, AIR PURGE AND SPRAY FUNCTIONS, WATER COOLED HEAT EXCHANGER
