Overview
Type:
Hydraulic Presses
Model:
CUSTOM CUSTOM PRESS
Stock #:
5651
Description

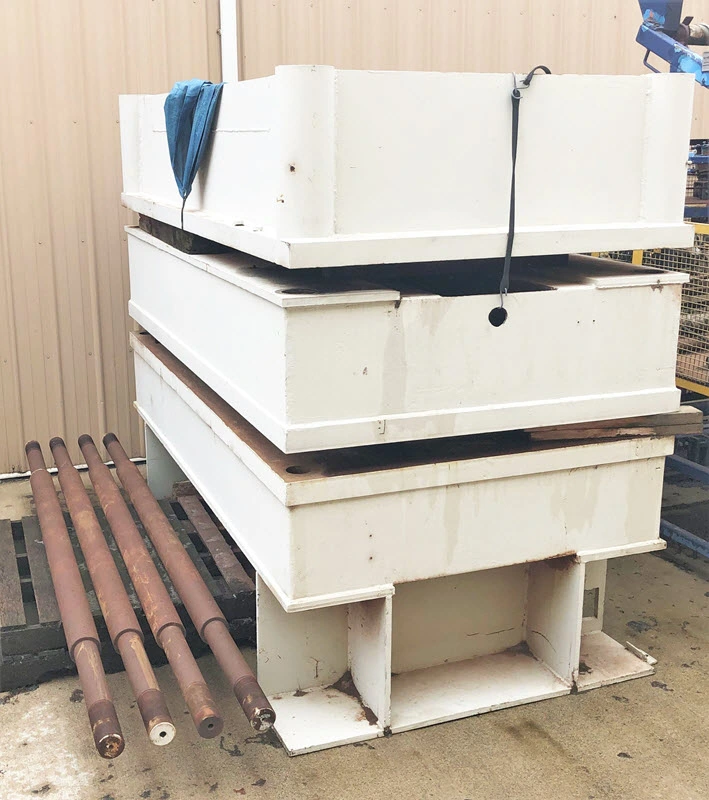

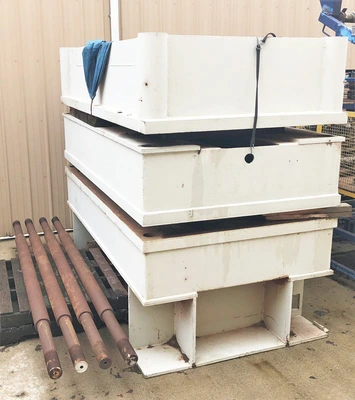

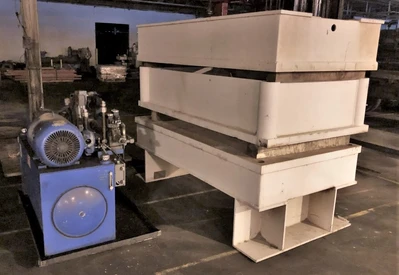

Custom Press Frame to be Built with Cylinder Tonnage and Stroke of Choice, 102" x 54" Bed Area, 30 HP Motor

Specifications
Dimensions102" X 54" (RL X FB) X 135" HIGH / HYDRAULIC UNIT IS 50" X 65" (RL X FB) X 39" HIGH102" X 54" (RL X FB) X 135" HIGH / HYDRAULIC UNIT IS 50" X 65" (RL X FB) X 39" HIGH
Weight----

MAX. CAPACITY: APPROX. 40 TONS
STROKE: TBD WITH CYLINDER
MAX. DAYLIGHT TO BED: TBD WITH CYLINDER
OVERALL BED/RAM AREA: 102" X 54" (RL X FB)
DISTANCE BETWEEN POSTS: 86" X 42" (RL X FB)
USABLE BED AREA: 86" X 54" (RL X FB) OR 102" x 42" (RL X FB)
SPEEDS: --
CYLINDER SIZE: TBD WITH CYLINDER
ROD: TBD WITH CYLINDER
POSTS SIZE: -- / LENGTH TOTAL IS 114"
FLOOR TO BED: 32.25"
PRESS CONTROLS: TO BE ADDED / INSTALLED AS PART OF RECONDITIONING PROCESS

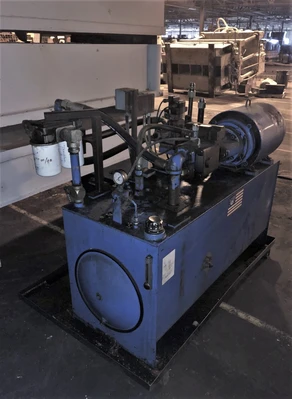

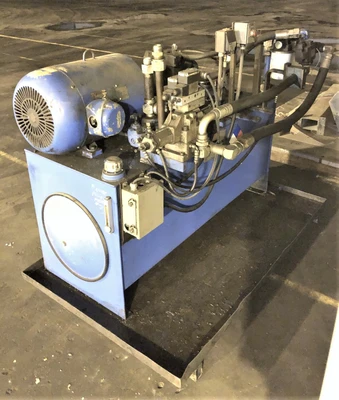

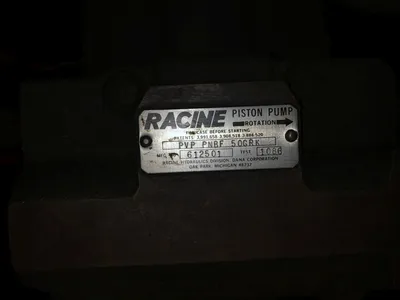

HYDRAULICS: RACINE PISTON PUMP MODEL PVP PNBF 50GRK

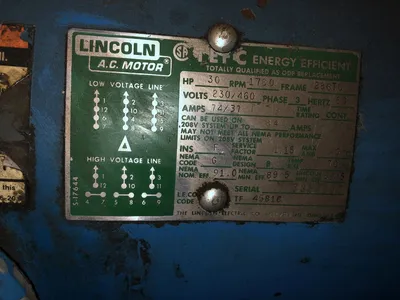

ELECTRICAL: 30 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 74/37 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
