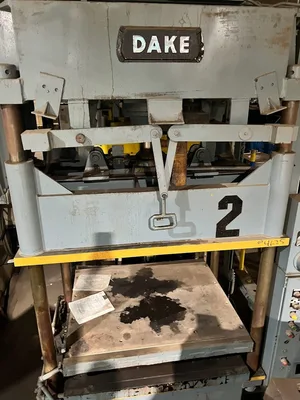

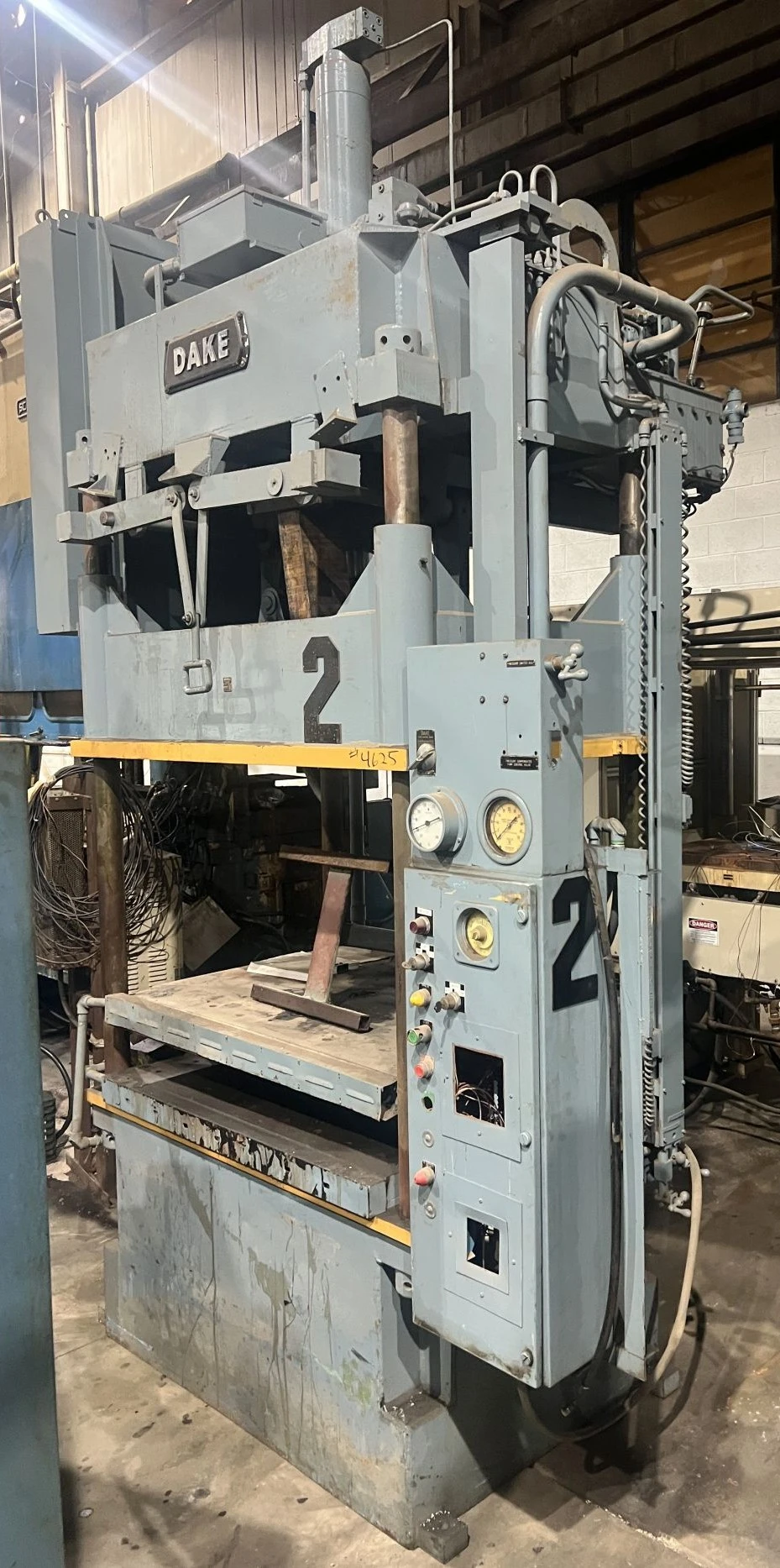

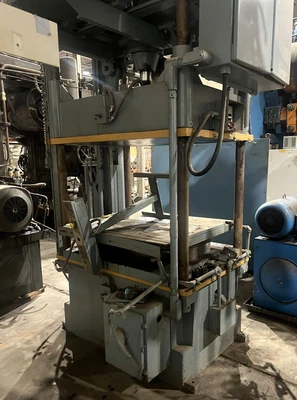

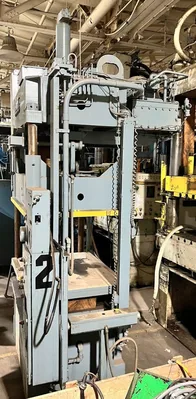

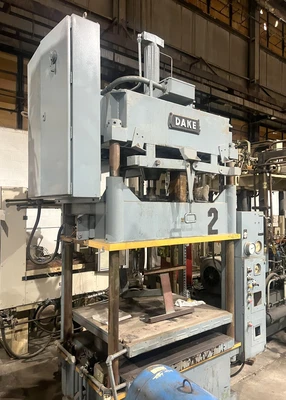

USED USED DAKE PRESSES DAKE 27-477 PRESS

USD $19,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
USED DAKE PRESSES
Model:

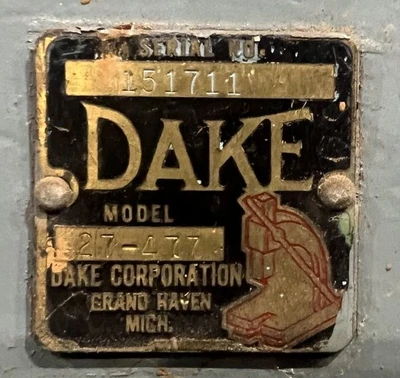

DAKE 27-477 PRESS
Stock #:
4625
Description

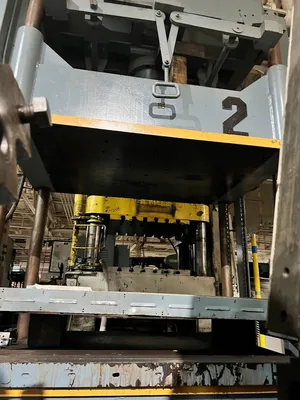

36" Stroke, 36" DL, 48" x 36" Bed, Additional Cost for New 48" x 36" Heated Platens and controls (installed)

Specifications
Dimensions85" x 74" (RL X FB) X 152" HIGH85" x 74" (RL X FB) X 152" HIGH
Weight15,000-20,000 LBS.15,000-20,000 LBS.

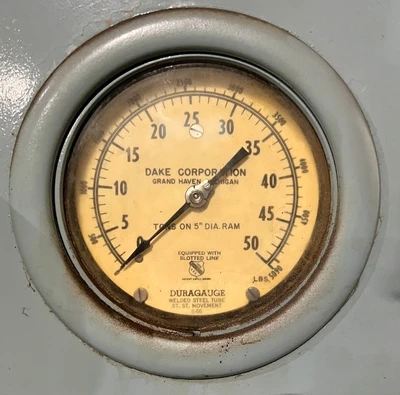

CAPACITY: 50 TONS @ 5000 PSI
STRIPPING CAPACITY: 18 TONS
STROKE: APPROX. 28"
DAYLIGHT: 36"

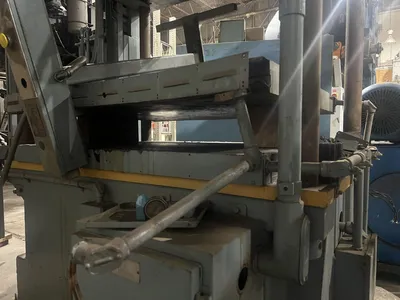

usable BED & RAM AREA: 48" X 36" (RL X FB)
DISTANCE BETWEEN POSTS: 48" X 30.5" (RL X FB)
RAM SPEEDS: 120-160 APPROACH / 4-42 PRESSING / 10-110 / 300-400 RETURN IPM

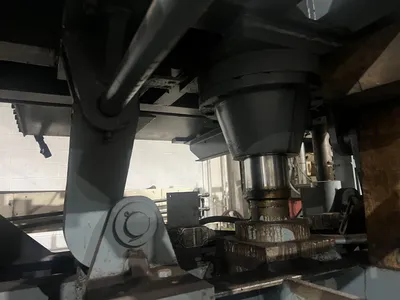

CYLINDER: 5" DIA. BORE

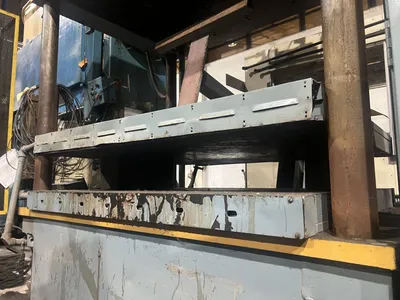

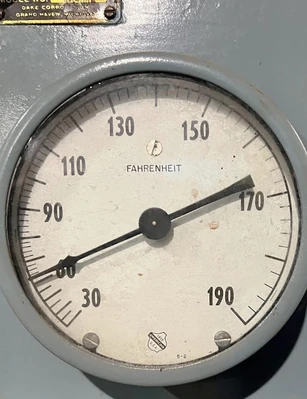

HEATED PLATENS: APPROX. 45" X 35" SOLD WITH PRESS BUT NOT WORKING, SOLD AS-IS

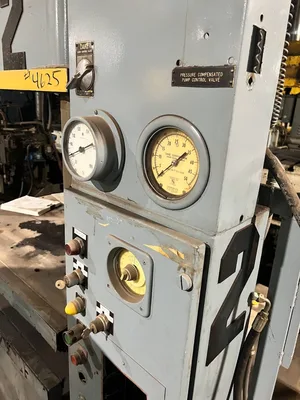

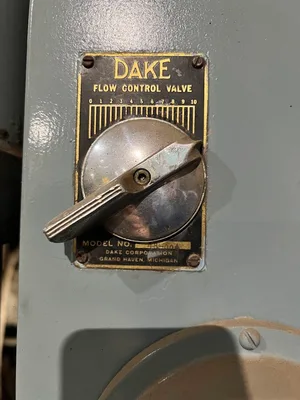

FLOW CONTROL VALVE: DAKE MODEL 48500

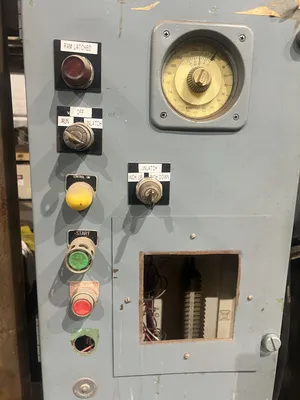

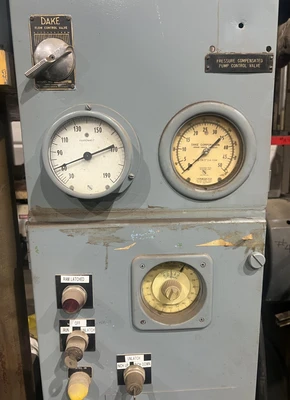

PRESS CONTROLS: DAKE RELAY LOGIC CONTROLLER

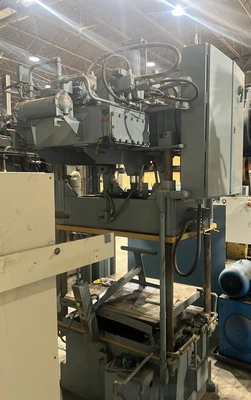

HYDRAULICS: VICKERS MDL V-235-8-1A-12 PUMP | 30 GALLON RESERVOIR
ELECTRIC MOTOR: 7.5 HP 440V-3-60 MOTOR | 1800 RPM
Note: HEATED PLATENS CAN BE ADDED AND INSTALLED FOR APPROX. $25,000-$55,000 MORE
Location: This Used Press is Located in Our Jackson, MI Falahee Building

Equipped With

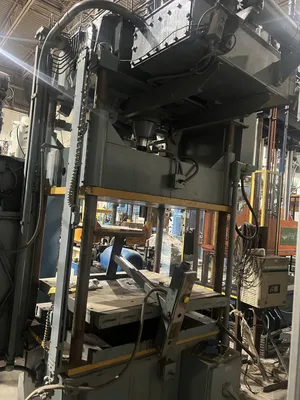

STEEL FRAME CONSTRUCTION, FLOOR STANDING BASE, 4 POST - GUIDED PLATEN STYLE
