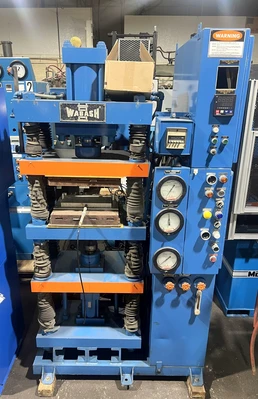

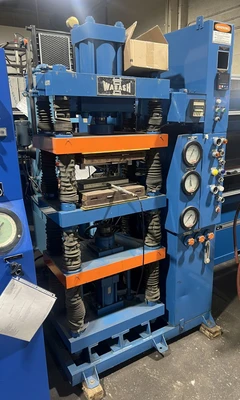

USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS
  • USED WABASH WABASH 35-221-SMX PRESS

USED WABASH WABASH 35-221-SMX PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

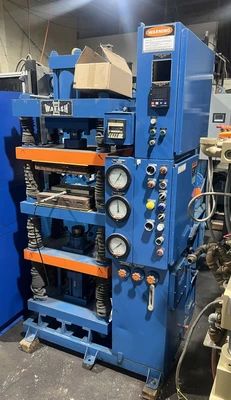

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH 35-221-SMX PRESS
Stock #:
8307

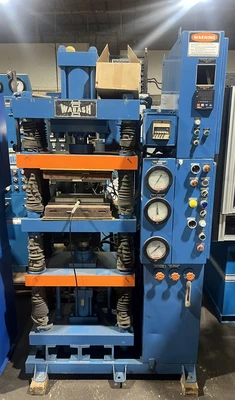

Description

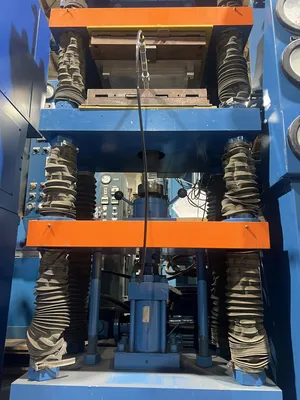

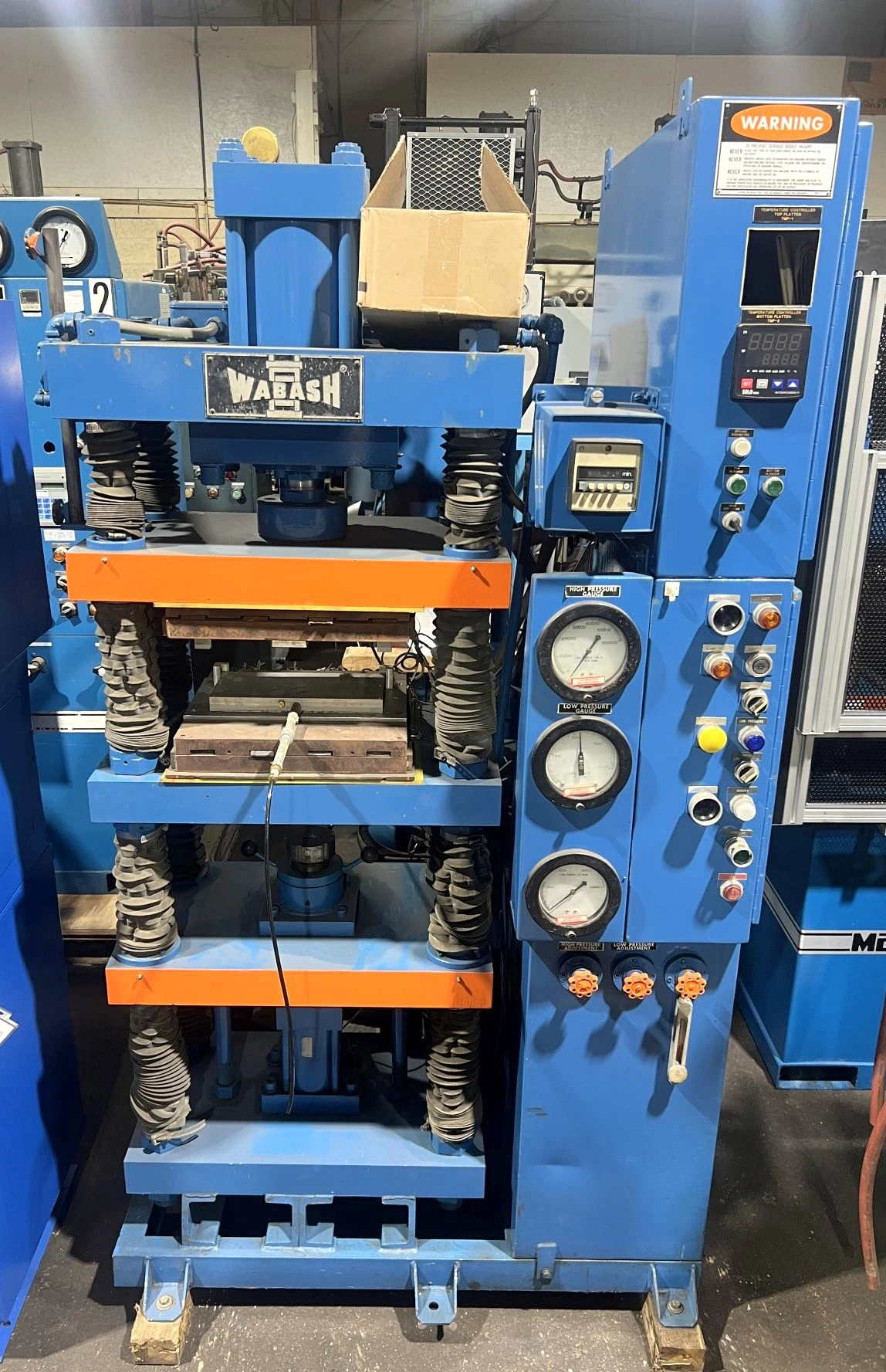

8" Stroke, 12" Daylight, 15" x 15" Heated Platens, 10 Ton Transfer Cylinder (4" Stroke)

Specifications
Dimensions50" X 48" (RL X FB) X 82" HIGH50" X 48" (RL X FB) X 82" HIGH

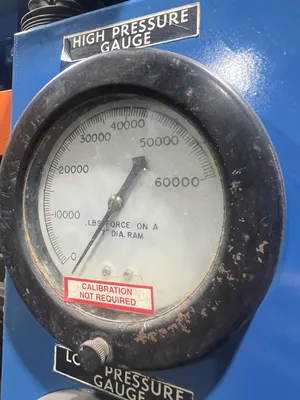

MAX. CAPACITY: 35 TONS AT 2,000 PSI
MAX. STROKE: 8" RAM / 4" TRANSFER CYLINDER
MAX. DAYLIGHT: 12"

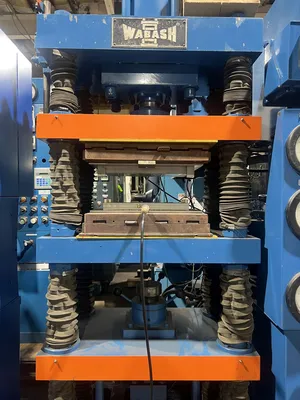

OVERALL BED & RAM AREA: 26.75" X 15.75" (RL X FB)
DISTANCE BETWEEN POSTS: 19.5" X 8.5" (RL X FB)
USABLE BED AREA: 19.5" X 15.75" (RL X FB)

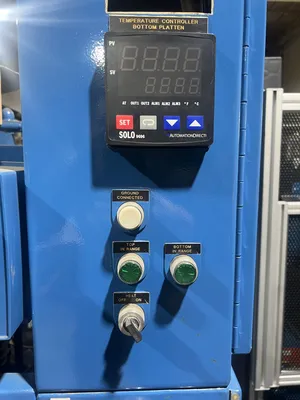

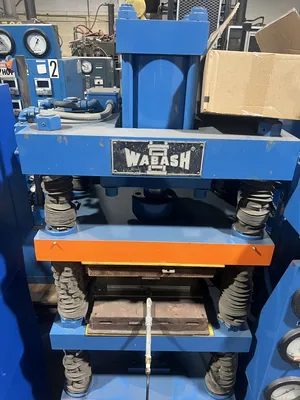

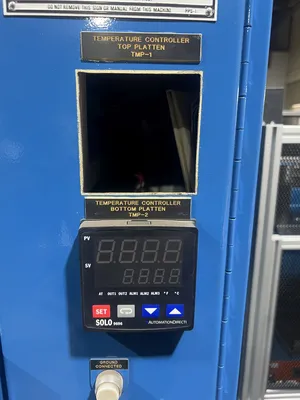

ELECTRIC HEATED PLATENS: 15" X 15" (RL X FB)
FLOOR TO BED HEIGHT: 40.5"
SPEEDS: __
CYLINDER SIZE: 7" DIA. BORE / 4" DIA. TRANSFER CYLINDER
RAM ROD SIZE: __
POSTS / 4 COLUMN SIZE: 1.5" DIA.

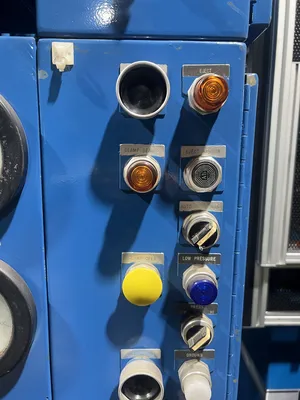

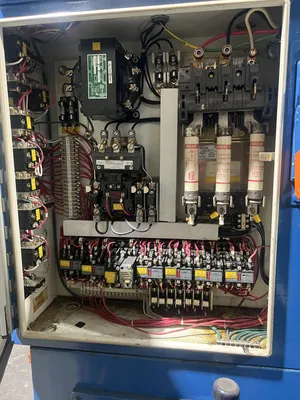

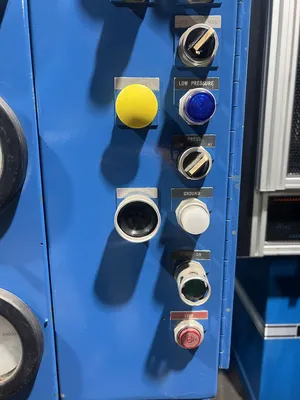

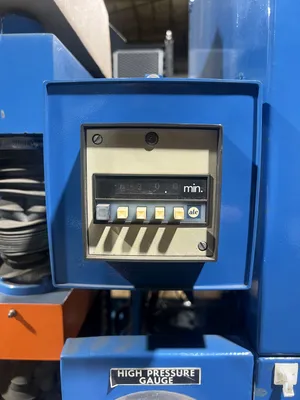

PRESS CONTROLS: RELAY LOGIC CONTROLLER

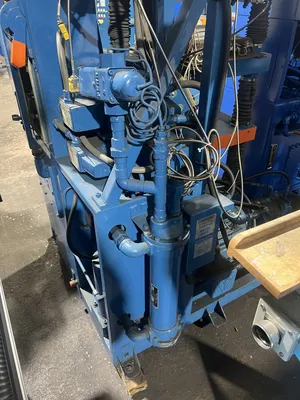

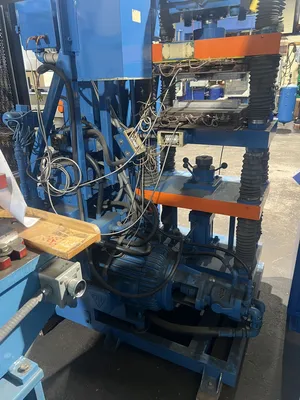

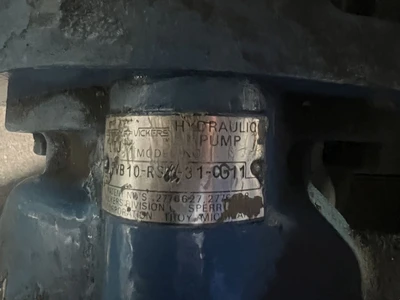

HYDRAULIC SYSTEM: VICKERS PVB10-RSY-31-CG-11 HYDRAULIC PUMP

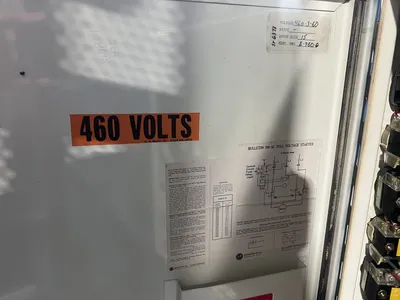

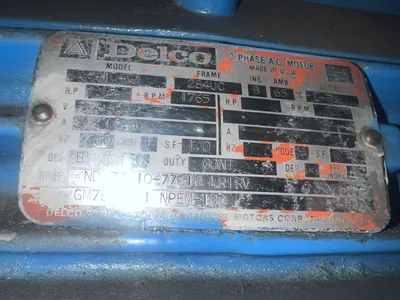

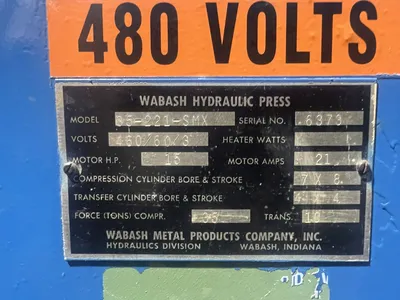

ELECTRIC MOTOR: 15 HP 460V-3-60 DELCO MOTOR | 18.4 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

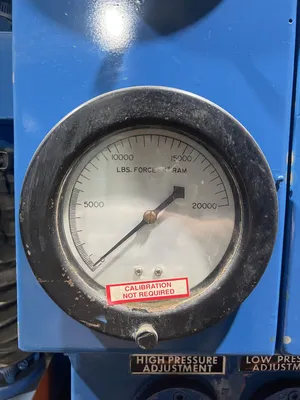

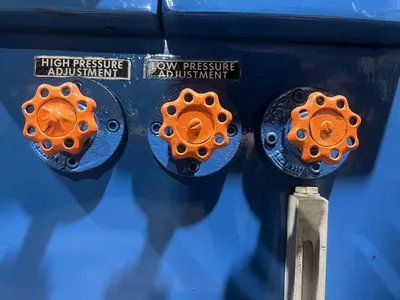

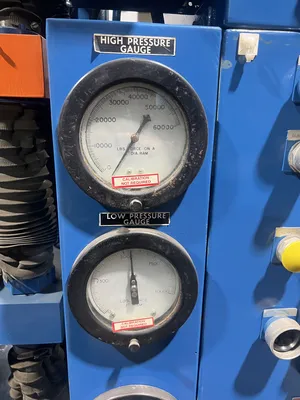

10 TON TRANSFER CYLINDER (4" STROKE), HIGH/LOW PRESSURE ADJUSTMENTS
