Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:

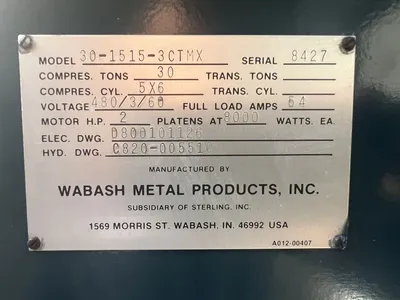

WABASH 30-1515-3CTMX PRESS
Stock #:
8308

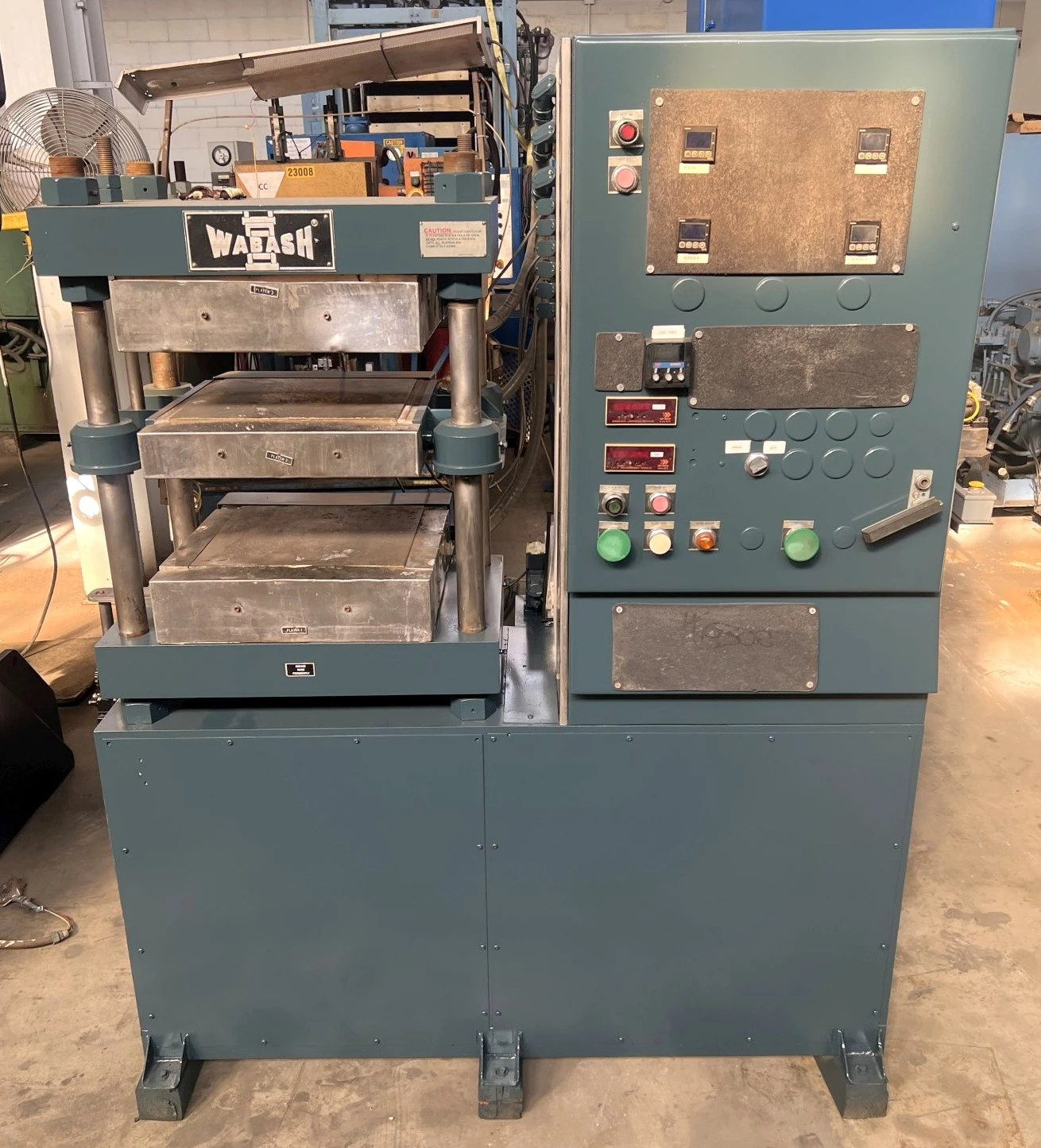

Description

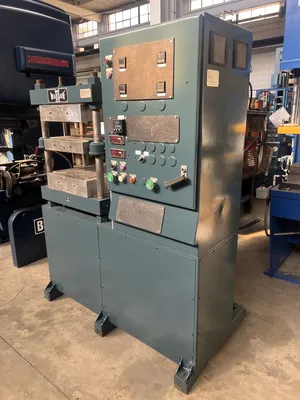

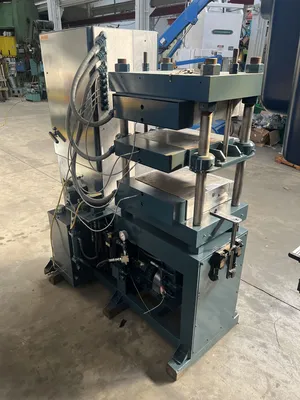

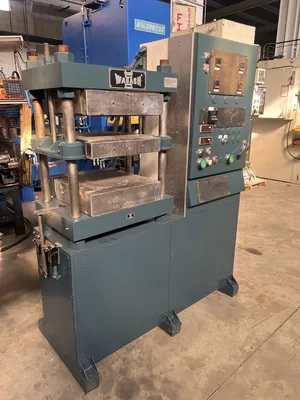

6" Stroke, 25" Daylight, 15" x 15" Heated Platens, Dynisco PT190 Pressure Transducer

Specifications
Dimensions66" X 37" (RL X FB) X 76" HIGH66" X 37" (RL X FB) X 76" HIGH

MAX. CAPACITY: 30 TONS AT 3,100 PSI
MAX. STROKE: 6"
MAX. DAYLIGHT TO BED: 25" TOTAL - 7" BETWEEN BOTTOM PLATENS / 5" BETWEEN TOP PLATENS
OVERALL BED / RAM AREA: 28" X 19" (RL X FB)
DISTANCE BETWEEN POSTS: 22" X 12" (RL X FB)
USABLE BED AREA: 22" X 19" (RL X FB)

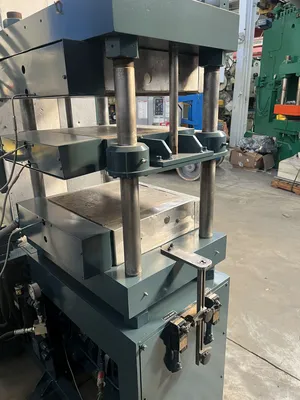

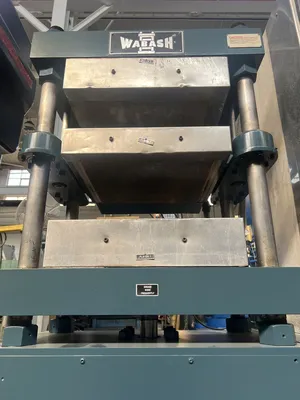

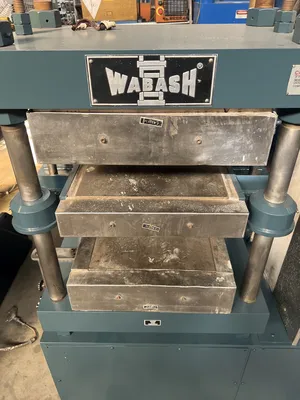

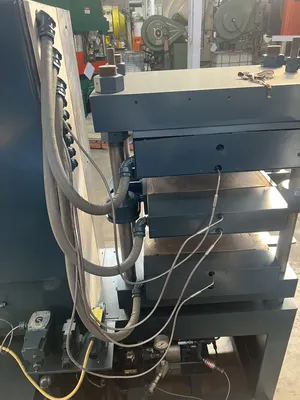

ELECTRIC HEATED PLATENS: 15" X 15" (RL X FB) - 4.75" THICK TOP/BOTTOM, 3.25" THICK CENTER - 8,000 WATTS EACH
CYLINDER SIZE: __
RAM ROD SIZE: 2" DIA.
POSTS / 4 COLUMNS SIZE: 2" DIA.
FLOOR TO BED HEIGHT: 36.25"

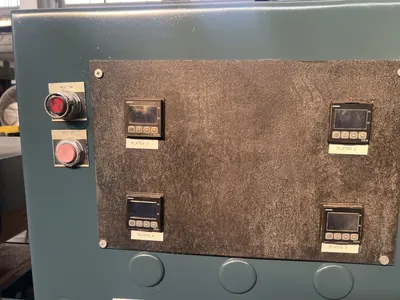

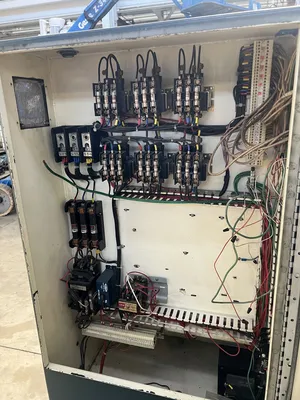

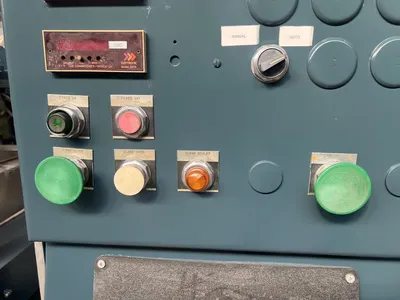

PRESS CONTROLS: 54 FULL LOAD AMPS
HYDRAULIC SYSTEM: __

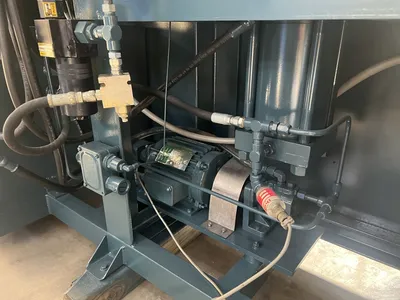

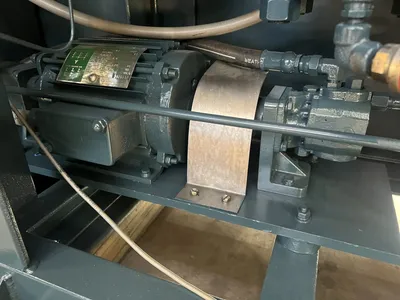

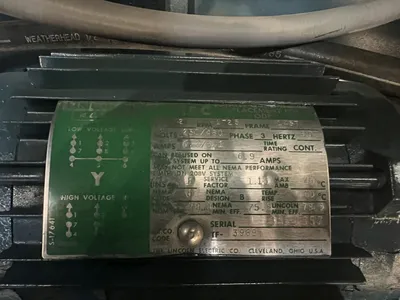

ELECTRIC MOTOR: 2 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 6.2 / 3.1 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

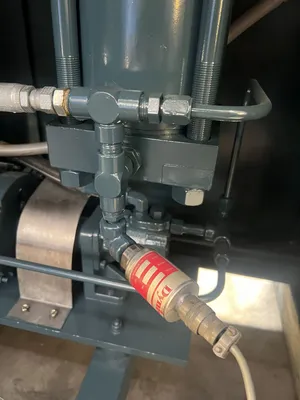

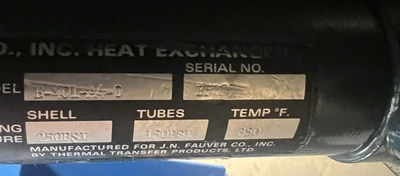

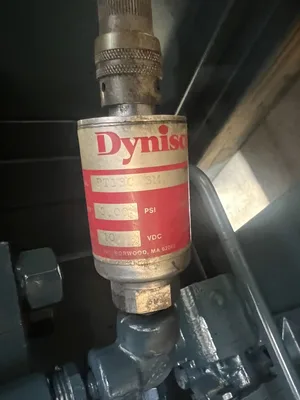

DYNISCO PT190 TRANSDUCER, B-401-A4-0 HEAT EXCHANGER - 350 TEMP
