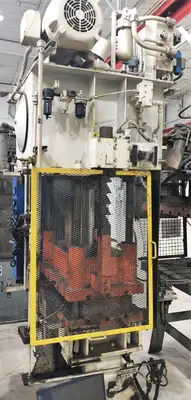

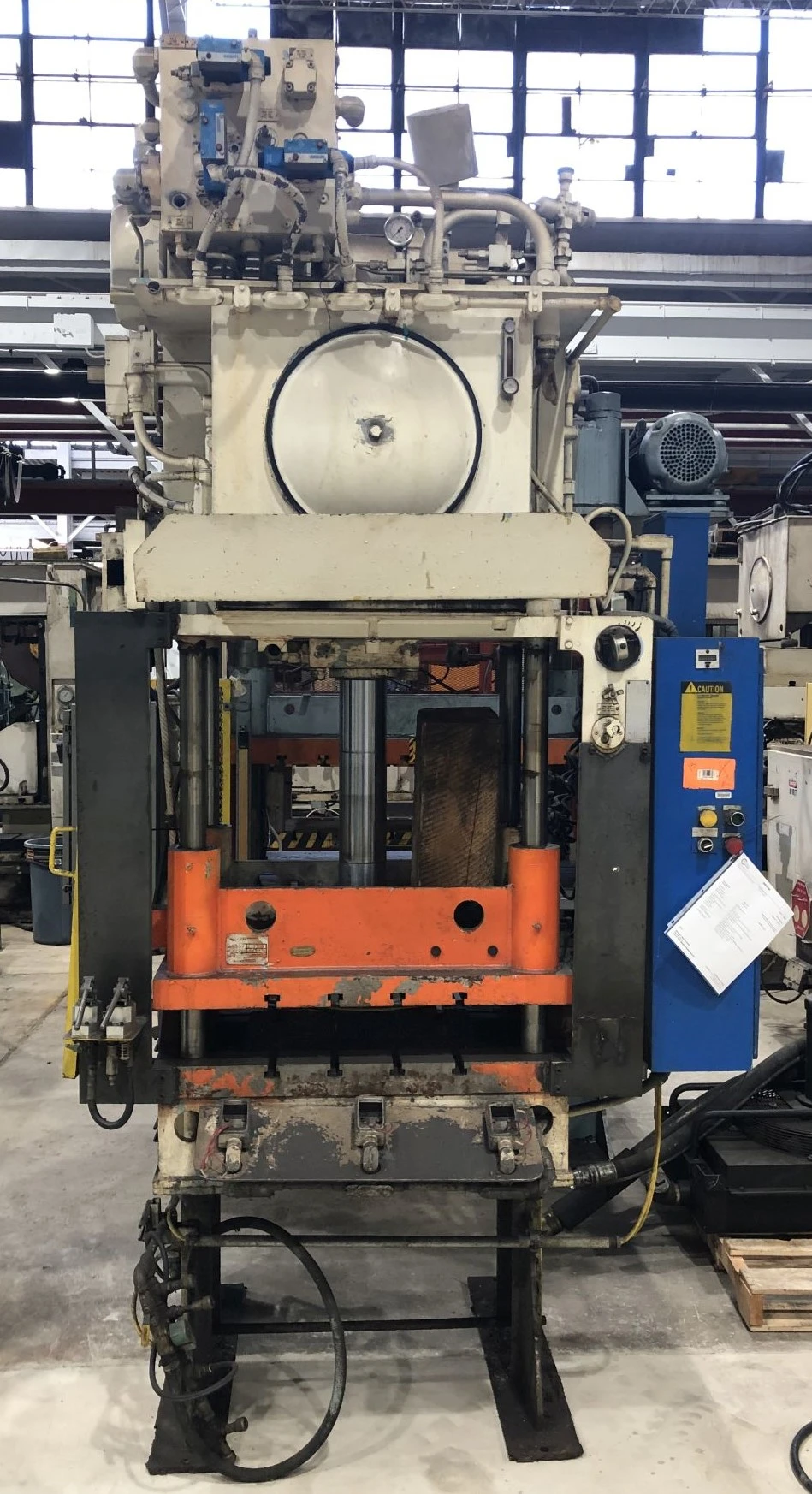

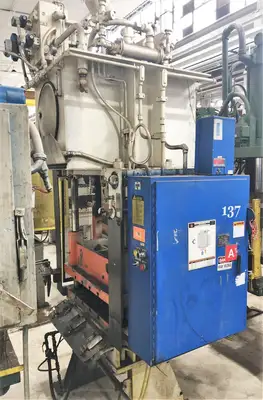

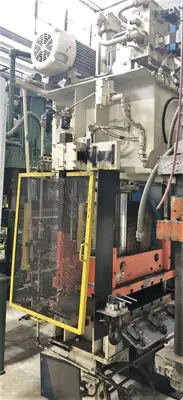

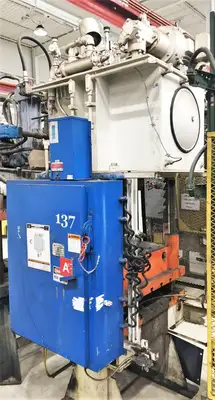

USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS
  • USED PH PH 4030T PRESS

USED PH PH 4030T PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
PH
Model:
PH 4030T PRESS
Stock #:
5346
Description

19" Stroke, 24" Daylight, 31" x 24" Usable Bed Area, Updated Allen Bradley PLC Controls

Specifications
Dimensions68" X 49" (RL X FB) X 132" HIGH68" X 49" (RL X FB) X 132" HIGH
WeightAPPROX. 10,000 LBSAPPROX. 10,000 LBS

CAPACITY: 35 TONS @2500 PSI
MAX. STROKE: APPROX. 19"
MAX. DAYLIGHT: 24.5"
BED & RAM AREA: 40" X 24" (RL X FB) / 24" X 15" (RL X Fb) HOLE IN BOLSTER PLATE
DISTANCE BETWEEN POSTS: 31" X 14" (RL X Fb)
USABLE BED & RAM AREA: 31" X 24" (RL X FB)
SPEEDS: 1250 IPM ADVANCE, 88 IPM PRESSING, 950 IPM RETURN
POSTS SIZE: 2.5" DIA.
CYLINDER: 5" DIA. ROD / 6" DIA. bORE @ 3000 PSI MAX.

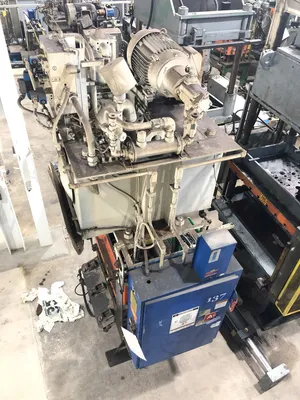

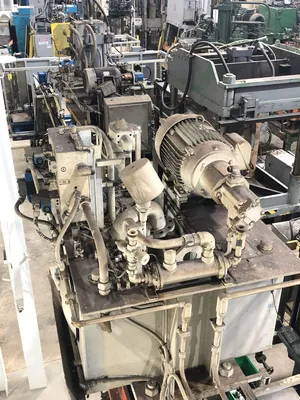

HYDRAULICS: VICKERS PUMPS & VALVES

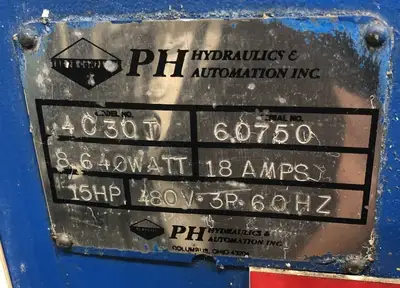

ELECTRICS: 15 HP MOTOR 480V-3-60PH, 8.64 WATT, 18 AMPS

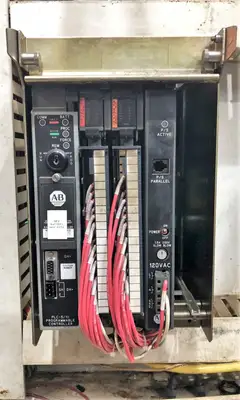

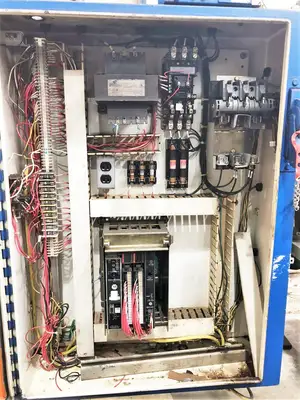

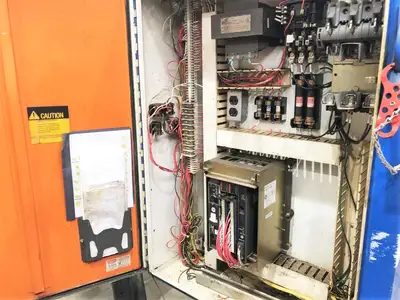

CONTROLS: ALLEN-BRADLEY PLC-5/10 PROGRAMMABLE CONTROLLER
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

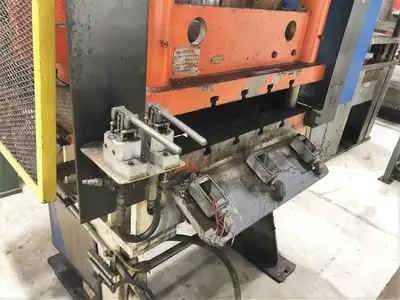

with safety latch on ram
