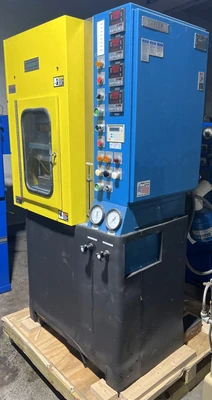

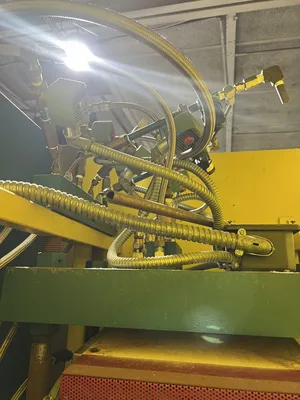

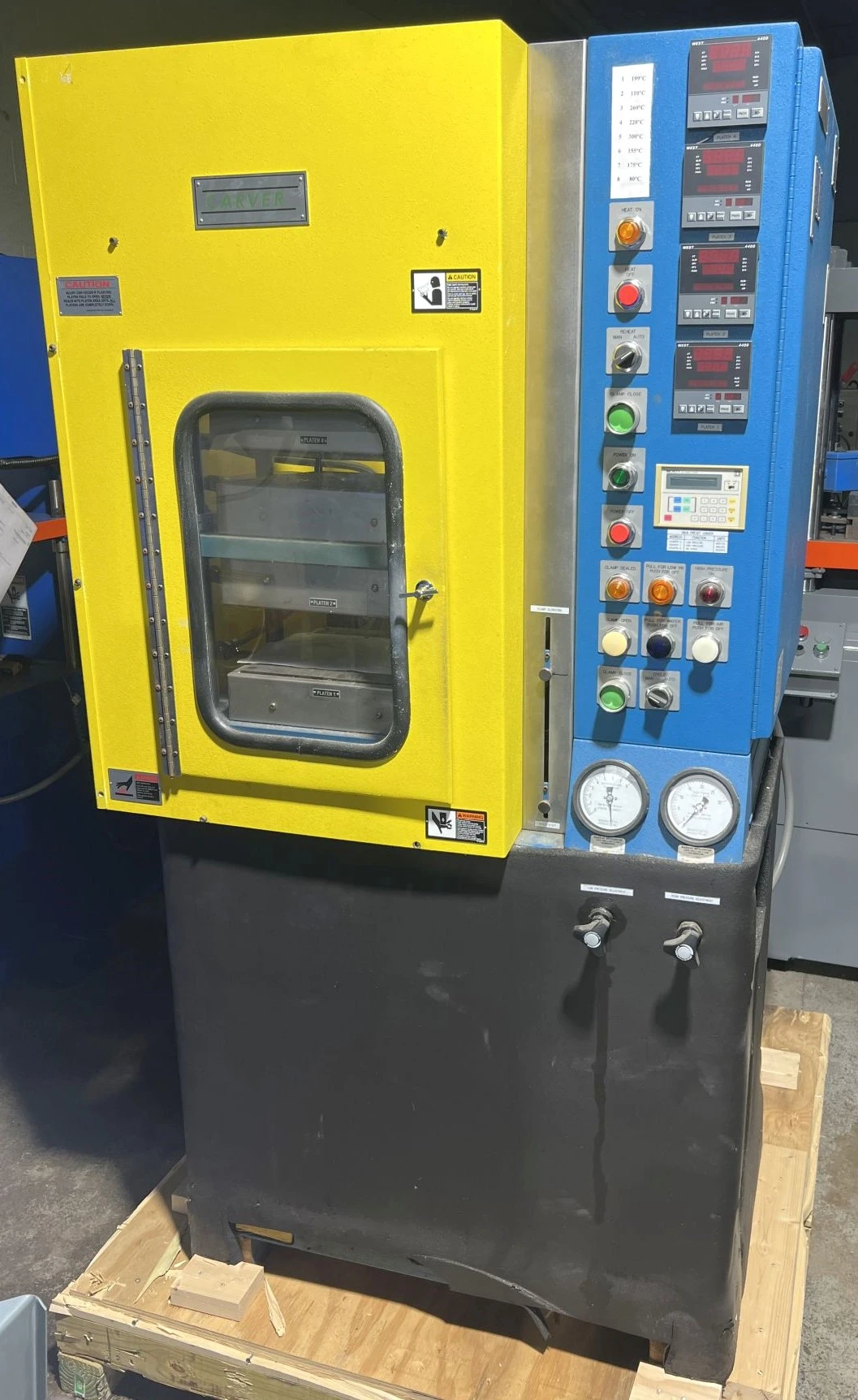

USED 1997 CARVER CARVER CMG302H-12-ASTM PRESS

USED 1997 CARVER CARVER CMG302H-12-ASTM PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
CARVER
Model:
CARVER CMG302H-12-ASTM PRESS
Year:
1997
Stock #:
6989
Description

6" Stroke, 20" Daylight, 12" x 12" Heated Platens, New in 1997

Specifications
Dimensions45" X 50" (RL X FB) X 79" HIGH45" X 50" (RL X FB) X 79" HIGH
WeightAPPROX. 3,500 LBS.APPROX. 3,500 LBS.

MAX. capacity: 30 TONS
MAX. STROKE: 6"
MAX. DAYLIGHT: 20"
OVERALL BED & RAM: 21" X 15" (RL X FB)
DISTANCE BETWEEN POSTS: 17.25" X 8" (RL X FB)
USABLE BED & RAM AREA: 17.25" X 15" (RL X FB)

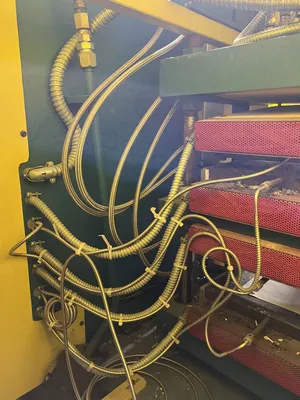

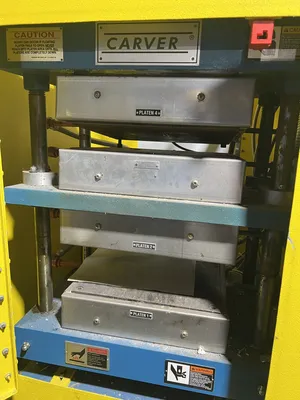

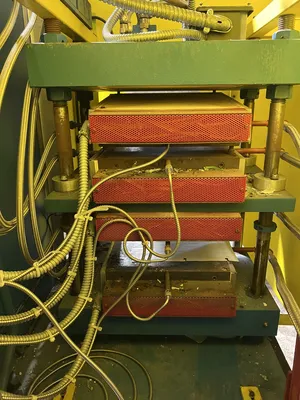

ELECTRICALLY HEATED PLATENS: (4) 12" X 12" (RL X FB) X 3" THICK - 3,400 WATTS EACH
SPEEDS: __
POST SIZE: 1.25" DIA.
RAM ROD SIZE: 2" DIA.
CYLINDER SIZE: 5" DIA. BORE PISTON
FLOOR TO BED HEIGHT: 41"

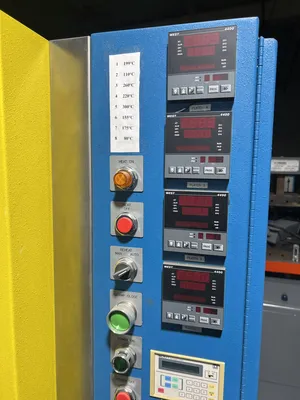

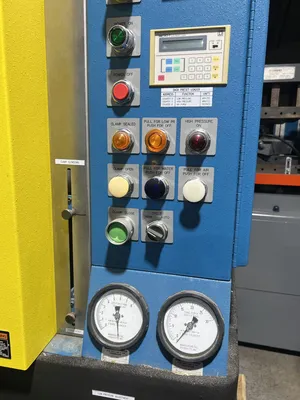

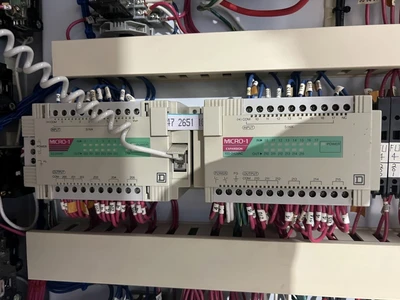

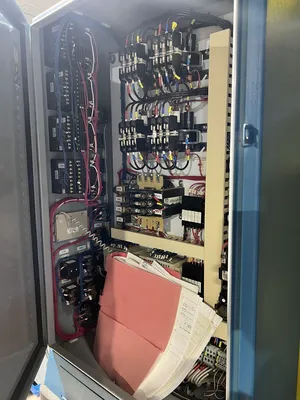

PRESS CONTROLS: SQUARE D MICRO-1 CONTROLLER
HYDRAULIC UNIT: CASAPPA COMBINATION PUMP - 15 GALLON RESERVOIR
ELECTRIC MOTOR: 2 HP 460V-3-60 MOTOR | 28 FULL LOAD AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

WATER COOLED HEAT EXCHANGER, AIR COOLED HEAT EXCHANGER, TEMPERATURE CONTROLLED WATER SAVER VALVE, DYNISCO PT-130-3M PRESSURE TRANSDUCER
