10" Stroke, 13" Max. Daylight, 12" x 10" Usable Bed Area, Haskel Air Driven Fluid Pump
| Dimensions | 33" x 24" (lr X fb) x 67" high | 33" x 24" (lr X fb) x 67" high |
| Weight | -- | -- |

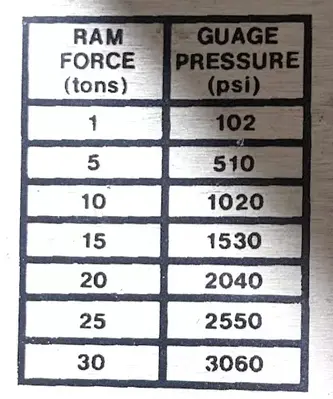

capacity: 30 tons at 3060 Psi
stroke: 10"
max. Daylight: 13"
overall bed & ram Area: 17" x 10" (LR X FB)
distance between posts: 12.25" x 5.5"
useable bed area: 12" x 10" (LR X FB)
floor to bed height: 48" Upacting
cylinder size: 5" dia. bore
ram rod size: APPROX 4"
posts/ 4 column size: 1.5"
controls: hydrolair manual

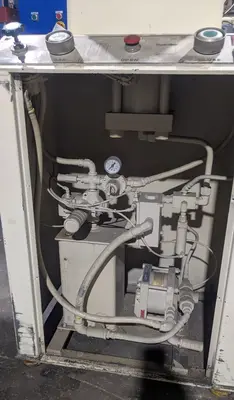

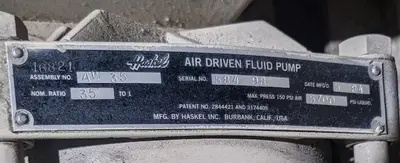

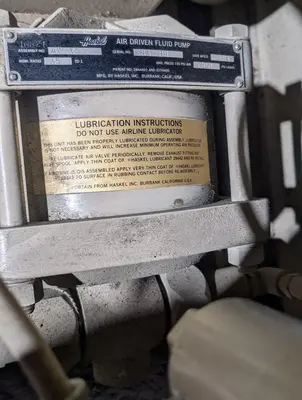

hydraulic system: haskel air driven fluid pump aw 35
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
