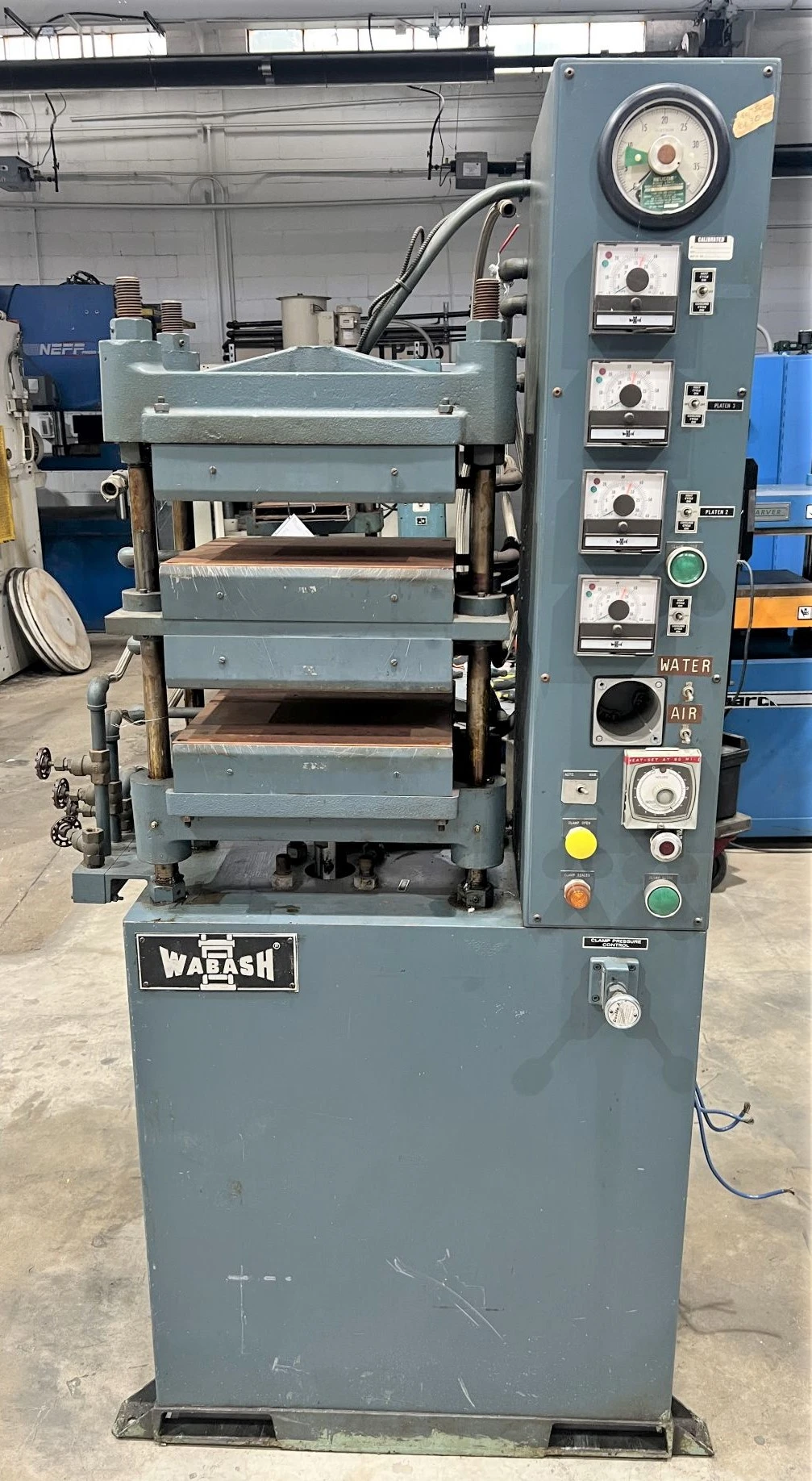

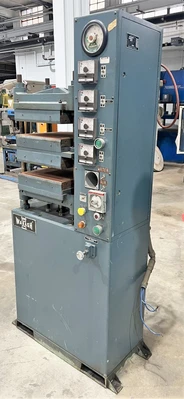

USED WABASH WABASH 30-15-4TMB PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

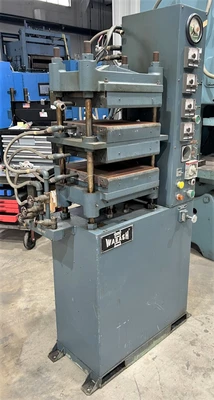

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH 30-15-4TMB PRESS
Stock #:
6697
Description

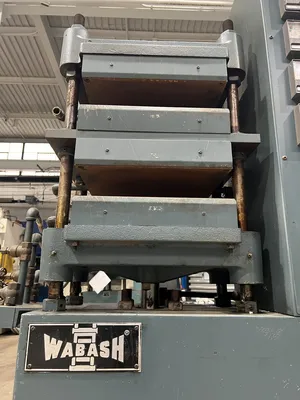

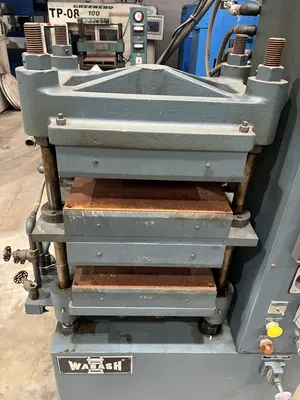

6" Stroke, Approx. 21" Daylight, 15" x 15" Electric Heated Platens

Specifications
Dimensions46" X 32" (RL X FB) X 79" HIGH46" X 32" (RL X FB) X 79" HIGH
WeightAPPROX. 5,000 LBS.APPROX. 5,000 LBS.

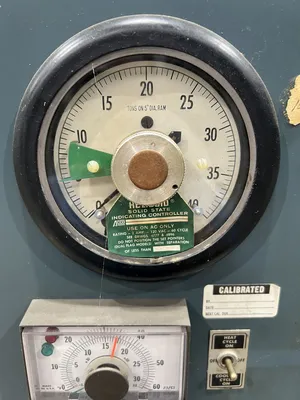

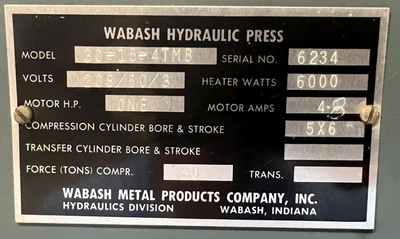

CAPACITY: 30 TONS AT 3,056 PSI
STROKE: 6"
MAX. DAYLIGHT: 21"
OVERALL BED & RAM AREA: 18" X 16" (RL X FB)
DISTANCE BETWEEN POSTTS: 16.75" X 7.75" (RL X FB)
USABLE BED AREA: 16.75" X 16" (RL X FB)

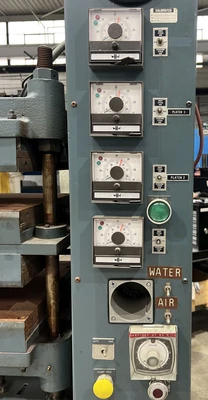

ELECTRIC HEATED PLATENS: 15" X 15" (RL X FB) X 2.75" THICK | 6,000 WATTS
FLOOR TO BED HEIGHT: 43"
SPEEDS: __
RAM ROD SIZE: 2" DIA.

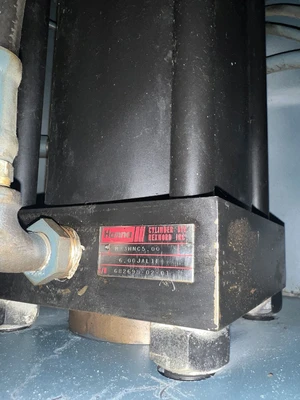

CYLINDER SIZE: 5" DIA. BORE
POSTS / 4 COLUMN SIZE: 1.25" DIA.

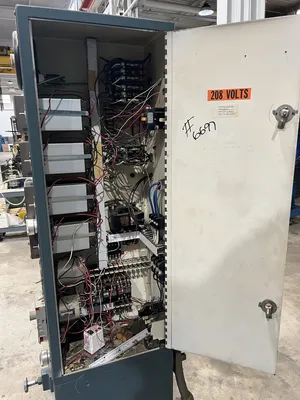

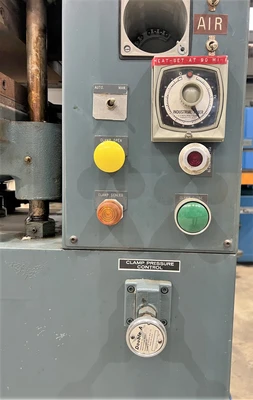

PRESS CONTROLS: ALLEN-BRADLEY RELAY LOGIC CONTROLLER

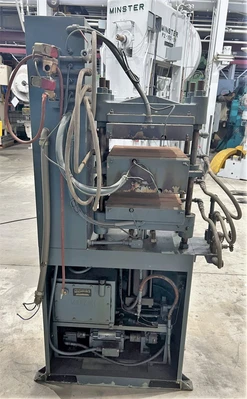

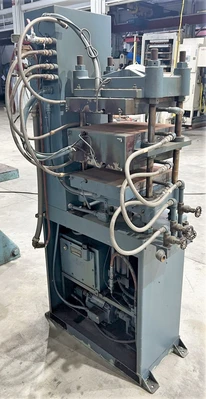

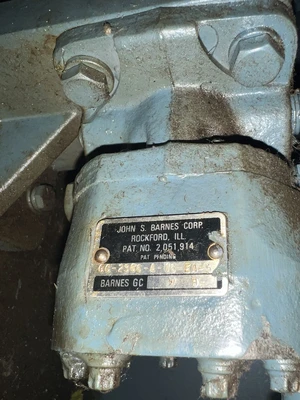

HYDRAULIC SYSTEM: JOHN S BARNES CORP GC-2366-A-16-EA-5 BARNES GC V B PUMP

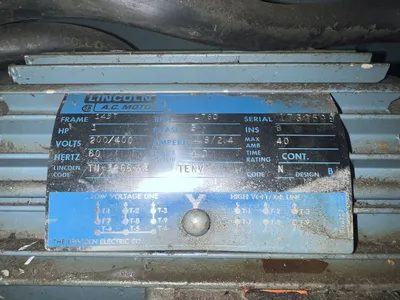

ELECTRIC MOTOR: 1 HP 200/400V-3-60 LINCOLN A.C. MOTOR | 4.8/2.4 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
