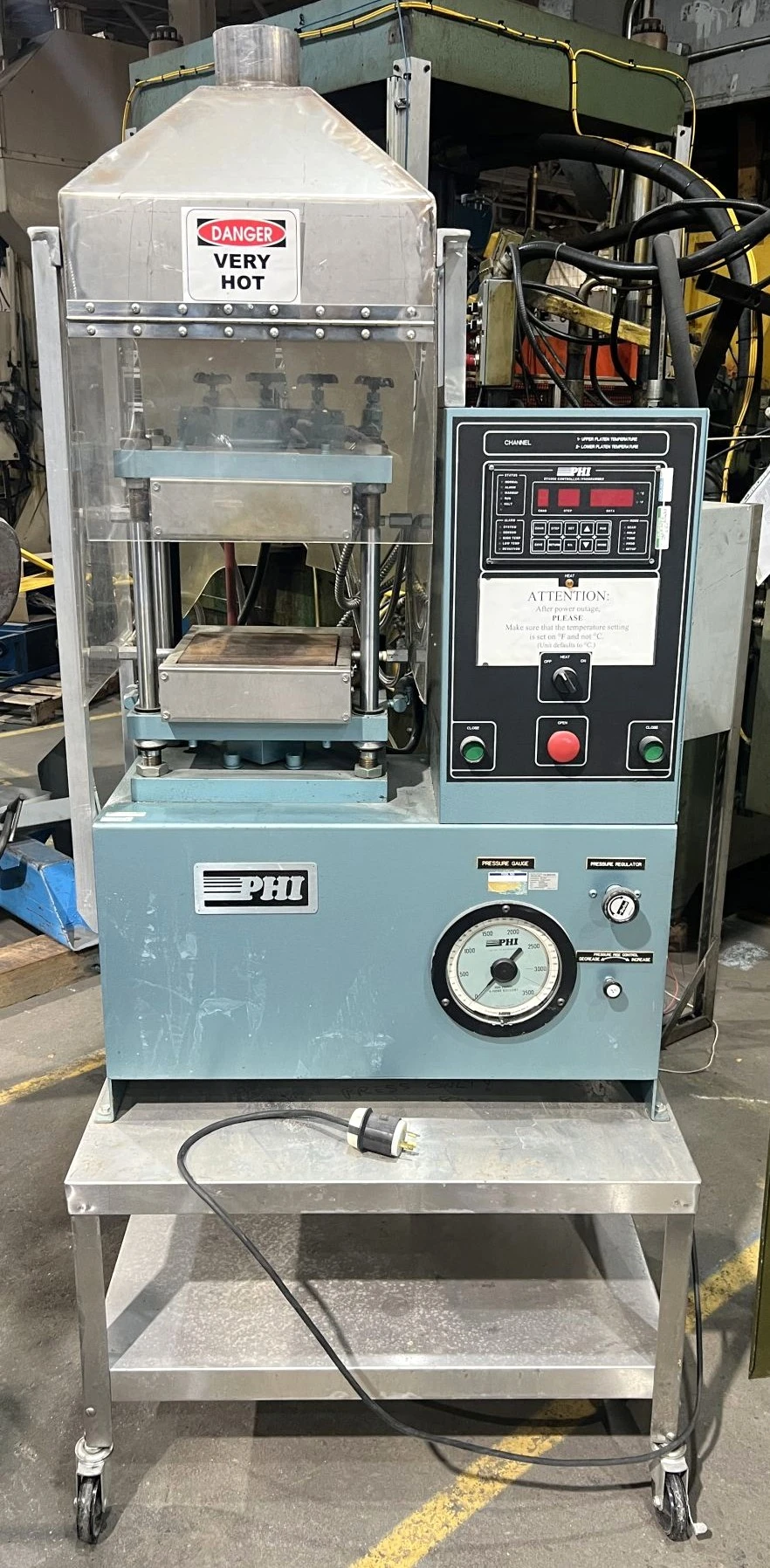

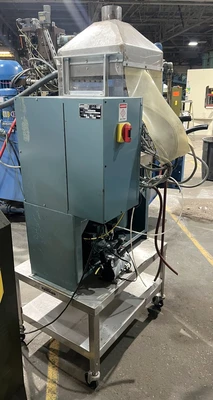

Overview
Type:
Hydraulic Presses
Manufacturer:
PHI
Model:
PHI AS-21-H-C-O PRESS
Year:
1999
Stock #:
8155
Description

Approx. 6" Stroke, Approx. 8" Daylight, 8" x 8" Heated Platens (and Cooled), New in 1999

Specifications
Dimensions32" X 30" (RL X FB) X 75.25" TOTAL HEIGHT WITH CART32" X 30" (RL X FB) X 75.25" TOTAL HEIGHT WITH CART
WeightAPPROX. 850 LBS.APPROX. 850 LBS.

MAX. CAPACITY: APPROX. 1.5 TONS
MAX. STROKE: 8" (MAY ONLY BE 6")
MAX. DAYLIGHT: 12" TOTAL - 6" BETWEEN PLATENS
OVERALL BED & RAM AREA: 13.5" X 8" (RL X FB)
DISTANCE BETWEEN POSTS: 10.5" X 5" (RL X FB)
USABLE BED AREA: 10.5" X 8" (RL X FB)

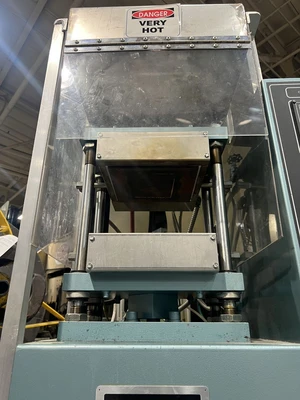

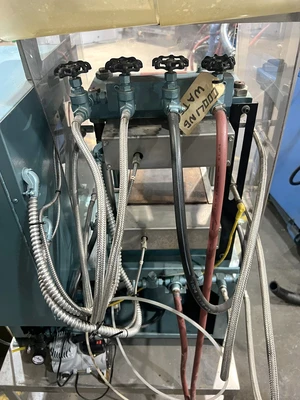

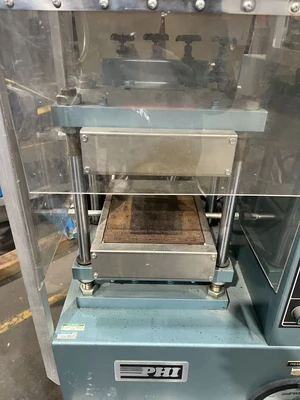

ELECTRIC HEATED PLATENS: 8" X 8" (RL X FB) Water Cooled - TOP 2.85" THICK / BOTTOM 3.15" THICK
RAM ROD SIZE: 8.5" DIA.
CYLINDER SIZE: 13.5" DIA.

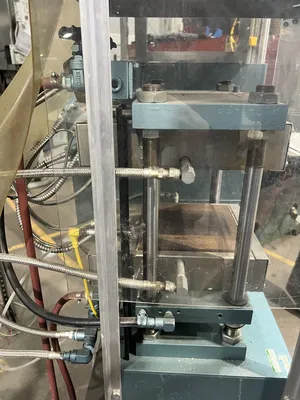

4 COLUMN / 4 POST SIZE: 1" DIA.
FLOOR TO BED HEIGHT: 43" TOTAL - 21.75" + 21.25" CART

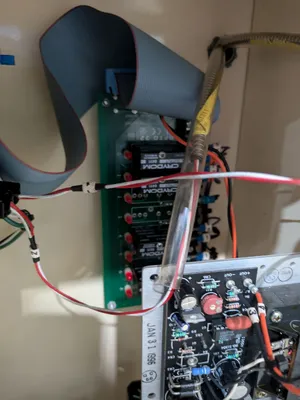

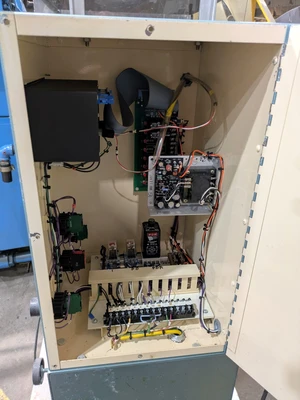

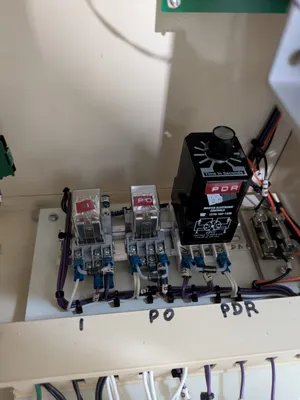

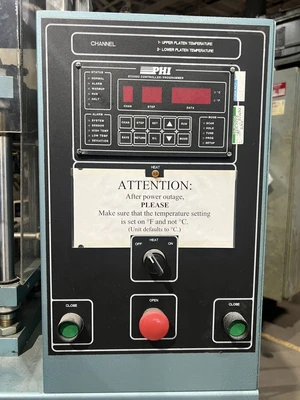

PRESS CONTROLS: 120V CONTROL CIRCUIT / 240V HEATED PLATEN CIRCUIT

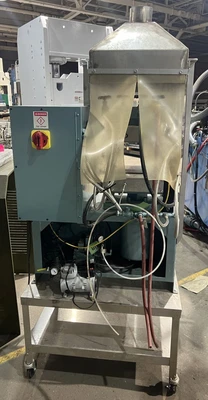

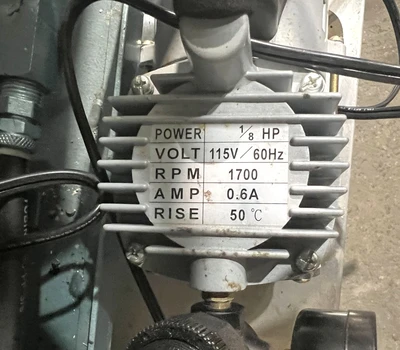

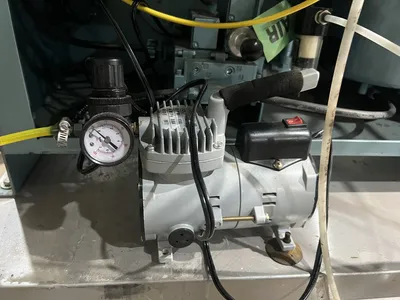

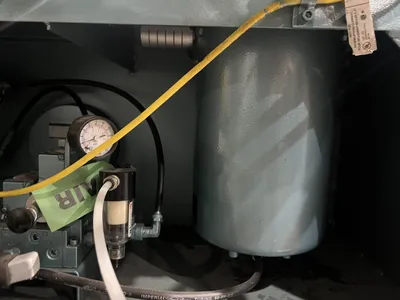

COMPRESSED AIR UNIT: SELF CONTAINED
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
