Overview
Type:
Air Presses
Manufacturer:
PHI
Model:
PHI TS-21-H-H-5 PRESS
Year:
1990
Stock #:
6776
Description

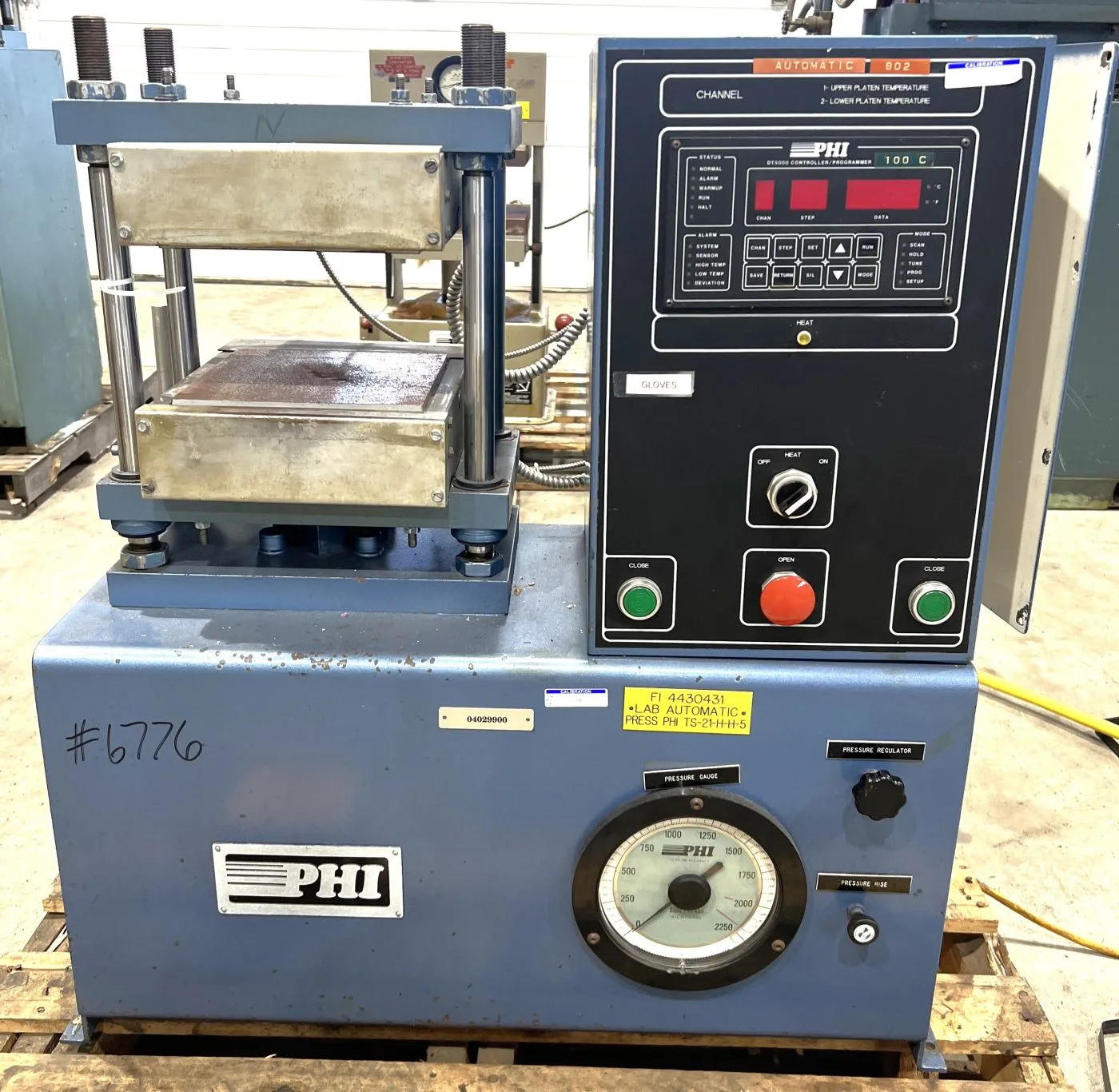

5.3" Stroke, 12" Daylight, 8" x 8" Heated Platens (Approx. 212 Deg F), New in 1990

Specifications
Dimensions34" X 18" (RL X FB) X 35" HIGH34" X 18" (RL X FB) X 35" HIGH
WeightAPPROX. 2,000 LBS.APPROX. 2,000 LBS.

MAX. CAPACITY: 1 TON AT 85 PSI (90 PSI air supply)
MAX. STROKE: 5.3"
MAX. DAYLIGHT: 12"
BED / RAM AREA: 13.5" X 8" (RL X FB)
DISTANCE BETWEEN POSTS: 10.5" X 5" (RL X FB)
USABLE BED AREA: 10.5" X 8" (RL X FB)

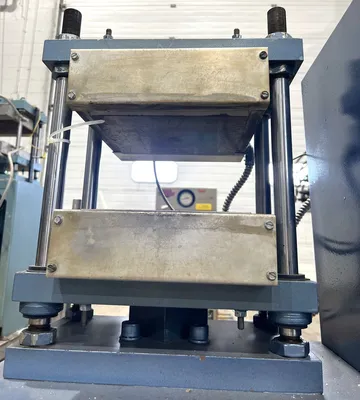

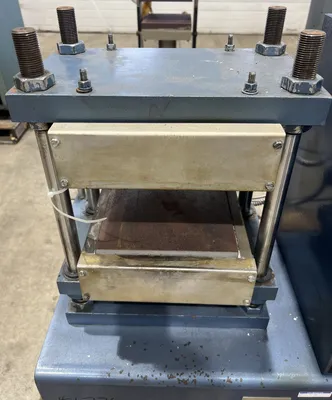

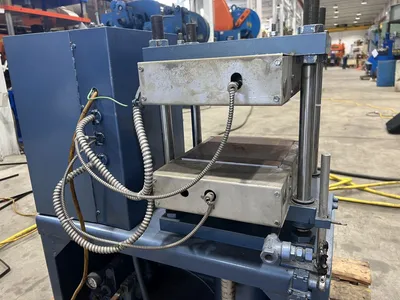

ELECTRIC HEATED PLATENS: 8" X 8" (RL X FB) X 3.25" HIGH - APPROX. 100 DEG C (212 F)
RAM ROD SIZE: APPROX. 4.5"
CYLINDER SIZE: 5.5" DIA. BoRE
4 COLUMN / POSTS SIZE: 1"
FLOOR TO BED HEIGHT: __

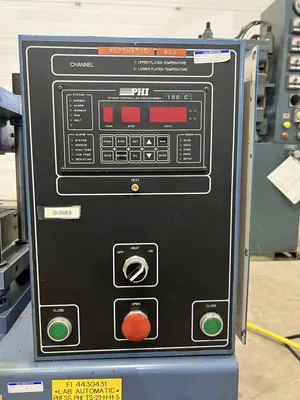

PRESS CONTROLS: PHI DT5000 CONTROLLER / PROGRAMMER

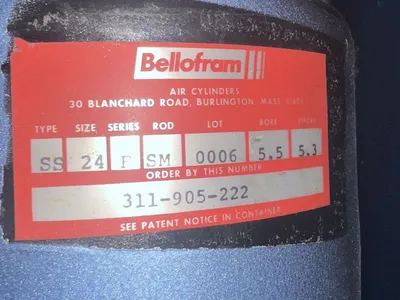

AIR CYLINDER: BELLOFRAM 5.5" BORE | SS TYPE, 24 SIZE, F SERIES, SM ROD
ELECTRICAL REQUIREMENTS: 120V | 1 PHASE | 17 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
