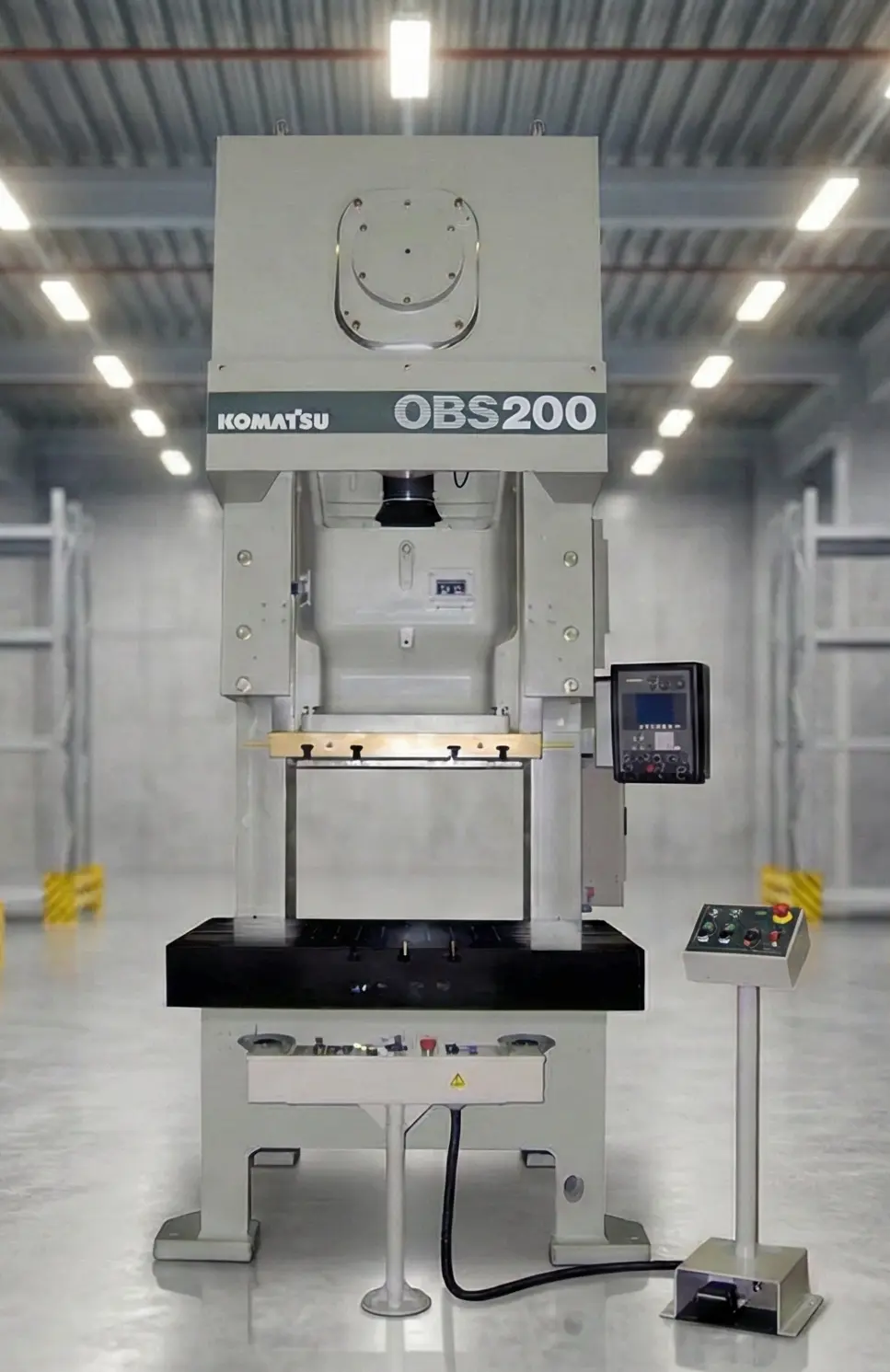

NEW 2026 KOMATSU PRESSES KOMATSU OBS200L PRESS

NEW 2026 KOMATSU PRESSES KOMATSU OBS200L PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
KOMATSU
Model:
KOMATSU OBS200L PRESS
Year:
2026
Stock #:
7018
Description

11.8" Stroke, 18.9" Die Height over Bolster, 57.1" x 33.1" Bed, 25-50 SPM, 4.7" ADJ

Specifications
Dimensions61.4" X 84.4" x 163.9" (rl x fb x h)61.4" X 84.4" x 163.9" (rl x fb x h)
Weight62,000 LBS.62,000 LBS.

MAX CAPACITY: 220 US TON AT .24" OFF BOTTOM
STROKE: 11.8"
MAX DIE HEIGHT: 18.9" SDAU OVER 7.5" BOLSTER
BED AREA: 57.1" X 33.1" (rl x fb)
SPEED: 25 - 50 SPM
SLIDE ADJUSTMENT: 4.7" MOTORIZED
SLIDE AREA: 33.5" X 25.6" (rl x fb) (T-SLOTTED)
BOLSTER PLATE: 57.1" X 33.1" x 7.5" (rl x fb x h) (T-SLOTTED)
distance between uprights: 35.4"
SHANK HOLE DIAMETER: 3.1"
DISTANCE FLOOR TO BOLSTER HEIGHT: 39.4"
CLUTCH: KOMATSU WET CLUTCH / BRAKE COMBINATION
PRESS CONTROLS: KOMATSU SIT IV PRESS CONTROL
ELECTRIC MOTOR: 20 HP 1750 RPM 240/480V-3-60
Note: __
Location: This New Press is Located in Our Warehouse on Location

Equipped With

RIGID FRAME TO PREVENT DEFLECTION, HELICAL GEARS WITH SPLINES FOR ALL DRIVE CONNECTIONS, WET CLUTCH, HEAVY DUTY SLIDE CONSTRUCTION, HYDRAULIC OVERLOAD PROTECTION SYSTEM
