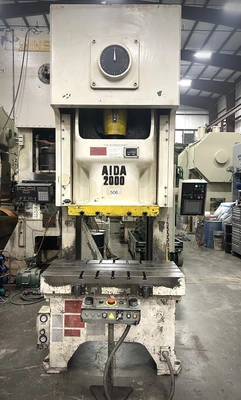

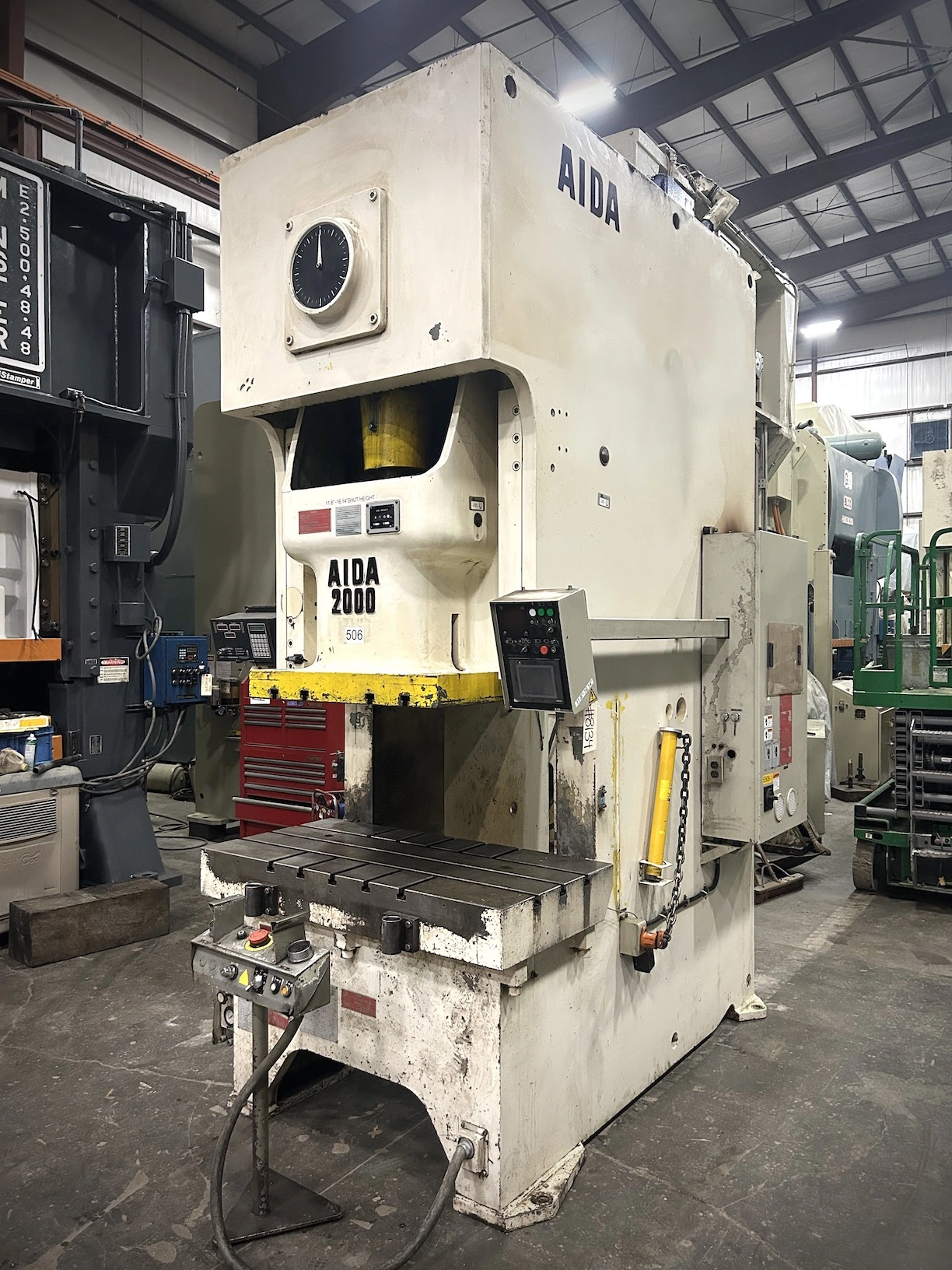

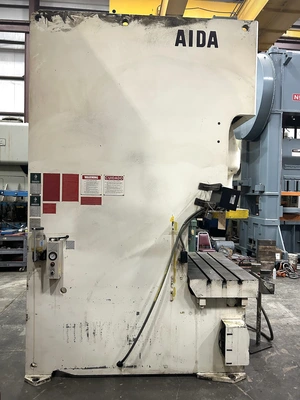

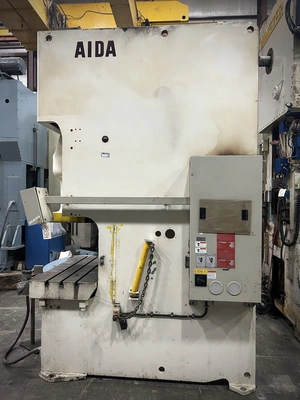

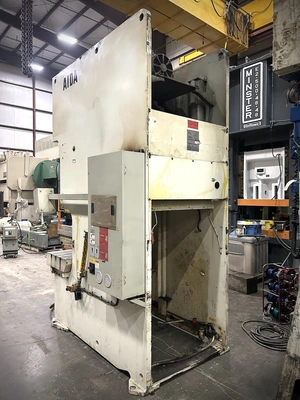

USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS
  • USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS

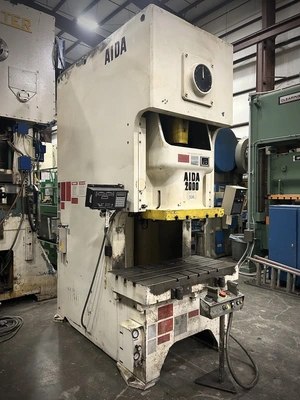

USED 2010 AIDA PRESSES AIDA NC1-2000(1)E PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC1-2000(1)E PRESS
Year:
2010
Stock #:
8134
Description

6.29" Stroke, 16.1" Shut Height over Bolster, 35-70 SPM, New in 2010

Specifications
Dimensions13' h x 6' w x 8.5' fb13' h x 6' w x 8.5' fb
Weight52,000 lbs52,000 lbs

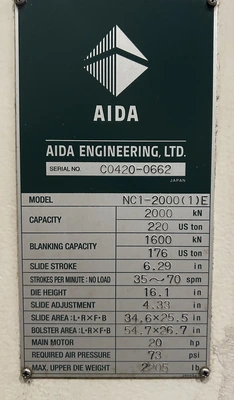

CAPACITY: 220 US TONS / 176 US TON BLANKING CAPACITY
STROKE: 6.3"
max die height: 16.1" sdau over bolster plate
RAM ADJUSTMENT: 4.3" motorized
BED AREA: 54.7" X 26.7" (RL X FB)
BOLSTER PLATE: 54.7" X 26.7" (RL X FB)
RAM AREA: 34.6" X 25.5" (RL X FB)
SPEED: 35 - 70 STROKES PER MINUTE
FLOOR TO BED HEIGHT: approx. 33"
DISTANCE BETWEEN UPRIGHTS: 35.7"
THROAT: 13.8"
CLUTCH: AIDA AIR CLUTCH AND BRAKE COMBINATION

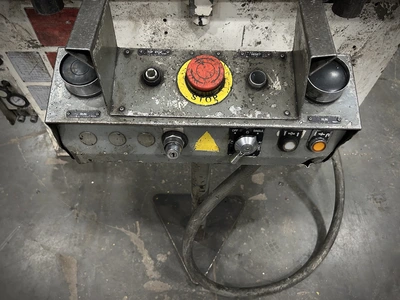

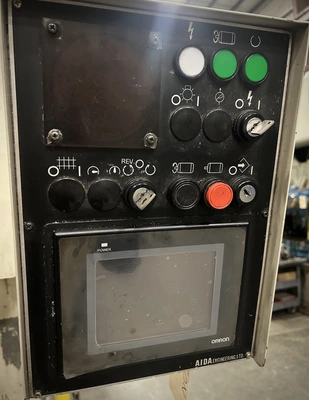

PRESS CONTROLS: AIDA CONTROLS TESTED IN INCH, JOG & CONTINUOUS

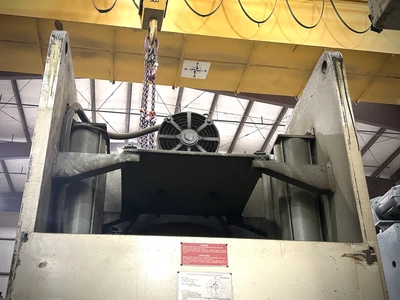

ELECTRICAL: 20 HP 460V-3-60 MOTOR
Note: WE HAVE 2 IN STOCK (8132), MAX. UPPER DIE WEIGHT 2,205 LBS.
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE
