Overview
Type:
O.B.I. Presses
Manufacturer:
STAMTEC
Model:
STAMTEC OCP-200 PRESS
Year:
2007
Stock #:
8199
Description

7.9" Stroke, 17.7" Max Die Height, 55.1" x 32.3" Bed Area, 20-45 SPM, New Cieco Controls Included

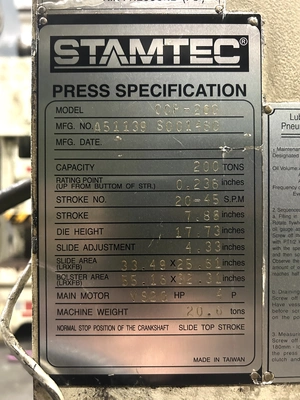

Specifications
Dimensions72" X 114" (RL X FB) X 162" HIGH72" X 114" (RL X FB) X 162" HIGH
Weight48,100 LBS48,100 LBS

CAPACITY: 220 US TON
STROKE: 7.9"
MAX DIE HEIGHT: 17.7" SDAU OVER 6.3" h BOLSTER

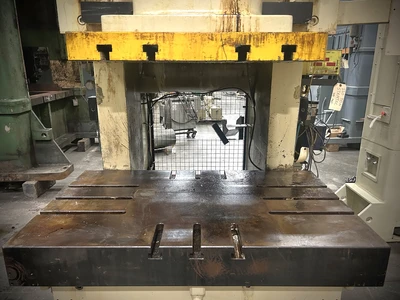

BED AREA: 55.1" X 32.3" (RL X FB)
SPEED: 20 - 45 SPM
SLIDE ADJUSTMENT: 4.3" MOTORIZED
SLIDE AREA: 33.5" X 25.6" (RL X FB) t-slotted
BOLSTER PLATE: 55.1" X 32.3" (RL X FB) X 6.3" hIGH T-SLOTTED
DISTANCE BETWEEN UPRIGHTS: 31"
FLOOR TO BED: 34"
CLUTCH: STAMTEC WET CLUTCH / BRAKE COMBINATION

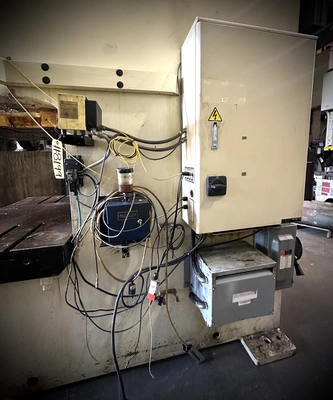

ELECTRICS: WILL INCLUDE NEW CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE
ELECTRIC MOTOR: 20 HP 1750 RPM 480V-3-60 EDDY CURRENT DRIVE
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING
