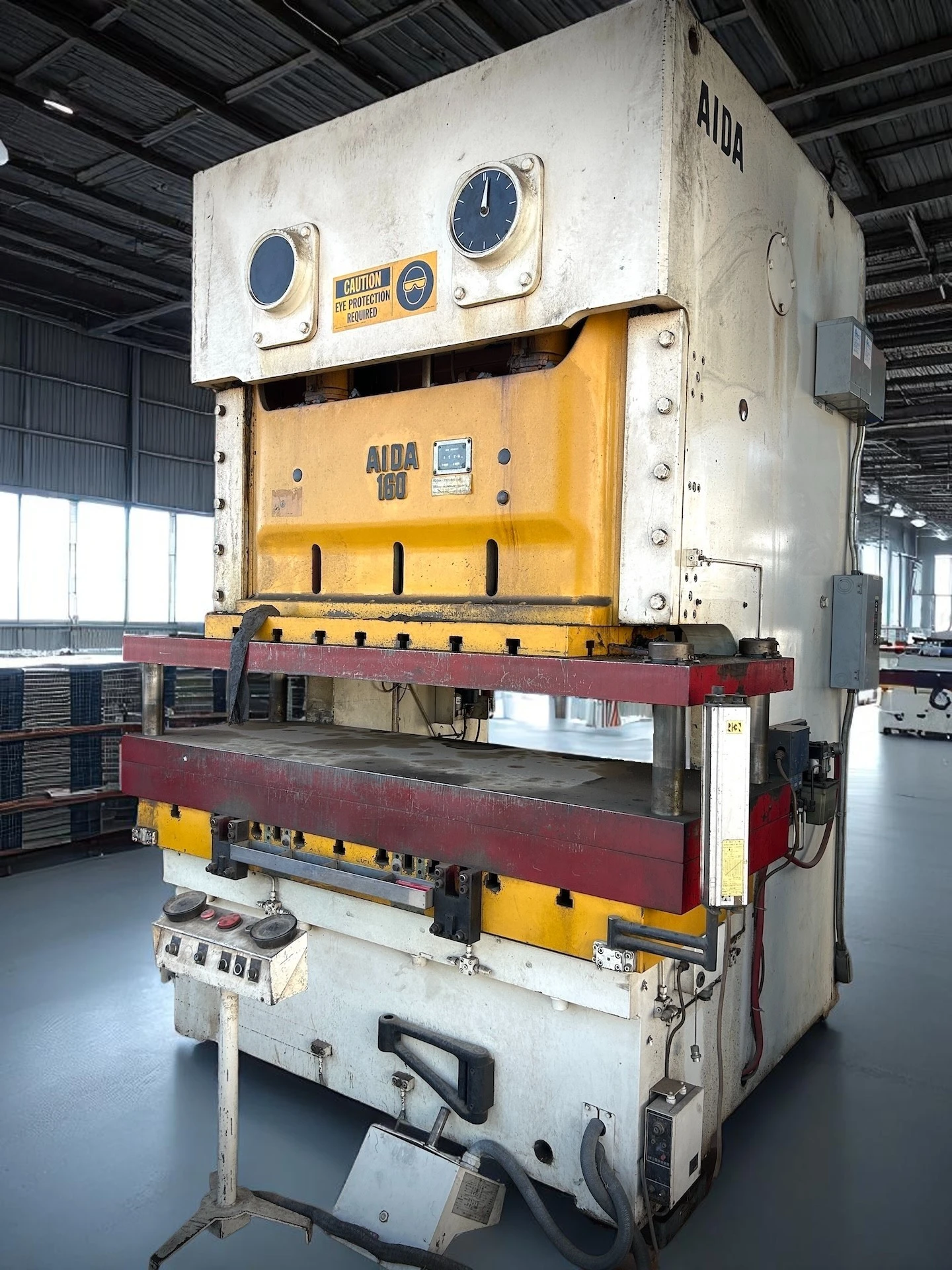

USED 1985 AIDA PRESSES AIDA NC2-160(2) PRESS
  • USED 1985 AIDA PRESSES AIDA NC2-160(2) PRESS
  • USED 1985 AIDA PRESSES AIDA NC2-160(2) PRESS

USED 1985 AIDA PRESSES AIDA NC2-160(2) PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC2-160(2) PRESS
Year:
1985
Stock #:
8214
Description

7.9" STR, 17.7" DH, 79.5X29.9 BED, 30-55 SPM, 3.9" ADJ

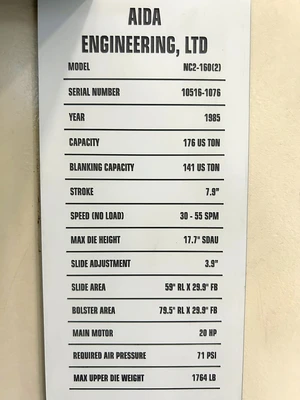

Specifications
Dimensions128" H X 90" RL X 82" FB128" H X 90" RL X 82" FB
Weight44,000 LBS.44,000 LBS.

CAPACITY: 176 US TON
BLANKING CAPACITY: 141 US TON
STROKE: 7.9"
MAX DIE HEIGHT: 17.7" SDAU OVER BOLSTER
BED AREA: 79.5" X 29.9" (RL X FB)
SPEED: 30 - 55 SPM
SLIDE ADJUSTMENT: 3.9" MOTORIZED
SLIDE AREA: 59" X 29.9" (RL X FB) T-SLOTTED
BOLSTER PLATE: 6.5" X 79.5" X 29.9" (H X RL X FB) T-SLOTTED
DISTANCE BETWEEN UPRIGHTS: 63"
DISTANCE FLOOR TO BED: 31"
CLUTCH: AIDA WET CLUTCH / BRAKE COMBINATION
ELECTRICS: 20 HP 1750 RPM EDDY CURRENT DRIVE & NEW CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, HYDRAULIC OVERLOAD PROTECTOR, 6-PT FULL BRONZE GIBS, AUTOMATIC LUBRICATION SYSTEM, BALL & SOCKET CONNECTIONS, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL, AIR COUNTERBALANCE, & FLOOR STANDING
