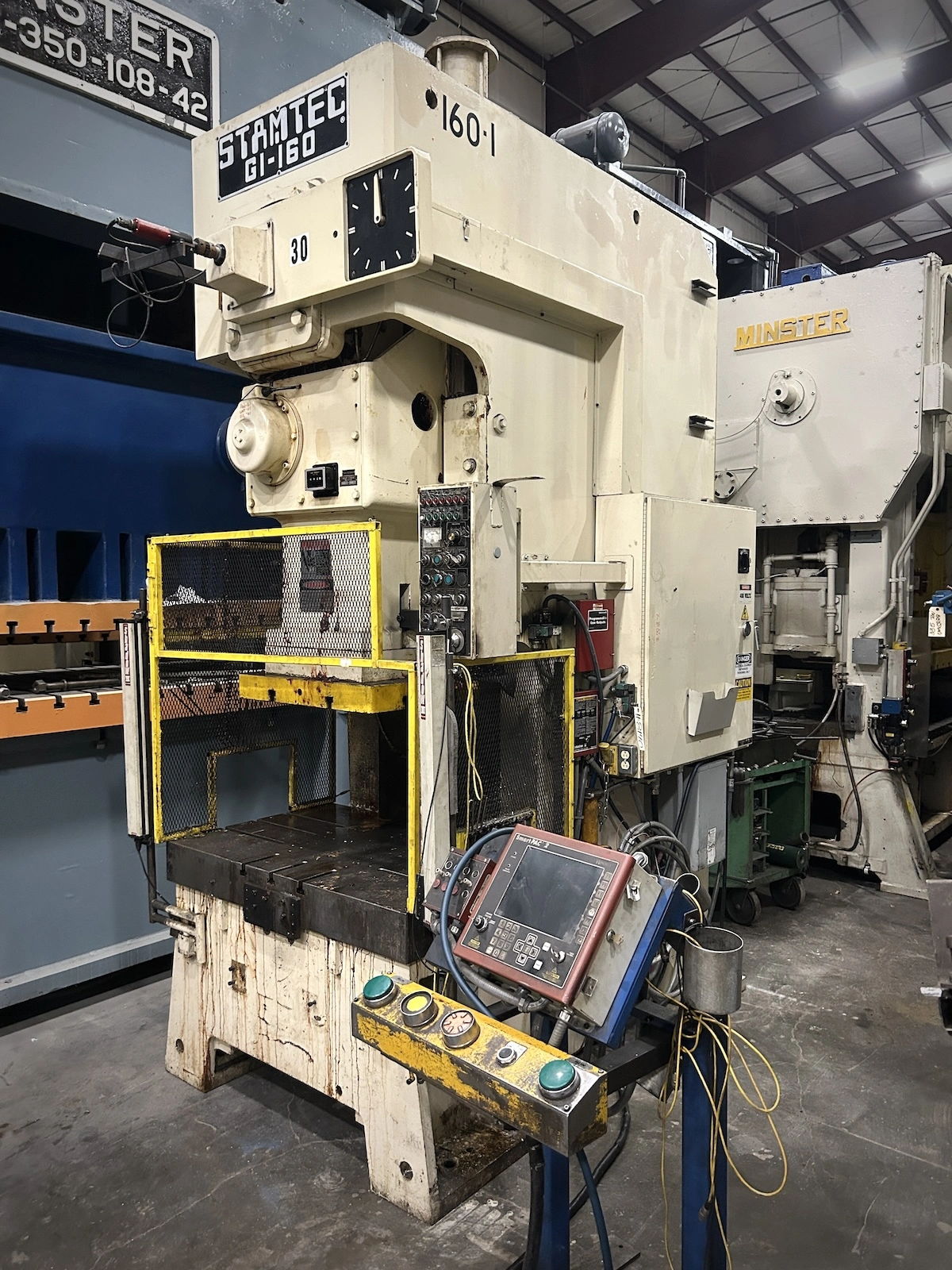

USED 1996 STAMTEC STAMTEC G1-160 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS
  • USED 1996 STAMTEC STAMTEC G1-160 PRESS

USED 1996 STAMTEC STAMTEC G1-160 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
STAMTEC
Model:
STAMTEC G1-160 PRESS
Year:
1996
Stock #:
8140
Description

7.9" STR, 17.7" DH, 49.2X31.5 BED, 20-50 SPM, 3.8" ADJ

Specifications
Dimensions129" h x 91" rl x 60" fb129" h x 91" rl x 60" fb
Weight35,000 lbs35,000 lbs

capacity: 176 us ton
stroke: 7.9"
max die height: 17.7" sdau over bolster
bed area: 49.2" x 31.5" (rl x fb)
speed: 20 - 50 spm
slide adjustment: 3.8" motorized
slide area: 27.6" x 22.8" (rl x fb) (t-slotted)

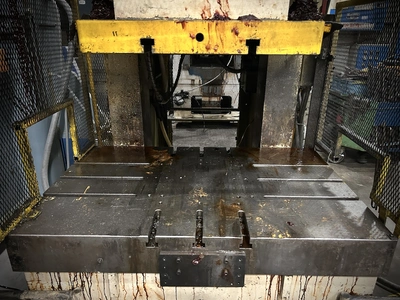

bolster plate: 5.9" h x 49.2" rl x 31.5" fb (t-slotted)
distance between uprights: approx. 15.4"
distance floor to bed: approx. 36"
clutch: stamtec wet clutch / brake combination

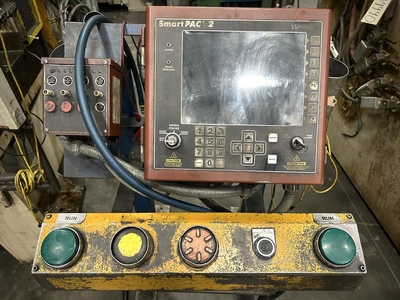

electrics: 20 hp 1750 rpm 240/480v-3-60 eddy current drive & existing stamtec press control
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING
