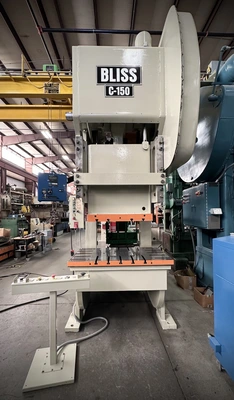

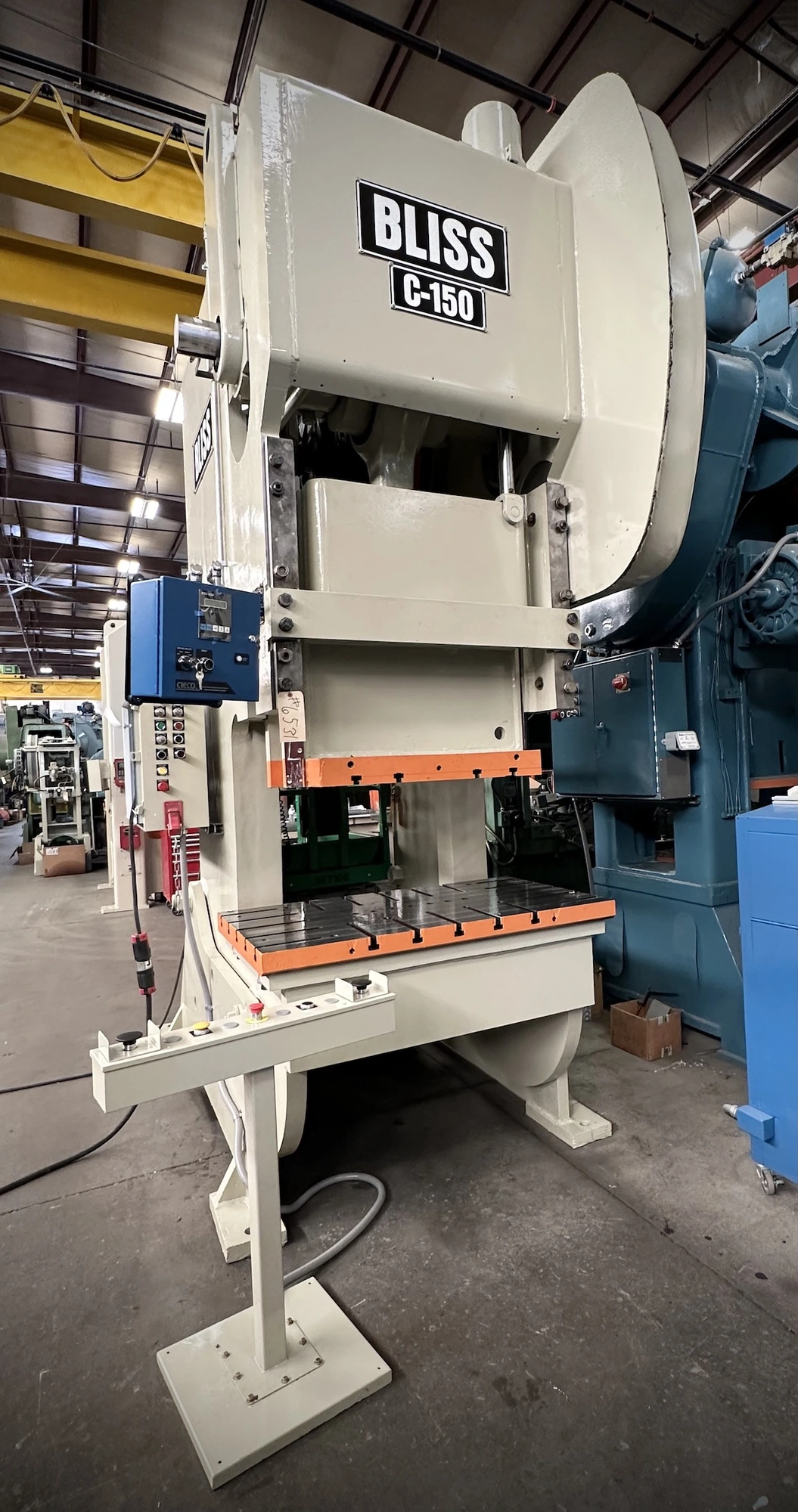

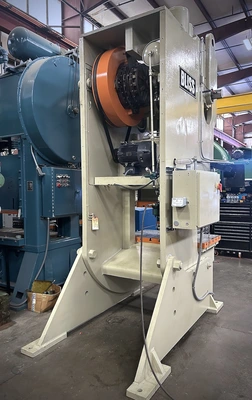

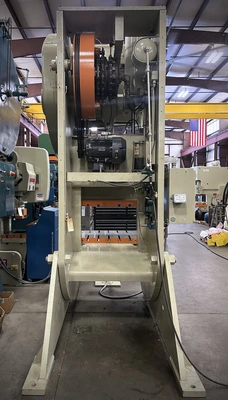

USED BLISS BLISS C-150 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview
Manufacturer:
BLISS
Stock #:
6531
Description

8" STR, 22" SH, 50X30 BED, 37 SPM, 4.5" ADJ

Specifications
Dimensions158" H X 78" RL W 116" FB158" H X 78" RL W 116" FB
Weight41,000 LBS41,000 LBS

CAPACITY: 150 TON
STROKE: 8"
MAX SHUT HEIGHT TO BED: 22" SDAU
BED AREA: 50" X 30" (RL X FB)
SPEED: 37 SPM
SLIDE ADJUSTMENT: 4.5" MOTORIZED

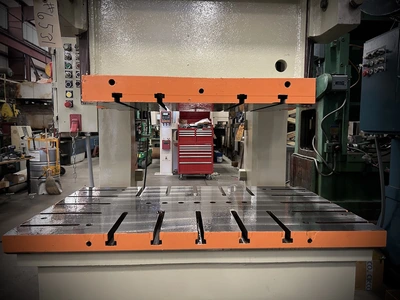

SLIDE AREA: 34" RL X 24" FB (T-SLOT)
BOLSTER PLATE: 3" h x 52" rl x 31.5" fb (t-slotted)
distance between uprights: 30.75"
distance floor to bed: 37.5"

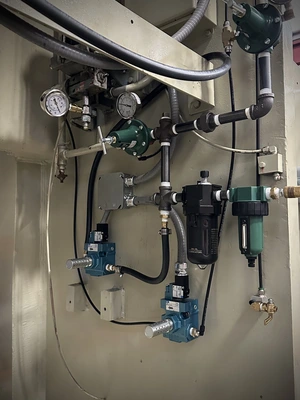

CLUTCH: BLISS AIR CLUTCH / BRAKE COMBINATION

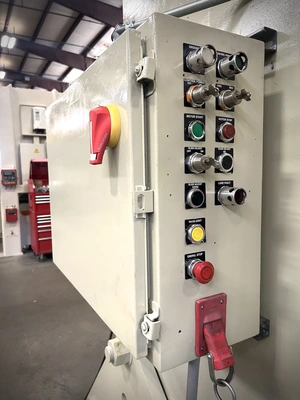

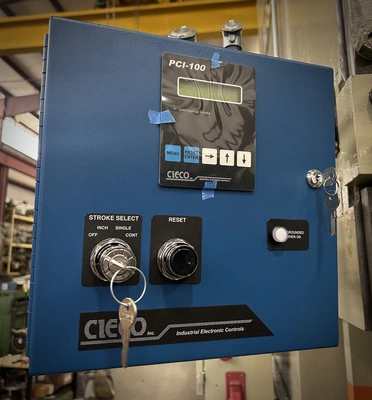

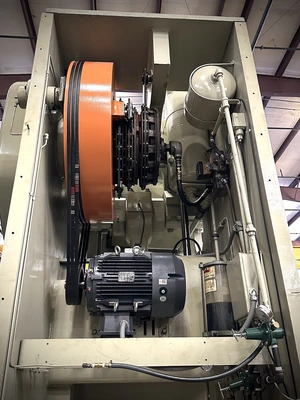

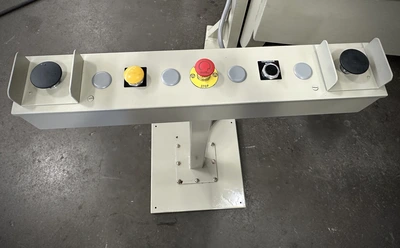

ELECTRICS: NEW TECHTOP 15 HP 1750 RPM 208-240/480V-3-60 MOTOR & NEW CIECO 1100R PRESS CONTROL
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

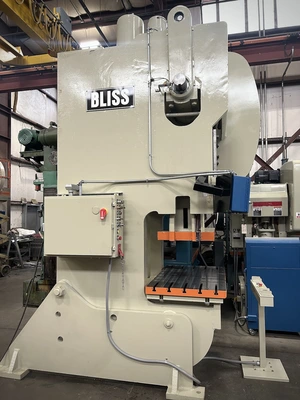

FLOOR STANDING, SINGLE BACK GEARED DESIGN, CAST IRON FRAME, rebuilt slide, NEW UPPER CONNECTION BEARING. NEW FLYWHEEL BEARINGS & NEW CLUTCH PINS, BUSHINGS & CLUTCH SEALS FOR RECONDITIONED PRICE.
