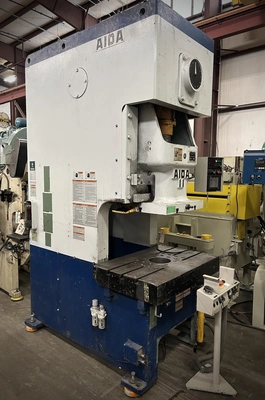

USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS
  • USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS

USED 1983 AIDA PRESSES AIDA NC1-11(2)B PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC1-11(2)B PRESS
Year:
1983
Stock #:
8292
Description

7.1" STR, 13.8" DH, 42.1X26.8 BED, 35-70 SPM, 3.5" ADJ

Specifications
Dimensions117" H (INCLUDING ISOLATORS) X 60" RL X 84" FB117" H (INCLUDING ISOLATORS) X 60" RL X 84" FB
Weight22,000 LBS.22,000 LBS.

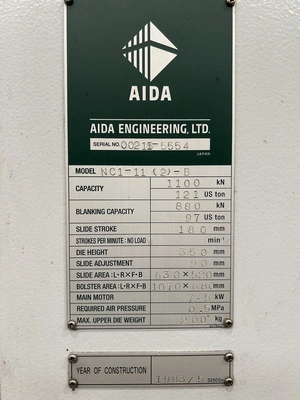

CAPACITY: 121 US TON
BLANKING CAPACITY: 97 US TON
STROKE: 7.1"
MAX DIE HEIGHT: 13.8" sdau over 6.1" bolster
BED AREA: 42.1" 26.8" (rl x FB)
SPEED: 35 - 70 SPM
SLIDE ADJUSTMENT: 3.5" MOTORIZED
SLIDE AREA: 24.8" X 20.5" (rl x FB) (T-SLOTTED)

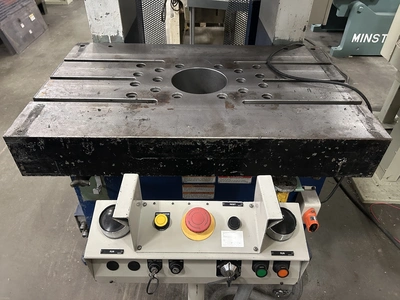

BOLSTER PLATE: 6.1" H X 42.1" RL X 26.8" FB (T-SLOTTED)
DISTANCE BETWEEN UPRIGHTS: 26.2"
FLOOR TO BED: 29"
CLUTCH: AIDA AIR CLUTCH / BRAKE COMBINATION

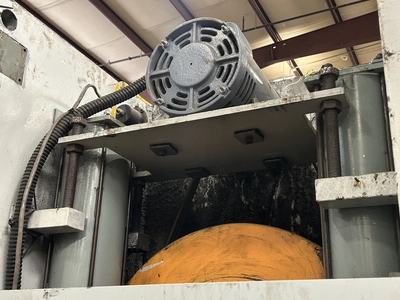

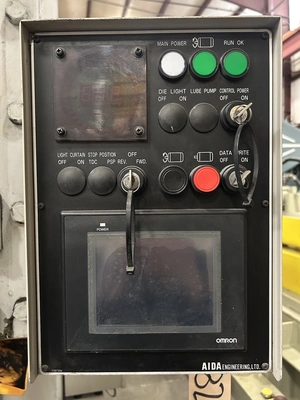

ELECTRICS: 10 HP 1750 RPM 480V-3-60 MOTOR & AIDA PRESS CONTROL
Note: AVAILABLE JANUARY 2026.
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

FLOOR STANDING, AIR COUNTERBALANCES, HIGHLY RIGID FRAME TO MINIMIZE DEFLECTION, BALL & SOCKET CONNECTIONS, HYDRAULIC OVERLOAD PROTECTION SYSTEM, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL
