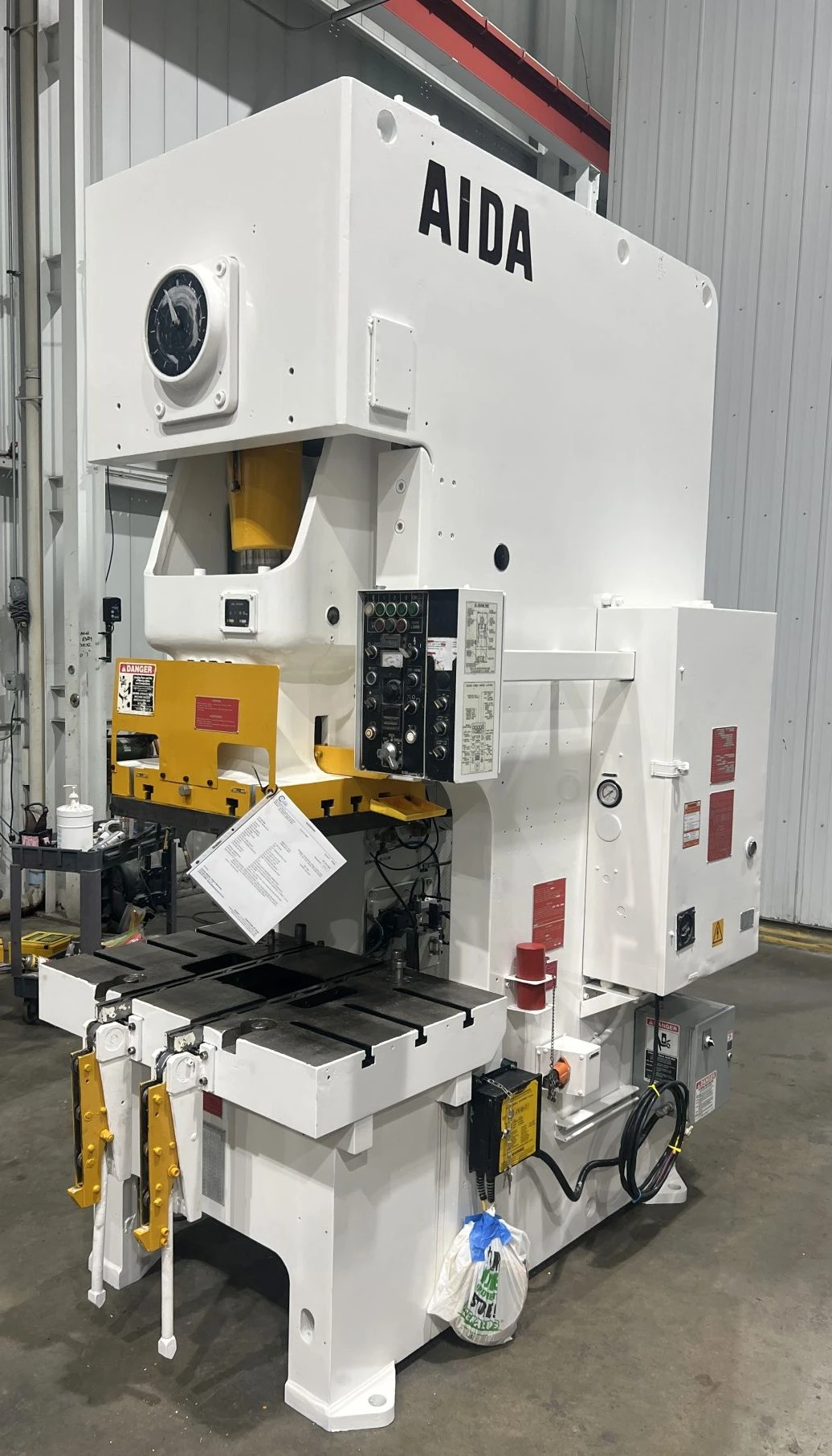

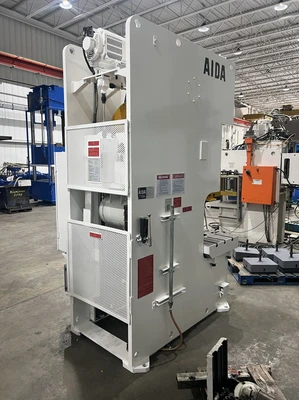

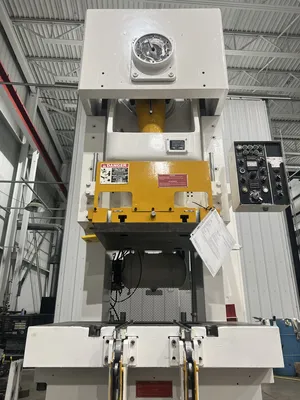

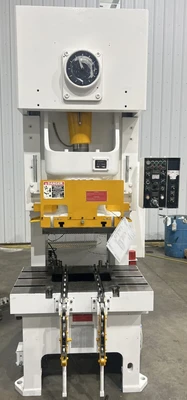

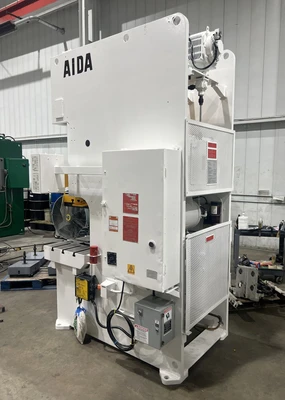

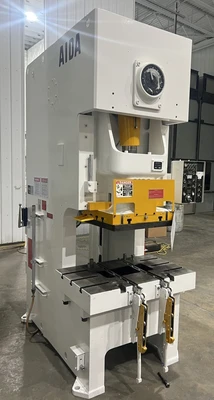

Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC1-110(2) PRESS
Year:
1987
Stock #:
8131
Description

7.08" Stroke, 13.77" Shut Height over Bolster Plate, 35-65 SPM Variable Speed

Specifications
Dimensions59" X 81" (RL X FB) X 120" - 125.5" WHEN ON 5.5 ISOLATOR PADS59" X 81" (RL X FB) X 120" - 125.5" WHEN ON 5.5 ISOLATOR PADS
WeightAPPROX. 21,340 LBS.APPROX. 21,340 LBS.

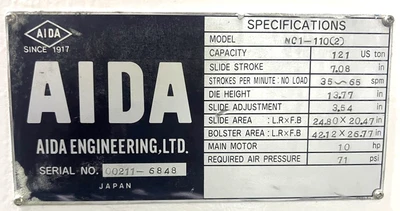

CAPACITY: 121 US TONS
STROKE: 7.08"
max die height: 13.77" OVER BOLSTER PLATE
SLIDE ADJUSTMENT: 3.5" MOTORIZED

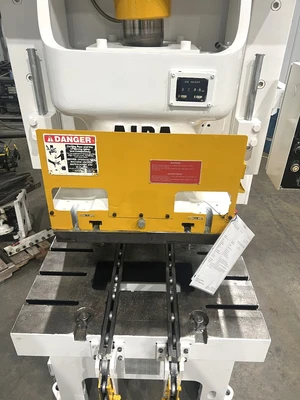

BED AREA: 42.12" X 26.77" (RL X FB)
BOLSTER PLATE: 42.12" X 26.77" (RL X FB)
SLIDE AREA: 24.8" X 20.47" (RL X FB)
SPEED: 35 - 65 SPM
FLOOR TO BED HEIGHT: 35.65" - 41.15" WITH ISOLATOR PADS
DISTANCE BETWEEN UPRIGHTS: 25"
THROAT: 13.75"
CLUTCH: AIDA AIR CLUTCH AND BRAKE COMBINATION

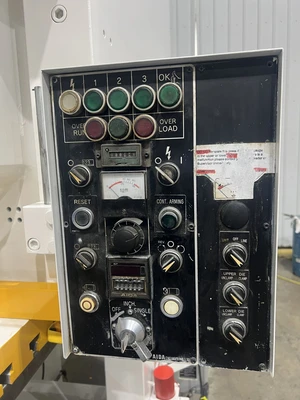

PRESS CONTROLS: AIDA CONTROLS TESTED IN INCH, JOG & CONTINUOUS

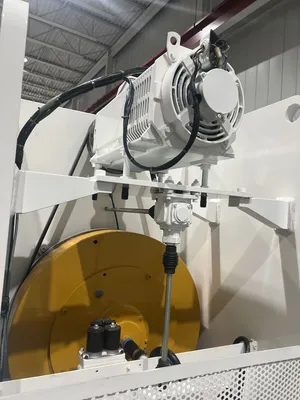

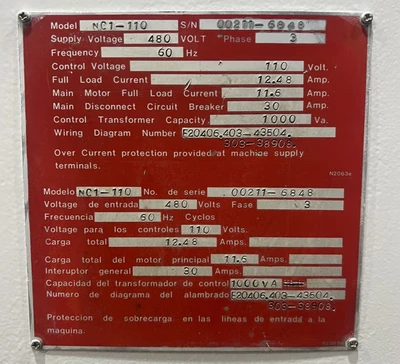

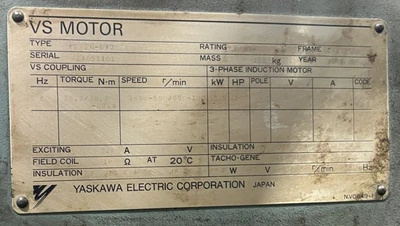

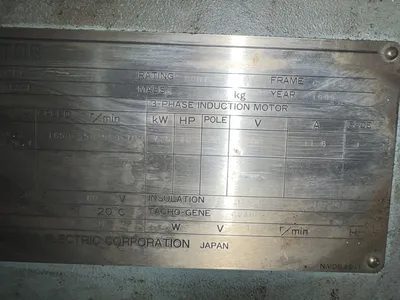

ELECTRIC MOTOR: 10 HP 460V-3-60 YASKAWA VS MOTOR (UPDATED) | 11.6 AMPS - 14 FULL LOAD AMPS
Note: 71 PSI REQUIRED
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE
