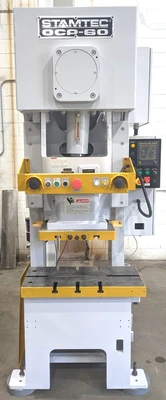

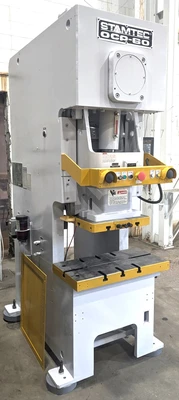

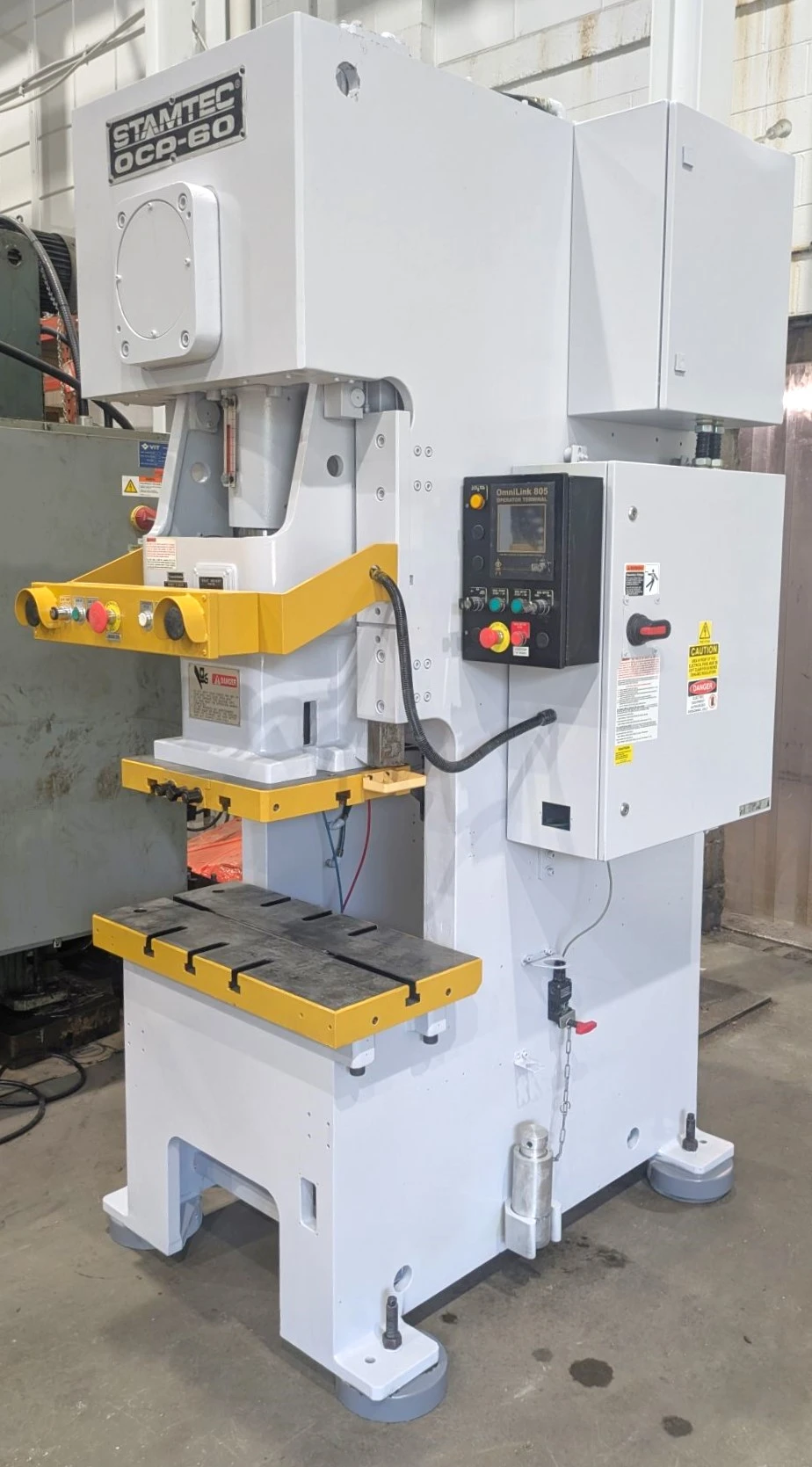

USED 2014 STAMTEC STAMTEC OCP-60 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS
  • USED 2014 STAMTEC STAMTEC OCP-60 PRESS

USED 2014 STAMTEC STAMTEC OCP-60 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
STAMTEC
Model:
STAMTEC OCP-60 PRESS
Year:
2014
Stock #:
8000
Description

3.55" Stroke, 10.64" Shut Height, 60-120 SPM Variable Speed, OmniLink 805 Controller (5100)

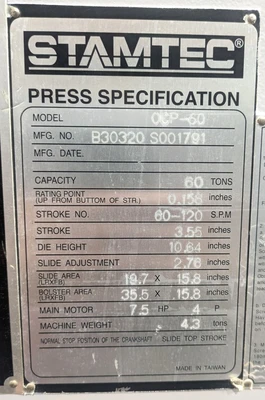

Specifications

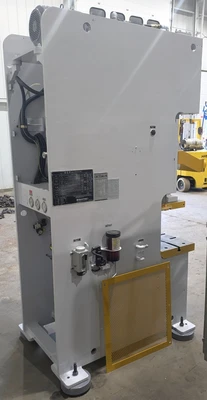

Dimensions48" x 72" (rl x fb) x 110" High48" x 72" (rl x fb) x 110" High
Weight9,800 lbs9,800 lbs

CAPACITY: 66 US TONS
STROKE: 3.55"

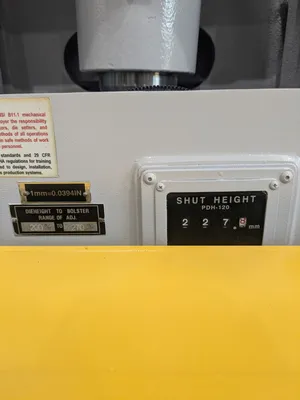

max die height: 10.64" sdau over 3.5" h bolster
BED AREA: 35.5" X 15.8" (RL X FB)

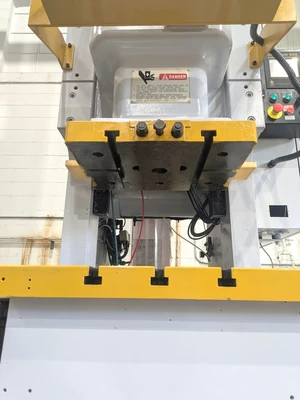

slide area: 19.7" X 15.8" (RL X FB) (t-slot)
slide adjustment: 2.76" motorized
SPEED: 60 - 120 SPM

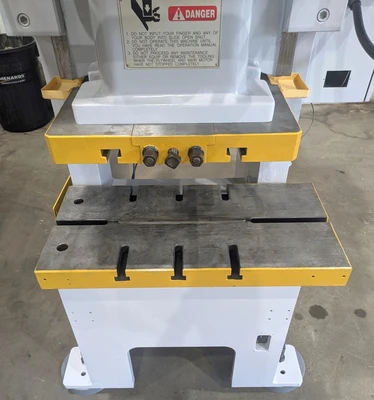

BOLSTER PLATE: 35.5" X 15.8" x 3.5" (RL X FB x h) (t-slot)
DISTANCE BETWEEN UPRIGHTS: 21"
FLOOR TO BED HEIGHT: 32.5"

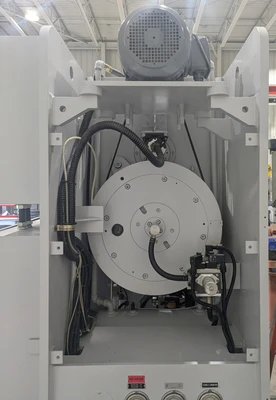

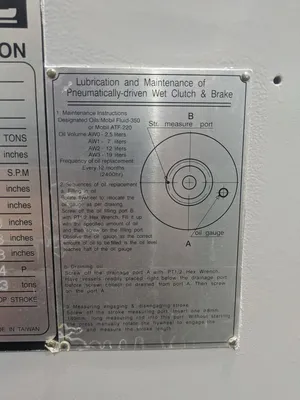

AIR CLUTCH: STAMTEC wet CLUTCH / BRAKE combination

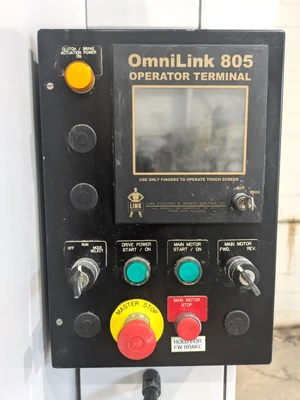

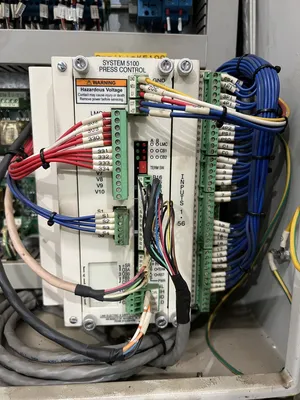

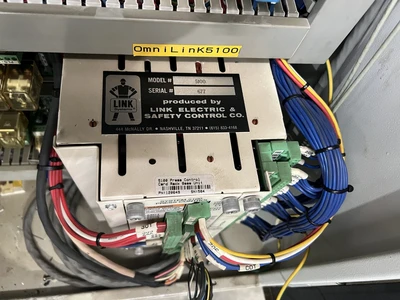

PRESS CONTROLS: OMNILINK 805 LINK CONTROLLER MODEL 5100

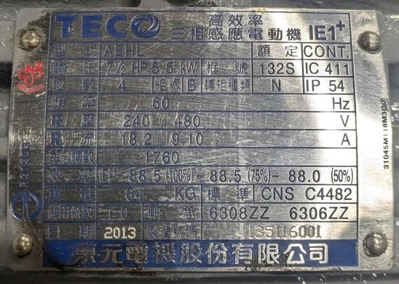

ELECTRIC MOTOR: 7.5 HP 1750 RPM 240/480V-3-60 MOTOR | 18.2/9.10 AMPS

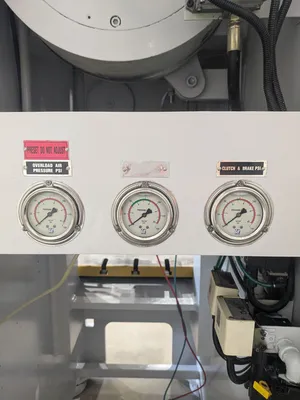

Note: 60 PSI MAX. AIR PRESSURE 661 LBS. MAX. UPPER DIE WEIGHT
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

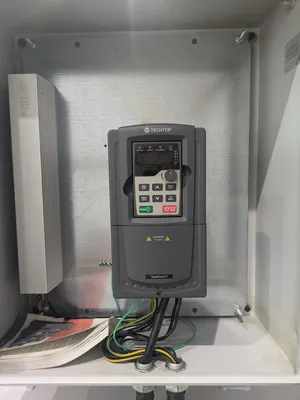

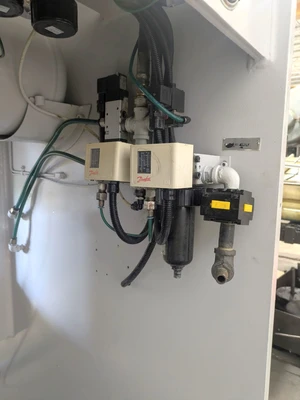

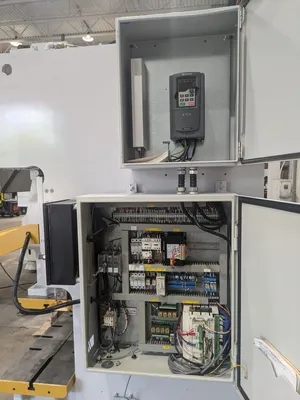

PROJECTED TO HAVE TECHTOP TOPDRIVE 350 (TD350) AC DRIVE, HYDRAULIC OVERLOADS, flywheel brake, & air counterbalance system
