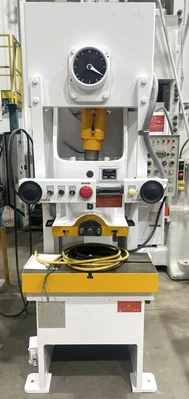

USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS
  • USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS

USED 1984 AIDA PRESSES AIDA NC1-6(1) PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC1-6(1) PRESS
Year:
1984
Stock #:
6355
Description

3.54" Stroke, 10.63" Shut Height to Bolster, 34" x 15" Bed Area, 60-120 Strokes per Minute Variable Speed, (3 in stock - #6892, 6719)

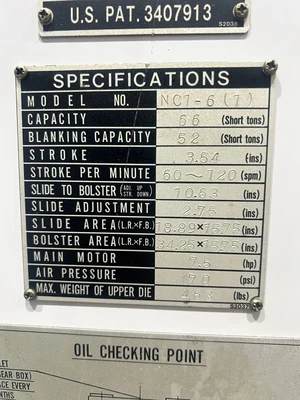

Specifications
Dimensions50" X 60" (RL X FB) X 99" HIGH50" X 60" (RL X FB) X 99" HIGH

CAPACITY: 66 US TONS / 52 US TONS BLANKING
STROKE: 3.54"
MAX. SHUT HEIGHT TO BOLSTER: 10.63"
BED AREA: 34.25" X 15.75" (RL X FB)
RAM AREA: 18.89" X 15.75" (RL X FB)
RAM ADJUSTMENT: 2.75" - motorized
SPEED: 60-120 STROKES PER MINUTE
BOLSTER PLATE: 34.25" X 15.75" (RL X FB) X 5.2" THICK
DISTANCE BETWEEN UPRIGHTS: 22"
FLOOR TO BED HEIGHT: 30.33"
CLUTCH: AIDA AIR CLUTCH AND BRAKE

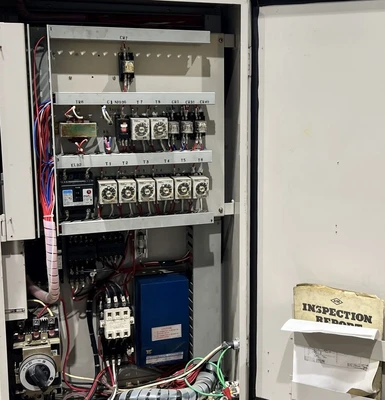

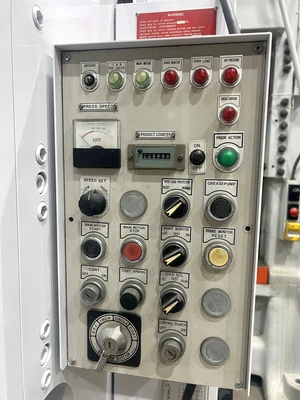

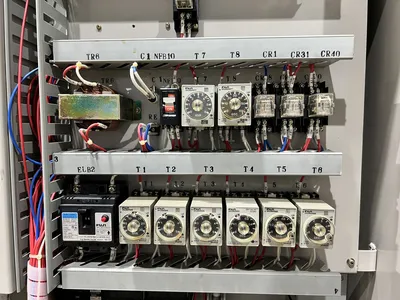

PRESS CONTROLS: aida relay controls

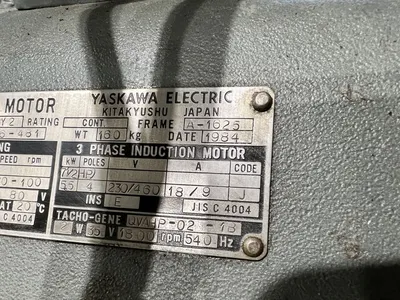

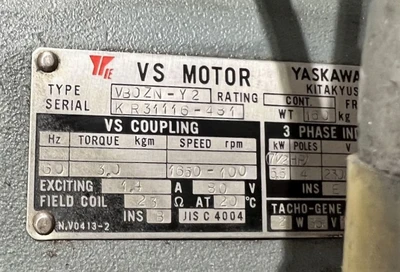

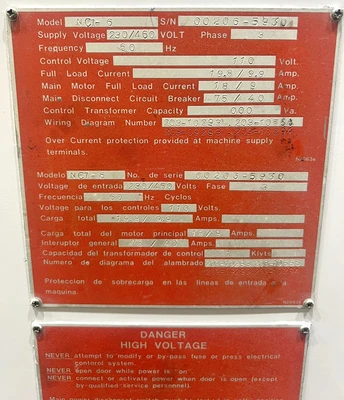

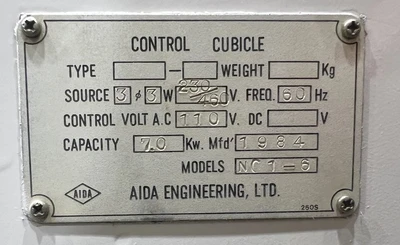

ELECTRIC MOTOR: 7.5 HP 230/460V-3-60 YASKAWA ELECTRIC MOTOR | 18/9 AMPS

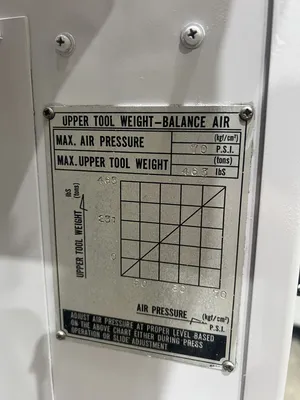

Note: MAX. WEIGHT OF UPPER DIE 463 LBS. TWO in stock - see machine #6892
Location: This Used Press is Located in Our Jackson, MI Cooper Building
