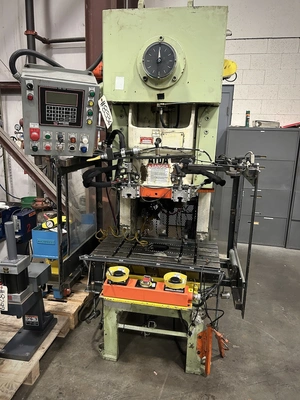

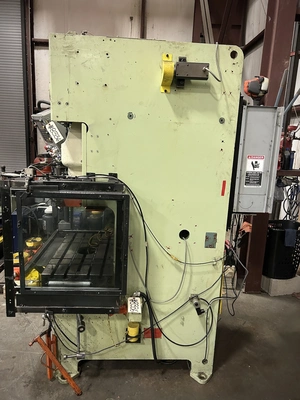

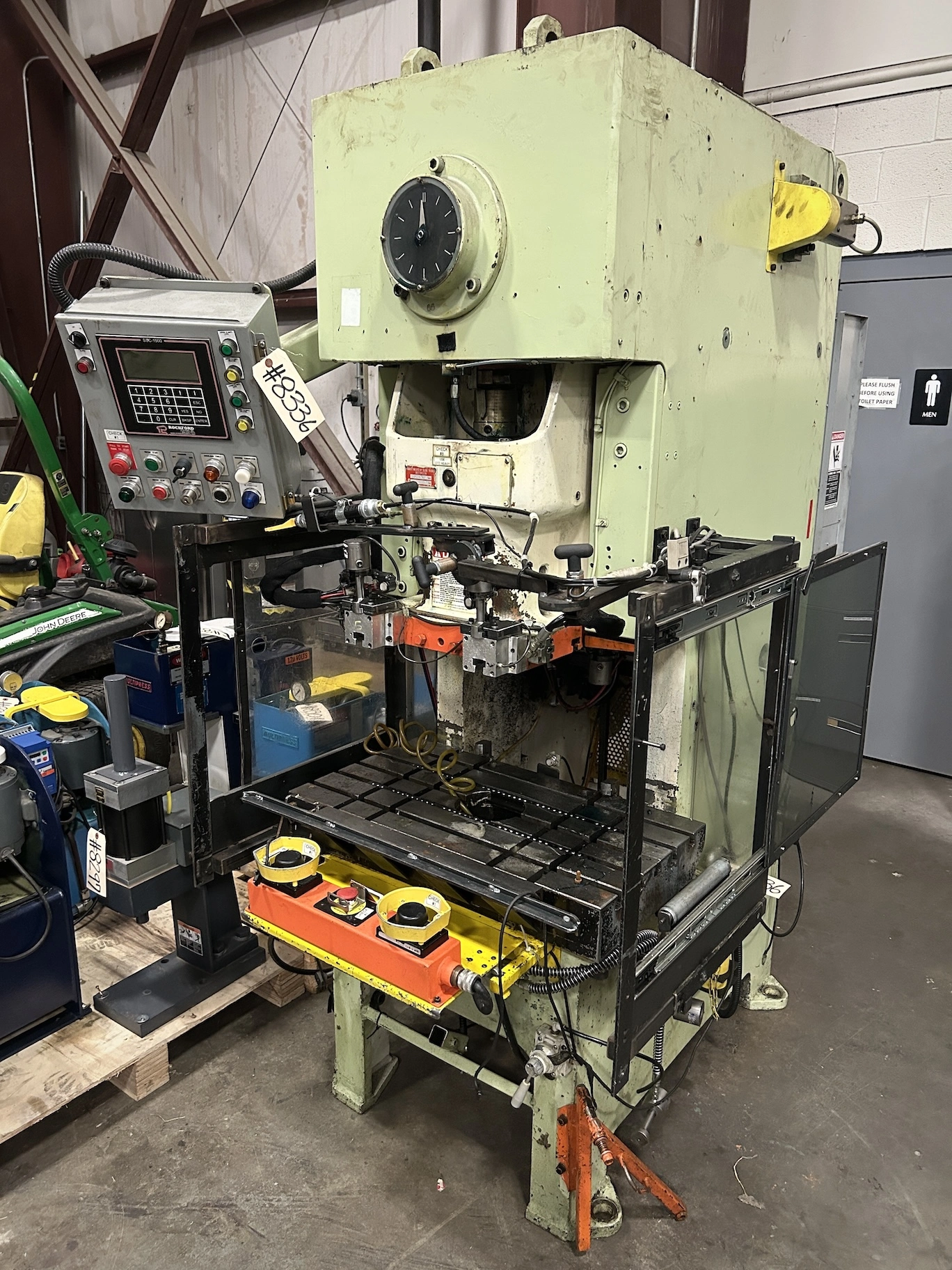

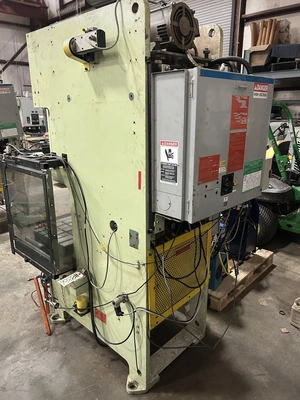

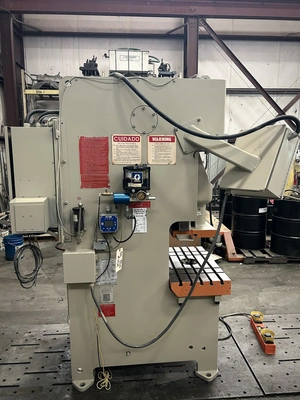

USED 1986 AIDA PRESSES AIDA NC1-45(2) PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Alma Machinery
1,177Listings|6Followers
View seller profile
Overview
O.B.I. Presses

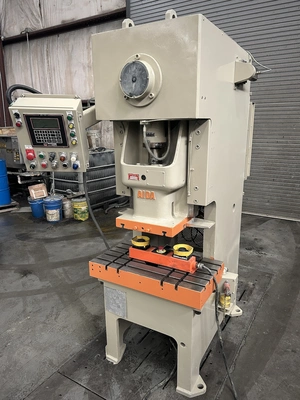

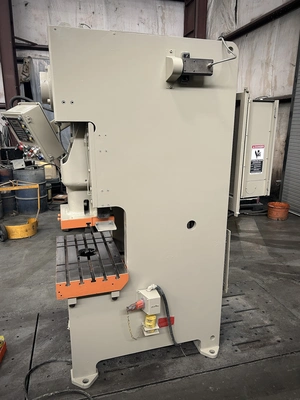

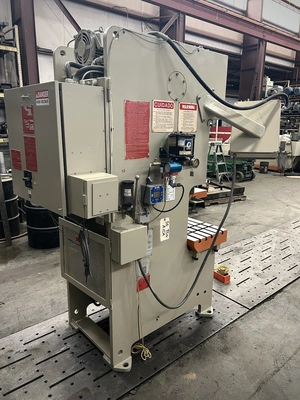

AIDAAIDA NC1-45(2) PRESS1986

4.7" STR, 10.6" DH, 31.8X17.3 BED, 80 SPM, 2.3" ADJ

Specs
Dimensions
78" H X 52" RL X 109" FB
Weight
9,000 LBS.

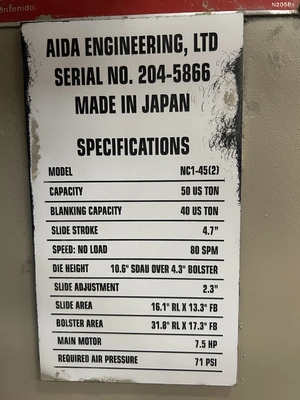

CAPACITY: 50 US TON
BLANKING CAPACITY: 40 US TON
STROKE: 4.7"
MAX DIE HEIGHT: 10.6" SDAU OVER BOLSTER
BED AREA: 31.8" X 17.3" (RL X FB)
SPEED: 80 SPM
SLIDE ADJUSTMENT: 2.3"
SLIDE AREA: 16.1" X 13.3" (RL X FB) (T-SLOTTED)

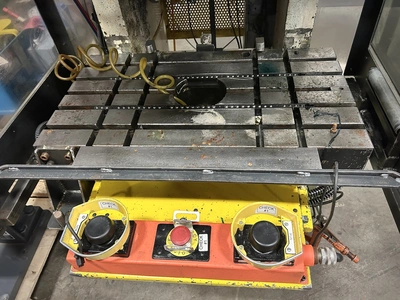

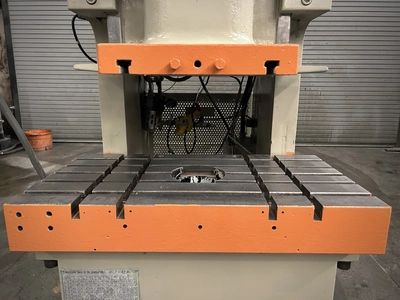

BOLSTER PLATE: 4.3" H X 31.8" RL X 17.3" FB (T-SLOTTED)
DISTANCE BETWEEN UPRIGHTS: 19.6"
DISTANCE FLOOR TO BED: 27"
CLUTCH: AIDA WET CLUTCH / BRAKE COMBINATION

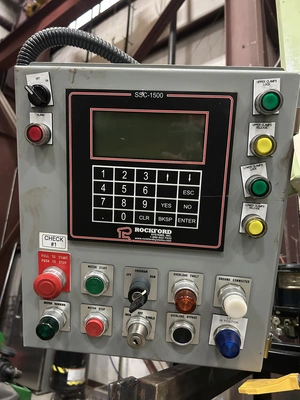

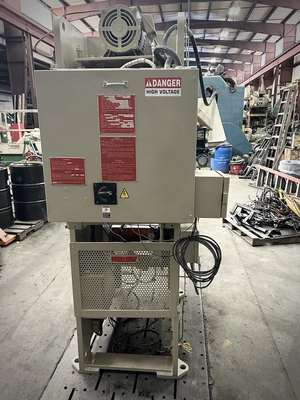

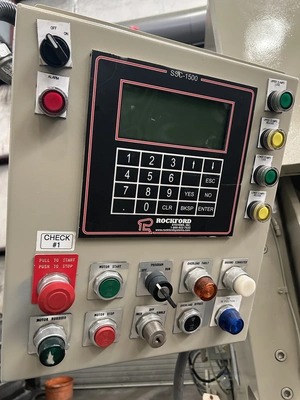

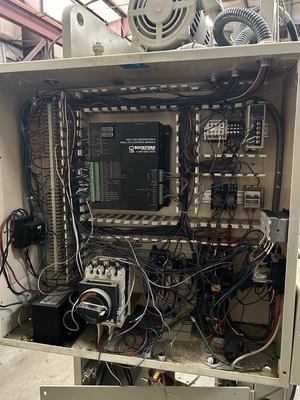

ELECTRICS: 7.5 HP 1750 RPM 480v-3-60 MOTOR & ROCKFORD SSC-1500 PRESS CONTROL
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

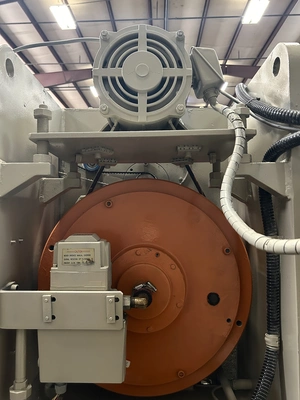

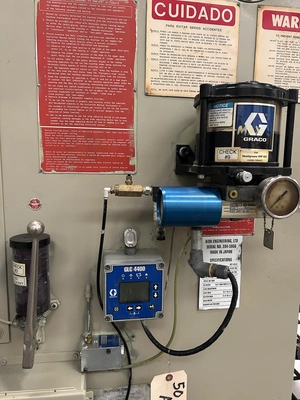

FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE
