Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
AIDA NC1-45(2) PRESS
Year:
1987
Stock #:
8337
Description

4.7" STR, 10.6" DH, 31.8X17.3 BED, 80 SPM, 2.3" ADJ

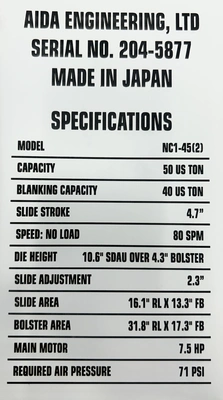

Specifications
Dimensions78" H X 52" RL X 109" FB78" H X 52" RL X 109" FB
Weight9,000 LBS.9,000 LBS.

CAPACITY: 50 US TON
BLANKING CAPACITY: 40 US TON
STROKE: 4.7"
MAX DIE HEIGHT: 10.6" SDAU OVER BOLSTER
BED AREA: 31.8" X 17.3" (RL X FB)
SPEED: 80 SPM
SLIDE ADJUSTMENT: 2.3"
SLIDE AREA: 16.1" X 13.3" (RL X FB) (T-SLOTTED)
BOLSTER PLATE: 4.3" H X 31.8" RL X 17.3" FB (T-SLOTTED)
DISTANCE BETWEEN UPRIGHTS: 19.6"
DISTANCE FLOOR TO BED: 27"
CLUTCH: AIDA WET CLUTCH / BRAKE COMBINATION

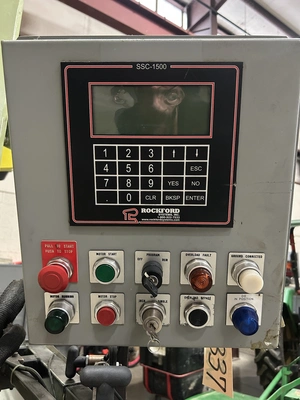

ELECTRICS: 7.5 HP 1750 RPM 480v-3-60 MOTOR & ROCKFORD SSC-1500 PRESS CONTROL
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE
