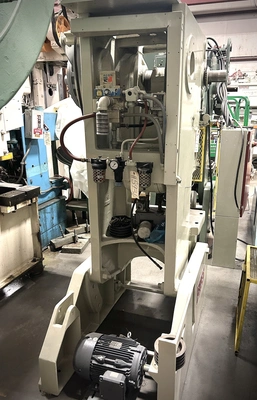

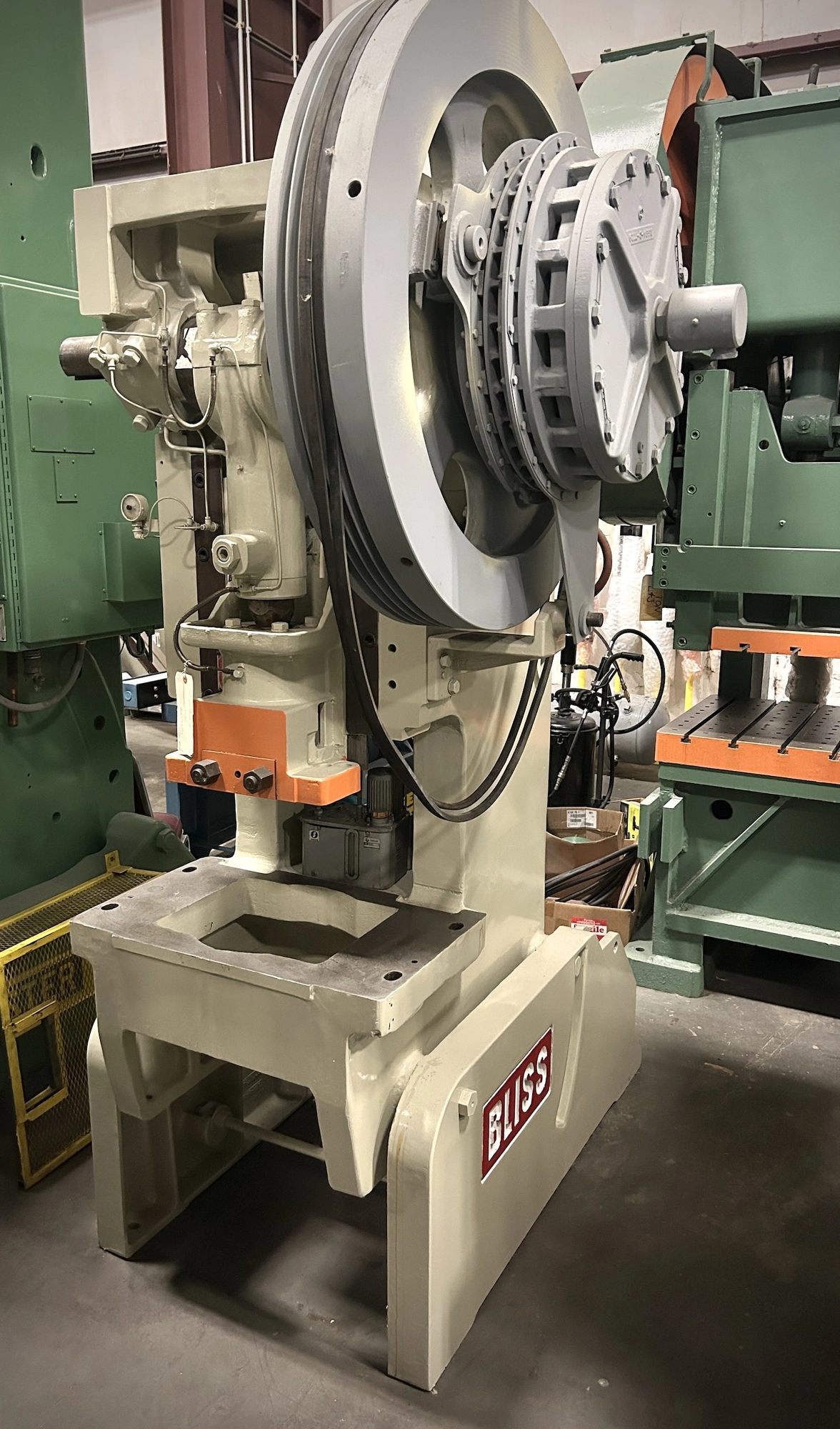

USED 1976 BLISS BLISS C-45 PRESS
Overview
3" STR, 11.25" SH, 100 SPM, 3" ADJ
Specs

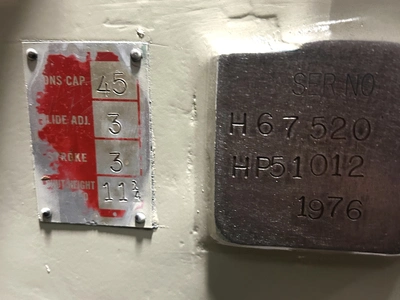

CAPACITY: 45 TON
STROKE: 3"
MAX SHUT HEIGHT TO BED: 11.25" SDAU
BED AREA: 29.5" X 18" (rl x FB)
SPEED: 100 SPM (50 - 100 spm POSSIBLE for UPCHARGE)
slide adjustment: 3" MANUAL
slide area: 15.25" RL X 11.25" FB
BOLSTER PLATE: NONE CURRENTLY. WILL INCLUDE WITH RECONDITIONED PRICE
DIST UPRIGHTS / FLOOR TO BED: 14" / 41"
CLUTCH: BLISS AIR CLUTCH / BRAKE COMBINATION
PRESS CONTROL: RECONDITIONING WILL INCLUDE new cieco 1100r press control
ELECTRIC MOTOR: RECONDITIONING will include new techtop 5 HP 1150 RPM 208-240/480V-3-60 MOTOR
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse
Equipped With
floor standing, cast iron frame, direct drive
