Overview
Type:
O.B.I. Presses
Manufacturer:
FEDERAL
Model:
FEDERAL 45 PRESS
Year:
1973
Stock #:
6001
Description

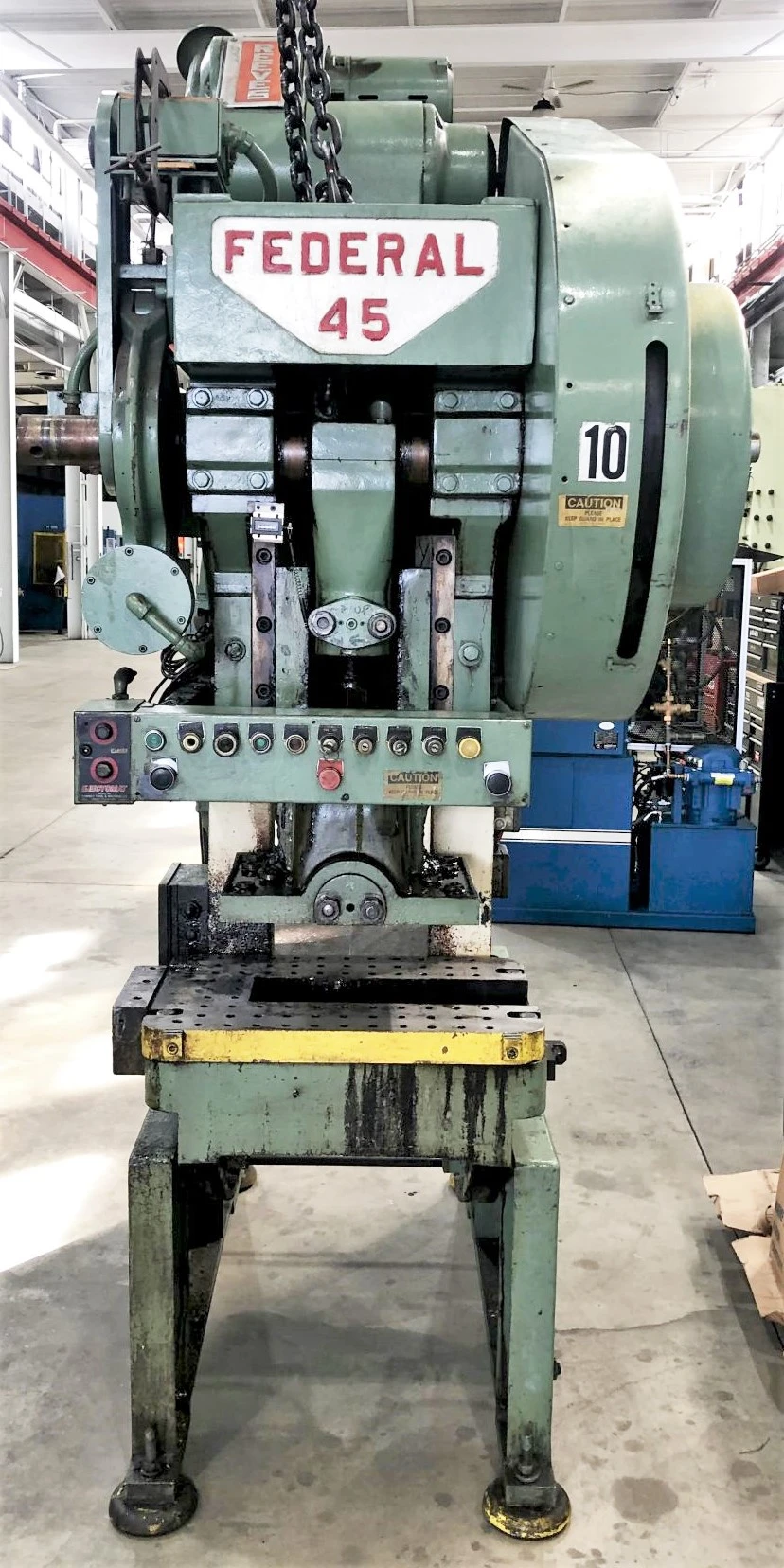

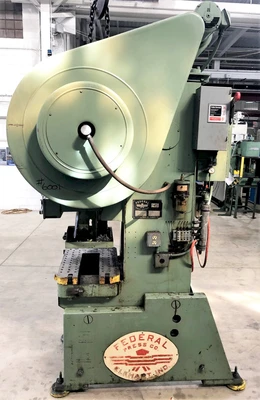

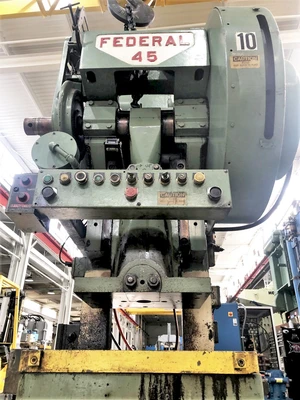

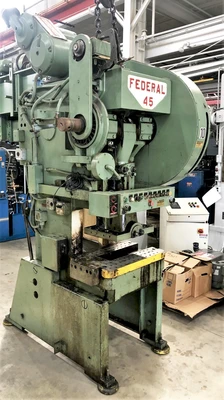

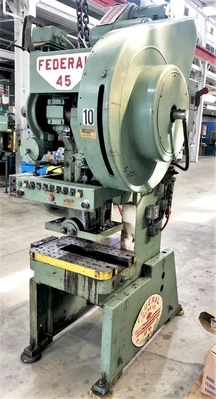

3" Stroke, 11" Shut Height, 70-210 Strokes per Minute, Reliance Reeves Drive, Under Power

Specifications
Dimensions53" X 68" (RL X FB) X 117" HIGH53" X 68" (RL X FB) X 117" HIGH
Weight7,700 LBS.7,700 LBS.

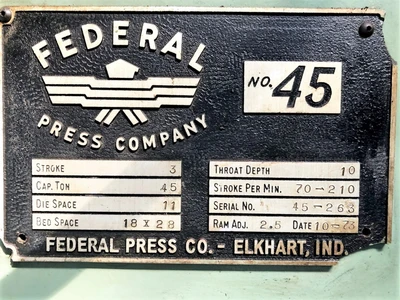

CAPACITY: 45 TONS
STROKE: 3"
MAX SHUT HEIGHT TO BED: 11" SDAU
BED AREA: 28" X 18" (RL X FB)
SPEED: 70 - 210 SPM
RAM ADJUSTMENT: 2.5" - MANUAL
RAM AREA: 18" X 14" (RL X FB) FLANGED RAM
BOLSTER PLATE: 28" x 18" (RL X FB) X 2.25" THICK WITH 21" X 6" HOLE
THROAT DEPTH: 10"
DISTANCE BETWEEN UPRIGHTS: 13"
FLOOR TO BED: 32"
CLUTCH: AIR CLUTCH & CLAMSHELL AIR BRAKE

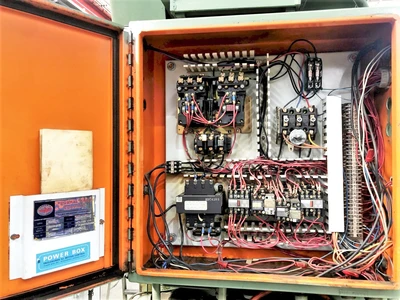

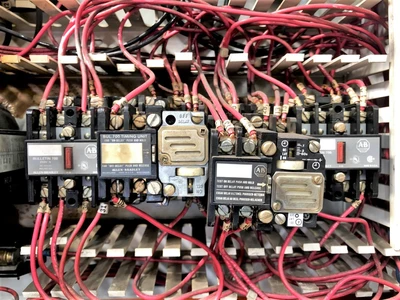

PRESS CONTROLS: ALLEN-BRADLEY BULLETIN 700 RELAY LOGIC CONTROLLER

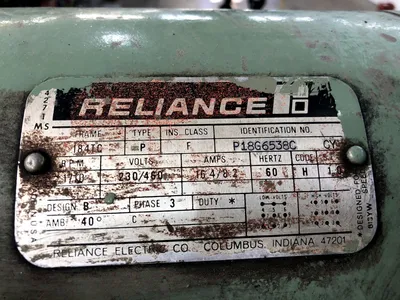

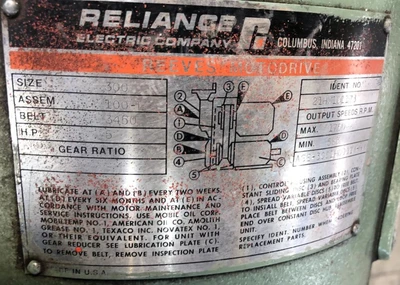

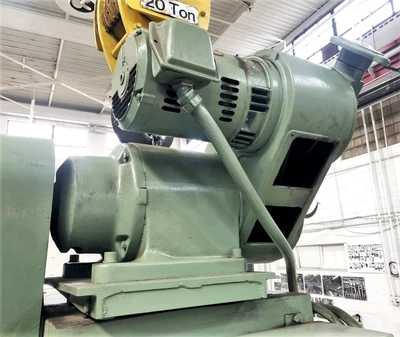

ELECTRICAL: 5 HP 230/460V-3-60 RELIANCE REEVES DRIVE MOTOR | 16.4/8.2 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
