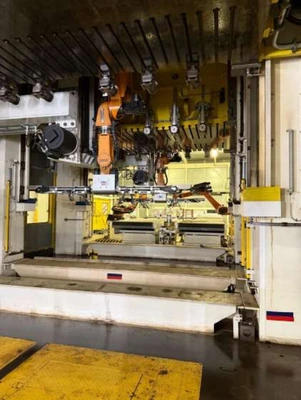

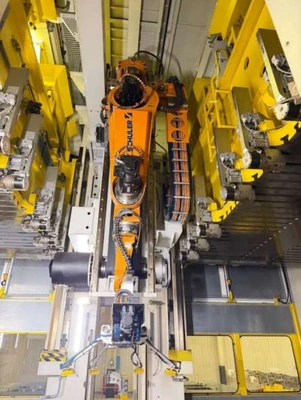

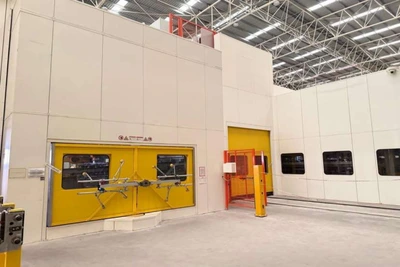

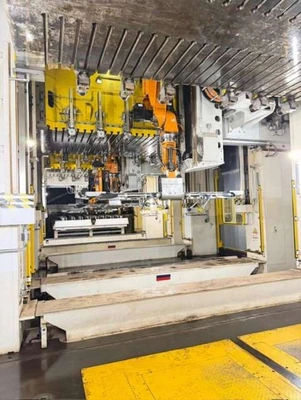

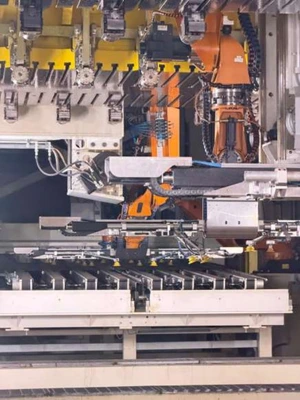

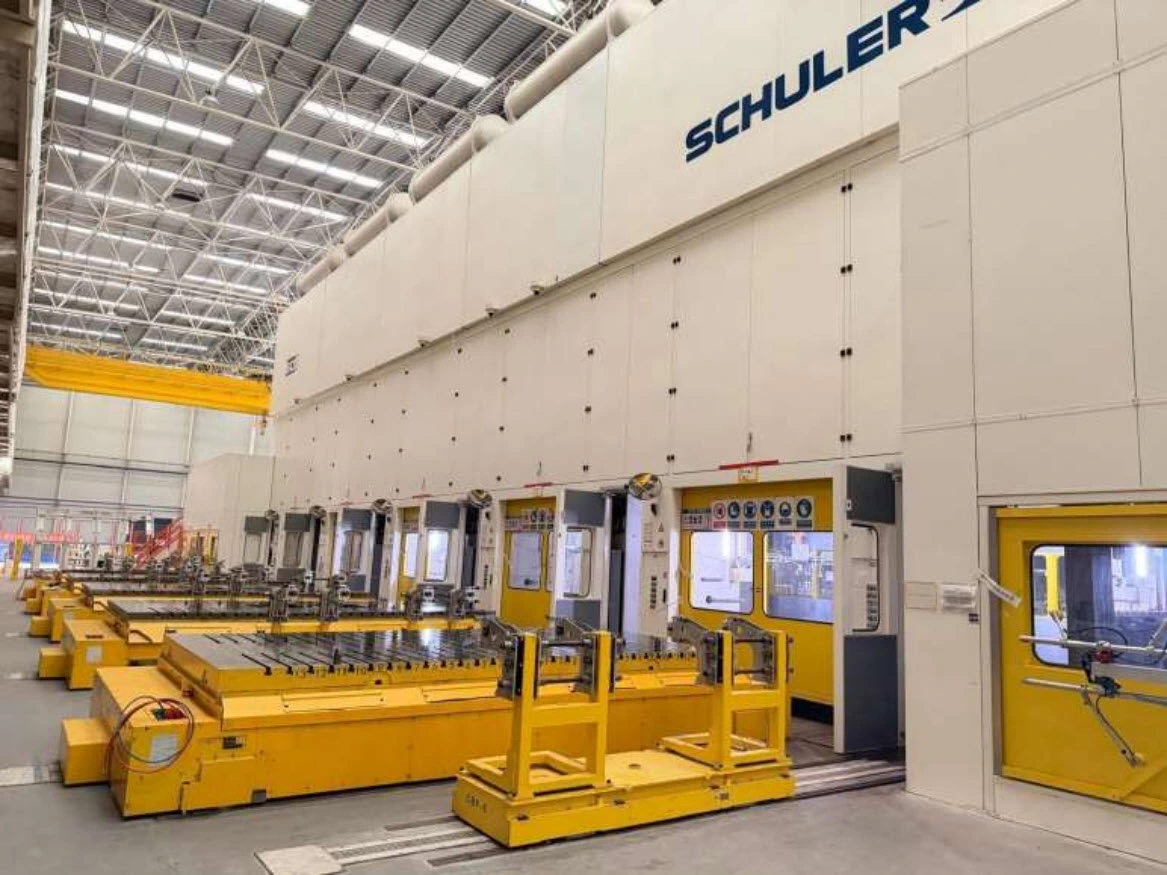

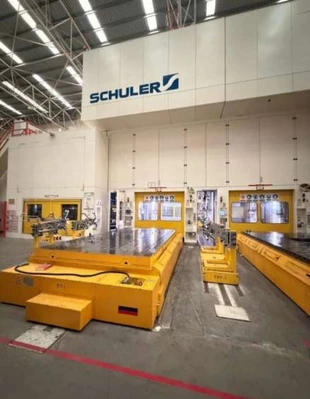

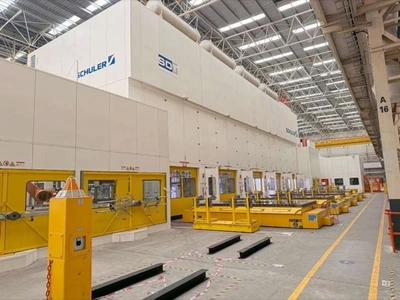

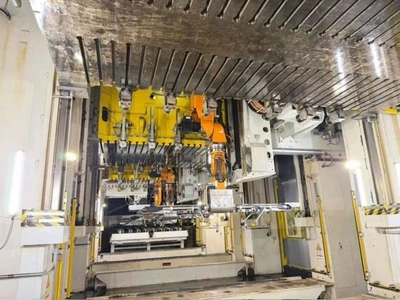

USED 2014 SCHULER SCHULER SSL4-2500-5.0X2.5-1300 / SSL4-1200-5.0X2.5-1300 PRESS
Overview

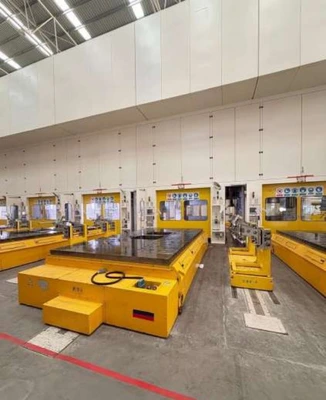

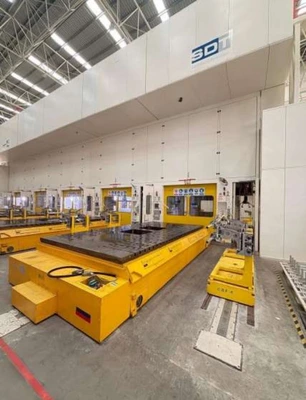

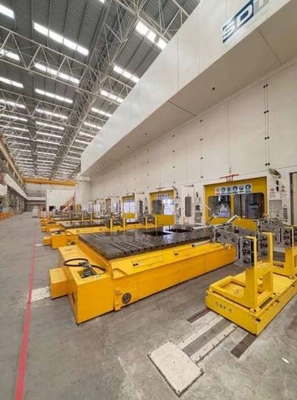

196" x 98" Bed, 51" Stroke, 3-17 SPM, Equipped with 550 Ton Hydraulic Cushion & Rolling Bolsters
Specs

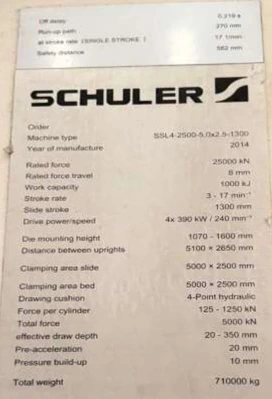

PRESS 1: 2,755 TON SCHULER PRESS MODEL: SSL4-2500-5.0X2.5-1300
CAPACITY: 2,755 TONS / 25,000 KN
STROKE: 51.18" / 1300 MM
DIE MOUNTING HEIGHT (SDAU): 42.13" TO 63" / 1070 MM TO 1600 MM
BED AREA: 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM
SLIDE AREA: 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM
DISTANCE BETWEEN UPRIGHTS: 200.79" X 104.33" (RL X FB) / 5100 X 2650 MM
SPEEDS: 3 - 17 SPM
CUSHION CAPACITY: 550 TONS / 5000 KN
CUSHION STROKE: .79" TO 13.78" / 20 - 350 MM
MAIN ELECTRIC MOTORS: (4) 523 HP MOTORS / 390 KW

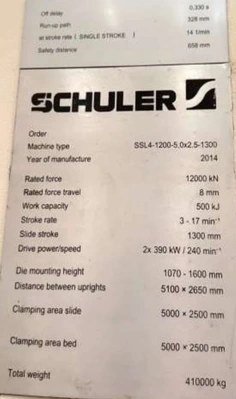

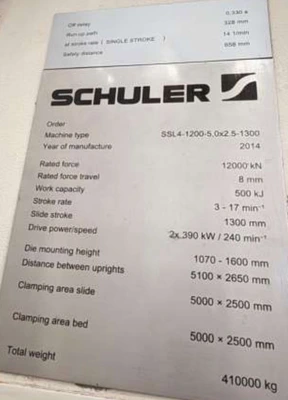

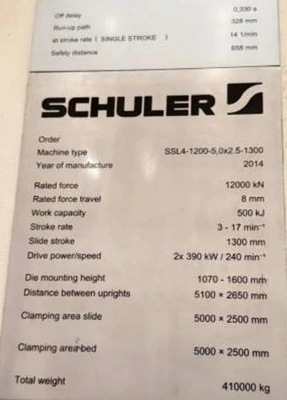

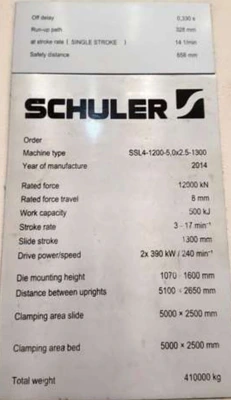

PRESSES 2, 3, 4, 5: 1,323 TON SCHULER PRESS MODEL SSL4-1200-5.0x2.5-1300
CAPACITY: 1,323 TONS / 12,000 KN
STROKE: 51.18" / 1300 MM
DIE MOUNTING HEIGHT (SDAU): 42.13" TO 63" / 1070 TO 1600 MM
BED AREA: 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM
RAM / SLIDE AREA: 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM
DISTANCE BETWEEN UPRIGHTS: 200.79" X 104.33" (RL X FB) / 5100 X 2650 MM
SPEEDS: 3-17 SPM
MAIN ELECTRIC MOTORS: (2) 523 HP MOTORS / 390 KW
Note: fully programmable stroke profiles. The 2755-ton lead press includes a 4-point hydraulic cushion, ideal for large automotive or appliance panels.
Location: This Used Press is Located in Our **On Location**
Equipped With

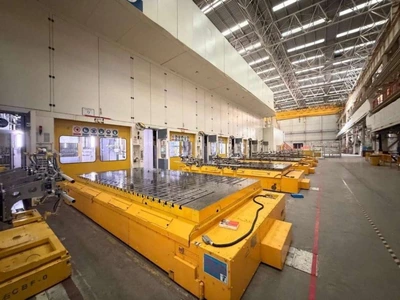

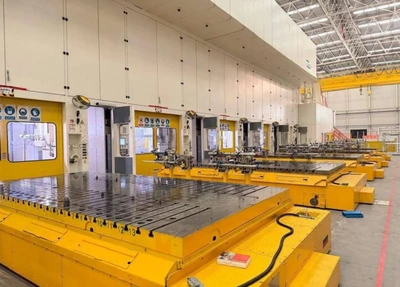

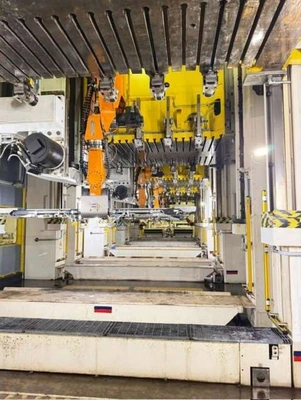

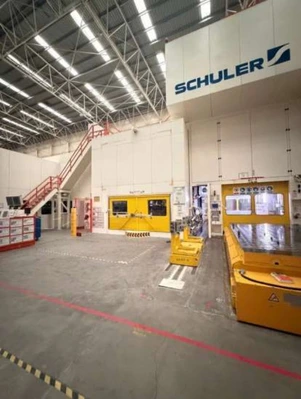

Schuler "ServoDirect" Technology: Fully programmable slide curves (Pendulum mode, Link motion simulation, etc.) for optimized forming speeds, 4-Point Hydraulic Drawing Cushion, Rolling Bolster System, Hydraulic Overload Protection, Automatic Ram Adjustment & Clamping, Automatic Counterbalance System
