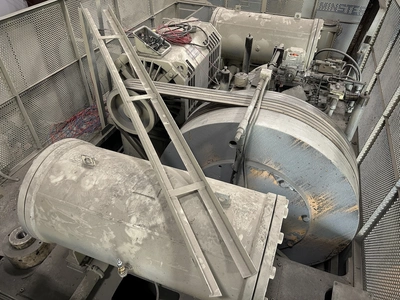

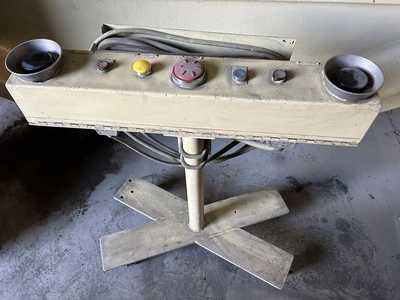

Used 1985 AIDA PRESSES AIDA PMX(1)-L2-300H(1) PRESS Straight Side Presses | Alma Machinery #898812
Used

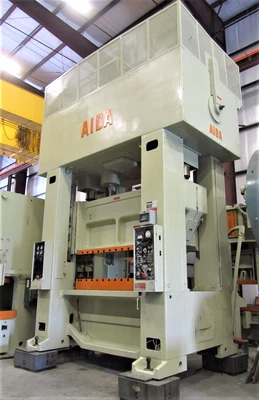

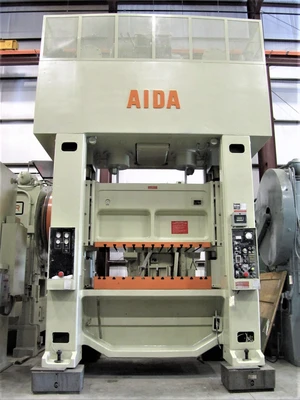

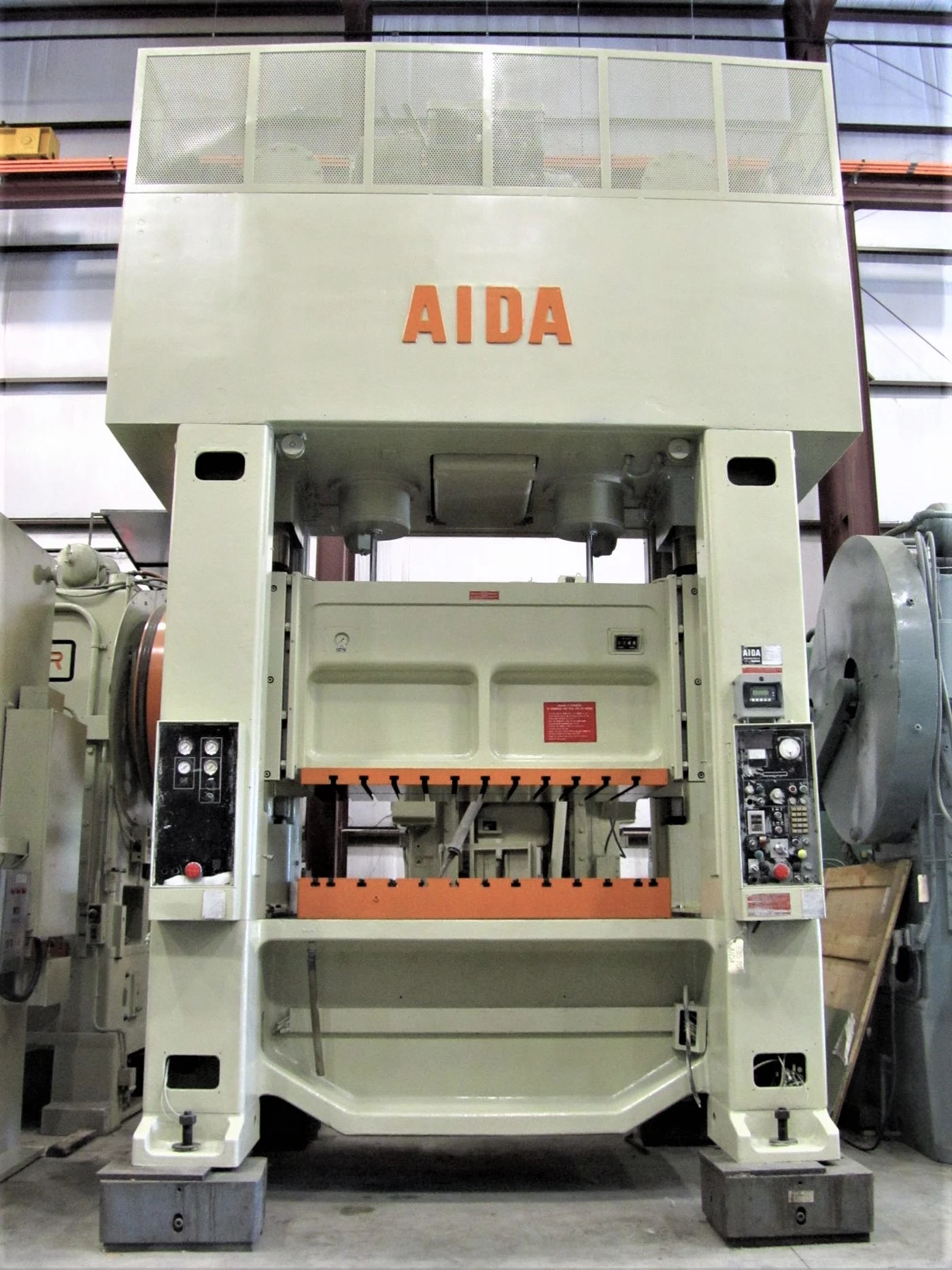

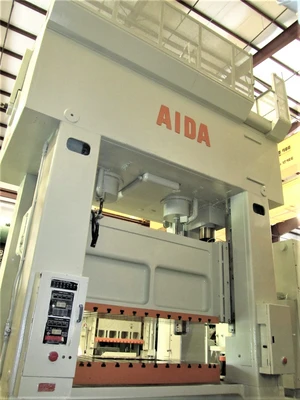

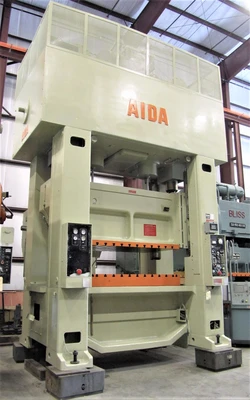

USED 1985 AIDA PRESSES AIDA PMX(1)-L2-300H(1) PRESS

Asking Price
USD $149,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Alma Machinery
1,177Listings|6Followers
View seller profile
Overview
Straight Side Presses
AIDAAIDA PMX(1)-L2-300H(1) PRESS1985

12" Stroke, 31" Shut Height, 73"X43" Bed, 30-90 SPM, RAM REWORKED ONLY

Specs
Dimensions
234" H X 162" RL X 104" fb (WITH ISOLATION PADS)
Weight
130,000 LBS

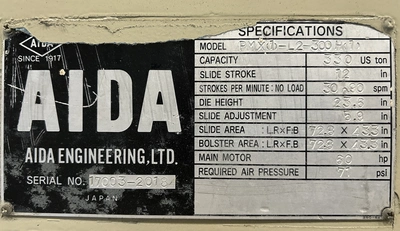

CAPACITY: 330 TON US TONS
STROKE: 12"
MAX. SHUT HEIGHT TO BED: 31.4" SDAU (23.6" OVER BOLSTER)

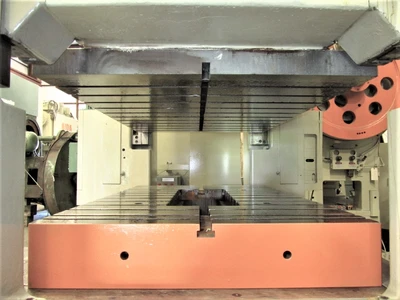

BED AREA: 72.8" X 43.3" (RL X FB) 86" X 58" OVERALL
SPEED: 30 - 90 SPM
slide area: 72.8" RL X 36" FB (W/8 PT. GIBBING)
slide adjustment: 5.9" MOTORIZED

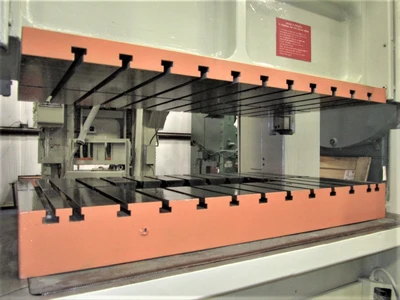

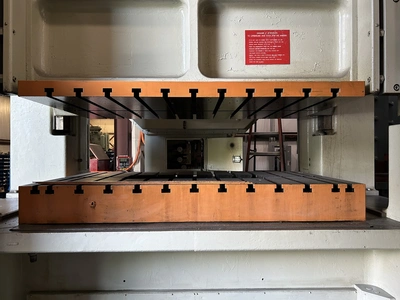

BOLSTER SIZE: 7.8" X 72.8" RL X 43.3" FB (T-SLOTTED)
DIST. UPRIGHTS / FLOOR TO BED: 86" / 54" (WITH ISOLATION PADS)
WINDOW SIZE: 36" WIDE

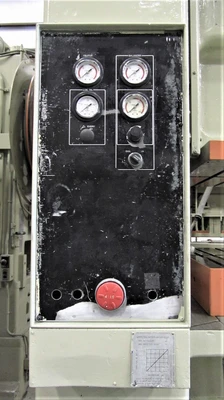

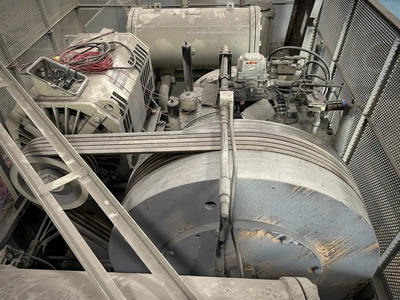

CLUTCH: AIDA AIR CLUTCH & BRAKE

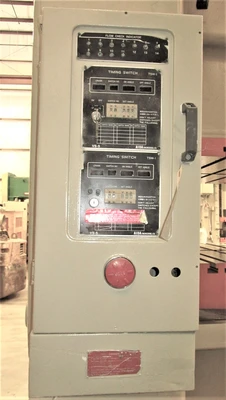

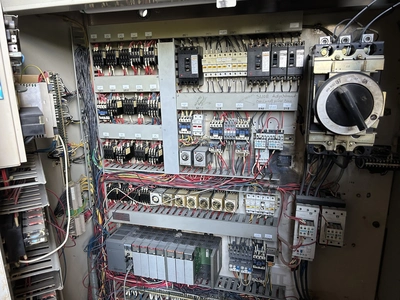

ELECTRICS: 60 HP 1750 RPM 575V-3-60 MOTOR & CONTROLS
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

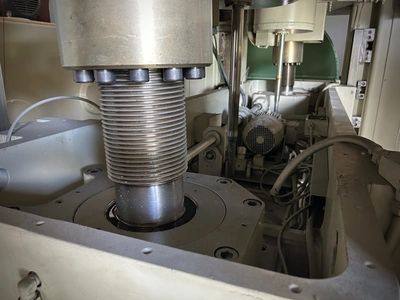

Blanchard ground bolster, rebuilt HYDRAULIC OVERLOADS, REBUILT SLIDE, progressive link motion drive, ball type suspension points, forged eccentric shafts, dynamic balancing of slide & upper die, wide connection spacing, very low deflection tie rod frame, 8-point gibbing
