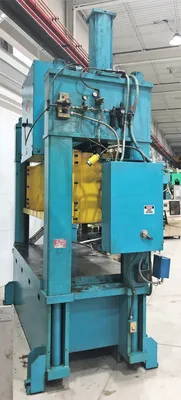

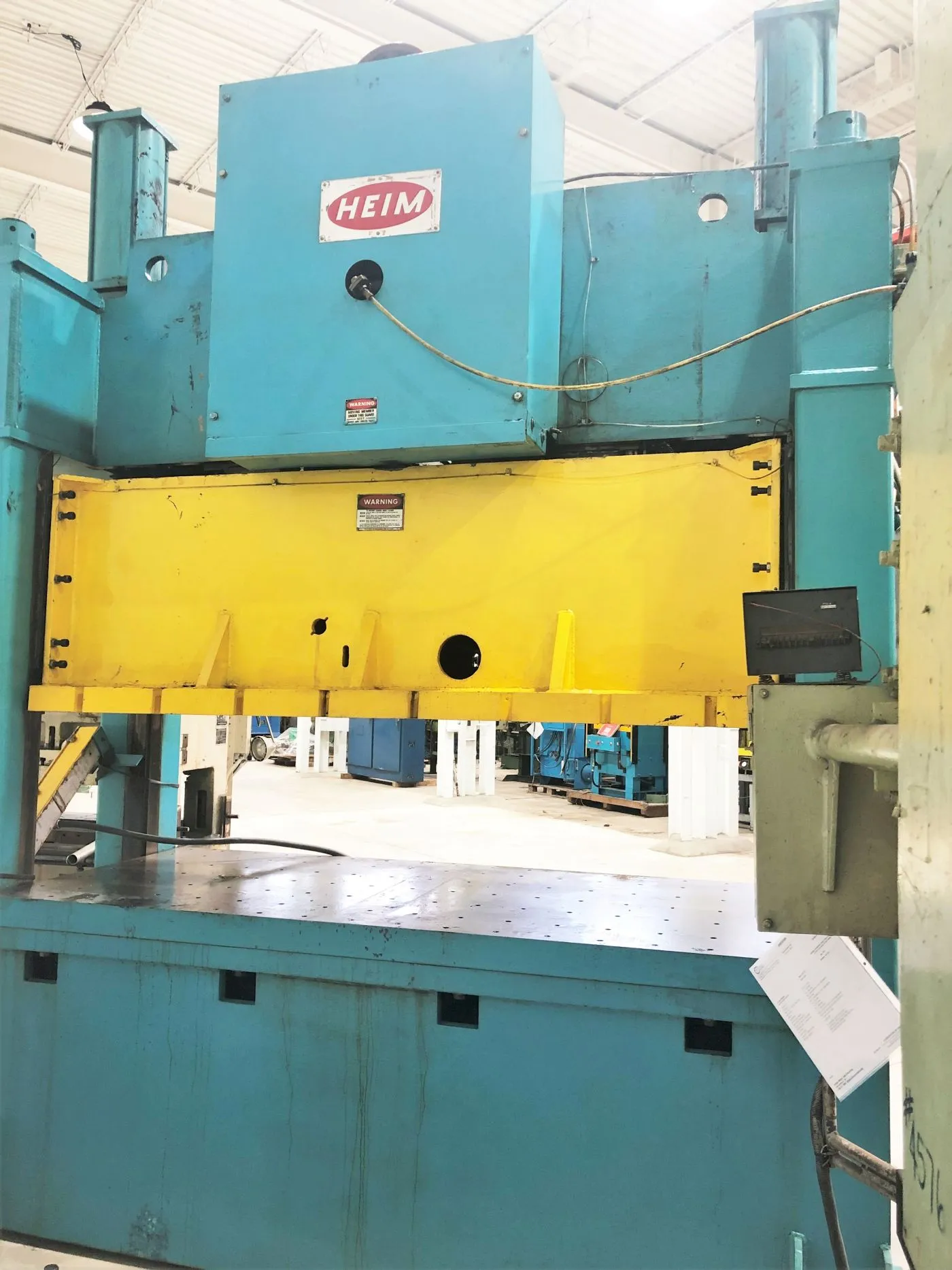

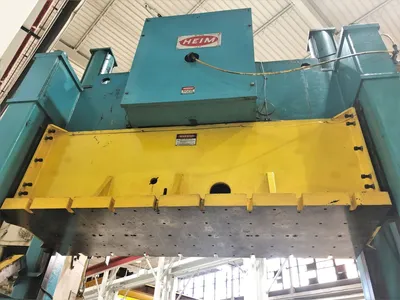

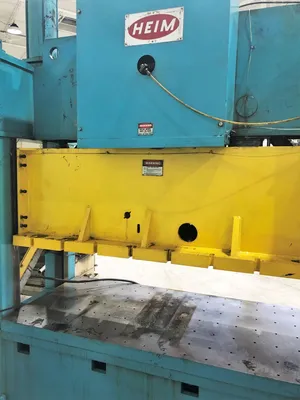

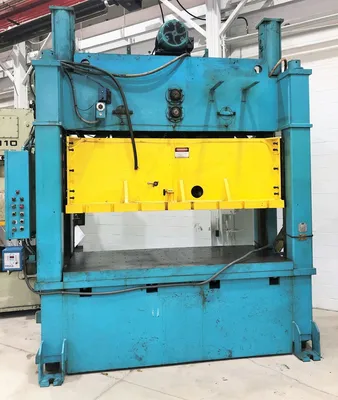

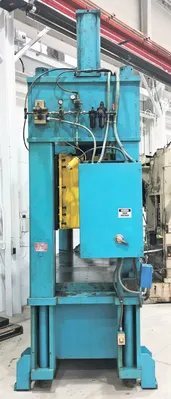

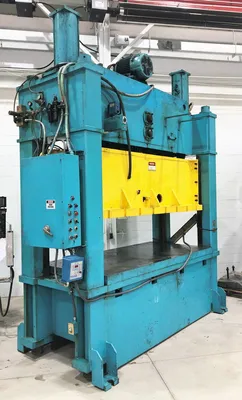

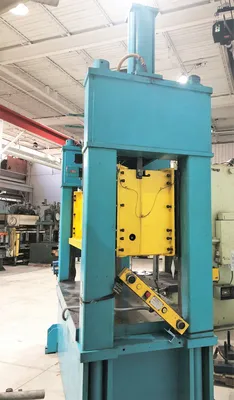

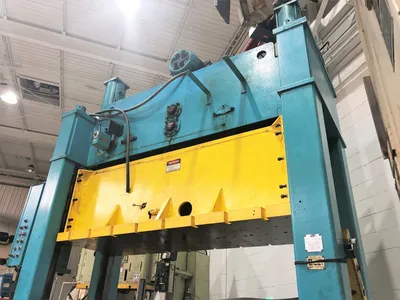

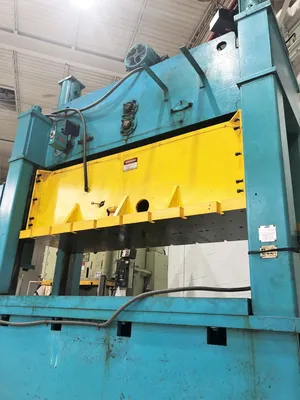

USED 1980 HEIM HEIM S300-48X102 PRESS

USED 1980 HEIM HEIM S300-48X102 PRESS

USD $49,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details

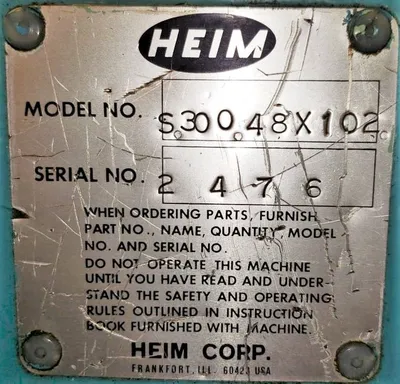

  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
HEIM
Model:
HEIM S300-48X102 PRESS
Year:
1980
Stock #:
5530
Description

8" Str, 20" Shut Height, 102" x 48" Bed, 3.75" Bolster, 28 SPM, Nice Triad Controls, Runs Smooth (1980)

Specifications
Dimensions143" X 60" (RL X FB) X 166" HIGH143" X 60" (RL X FB) X 166" HIGH
Weightapprox. 40,000 lbs.approx. 40,000 lbs.

capacity: 300 TONS
stroke: 8"
max. shut height to bed: 19.5" SDAU
bed area: 102" X 48" (RL X FB)
bolster size: 101" X 48" (RL X FB) X 3.75" THICK SOLID BOLSTER PLATE
ram area: 101" X 36" (RL X FB)
ram adjustment: 6"
speed: 28 SPM
window size: 26" x 27" (WIDTH X HEIGHT)
FLOOR TO BED: 39"
clutch: AIR CLUTCH AND BRAKE

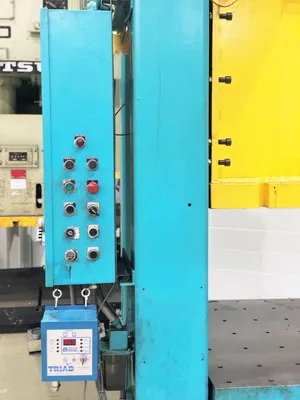

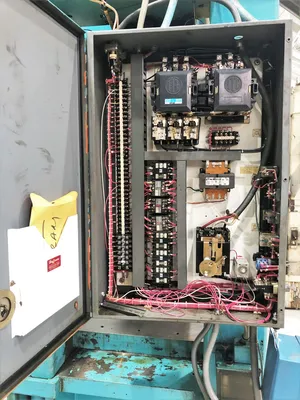

CONTROLS: UPDATED TRIAD CONTROLS
electrics: APPROX. 30 HP 1750 rpm 480v-3-60 MOTOR
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

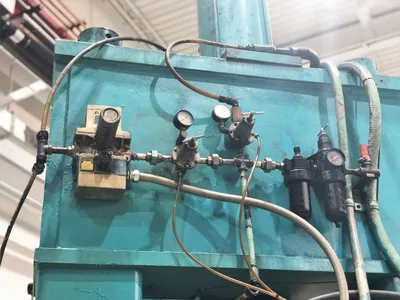

dual air counterbalances, floor standing, tie rod frame construction, single back geared
