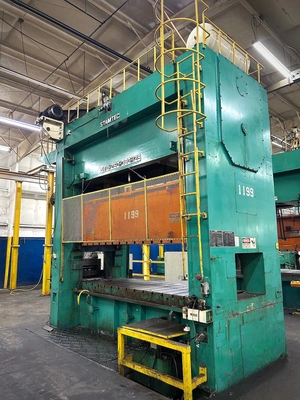

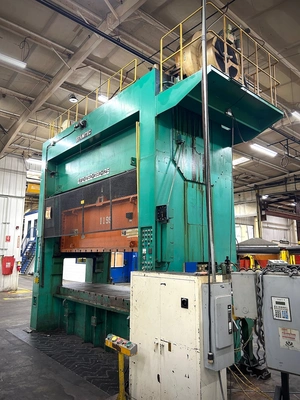

USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

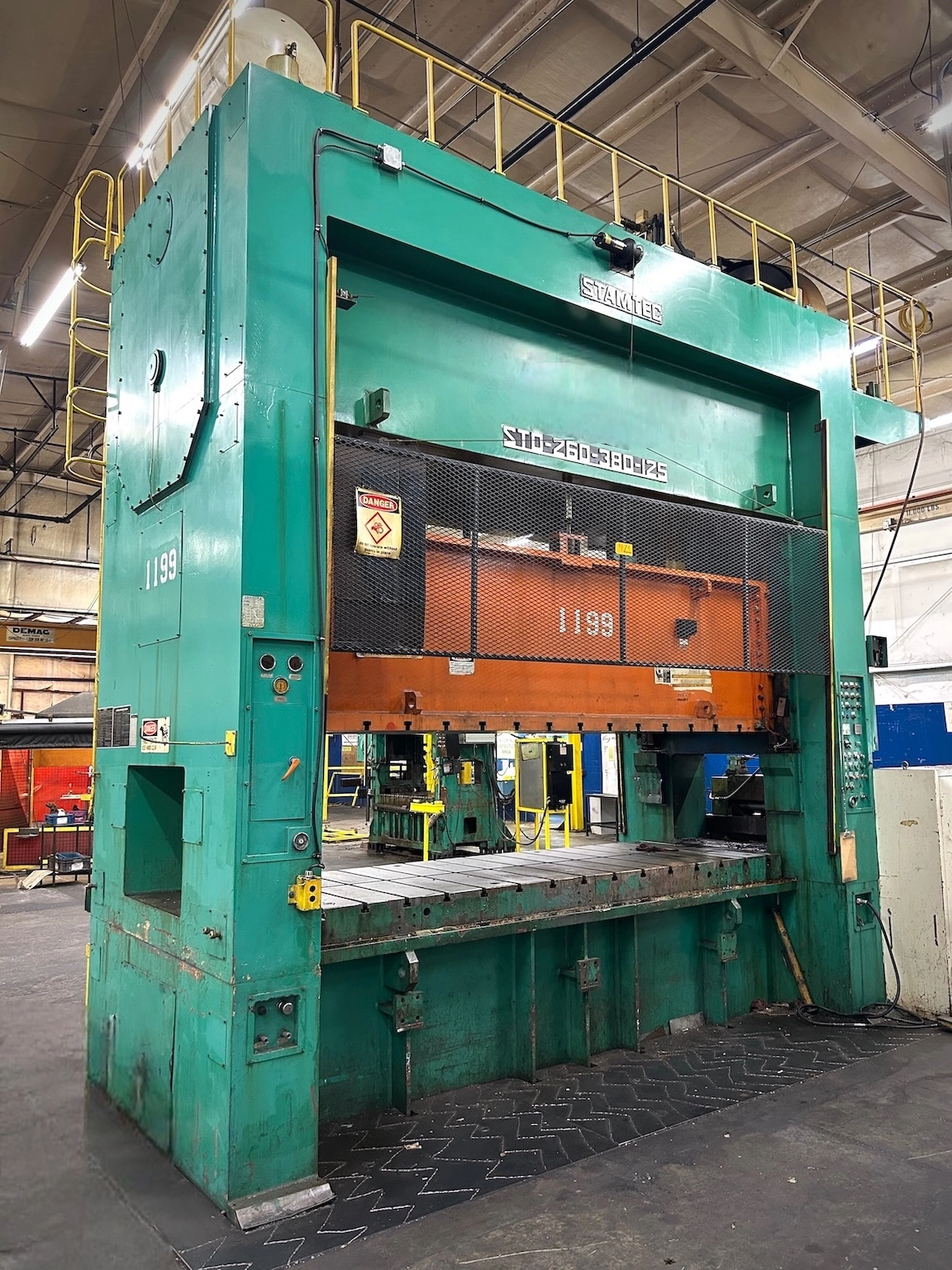

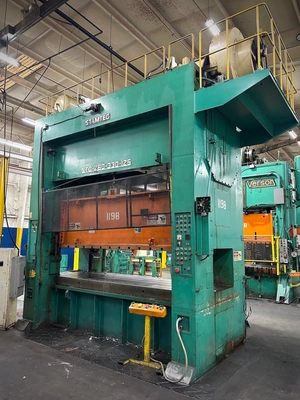

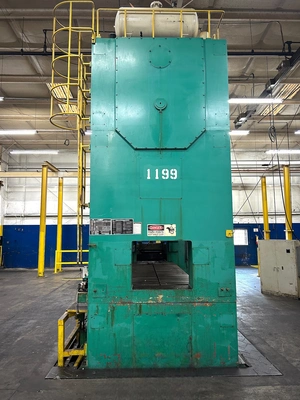

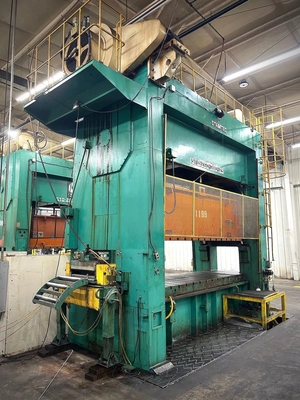

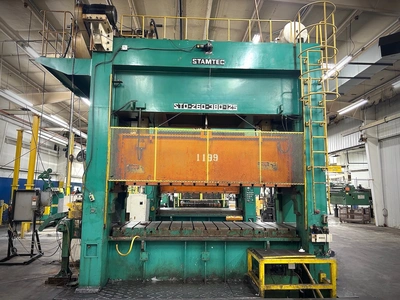

USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS
  • USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS

USED 1994 STAMTEC STAMTEC STD-260-330-125 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
STAMTEC
Model:
STAMTEC STD-260-330-125 PRESS
Year:
1994
Stock #:
8318
Description

7.9" Stroke, 25.6" Shut Height, 129.9" x 49.2" Bed Area, 25 Stroke per Minute

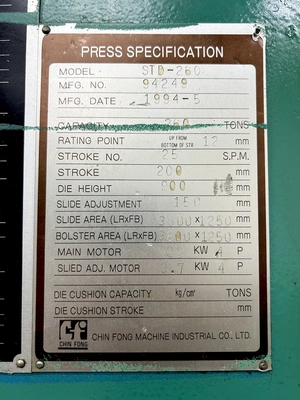

Specifications
Dimensions210" h x 218" rl (incl platform) x 112" fb (incl ladder)210" h x 218" rl (incl platform) x 112" fb (incl ladder)
Weight93,000 lbs93,000 lbs

CAPACITY: 286 TONS
STROKE: 7.9"
max die height: 25.6" sdau over 7.1" bolster
SLIDE ADJUSTMENT: 5.9" motorized

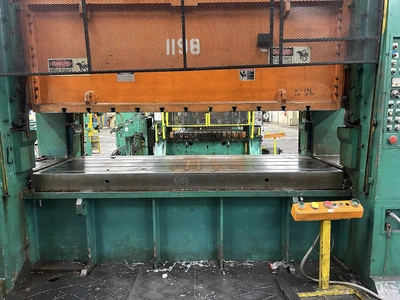

BED AREA: 129.9" X 49.2" (RL X FB)
SLIDE AREA: 124" X 49.2" (RL X FB) t-slotted

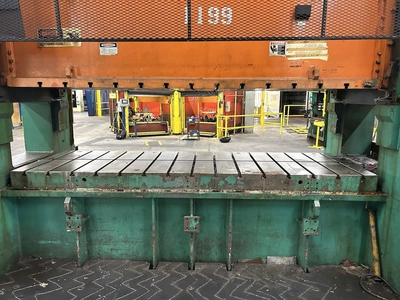

BOLSTER SIZE: 7.1" x 129.9" X 49.2" (th x RL X FB) t-slotted
SPEED: 25 SPM
WINDOW SIZE: 35.5" wIDE x 27.5" hIGH
FLOOR TO BED HEIGHT: 52.4" without pit
DISTANCE BETWEEN UPRIGHTS: 124"
CLUTCH: STAMTEC AIR CLUTCH & brake

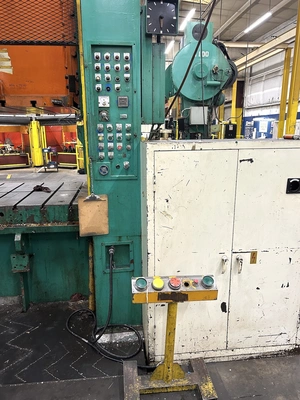

PRESS CONTROLS: currently stamtec relay press control. will replace with new cieco 1100r press control for reconditioned price.

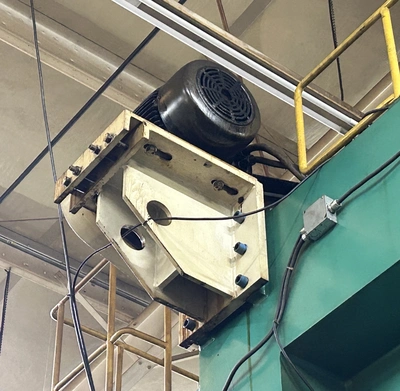

ELECTRIC MOTOR: 30 hp 1750 rpm 240/480v-3-60
Note: __
Location: This Used Press is Located in Our Columbia, TN Warehouse

Equipped With

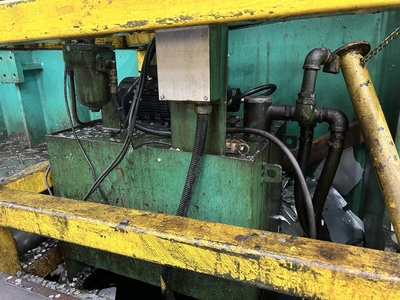

dual air counterbalances, recirculating lubrication system, tie rod frame construction, single back-geared design, hydraulic overload system, flywheel brake
